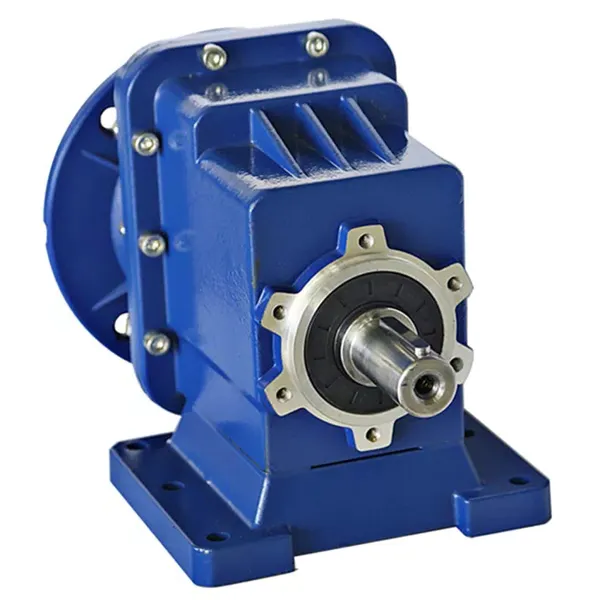

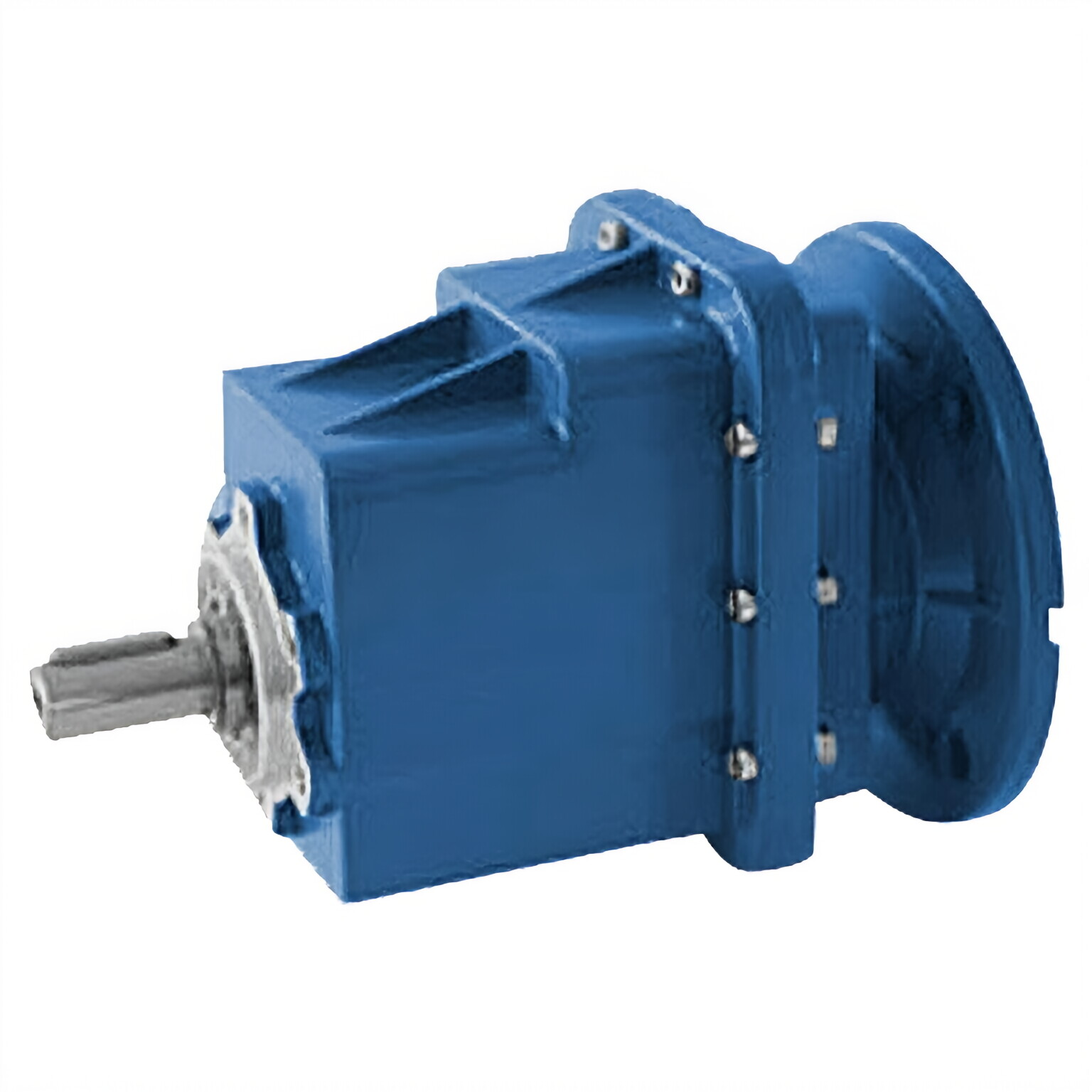

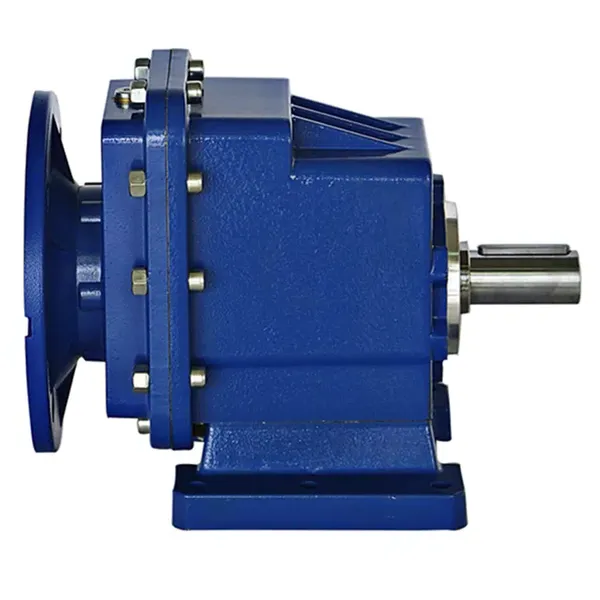

RC Series B14 Flange Mounted Inline Helical Gearbox (Helical Gear Reducer)

Helical Gearbox Manufacturer in China

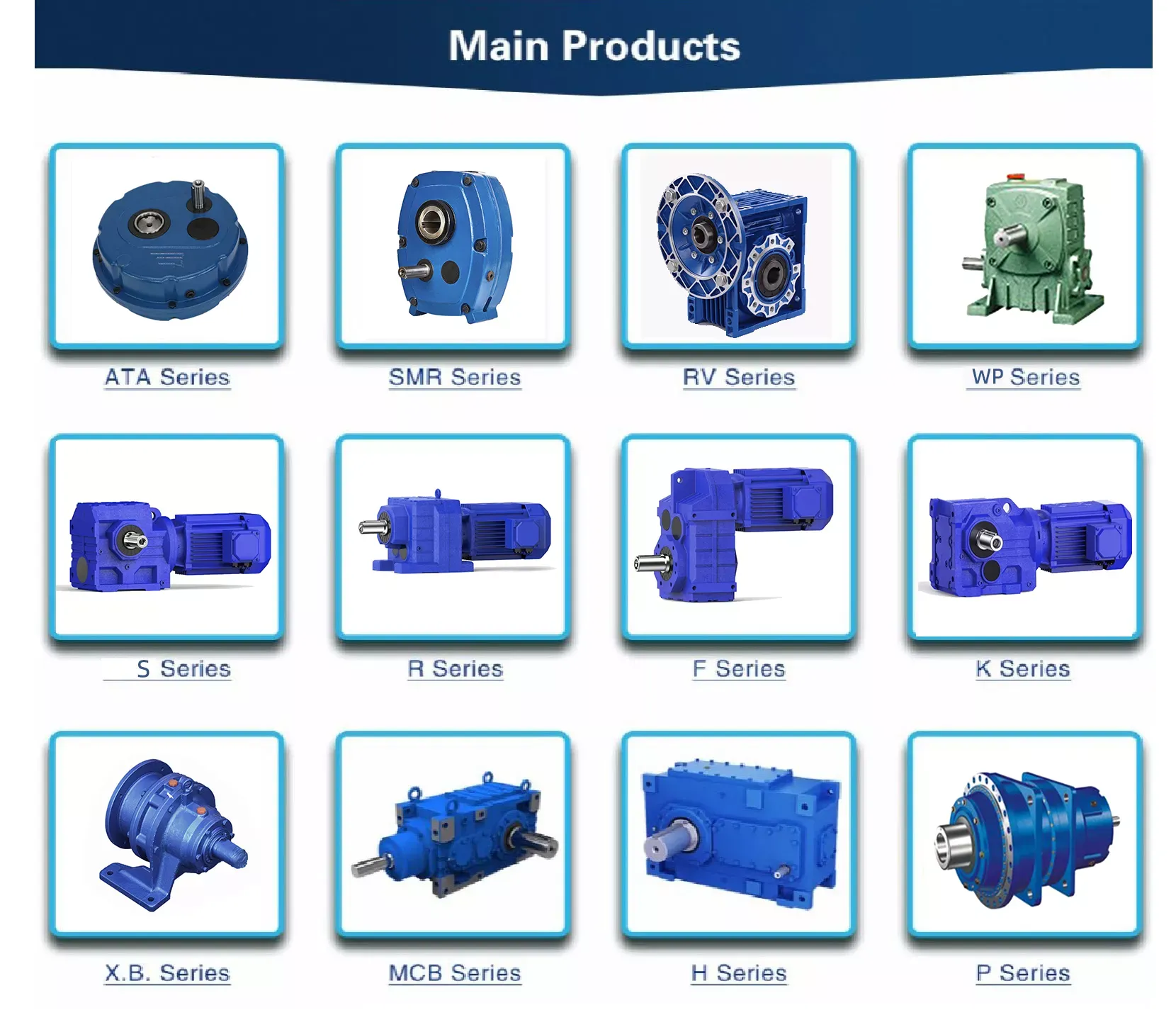

As one of the top helical gearbox manufacturers in china, Raydafon offers superior efficiency helical gearboxes widely used in applications where high shock load is required. The helical gearbox includes a set of helical gears. These helical gears are used as power transmitting gears, cylindrical gears, with the slanted form of tooth trace. These teeth are cut at an angle to the hole (axis), and the line of contact between the two teeth is inclined. This gradual engagement of teeth from one end of the tooth to the other makes the gears function smoothly without noise.In comparison with spur gears, helical gears have a higher contact level; because of their lower dynamics, they can carry larger loads. The helical gearbox is manufactured with high-quality material and excels in quietness as its noise and vibration levels are very low. We also produce RV series worm gearboxes, WP series worm gearboxes, X/B series cycloidal gearboxes, R/F/S/K series helical gearboxes, ATA series shaft-mounted gearboxes, SMR series shaft-mounted gearboxes, etc.We manufacture gearboxes and geared motors for mining, rolling mills, conveyors, crushers, cranes, thermal power plants, larger ball mills, mixers, agitators, plastic extruders, fin cooler drives, etc. Our products are widely used in applications like material handling, presses, elevators/escalator drive systems, feeders, small ball mills, cooling towers, filters, stirrer units, hoists, lapping tables, steel cooling beds, plastic machinery, goods & personnel lifts, machine tools, derrick & dockyard slewing drives; truck mounted mobile cranes, etc. dredging equipment, automotive, road making machinery, sugar crystallizers, wind turbines, medical equipment, robotics machinery, aviation equipment, packaging equipment, and mill drives.
