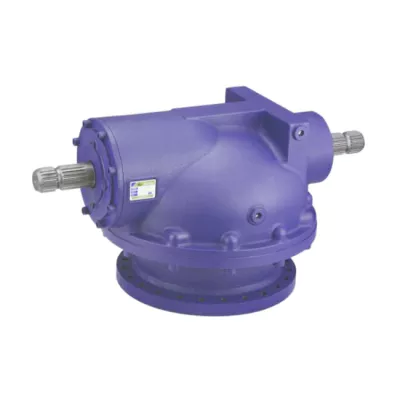

RDF-40002 Lawn Mower Gearbox

RDF-40002 Lawn Mower GearboxRaydafon specializes in the production of agricultural machinery gearboxes. Products have been exported to Venezuela, Australia, the USA, Sri Lanka, India, and other countries and regions. Gearbox body material is to use high-quality wear-resisting ductile cast iron, the forming of precoated sand casting, gear and shaft are made of high-quality low carbon alloy steel, after carburizing and quenching treatment, refined but become, therefore, high product quality, performance is good, flat embellish smooth appearance welcome by users.

40002 gearbox technical parameters:Power:24-40hp(18-30kw)Ratio:1.47:1,1.92:1(Increase gearbox)Input speed:540rpm or 1000rpmGears: Taper gearBearings: Deep Groove BallInput Shaft:1.375' round shaft with a10mm hole.Out shaft: taper root spline shaft(can with a hub)Oil Cap:27oz(0.8L)Weight:27KgWe can make the corresponding gearbox according to the customer's drawing or request, and also provide the label service.Welcome to  visit  our factory.

ITEM	40002 Lawn mower gearbox
Ratio	3.2:1/3.77:1/4.17:1
Teeth	15/48 13/49 12/50
Module	15/48 13/49 12/50
Power（HP）	85/85/85
Rated Input	540rpm
Input/Output description	1 3/4 Z6
Weight（N.W）	111Kg

▍Why choose us?

1) Customization: With a strong R&D team, we can develop products as required. It only takes up to 7 days for us to design a set of drawings. The production time for new products is usually 50 days or less.2) Quality: We have our own complete inspection and testing equipment, which can ensure the quality of the products.3) Capacity: Our annual production capacity is over 500,000 sets, also, we also accept small quantity orders, to meet the needs of different customer's purchase quantities.4) Service: We focus on offering high-quality products. Our products are in line with international standards and are mainly exported to Europe, Australia, and other countries and regions.5) Shipment: We are close to Ningbo and Shanghai ports, to provide the fastest shipping service.

▍We Also Supply PTO Shafts

Agricultural equipment includes a variety of PTO shafts. Each one is connected by yokes at each end and rotates between 540 and 1,000 rpm. A safety shield is commonly installed on both ends of a PTO shaft to protect the operator. These protective shields are also found in tractors and agricultural implements, and they ensure maximum efficiency. Added safety is also provided by the use of internal yokes.If you also need the PTO shafts, contact us to get more!

▍Other Agricultural Gearboxes

The agricultural gearbox is designed to change the output speed of a PTO drive shaft. It can be used as a decreasing or increasing ratio gearbox. With the decrease ratio gearbox, it reduces the PTO shaft's speed from 1000 rpm to 540 rpm, allowing you to use equipment designed for 540 rpm. On the other hand, an increasing ratio gearbox increases the speed of the PTO shaft from 540 rpm to 1000 rpm.

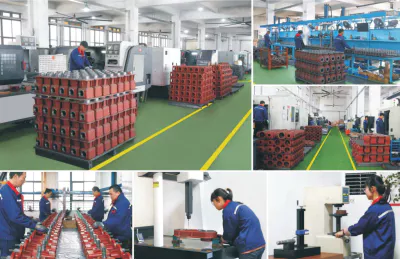

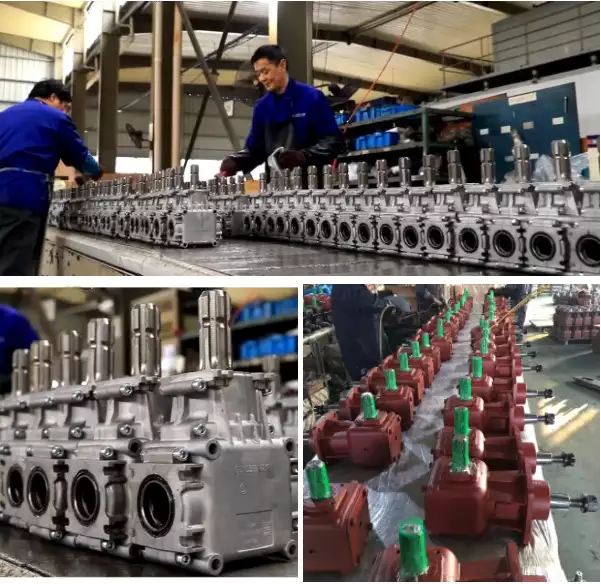

▍Agricultural Gearbox Production Workshop

Hzpt is a China company specializing in the development and production of various gearboxes. Its products are exported to the United States, Canada, Taiwan, northern Europe, and other places. Hzpt has set up a high-performance design department, testing laboratory, and testing center. Hzpt has established a strong professional technical team. Hzpt has passed ISO9001 certification. All employees of golden gear have established a strict quality control system based on their skills, integrity, and sense of responsibility. The golden gear always insists on providing customers with high-quality products and professional services.Hzpt provides agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Hengli machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our products are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market
