RDF-75 Rotary Tiller Cultivator Gearbox for Agricultural

RDF-75 Rotary Tiller Cultivator Gearbox for AgriculturalFarm gearbox Rotary Mower Tiller Cultivator Tractors Small Agricultural GearboxesThis series gearbox is mainly used on mowers (grass cutters). It has the characteristics of high universality, simple structure, and good performance.Advantage- The ISO9001 Quality System was examined & verified by the Third Party of CQC and passed second-degree safety quality standardization for the machinery manufacturing enterprise.- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques.- Strictly quality control by German CMM.- Various gearboxes are used in agricultural machines and industrial machines.- Advanced technics, strong self-development power, ability to produce new type gearbox according to customer's design drawings.

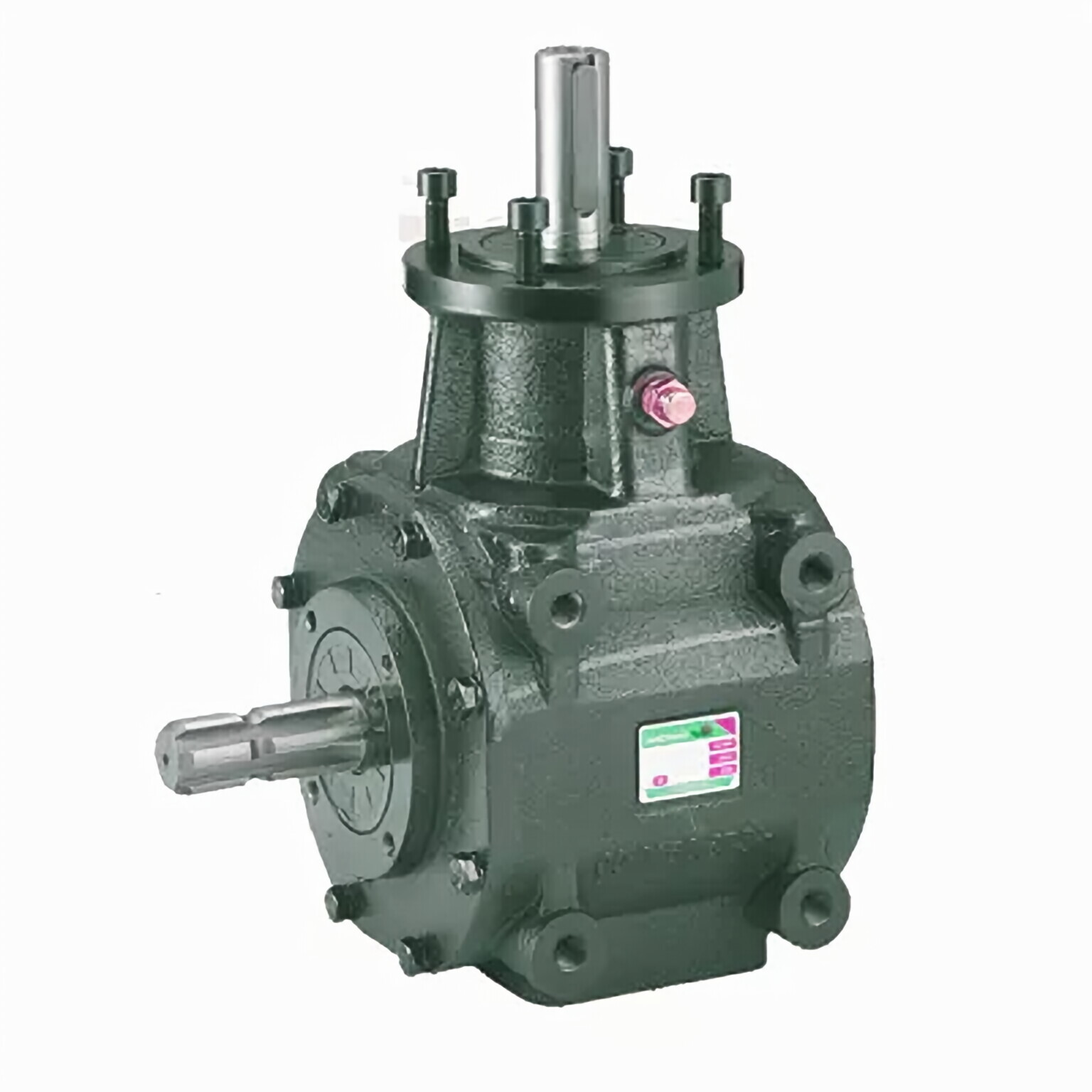

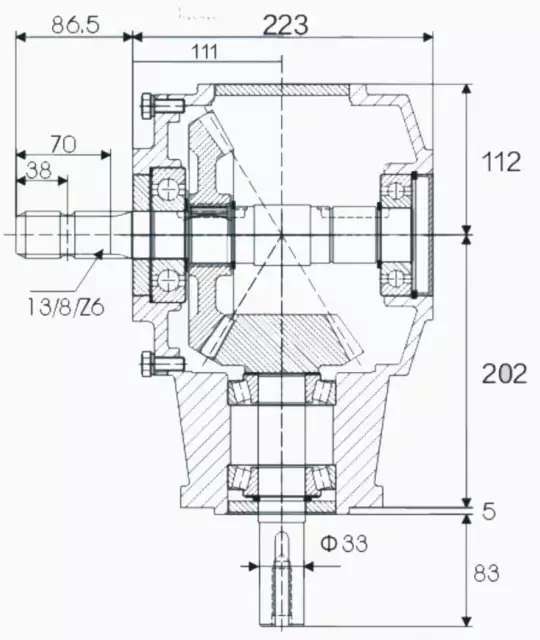

ITEM	HC-75
Ratio	1:3/1:2.83/1:1.65/1:1.6
Teeth	12/36 34/12 33/20 24/15
Module	6.0/5.35/5.5/7.5
Power(HP)	75/75/100/125
Rated Input	540rpm
Input/Output Description	3/8 Z6 Optic axis
Weight(N.W)	37KG

Raydafon is a professional agricultural gearbox manufacturer.It produces more than 1,000 kinds of products and supports OEM and ODM. Including lawn mower series, rotary tiller series, rice harvester series, grain transportation storage series, etc. Has exported to numerous countries like America, Australia, India, Poland, etc. We work with many well-known brands like John Deere, Bush Hog, etc. Our annual production is 300,000 units, and our turnover in 2021 is USD 28 million. The export ratio is 80%, and the domestic market is 20%.

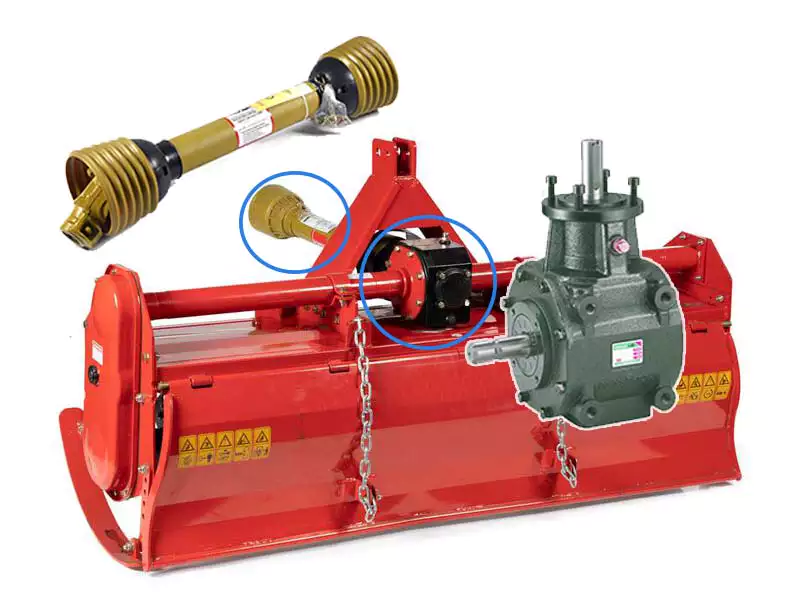

PTO Shafts for Agricultural Gearboxes

A PTO shaft is an integral part of an agriculture gearbox; failure to maintain it properly can severely damage the PTO mechanism. PTO shafts are crucial for maintaining the performance of the agricultural implementation, as they are responsible for connecting the transmission to the implementation. To avoid problems with vibration, a good PTO shaft should resist torsion and shear stress. We offer a variety of durable PTO shafts to meet all your requirements. Contact us now!

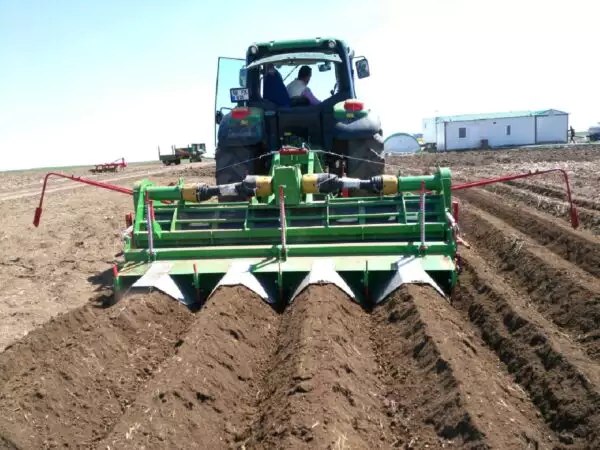

Introduction of Rotary Tiller

The blades of the rotary tiller are attached to the rotor, which is bolted directly to a single horizontal power shaft 8" to 12" above the soil surface. For row crop weeding, they are more expensive and require more maintenance than sweepers. They operate faster than sweeping in crusted soil, but slower under normal conditions. However, tillers are better suited for other tillage roles and can reduce field passage by adding residue, forming beds, and creating seedbeds in a single pass. Uses include band planting cover crops, preparing permanent planting beds, renovating strawberry plantings, and adding compost or soil-applied herbicides. Blade length limits how high the crop can safely pass under the solid drive shaft. The visibility of the work area is limited by the tool cover.Rotors must be selectively removed or adjusted for inter-row weeding - a minimum of two hours of work. In most cases, the drive shaft is powered by a chain drive. A manufacturer's multi-belt drive cushions sudden shocks. Features to check include multi-speed gearbox drive (slowest RPM to prevent soil structure damage), PTO slip clutch for chain drive models, and depth control mode. When working on rough soil, the front depth gauge wheels do not work as well as a side slip or a rear gravel/roller. An optional crop guard keeps soil from flowing in.

Other Agricultural Gearboxes

Agricultural Gearbox Production Workshop

Ningbo Raydafon Transmission Machinery Co., Ltd. was established in 2006. The company is located in Zhejiang Ningbo, with 90 employees, an area of 3800 meters, and an annual output value of 40 million yuan. The company is committed to the R & D, manufacturing, and personnel training of various gearboxes, reducers, and construction machinery, including spiral bevel gearbox, spur gearbox, worm gearbox, and cylindrical gearbox. It also includes a variety of high-pressure cast valve body and shell products. Its products are used in various applications, such as agricultural mowers, snow sweepers, fertilizer applicators, grain conveyors, industrial equipment, oil mining machinery, marine industrial equipment, and engineering hydraulic components. More than 95% of its products are exported to Europe, the United States, and Australia. Asia and Canada. The company has strong technology and R & D capabilities, produces reliable and high-quality products, pursues a unique business philosophy and enjoys a high reputation in the manufacturing industry. Welcome to contact us by phone or email.
