RDF-MALP-O12 Series Rotating Drive Piston Pumps Lubrication Pump for KVERNELAND 6350 Round BALER Replacement of BEKA 10138503/AZU

Advantages of RDF-MALP-O1 chain oil lubrication system

The RDF-MALP-O1 chain thin oil lubrication system offers significant advantages for maintaining optimal performance in machinery. Its ample pressure oil supply ensures timely lubrication for a large number of widely distributed lubrication points. This effective distribution not only provides necessary lubrication but also helps manage friction heat generated during operation.Additionally, the system effectively removes mechanical impurities, such as metal abrasive particles, from the friction surfaces. As the oil circulates, it washes away these contaminants, promoting a cleaner operating environment. This comprehensive approach to lubrication enhances overall performance by reducing friction and wear, minimizing the consumption of wearing parts, and lowering power consumption. Ultimately, the RDF-MALP-O1 system contributes to extending the service life of equipment, making it an essential component for efficient machinery operation.

Technical data

Output rate	max. 0,06 cm³ per stroke and outlet
Regulation of Output	1 - 6 individual outlets7 - 12 outlets in pairs
Input speed	Max. 900 r.p.m. at 8.16:1
Operating pressure	max. 15bar
Suction height	max. 2000 mm
Lubricant	Oil
Viscosity range	25 - 1500² mm /s
Temperature range	Medium -30 - 70 °CAmbient -35 - 40 °C
No. of outlets	Max. 12
Outlet type	See order key
Sense of rotation	Optional
Drive	Rotating
Weight	1.5 kg
Varnish	Black（pump body and housing)

RDF-MALP-O1 chain oil lubrication system simple working principle

1. The MALP-O1 chain oil lubrication system is mainly composed of three parts: oil tank, brush and pump;2. When working, the pump shaft is driven to rotate by the equipment, and the internal pressure chamber of the pump completes the oil suction and oil discharge stroke;3. The lubricating oil is transported through the work of the pump.Application Cases

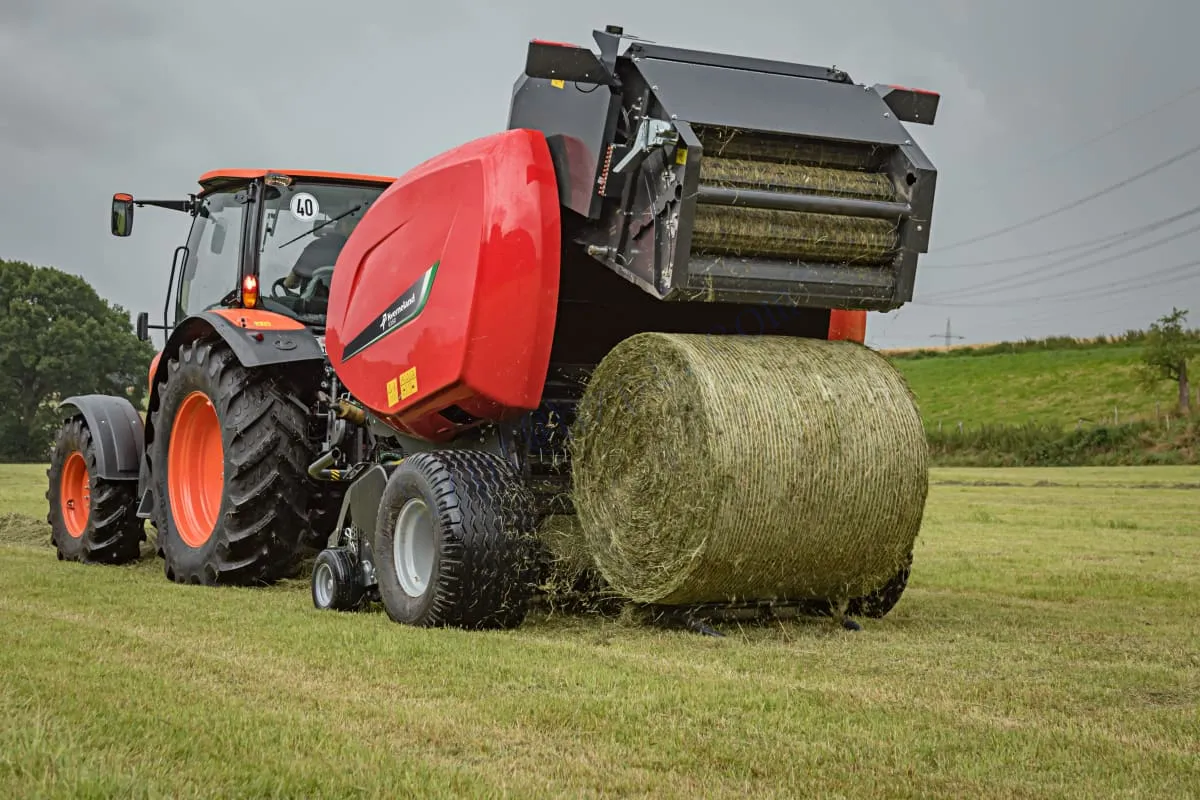

RDF-MALP-O12 Series Rotating Drive Piston Pumps Lubrication Pump for KVERNELAND 6350 Round BALER
