RDF-NMRV Worm Gearbox RDF-NRV Worm Gear Speed Reduction Unit

RDF-NMRV-RDF-NRV Gearbox Worm Gear Speed Reduction Unit 025, 030,040,050,063,075,090,110,130

An RDF-NMRV/RDF-NRV worm gearbox motor reducer offers a cost-effective solution and lightweight. The RDF-NMRV/RDF-NRV worm gear reducer is compatible with both NEMA and IEC motor flanges. The RDF-NMRV worm gear motor reducer offers low lifting speed and high torque while being available in a variety of models, including the RDF-NRV 90. These units combine the benefits of a worm gear motor reducer with the features of a worm gear screw jack.The most significant difference between the worm gear and a conventional gear set is the type of lubricant used in the worm. Worm gears require much more lubrication than conventional gearsets because they interact through sliding rather than rolling components. Worm gears are therefore more prone to sliding wear than other gear types. It is therefore important to choose the proper lubricant for your gear set.RV reducers RDF-NMRV worm gearboxes made of aluminum alloy are ideal for cold climates as they do not have EP complications. Polyalkylene glycols are suitable for low temperatures but may not be compatible with some seals or paints. Aluminum worm gearboxes come at competitive prices. They feature an easy-to-use backlash adjustment. In addition, the gearbox has a larger application field than other types of gearboxes.

Model & Mark of RDF-NMRV Gearbox

Mounting Positions of RDF-NMRV Gearbox

B3	B8	V5
B6	B7	V6

RDF-NMRV RDF-NRV Gearbox Design Chart

RDF-NMRV	RDF-NRV
F1	F2
AS

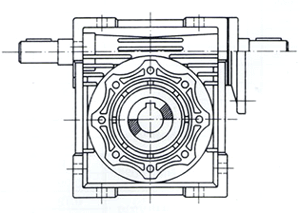

AB	VS

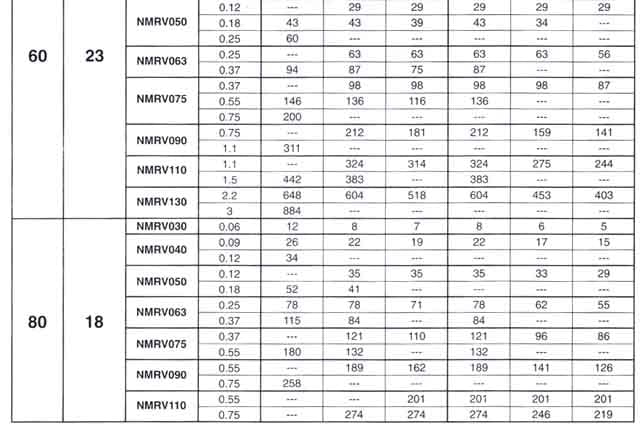

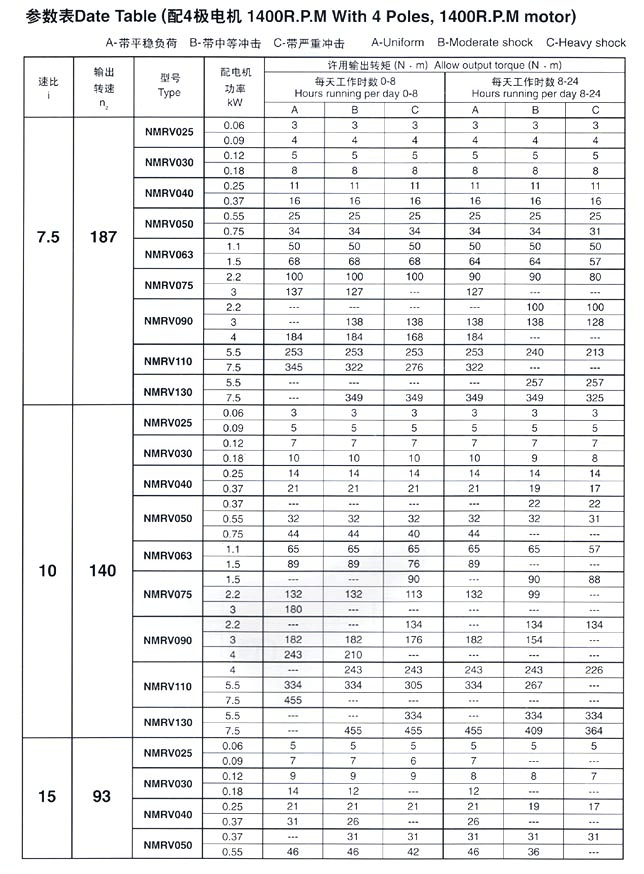

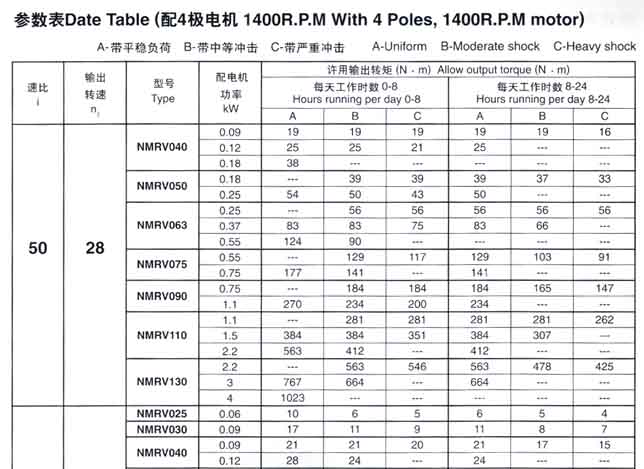

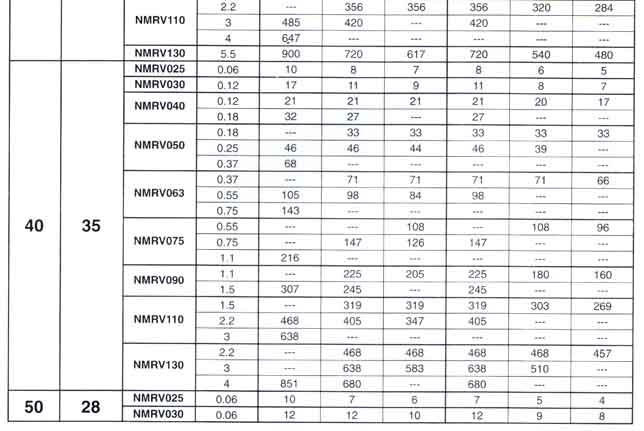

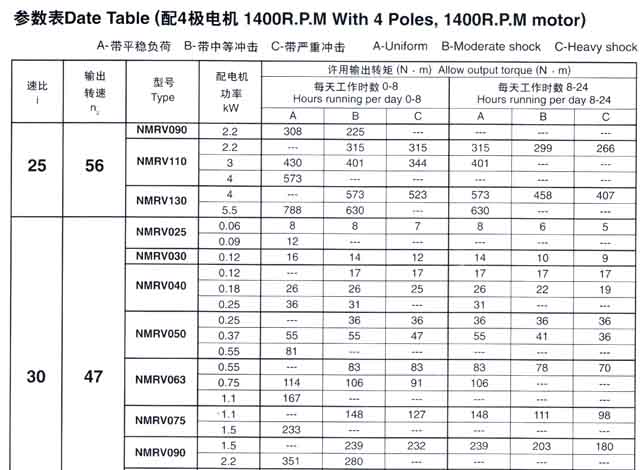

RDF-NMRV Gearbox Date Table

Size Chart & Dimensions of RDF-NMRV-RDF-NRV Gearbox

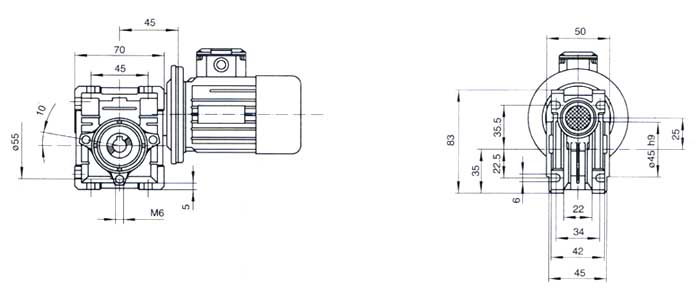

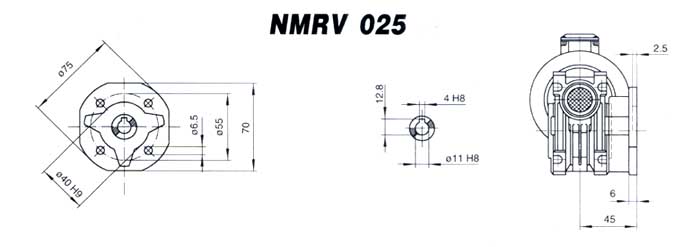

Size Chart of RDF-NMRV-RDF-NRV 025 Gearbox

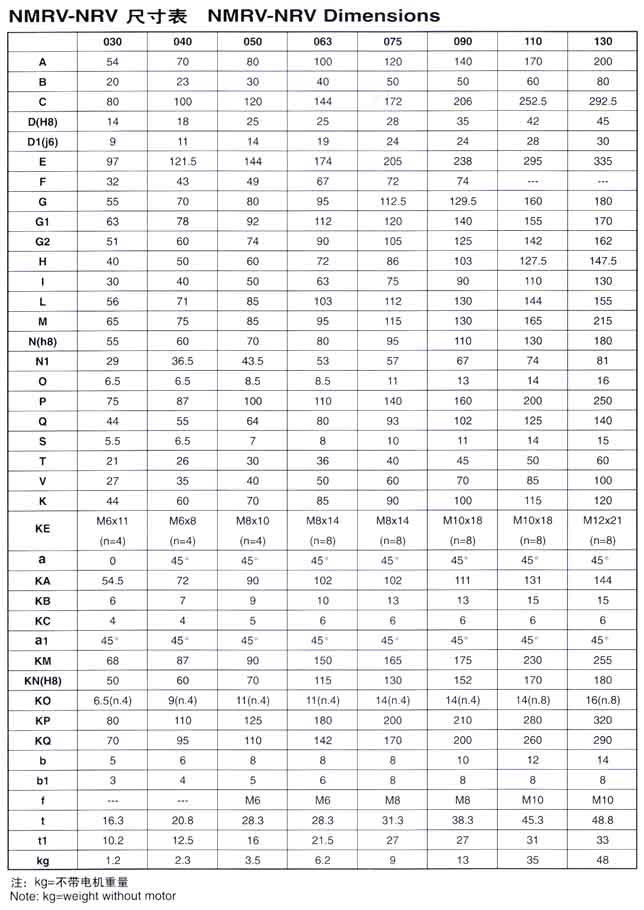

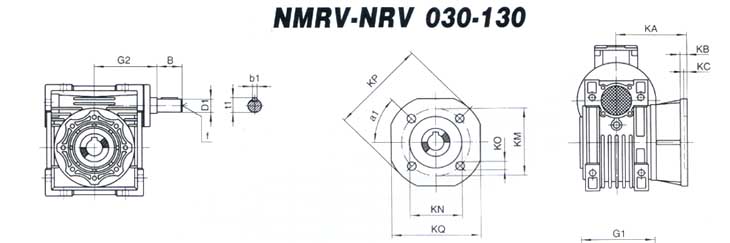

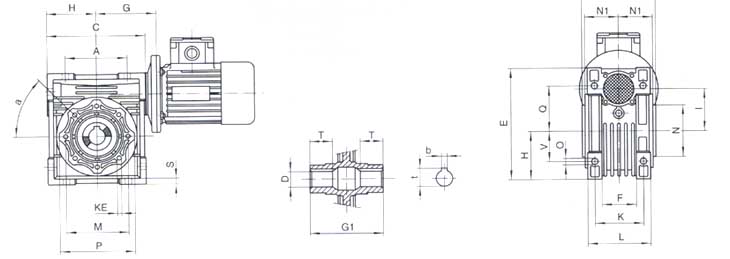

Dimensions of RDF-NMRV-RDF-NRV Gearbox 030-130

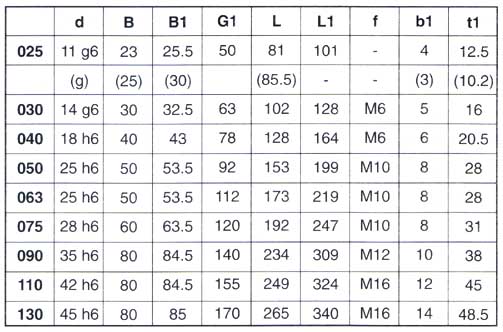

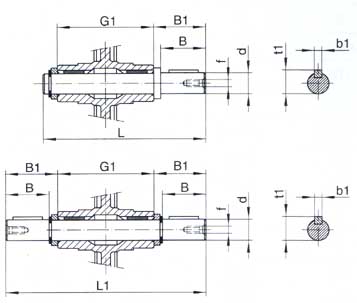

Single/double Extension Output Shaft for RDF-NMRV-RDF-NRV Gearbox

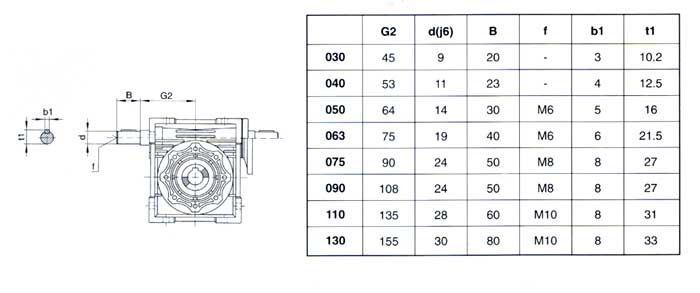

Size of Double Extension Worm Shaft for RDF-NMRV-RDF-NRV Gearbox

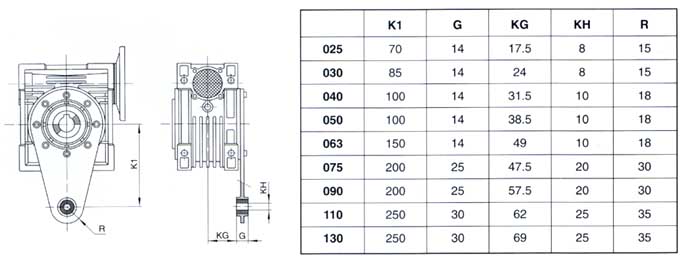

Sizes of Torque Arm

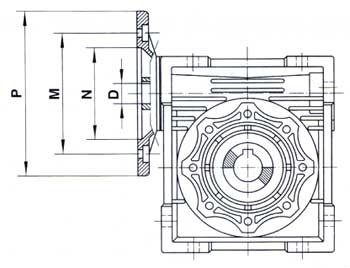

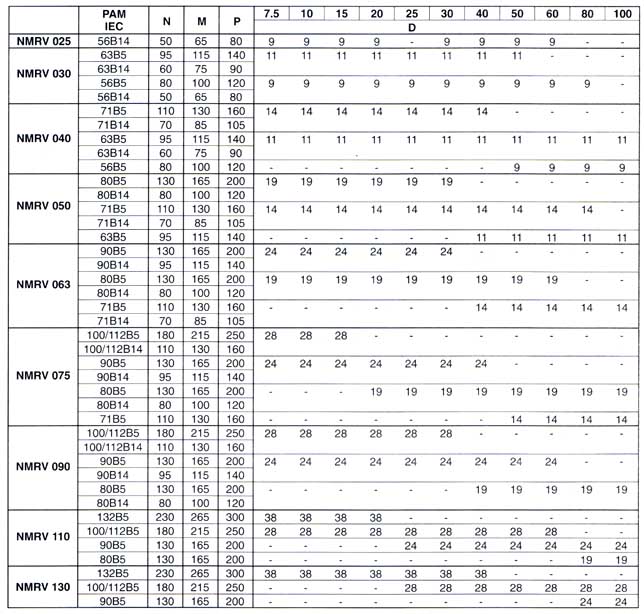

Sizes Input Flange & Hollow Input Shaft Diameter

Wholesale RDF-NRV Gearbox

In order to meet the requirements of various industries, Raydafon, one of the leading RDF-NRV gearbox manufacturers and factories in China, offers a wide range of high-quality, affordable and durable wholesale RDF-NRV gearboxes. These gear units are designed to reduce worm gears. RDF-NMRV gearbox suppliers have been serving the industry for decades. As a professional RDF-NRV gearbox manufacturer and factory, Raydafon focuses on the manufacturing of industrial gear units. In addition, our gearboxes have various features and specifications, making them ideal for different applications.The housing of the RDF-NRV gearbox is made of high-quality aluminum alloy for high-end strength and lightweight. The worm gear is made of 20CrMnTi or wearable stannum bronze alloy for high wear resistance. The sample policy of wholesale gearbox RDF-NMRV is dependent on the volume of order. We can provide the sample after receiving the order. Contact us now to get wholesale RDF-NRV gearbox quotes![video width="640" height="360" mp4="https://hzpt.com/wp-content/uploads/2021/05/nmrv-gear-box-details.mp4"][/video]
