Replacement of Bonfiglioli 316R Series Planetary Gearbox Reducer Replacement 316R3 316R4

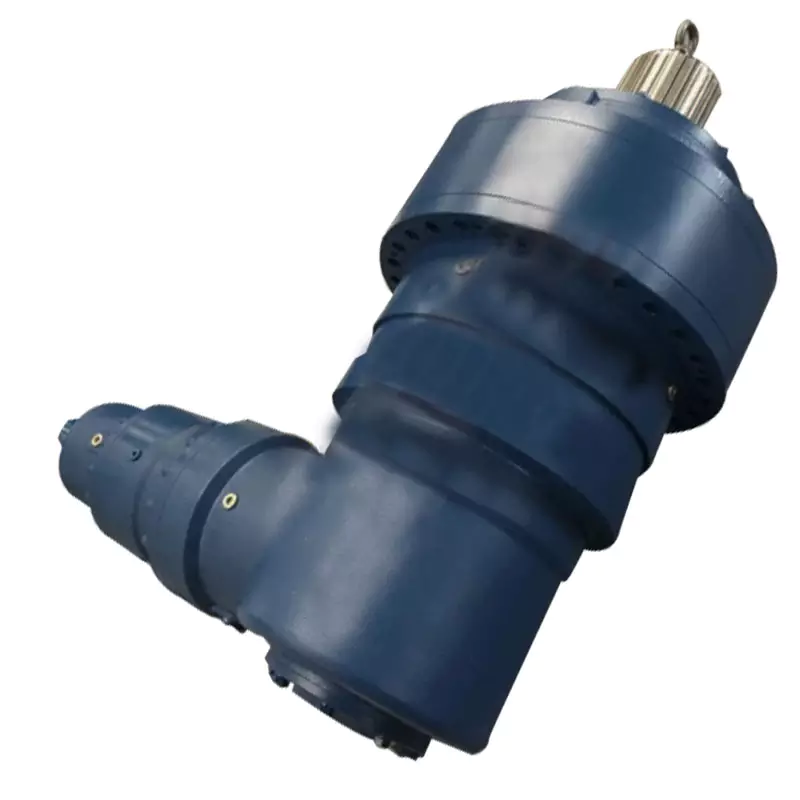

316R Series Planetary Gearbox

Characteristic1. Optimized design, module combination, right angle output, reduced space2. High strength and long service life gears3. Can be combined with various motors, with a wider range of transmission ratios4. High output torque, smooth starting, and high efficiency316R Series Planetary Gearbox is an efficient and high-performance mechanical transmission device with a wide range of applications, such as:Industrial machinery: 316R Series Planetary Gearbox can be used for industrial machinery, such as conveyor belts, mixers, mixers, vibrators, coil machines, etc.Automation equipment: 316R Series Planetary Gearbox can be used for automation equipment such as robots, automated production lines, automatic packaging machines, etc.Heavy machinery: 316R Series Planetary Gearbox can be used for heavy machinery such as cranes, excavators, rollers, cement mixer trucks, etc.Wind power equipment: 316R Series Planetary Gearbox can be used for wind power equipment, such as wind turbines and wind turbines.Marine engineering: 316R Series Planetary Gearbox can be used in marine engineering, such as offshore drilling platforms, offshore wind farms, etc.In summary, 316R Series Planetary Gearbox is widely used in various machinery and equipment that require efficient, precise, and reliable transmission.technical parameter

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B
