Right Angle Gear Drives Planetary Gearbox

Superior Performance

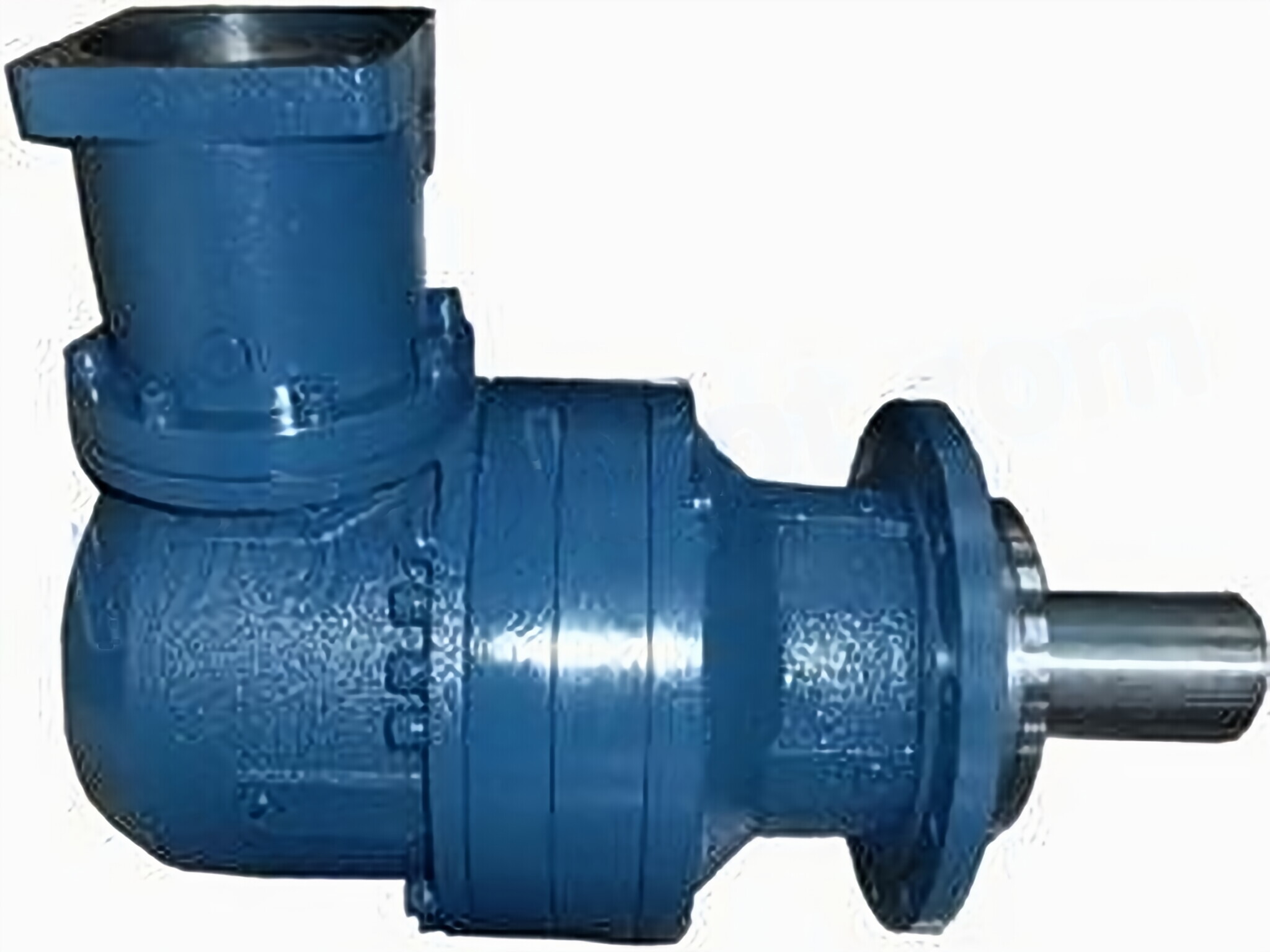

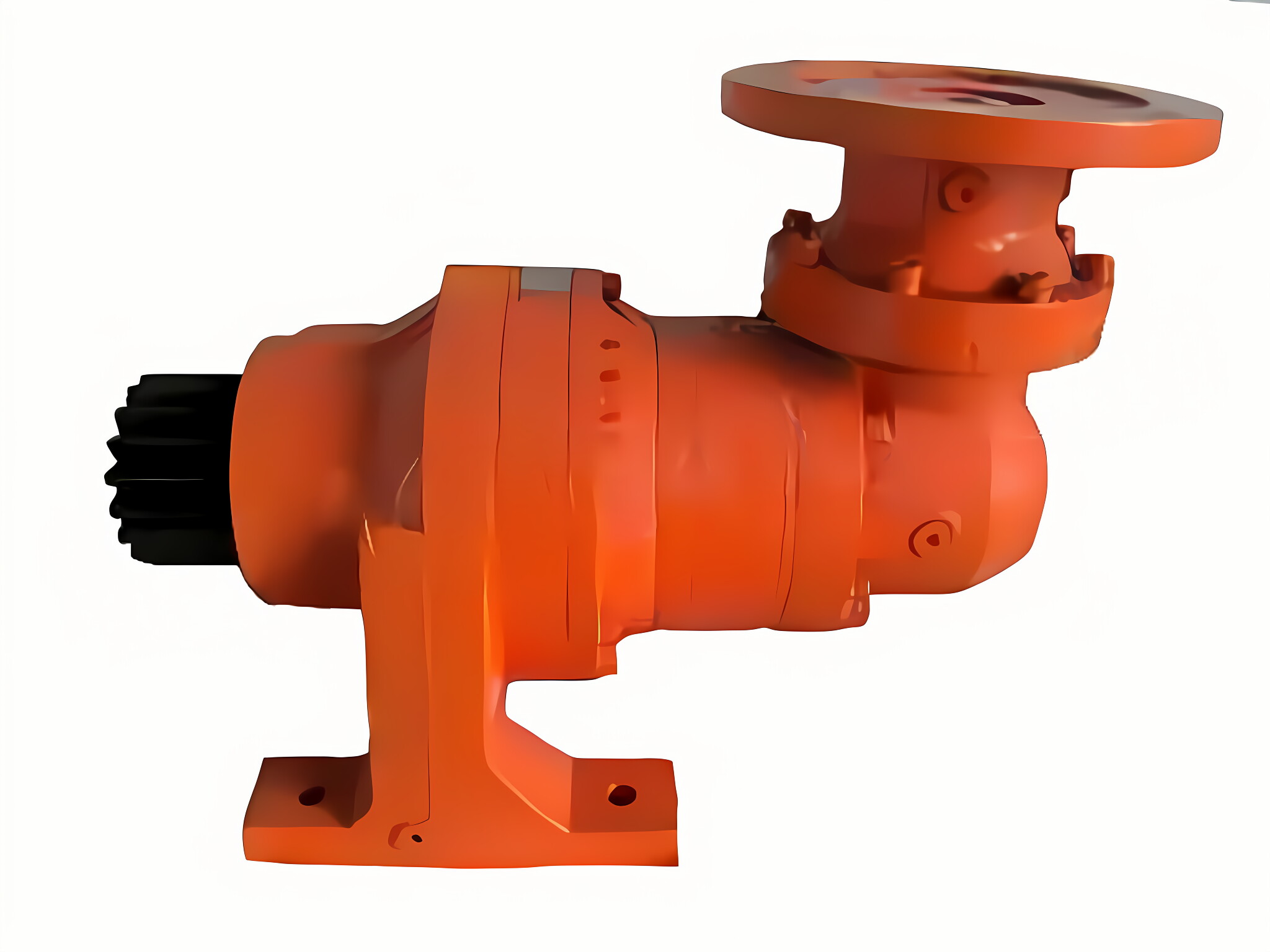

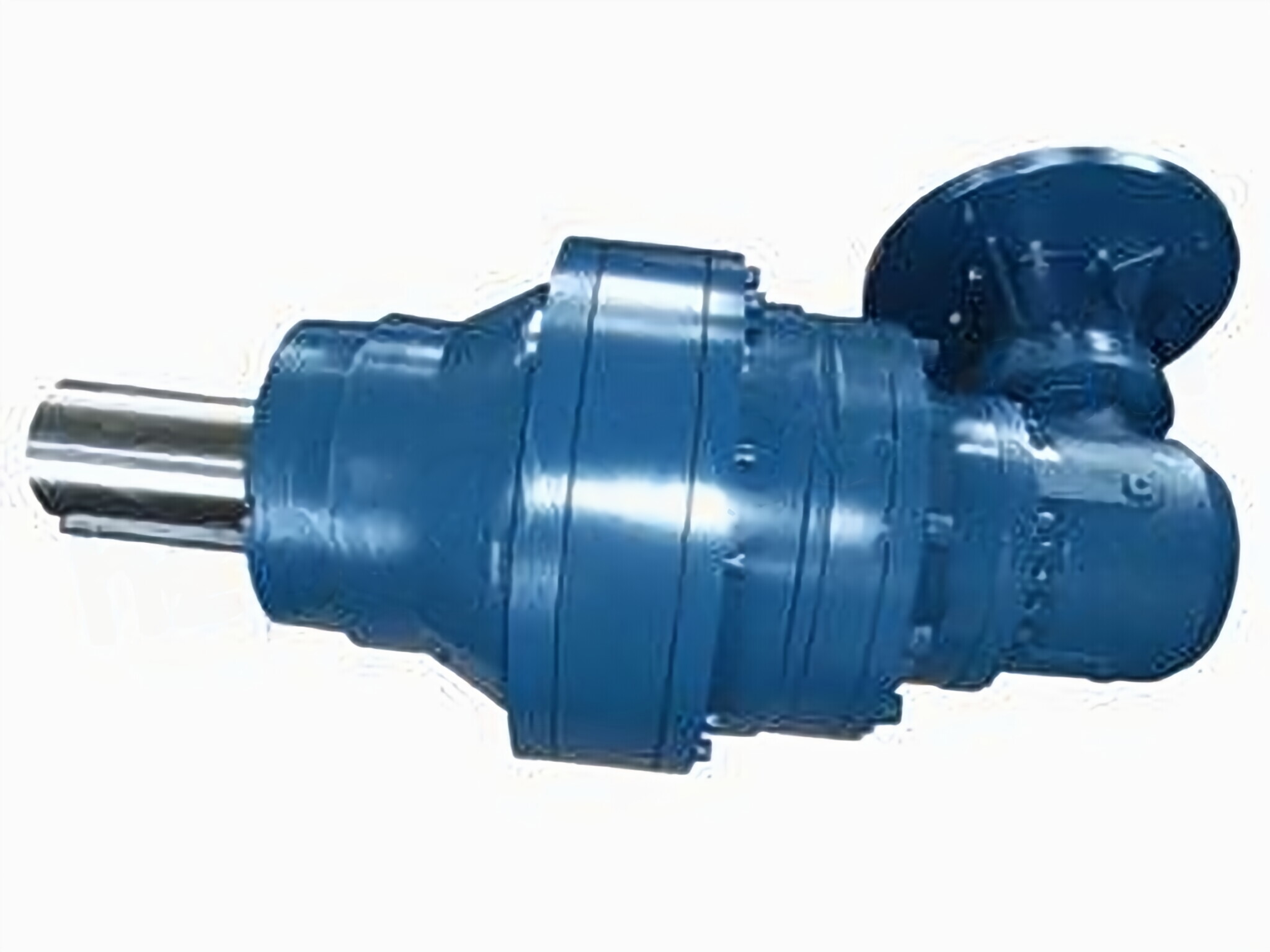

The replacement of NBPG NB300R Series gearbox is a right-angle gear drive and the best solution for all applications requiring high torque with minimum dimensions for fixed industrial equipment and heavy self-propelled machines. This planetary gearhead offers a substantial improvement over traditional gearboxes in terms of size and weight. The modular design combines high performance with low cost due to its compact size, excellent reliability, simple installation, and reduced maintenance. The replacement of NB300R Series planetary gearboxes come in a range of sizes to ensure optimum duration and silent running in all sorts of applications.

Key Features

Torque Range1000-450.000 Nm

Transmissible Mechanical Power

up to 150 kWGear Ratios6.9-9.000

Gear Unit Versions

Right angle (with a spiral bevel gear set

Input Configurations

Flanged axial piston hydraulic motorsHydraulic orbit motorsIEC and Nema motor adaptorsSolid input shaft

Tipo		Torque Nm
NB300R	NB300R2, NB300R3, NB300R4	1000

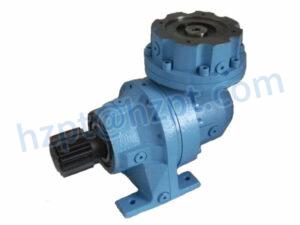

NB301R	NB301R2, NB301R3, NB301R4	1750
NB303R	NB303R2, NB303R3, NB303R4	2500
NB305R	NB305R2, NB305R3, NB305R4	5000
NB306R	NB306R2, NB306R3, NB306R4	8500
NB307R	NB307R2, NB307R3, NB307R4	12500
NB309R	NB309R2, NB309R3, NB309R4	18000
NB310R	NB310R2, NB310R3, NB310R4	25000
NB311R	NB311R2, NB311R3, NB311R4	40000
NB313R	NB313R2, NB313R3, NB313R4	55000
NB315R	NB315R3, NB315R4	100000
NB316R	NB316R3, NB316R4	135000
NB317R	NB317R3, NB317R4	170000
NB318R	NB318R4	250000
NB319R	NB319R4	350000
NB321R	NB321R4	500000
