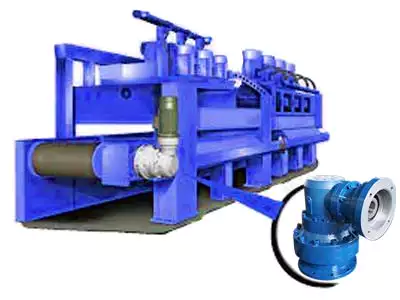

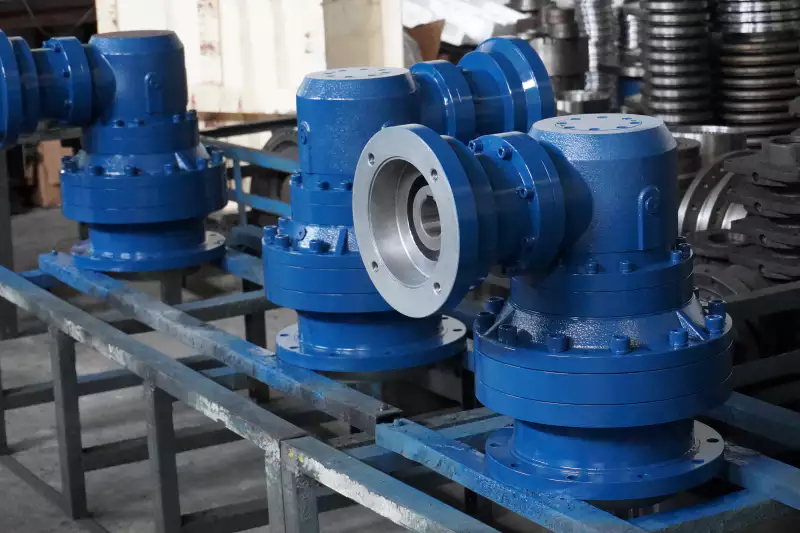

Right Angle Planetary Gearbox For Belt Conveyor

The Role of Planetary Gearbox in Belt Conveyor

The application of Planetary Gearbox in Belt Conveyor is mainly as a reducer, which is usually installed in the drive system part of the belt conveyor. Specifically, it is usually connected between the electric motor and the drive roller of the belt conveyor.

• Speed conversion: Through its internal gear structure, the planetary gearbox can greatly reduce the high-speed rotation of the motor and convert it into the low-speed and high-torque output required by the belt conveyor, so that the belt can drive goods to move smoothly and powerfully.
• Torque amplification: While decelerating, the planetary gearbox can multiply the output torque of the motor, which is particularly important for starting and continuously driving belts carrying heavy objects, ensuring that the conveyor can operate stably even under full load conditions.
• Smooth operation: Due to the multi-gear meshing design of the planetary gearbox, it can provide more uniform and smooth transmission, reduce vibration during the start and stop of the belt, protect the belt and the cargo carried, while reducing noise and improving the working environment.
• Space efficiency: The planetary gearbox has a compact structure and takes up little space. It is suitable for integration into the compact drive assembly of the belt conveyor without excessively increasing the overall size of the equipment.
• Maintainability and durability: The high-quality planetary gearbox is designed with a good lubrication system and durable materials, which can operate for a long time and is easy to maintain, reducing the downtime and maintenance costs of the belt conveyor.

Planetary Gearboxes Vs Other Type Gearbox In Belt Conveyor

When comparing planetary gearboxes with other types of gearboxes commonly used in belt conveyors, such as worm gearboxes, spur gearboxes, and helical gearboxes, several factors differentiate them:

Planetary Gearboxes	Space Efficiency: Planetary gearboxes offer high power density in a compact design due to their concentric layout, making them ideal for installations where space is limited. High Torque & Load Capacity: The distributed loading across multiple planet gears allows for higher torque transmission and better load handling compared to single-stage gearboxes of similar size. Efficiency: They generally have higher efficiency rates than worm gearboxes, which can be as low as 50-70%, meaning less energy is wasted as heat. Low Noise and Vibration: The even distribution of forces results in smoother operation and reduced noise levels, improving the working environment. Durability and Reliability: Due to their robust construction, they are known for long service life and consistent performance under heavy loads.
WormGearboxes	Self-Locking: Worm gearboxes often provide a self-locking feature, which can be useful in vertical lift applications to prevent reverse rotation and ensure safety. Cost-Effective: They are generally less expensive than planetary gearboxes, making them attractive for budget-conscious applications. Simple Design: Their simple design makes them easy to manufacture and maintain, although at the cost of lower efficiency.
Spur & Helical Gearboxes:	Straightforward Design: Both spur and helical gearboxes have straightforward designs with direct gear meshing, which makes them suitable for lower torque applications. Noise: Spur gearboxes can be noisier due to the straight-cut teeth, while helical gearboxes are quieter due to their angled teeth that engage more gradually. Efficiency: Helical gearboxes are generally more efficient than spur gearboxes due to the way their teeth interact, reducing friction and heat generation.

Planetary gearboxes excel in applications requiring high torque in a compact space, efficiency, and low noise levels, making them a preferred choice for demanding belt conveyor systems. Other types like worm, spur, and helical gearboxes may be more suitable for applications with different priorities, such as cost-effectiveness or simplicity. The selection depends on specific operational requirements, budget constraints, and the desired balance between performance and cost.

Our Customized Services

We understand that the application scenarios and needs of each belt conveyor (Belt Conveyor) are unique, so we provide professional customization services to create the most suitable gearbox solution for you. Whether you need to increase carrying capacity, optimize energy efficiency, or face specific space constraints, our customized gearbox can precisely match your requirements.

Customization process

1. Demand analysis: First, we will communicate with you in depth to understand your specific needs, including the working environment of the conveyor, the characteristics of the conveyed materials (such as density, particle size, humidity), conveying volume, conveying distance, operating speed, spatial layout, etc. Key Information.
2. Technical evaluation: Based on the collected information, our engineers will conduct a detailed technical evaluation to determine the core performance indicators such as torque, power, and reduction ratio that the gearbox needs to achieve, and consider the impact of environmental factors such as temperature, humidity, dust, etc. on the gearbox material. and sealing requirements.
3. Solution design: Based on the evaluation results, we will design a planetary gearbox solution that meets your specific needs, including selection suggestions, three-dimensional model design, structural layout, material selection, etc., to ensure that it not only meets functional requirements but is also cost-effective.
4. Confirmation and adjustment: We will submit the design plan to you for review, during which you can raise any questions or modifications. We encourage our clients to participate in this process to ensure that the final solution is exactly as expected.
5. Manufacturing and testing: After the plan is confirmed, we will start manufacturing the gearbox. Upon completion, each gearbox will undergo rigorous performance testing and quality control to ensure that its performance meets or exceeds industry standards.
6. Installation guidance and after-sales support: We provide on-site installation guidance services and ensure that the gearbox is perfectly connected to your belt conveyor. In addition, we also provide comprehensive after-sales service and technical support to ensure the long-term stable operation of your equipment.

Parameters That Need To Be Determined To Choose The Right Planetary Gearbox

• Output torque: Calculate the required maximum output torque based on the load requirements of the belt conveyor.
• Input power: Select according to the rated power of the motor to ensure that the gearbox can withstand the power provided by the motor.
• Reduction ratio: Calculate the required reduction ratio based on the speed requirements of the conveyor and the motor speed.
• Installation space: Consider the overall layout of the belt conveyor to determine the size and installation method of the gearbox.
• Working environment: including temperature range, humidity, corrosiveness and other factors to select the appropriate material and protection level.
• Maintenance requirements: Consider the ease of maintenance and service life of the gearbox, and select an appropriate lubrication system and wearing parts design.

Through the above process and parameter considerations, we can ensure that you get a customized planetary gearbox that fully meets the actual application needs, adding strong and reliable driving force to your belt conveyor system.
