Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin
  • Rivetless Drop Forged Chain Bar Loop Chains With T Head PinRivetless Drop Forged Chain Bar Loop Chains With T Head Pin

Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin

Introducing Raydafon Guoup's Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin: the ultimate durable solution for heavy-duty lifting and securing tasks. Crafted with high-strength drop-forged steel and a rivetless design, it ensures superior reliability and smooth operation, ideal for industrial workers, contractors, and DIY enthusiasts on construction sites or farms. Feel confident and secure in every use, solving breakage risks with our unique T-head pin for easy assembly. Elevate your projects with unmatched quality – trust Raydafon Guoup for robust performance that stands out from the rest.

Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin S Type S348 S458 S468 S9118

Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin
Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin

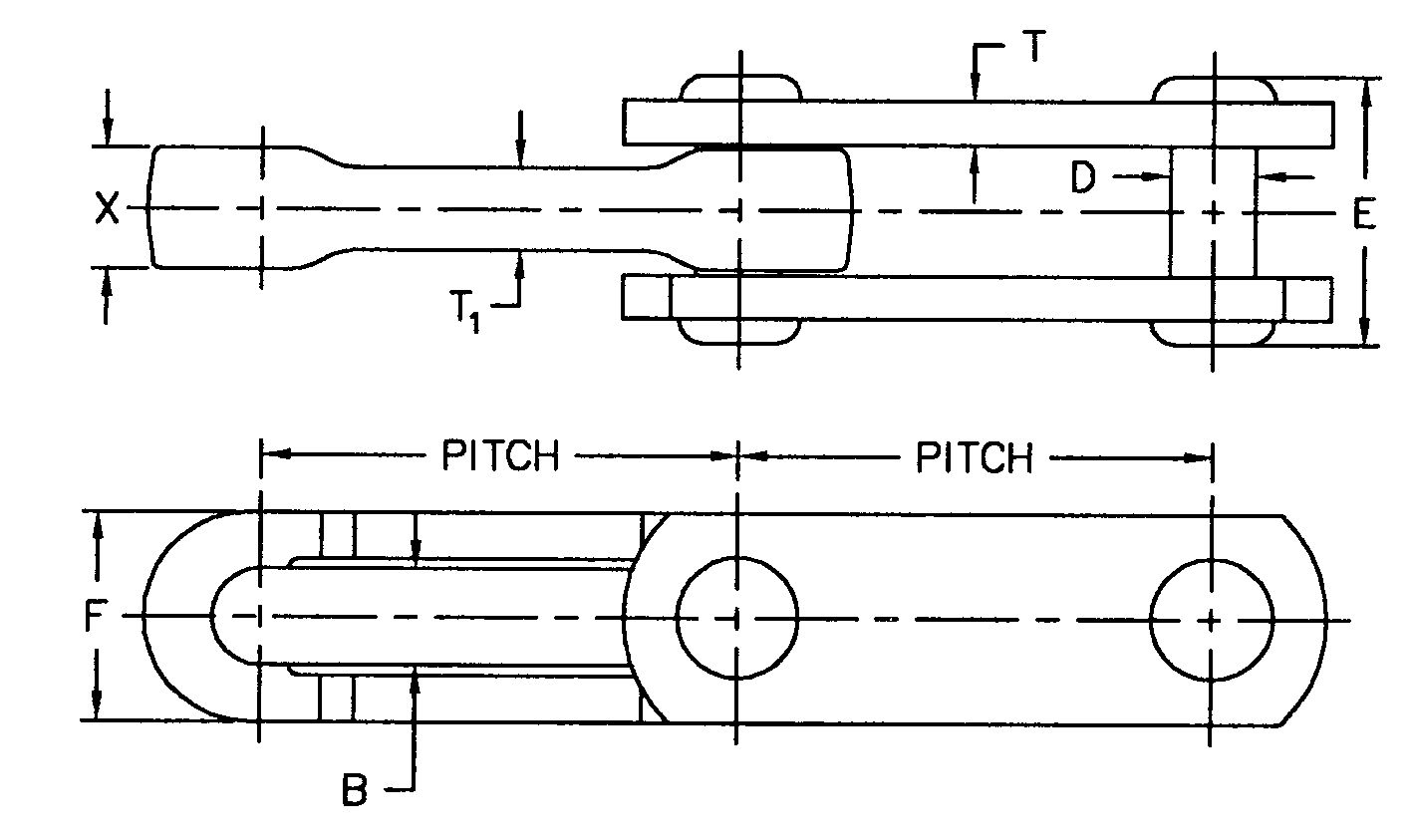

S-TYPE Barloop chain is manufactured with a standard rivet- less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of chain coming apart when slack is present and reducing wear between the pin and sidebar.
A-L CHAIN NO.
PITCH IN INCHES
LINKS PER10 FEET
WEIGHT PER FOOT LBS.
AVERAGE ULTIMATE STRENGTH—LBS.Head Treated Steel*
CHAIN CONSTRUCTION
3.031" PITCH CHAIN
X348
3.031
40
2.2
24,000
Special Pin
4.031" PITCH CHAIN
X458
4.031
30
3.2
48,000
Special Pin
468
4.031
30
7.5
70,000
Special Pin
6.031" PITCH CHAIN
X658
6.031
20
2.6
48,000
Special Pin
X678
6.031
20
6.7
85,000
Special Pin
698
6.031
20
11.4
130,000
Special Pin
9.031" PITCH CHAIN
998
9.031
13.3
9.0
130,000
Special Pin
9118
9.031
13.3
16.0
220,000
Special Pin
9148
9.031
13.3
27.0
300,000
Special Pin
3.031" PITCH CHAIN
S348
3.031
40
2.4
24,000
Riveted
4.031" PITCH CHAIN
S458
4.031
30
3.5
48,000
Riveted
4.031" PITCH CHAIN
S468
4.031
30
7.9
80,000
Riveted
9.031" PITCH CHAIN
S9118
9.031
13.3
20.4
220,000
Riveted
Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin
