Rivetless Drop Forged Chain X Type X348 X458 X658 X678

Discover the unmatched durability of Raydafon Group's Rivetless Drop Forged Chain X Type X348 X458 X658 X678, engineered for heavy-duty industrial applications. Its superior forged steel construction ensures high-strength performance, ideal for construction, mining, and marine professionals seeking reliability. Experience effortless operation and long-term safety, setting it apart from standard chains with enhanced load capacity and reduced maintenance. Elevate your projects with confidence—trust Raydafon Group for peak efficiency in demanding environments.

Send Inquiry

Product Description

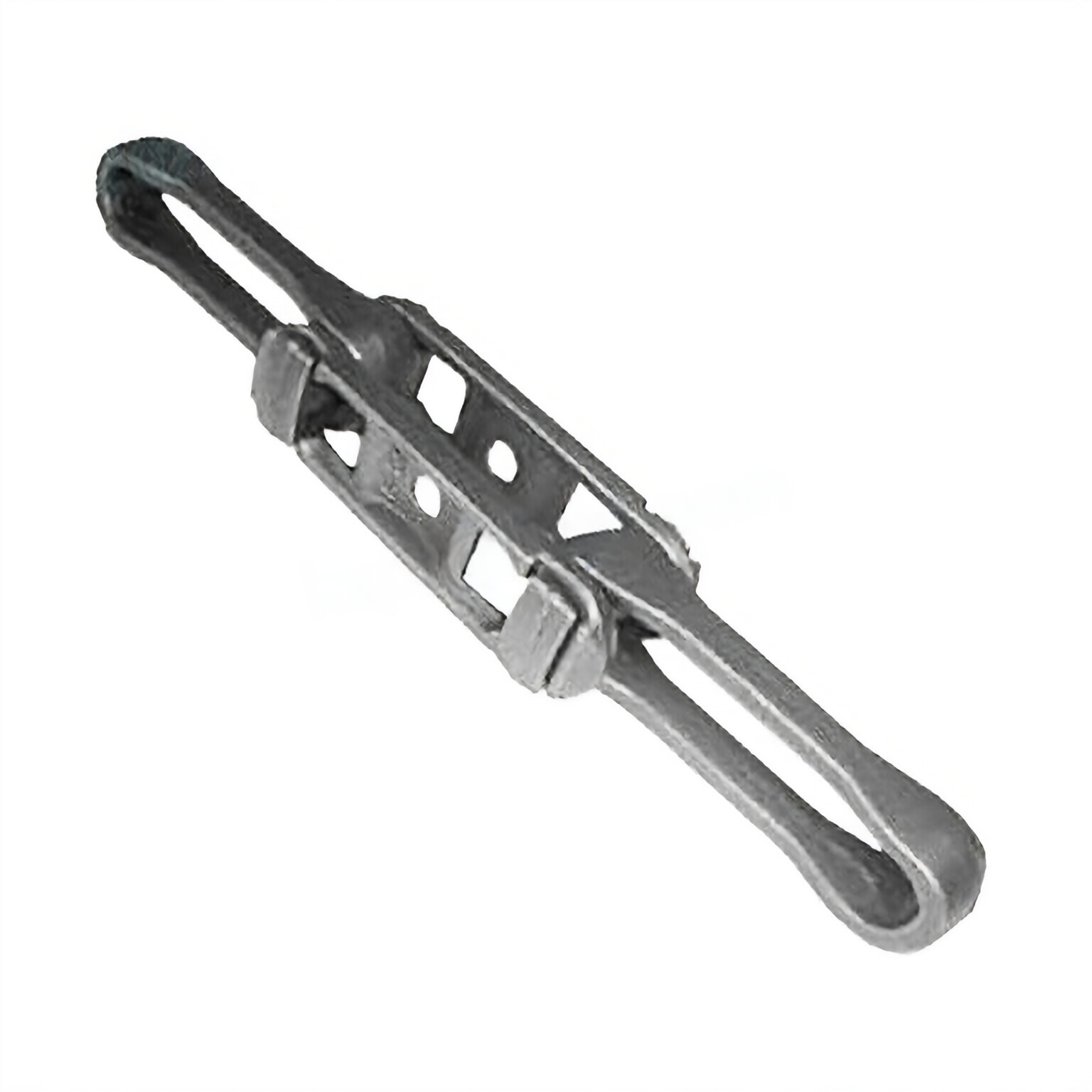

X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains

Rivetless Drop Forged Chain is highly regarded as one of the most robust chains ever developed and has widespread application in many industries. Because materials do not tend to pack in its open structure, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits horizontal and vertical operation over irregular routes, making it particularly adaptable for trolley conveyor service. Special features of this chain in- include maximum strength without excessive weight and resistance to lengthening even after the extensive operation.

X-TYPE X-Type is furnished with all components heat-treated and is designed to have increased flexibility, transverse strength, and better operating performance.

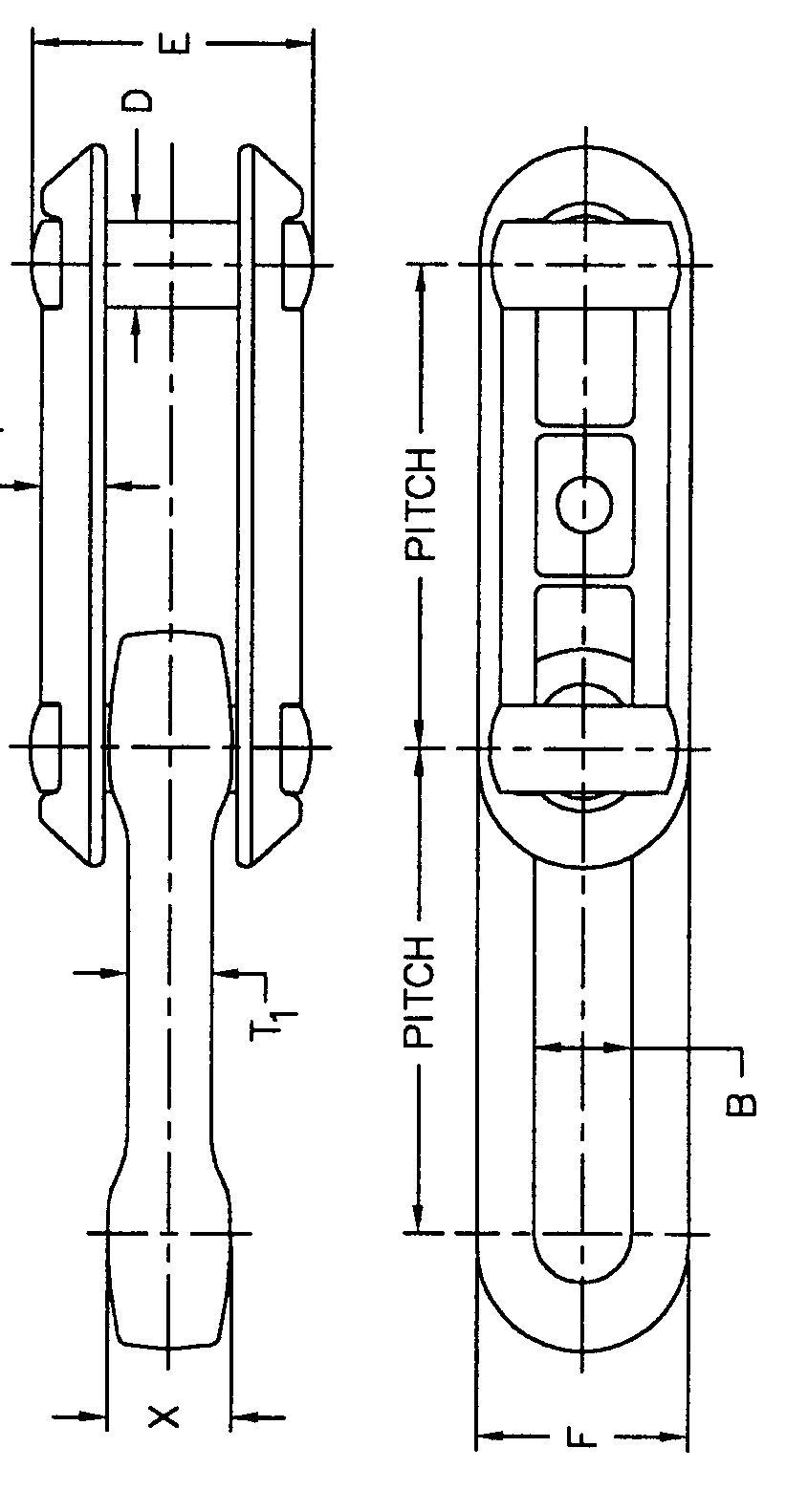

	A-L CHAIN NO.	PITCH IN INCHES	LINKS PER10 FEET	WEIGHT PER FOOT LBS.	AVERAGE ULTIMATE STRENGTH—LBS.Heat Treated Steel*	CHAIN CONSTRUCTION
3.031" PITCH CHAIN	X348	3.031	40	2.2	24,000	Special Pin
4.031" PITCH CHAIN	X458	4.031	30	3.2	48,000	Special Pin
4.031" PITCH CHAIN	468	4.031	30	7.5	70,000	Special Pin
6.031" PITCH CHAIN	X658	6.031	20	2.6	48,000	Special Pin
	X678	6.031	20	6.7	85,000	Special Pin

	698	6.031	20	11.4	130,000	Special Pin
9.031" PITCH CHAIN	998	9.031	13.3	9.0	130,000	Special Pin
	9118	9.031	13.3	16.0	220,000	Special Pin
	9148	9.031	13.3	27.0	300,000	Special Pin
3.031" PITCH CHAIN	S348	3.031	40	2.4	24,000	Riveted
4.031" PITCH CHAIN	S458	4.031	30	3.5	48,000	Riveted
4.031" PITCH CHAIN	S468	4.031	30	7.9	80,000	Riveted
9.031" PITCH CHAIN	S9118	9.031	13.3	20.4	220,000	Riveted

REGULAR TYPE Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.

S-TYPE Barloop chain is manufactured with a standard rivet-less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of the chain coming apart when slack is present and reducing wear between the pin and sidebar.
