Roller Chains with U Type Attachments 08B-U1 08B-U2 08B-U2F9 12B-U1 12B-U2

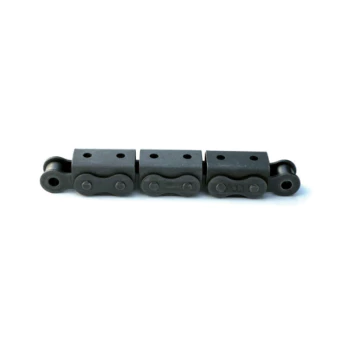

Roller Chains with U Type Attachments

Roller Chains with U Type Attachments feature vulcanized elastomer profiles to reduce the risk of damaging the product while transporting it. They can be used for a range of traditional applications, including furniture, glass, ceramic tiles, and woodworking. Different profiles are available and can be matched for compatibility. Other features include SNAP-ON attachments for certain sizes and matched pairs for parallel chains.Chains can be made of a variety of materials, including stainless steel. The material that is most appropriate for your application depends on several factors, including cost, environmental conditions, and the design horsepower transmission. By considering these factors, manufacturers can optimize their materials for particular applications. Chain weights vary, and they should be chosen in accordance with their expected load capacity and pitch.To replace a broken chain, first determine which attachment type is right for your application. In addition to the chain, you need to determine which sprockets will fit. Most of these chains have two sprockets, but if you need to replace the connecting link, you can use an offset chain.This type of chain is made of two parts: the outer plate and inner link. These two components are connected by a cross rod. This cross rod distributes the load evenly between the two chains and does not twist.

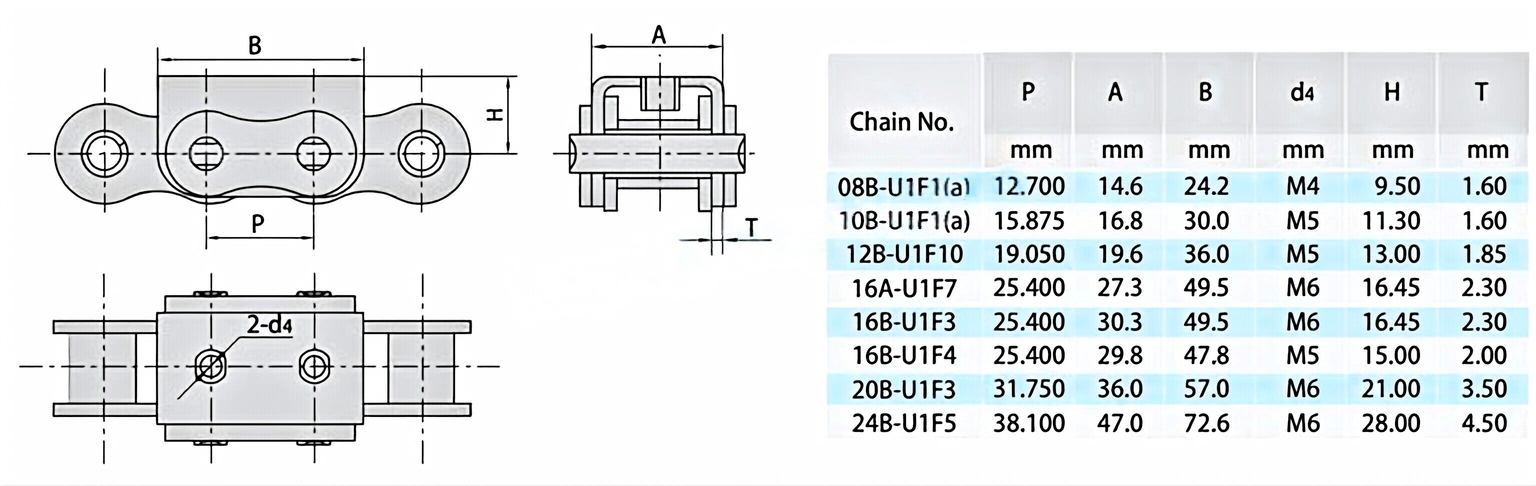

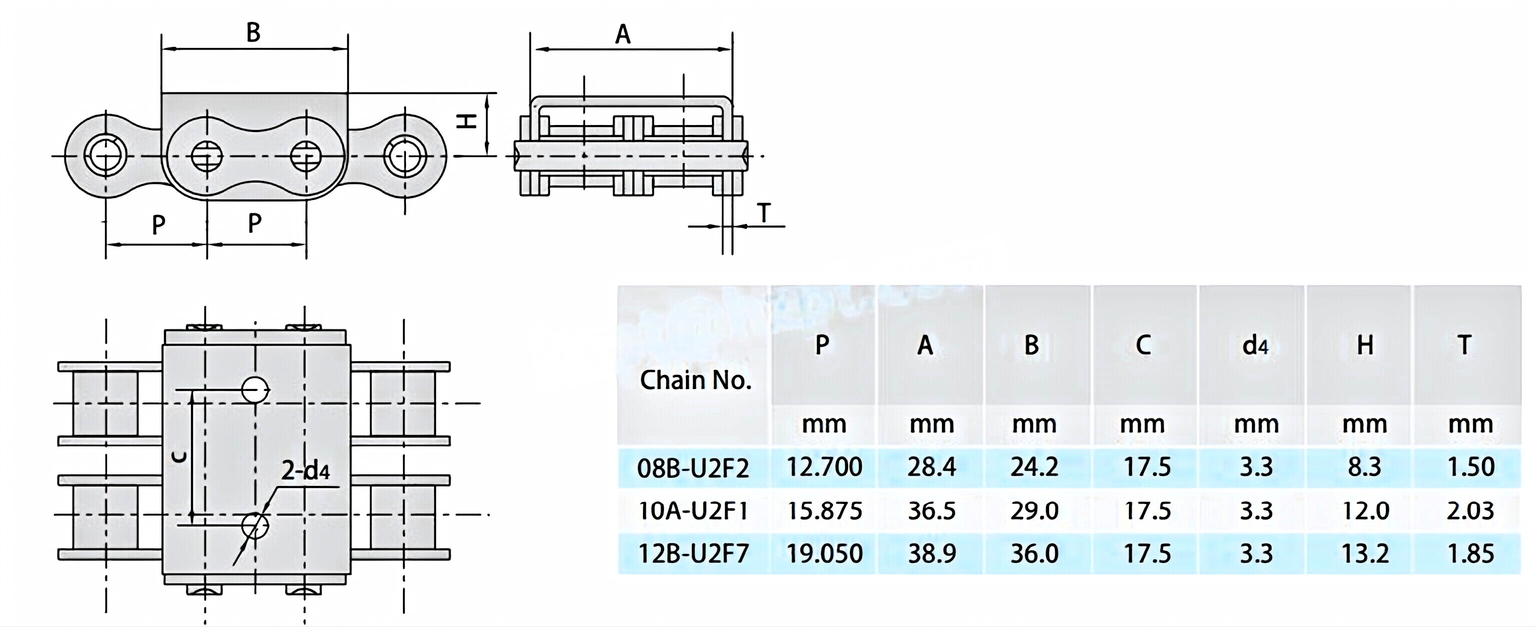

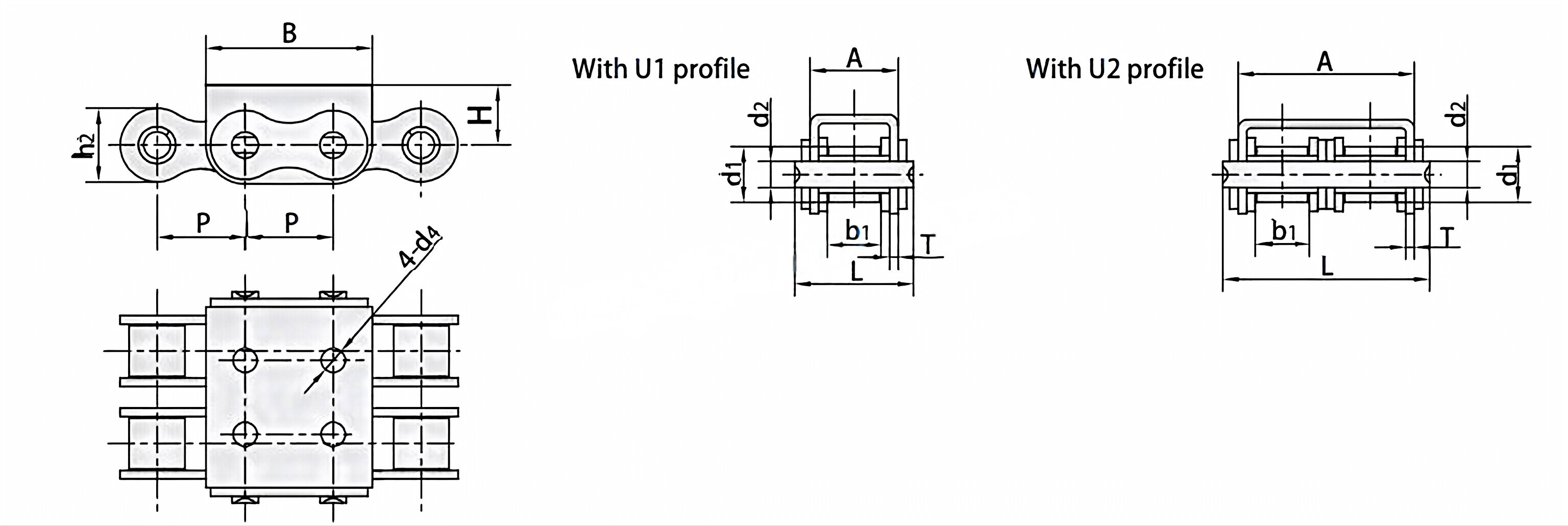

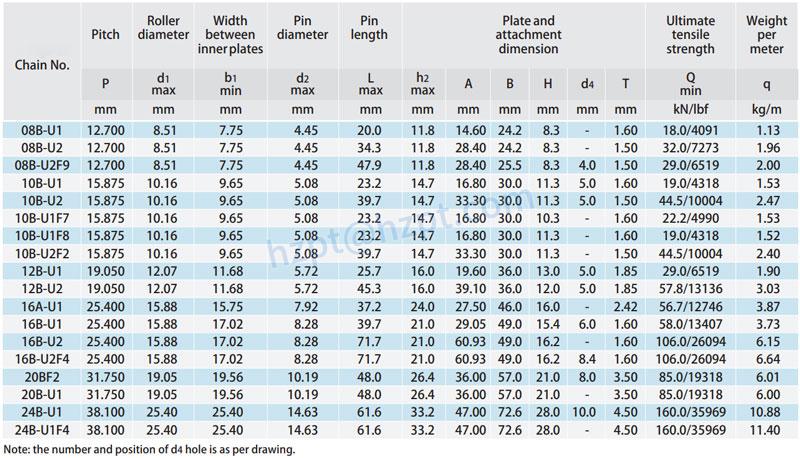

Dimensions of Roller Chains with U Type Attachments

Sprockets for Roller Chains

Sprockets are an important part of a roller chain. They are designed to drive the chain in a particular direction, and come in a variety of materials. These materials include bronze, cast iron, aluminum, and manganese steel. In addition, sprockets are available in different sizes, ranging from 0.05 inches to 48 inches.Most sprockets are milled or forged. Some may be flame-cut. Sprockets can be made in segments, halves, or with an integral shaft. They may be made from various materials, including steel and plastic. Hybrid versions of sprockets may feature metal wheels with plastic teeth. Sprocket manufacturers generally work with ISO and ANSI roller chains.The sprocket selection for roller chains is essential to the efficiency of transmission and smooth rotation. The type of sprocket you choose also determines the life of the chain. Many manufacturers of sprockets for roller chains offer sprockets with standard shaft diameters or sprockets that meet JIS standards.Sprockets for roller chains can vary in size and pitch. Generally, a chain with large pitch diameter requires sprockets with large teeth, while smaller chains with smaller pitch diameters will require sprockets with smaller teeth. The number of teeth per inch is also important, and a sprocket's tooth pitch and sprocket's bore are essential in choosing the right sprocket for the drive shaft.Another factor to consider when choosing the sprockets is the transmission horsepower. A higher transmission horsepower will require larger sprockets than a small one, so you need to choose an appropriately sized chain.As a mature supplier of chains and sprockets in China, Raydafon also provides highly durable?sprockets for sale?besides conveyor chains. Contact us now if you are interested.

Related Chains

As one of the?drive chain suppliers, we specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain; Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachments are available.

Why Choose Roller Chains?

There are many reasons to choose roller chains. Some are simpler than others, and both have their benefits. When considering what type of roller chain to use, it's important to consider several factors, including motor horsepower and rpm. A chain with a lower horsepower should be less expensive, and one with more teeth will be smoother and less noisy. There are also many different types of conveyor chains, such as those that move products vertically or horizontally or those that bend in a circle.Chain strength is a primary consideration when choosing a roller chain. Chains with larger pitches are generally longer and suited for more intensive work. Chains with smaller pitches are smoother and can be used on machines with low RPM and light load fluctuations. As the load increases, however, larger pitches should be selected.Lubrication extends the life of roller chains and makes them more efficient. This will help them carry more weight and run more smoothly, while also reducing dirt accumulation. This is an especially important consideration for roller chains used in dirty environments. For example, a farm tractor may need to lubricate its chains frequently. A grease-based lubricant will attract dirt and increase wear, so you may want to choose a dry lubricant instead.Another reason to use a roller chain is that they are simple, cost-effective, and reliable. They're used in heavy machinery and vehicles, as well as for conveying materials. Roller chains are also versatile and can change direction. This makes them the perfect solution for multiple direction changes or short distances. A roller chain is important to keep properly lubricated, because the most common cause of chain failure is inadequate lubrication.
