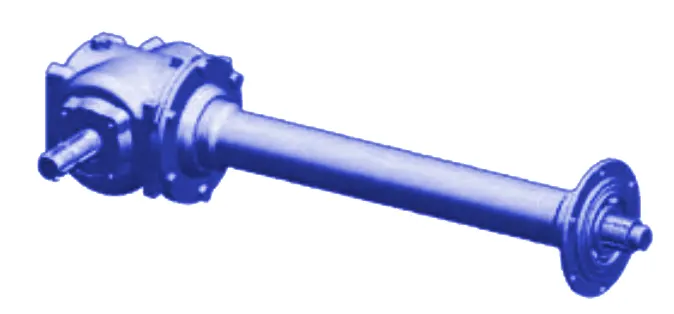

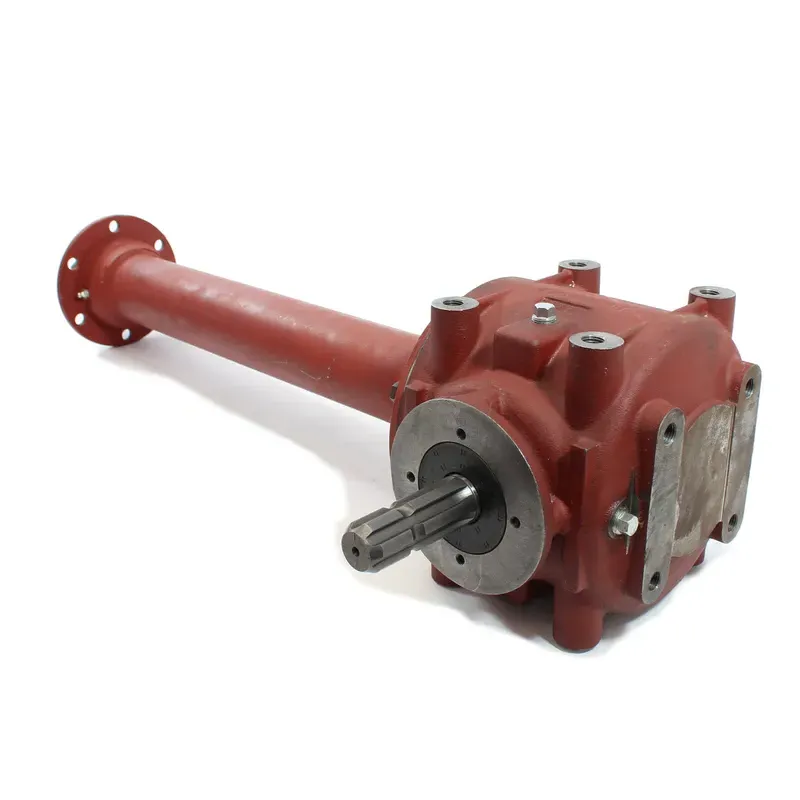

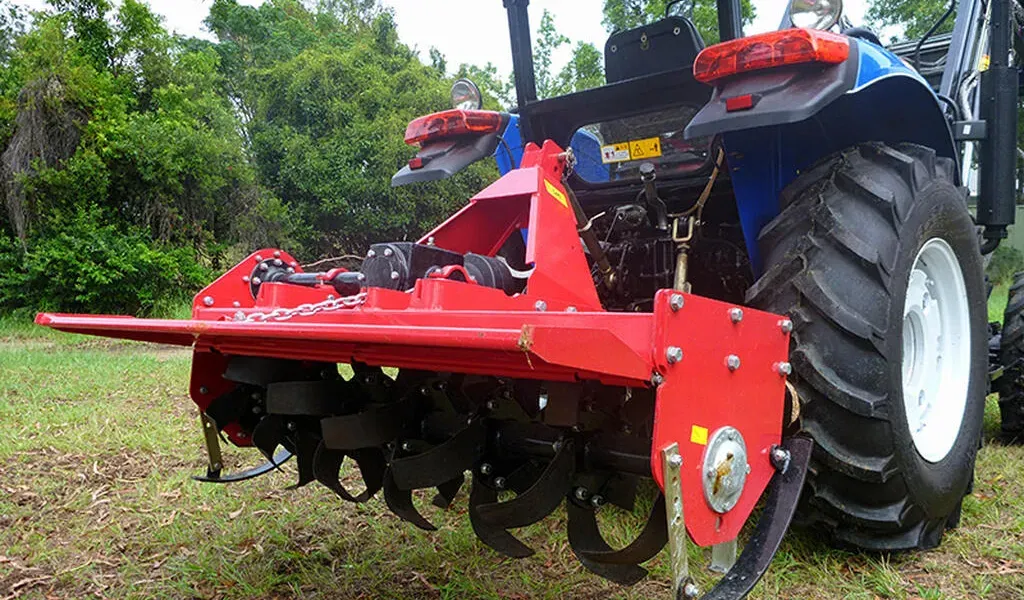

Rotary Tiller Gearboxes – Replacement of Comer Code TLZ21J

Rotary Tiller Gearboxes – Replacement of Comer Code TLZ-21J

A rotary tiller gearbox is a tool that transmits the power of an engine or another source of power to the blades or tines of the rotating tiller. The gearbox usually consists of housing as well as bearings, gears, and seals. As the source of power rotates through the shaft that is input, gears within the gearbox are engaged and transfer the energy to the shaft that outputs which then is driven through the teeth of the tiller. The gearbox can provide efficient and precise control over the speed of the tines and their direction, which makes it a crucial component of the operation of the rotating tiller.

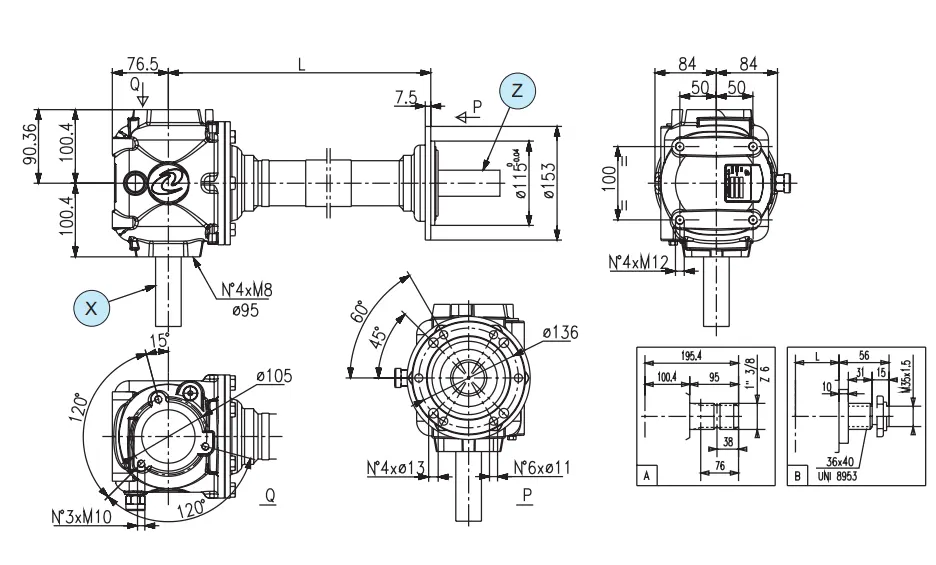

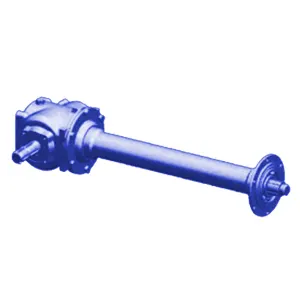

Rotary Tiller Gearbox TLZ-21J Specifications

i	1.46
N1[rpm]	540
P1[kW]	29.4
M2[Nm]	736
Shaft X	1'' 3/8 Z6
Shaft Z	36*40
Input	X

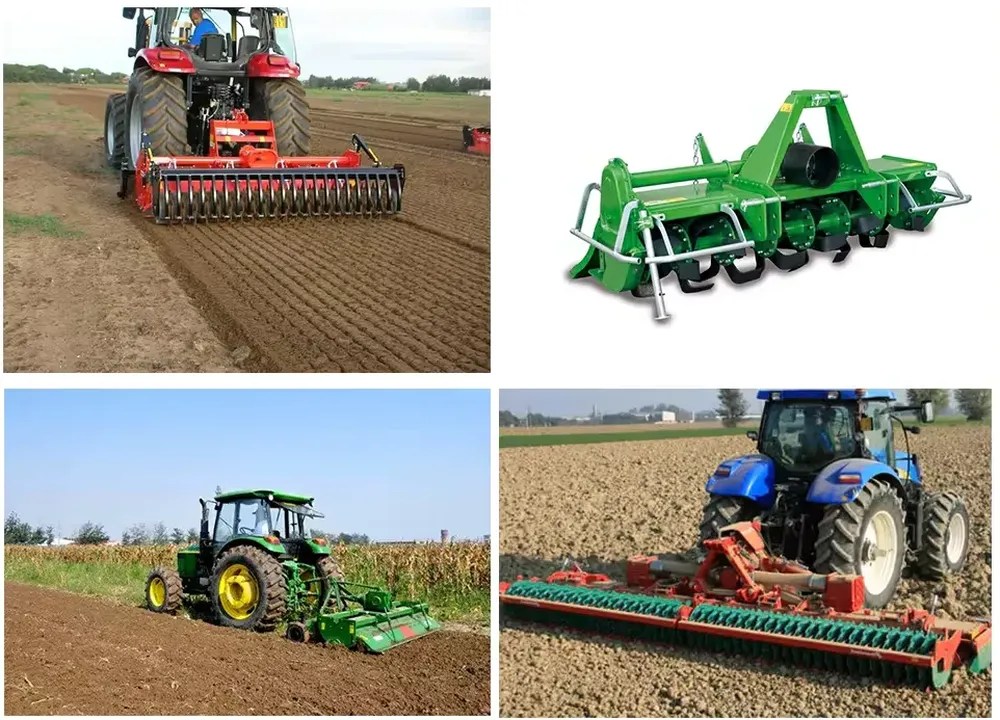

Advantages of Using the Rotary Tiller Gearbox TLZ-21J

The TLZ-21J model of the rotary tiller gearbox offers several advantages for agricultural use, providing robust performance and efficiency. Here are key benefits:1. High Torque Capacity: The TLZ-21J rotary tiller gearbox is designed to handle high torque inputs, making it suitable for heavy-duty tilling operations. It efficiently transfers power from the tractor, allowing for deep penetration of tiller blades into tough soil without the risk of overloading the system. This high torque capacity ensures that the tiller can operate effectively even in challenging conditions, such as compacted or clay-heavy soils.2. Optimal Gear Ratio: Featuring an optimal gear ratio that balances speed and torque output, the rotary tiller gearbox maximizes the efficiency of power transfer from the tractor to the tiller blades. This gearbox configuration ensures that the rotary tiller operates at an ideal speed, enhancing fuel efficiency and reducing the time it takes to till an area. The balance between speed and power also reduces wear and tear on both the tractor and the tiller, extending the lifespan of the machinery.3. Durability and Robust Construction: Constructed with high-quality materials, the rotary tiller gearbox TLZ-21J is built to withstand the rigors of agricultural tilling. Its robust design includes a durable casing that protects internal components from dirt, stones, and harsh weather conditions. This durability ensures reliable performance over time, reducing the need for frequent repairs and maintenance, thus lowering the overall cost of ownership.4. Ease of Maintenance: The rotary tiller gearbox is designed with maintenance in mind. It features easily accessible components and a simple structure that makes routine maintenance tasks such as oil changes, cleaning, and inspections straightforward. This ease of maintenance not only saves time but also helps in maintaining the gearbox in optimal condition, ensuring consistent performance and preventing breakdowns.5. Versatility in Applications: This gearbox is versatile and can be used across a variety of soil types and farming conditions. Whether you are working on light soil for fine tilling or tough soil for initial soil preparation, the TLZ-21J rotary tiller gearbox can be adjusted to meet different agricultural needs. This adaptability makes it an excellent choice for farms that cultivate a range of crops and therefore require flexible machinery.6. Improved Soil Health: The efficient operation of the rotary tiller gearbox TLZ-21J helps in promoting better soil health. By enabling the tiller to break the soil thoroughly and evenly, it enhances soil aeration and mixing. This improvement in soil structure facilitates better water absorption, nutrient distribution, and root penetration, which are crucial for healthy crop growth. The gearbox’s ability to work smoothly at varying depths also helps in maintaining the soil’s organic structure, preventing over-tilling and soil compaction.

How Does the Tractor PTO Driven Rotary Tiller Gearbox Work?

The tractor PTO (Power Take-Off) driven rotary tiller gearbox is integral to the functioning of rotary tillers used in agriculture. This gearbox effectively converts the tractor's mechanical power into the rotary motion needed to operate the tiller blades. Here's a detailed step-by-step explanation of its operation, with each point elaborately discussed:1. Power Source Activation: The process begins with the tractor's engine, which is the primary power source for the rotary tiller. The engine's power is transmitted through the PTO shaft, which is a splined drive shaft attached to the tractor. When activated, this shaft spins at a rate directly proportional to the engine's RPM (revolutions per minute). The PTO shaft is versatile and can operate at various speeds, allowing for adjustments based on different farming needs. This flexibility is crucial for matching the power output with the specific requirements of the tiller and the condition of the soil being tilled.2. Gearbox Connection: The rotating PTO shaft from the tractor connects to the rotary tiller's gearbox via its input shaft. This connection is crucial for transferring the rotational energy directly into the gearbox. The input shaft is engineered to fit perfectly with the PTO shaft, ensuring efficient power transmission without slippage or energy loss. This initial stage of power transfer is critical, as any inefficiency here can lead to reduced performance of the tiller blades or even damage to the gearbox due to improper torque and speed handling.3. Speed and Torque Adjustment: Within the gearbox, a series of gears adjust the input speed and torque to the levels ideal for tilling operations. These gears are usually designed to reduce the input speed, thereby increasing the torque. The increase in torque is vital because it provides the necessary force to turn the tiller blades through different soil types, whether breaking new ground or cultivating at a shallower depth. The design of these gears, whether spur or helical, is focused on maximizing power transmission efficiency and minimizing wear under the heavy load and dirt exposure typical in farming.4. Power Output via Output Shaft: After the speed and torque are adjusted, the power is transmitted to the output shaft of the gearbox. This shaft is specifically designed to transfer the adjusted mechanical power to the rotary tiller’s blade assembly. The output shaft’s rotational speed determines how fast the blades turn, which can be crucial for achieving the desired soil texture and depth. The design of the output shaft ensures it can withstand the high torque and frequent changes in load caused by soil resistance.5. Driving the Tiller Blades: The output from the gearbox drives the rotary tiller blades, which are mounted on a horizontal axis. As the output shaft turns, it rotates the blades that dig into and turn over the soil. The effectiveness of the blades is directly influenced by the torque and speed output from the gearbox. Properly tuned, the gearbox ensures that the blades can maintain sufficient depth and speed to efficiently till the soil, optimizing the soil structure for planting.

Common Troubleshooting of Tractor PTO Driven Rotary Tiller Gearbox

Troubleshooting common issues with a tractor PTO (Power Take-Off) driven rotary tiller gearbox can help you identify and fix problems quickly, ensuring minimal downtime. Here are some typical issues and their potential solutions:

1. Gearbox Makes Unusual Noises

• Grinding or Whining Sounds: These noises can indicate low oil levels, the presence of contaminants in the oil, or worn gears. Check and replace the oil if necessary, and inspect gears and bearings for damage.
• Clunking Noises: These might suggest loose or broken parts inside the gearbox. Inspect the internal components for any signs of damage or misalignment.

2. Excessive Vibration

• Misalignment: Ensure the gearbox is properly aligned with the tractor’s PTO shaft. Misalignment can cause undue stress on the gearbox components.
• Loose Components: Check if all bolts and mounts are tightened. A loose gearbox can vibrate excessively, leading to further complications.

3. Overheating Gearbox

• Insufficient Lubrication: Low oil levels or using the wrong type of oil can lead to increased friction and overheating. Verify the oil level and top up or replace with the correct grade as specified by the manufacturer.
• Overloading: Operating the tiller at depths or speeds that exceed the gearbox’s capacity can cause overheating. Adjust your tilling parameters to match the gearbox's specs.

4. PTO Shaft Does Not Engage

• Worn or Damaged Clutch: The PTO clutch may be worn out or damaged. Inspect the clutch for wear and replace if necessary.
• Hydraulic Issues: For hydraulic PTO systems, check for low hydraulic fluid levels or leaks and repair any issues.

5. Leaking Gearbox

• Worn Seals or Gaskets: Inspect seals and gaskets for wear and replace them if they are leaking. Ensure all fittings are tight and the gearbox housing is not cracked.
• Overfilled Oil: Ensure the gearbox oil is not overfilled as it can lead to increased pressure and leaks. Check the manufacturer’s specifications for the correct oil level.

6. Reduced Tilling Efficiency

• Worn Tines or Blades: Check the tiller’s tines for wear or damage as this can significantly reduce tilling efficiency. Replace worn tines to restore proper function.
• Gear Wear: Over time, the gearbox gears can wear down, reducing their efficiency. Inspect gears for wear and replace if necessary.

7. Difficulties in Gear Shifting

• Blocked or Damaged Linkages: The shifting linkage can get blocked by dirt or debris, or it may be damaged. Clean and lubricate the linkage, and replace any broken parts.
• Internal Gearbox Issues: Difficulty in shifting can also be due to internal damage or misalignment. This may require a more in-depth inspection and potential rebuild of the gearbox.

PTO Shafts for Rotary Tiller Gearbox

A power-takeoff (PTO) shaft is typically utilized to connect a rotary tiller gearbox to the tractor's PTO. The PTO shaft transmits power from the tractor's engine into the tiller gearbox, which allows precise and efficient control of the speeds and directions. The PTO shaft is typically comprised consisting of an input yoke drive shaft and an output yoke. It's designed to be easily connected and removed from the gearbox and tractor. It is crucial to make sure it is that your PTO shaft is maintained and adjusted in order to avoid accidents and to ensure the best performance. Raydafon, Ningbo Raydafon Transmission offers a variety of PTO drive shafts wholesale available for purchase. Contact us today for more details if you're interested.

We also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, agricultural sprayer gearboxes, manure spreader gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc. If you want to buy a fertilizer spreader gearbox, please get in touch with us.
