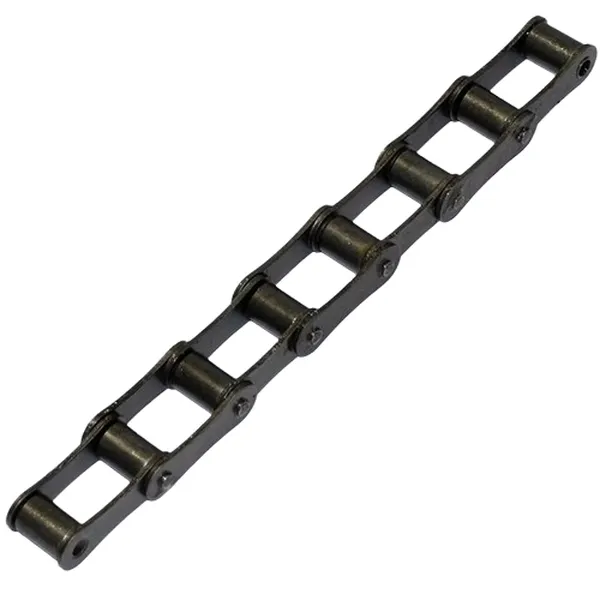

S32 Agricultural Roller Chain

S32 Roller Chain for Agricultural?

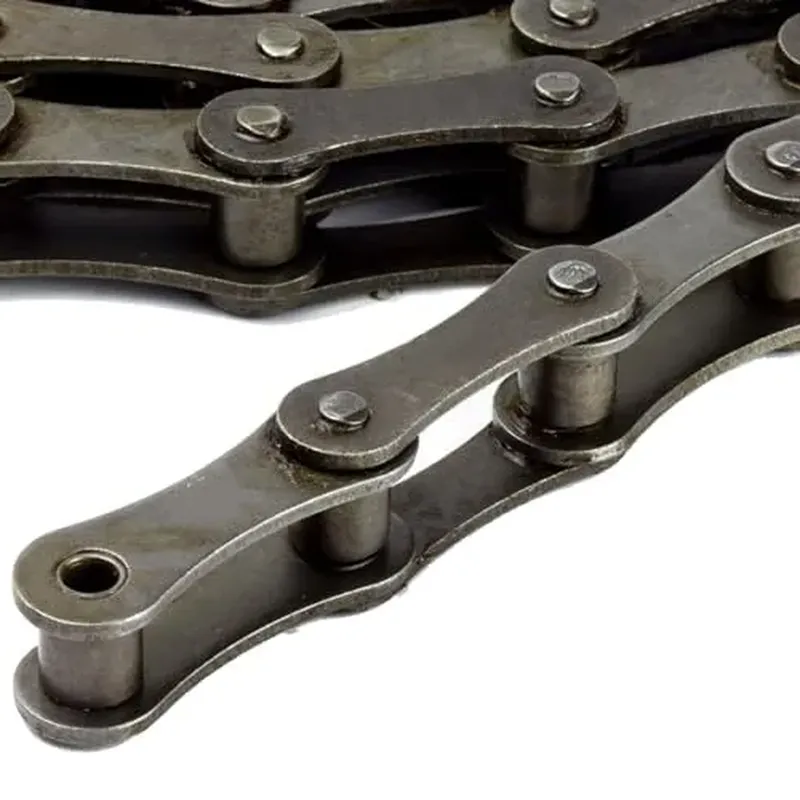

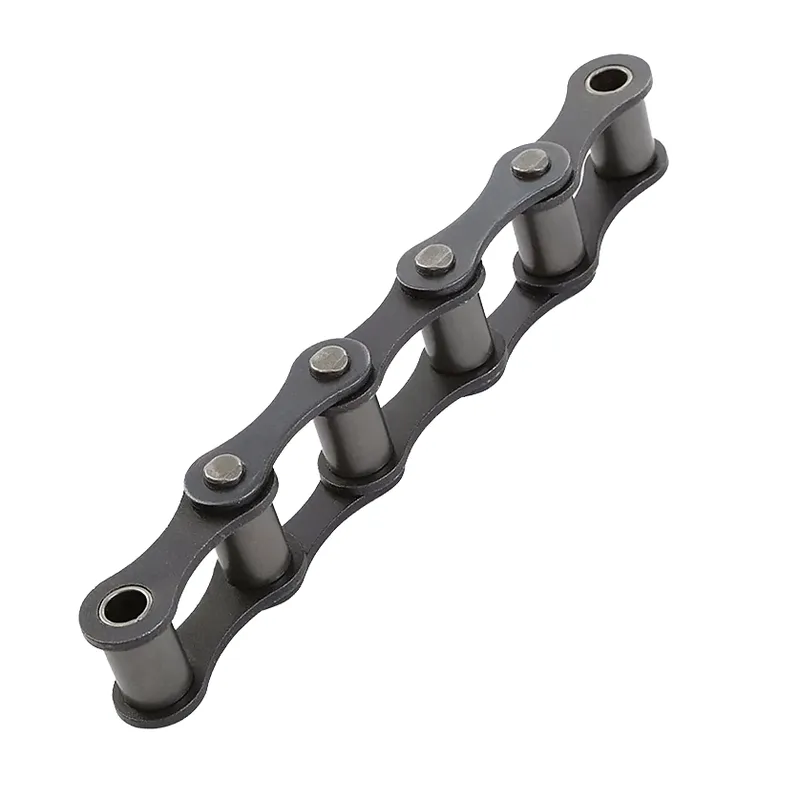

S32 agricultural roller chain is a type of roller chain that is specifically designed for use in agricultural equipment. It is manufactured to DIN8189 standards and features solid rollers, heat treated components, and is supplied with a light, high-quality lubricant for extended working life. S32 agricultural chain has a pitch of 29.21mm, a roller diameter of 11.43mm, a width between inner plates of 15.88mm, a pin diameter of 4.45mm, a pin length of 26.7mm, a connecting link pin length of 28.8mm, an inner plate depth of 13.2mm, and a plate thickness of 1.8mm. The tensile strength of the S32 agricultural roller chain is 5,620 lbs. The weight per meter is 1.9 lbs. S32 agricultural roller chain is a popular choice for a variety of agricultural applications, such as conveyors, balers, and harvesters. It is known for its durability, reliability, and long service life.

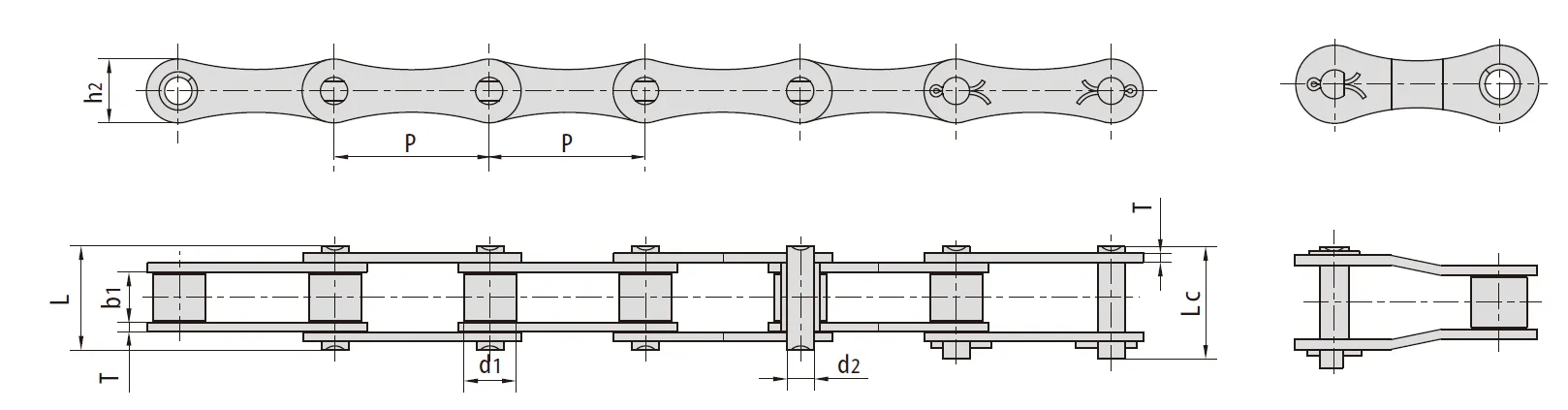

S32 Roller Chain Dimensions

Chain No:	S32 Chain
Pitch (P):	29.21 mm
Roller Diameter (d1):	11.43 mm
Width Between Inner Plates (b1):	15.88 mm
Pin Diameter (d2):	4.45 mm
Pin Length (L):	26.7 mm
Connecting Link Pin Length (Lc):	28.8 mm
Inner Plate Depth (h2):	13.2 mm
Plate Thickness (T):	1.8 mm
Tensile Strength:	5,620 LBS
Weight Per Meter:	1.9 LBS

Advantages of S32 Agricultural Roller Chain

Using the S32 agricultural roller chain in agricultural applications offers several advantages that contribute to the efficiency, reliability, and longevity of agricultural machinery. Here are some key benefits:

1. Durability and Longevity: The S32 agricultural roller chain is crafted from high-quality steel, providing exceptional durability. This robust construction ensures the chain can withstand wear and tear over extended periods, even under harsh agricultural conditions. Its resistance to abrasion and corrosion also means longer service life, reducing the frequency of replacements.
2. Efficient Power Transmission: Designed for optimal performance, the S32 roller chain provides smooth and efficient power transmission. This efficiency is crucial for agricultural machinery that requires consistent force to operate effectively, such as tractors and harvesters. The precise engineering of rollers and links minimizes energy loss, enhancing overall machinery performance.
3. Resistance to Environmental Conditions: Agricultural environments can be tough, with exposure to mud, dirt, and moisture. The S32 chain’s corrosion-resistant properties ensure it remains functional in these challenging conditions, preventing rust and degradation. This resistance helps maintain the chain’s integrity and functionality, ensuring reliable operation across various weather conditions.
4. Versatility and Compatibility: This chain is compatible with a wide range of agricultural machinery, from combines to plows. Its versatility allows it to be used in various equipment setups, providing flexibility to farmers. Additionally, the chain can accommodate different attachments, making it adaptable for specific agricultural needs and tasks.
5. Improved Productivity: By ensuring reliable and consistent performance, the S32 agricultural chain enhances the productivity of agricultural machinery. Fewer breakdowns and maintenance interruptions mean that equipment can operate for longer periods without delays. This reliability is essential during critical planting and harvesting seasons when time is of the essence.

S32 Roller Chain Attachments

Attachments for roller chains like the S32 agricultural roller chain play a crucial role in enhancing the functionality and versatility of the chain in various agricultural applications. These attachments are specialized components that are added to the chain links to enable specific tasks or interactions within the machinery system. Here are some common attachments that can be used with the S32 roller chain:

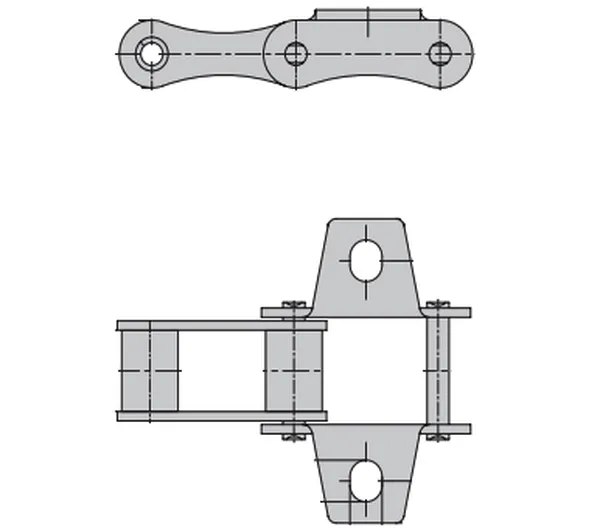

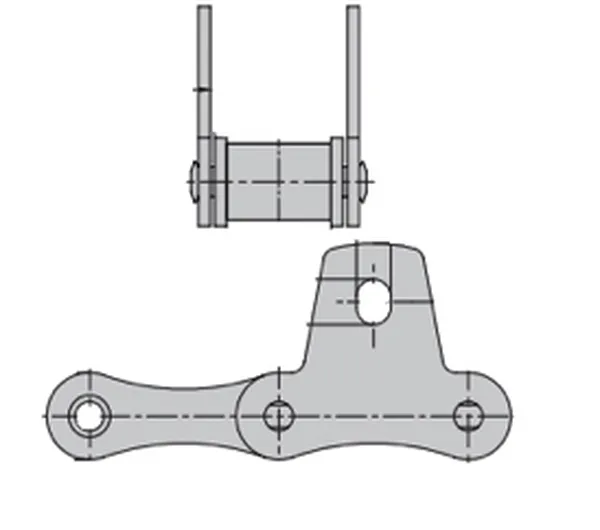

S32 Chain K1 ?Attachment	S32 Chain SK1 Attachment

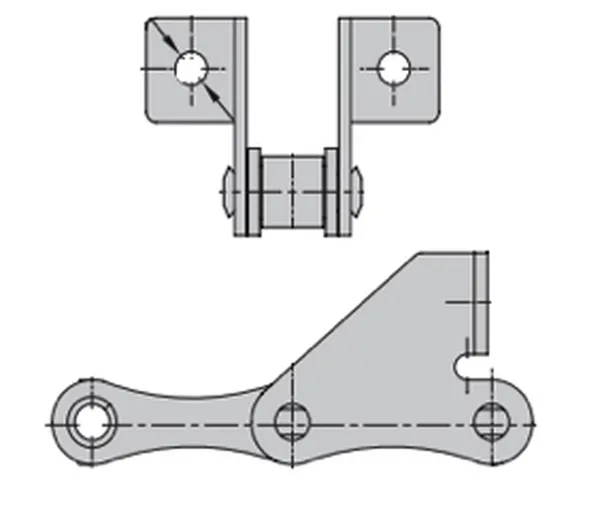

S32 Chain K1-F1 Attachment	S32 Chain SD Attachment

Common Applications of S32 Agricultural Roller Chains

The S32 agricultural roller chain finds wide application in various agricultural machinery and equipment due to its durability, reliability, and efficiency. Some common applications of the S32 agricultural roller chain include:

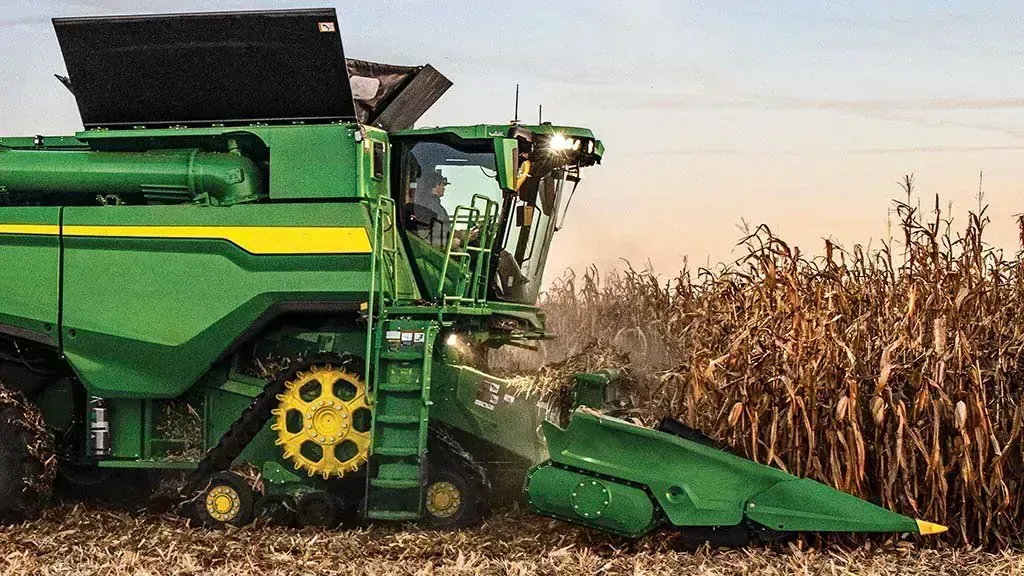

• Corn Harvesters: In corn harvesters, S32 agricultural roller chains are crucial for driving mechanisms that collect and process corn efficiently. The chains handle the demanding task of transferring power to various components, ensuring smooth operation. Their durability and resistance to debris and moisture make them ideal for the rough conditions encountered during corn harvesting.

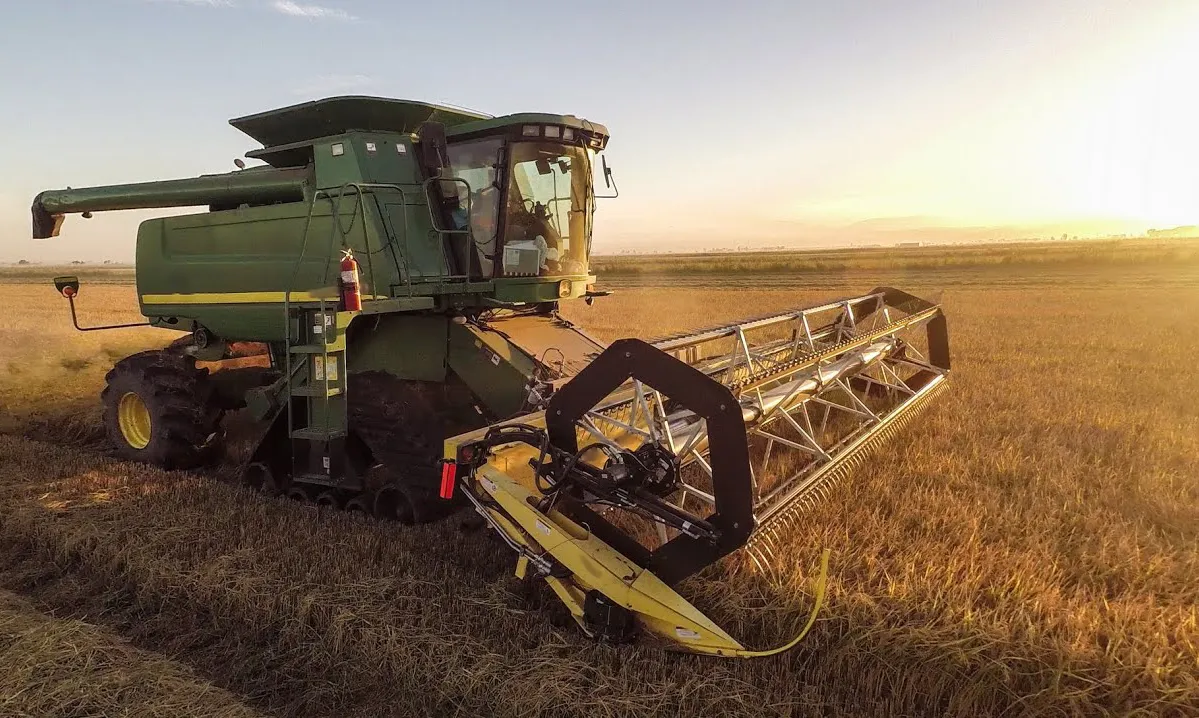

• Combine Harvesters: Combine harvesters, which perform reaping, threshing, and winnowing, rely on S32 roller chains for efficient power transmission. The chains support multiple moving parts, ensuring seamless operation throughout the harvesting process. Their robust construction allows them to endure the heavy loads and continuous use typical in combine harvester applications, enhancing overall equipment reliability.
• Forage Harvesters: Forage harvesters benefit from the S32 chains' ability to handle high loads and varying speeds. These chains are vital in powering the cutting and processing mechanisms that chop and collect forage crops. Their resistance to wear and environmental factors ensures reliable performance, crucial for maintaining productivity in forage harvesting operations.
• Rice Harvesters: In rice harvesters, S32 agricultural roller chains are essential for managing the precise and delicate task of collecting rice grains. The chains ensure efficient operation of threshing and separating components, minimizing grain loss. Their corrosion resistance is particularly beneficial in wet conditions typical of rice fields, maintaining smooth functionality and reducing downtime.

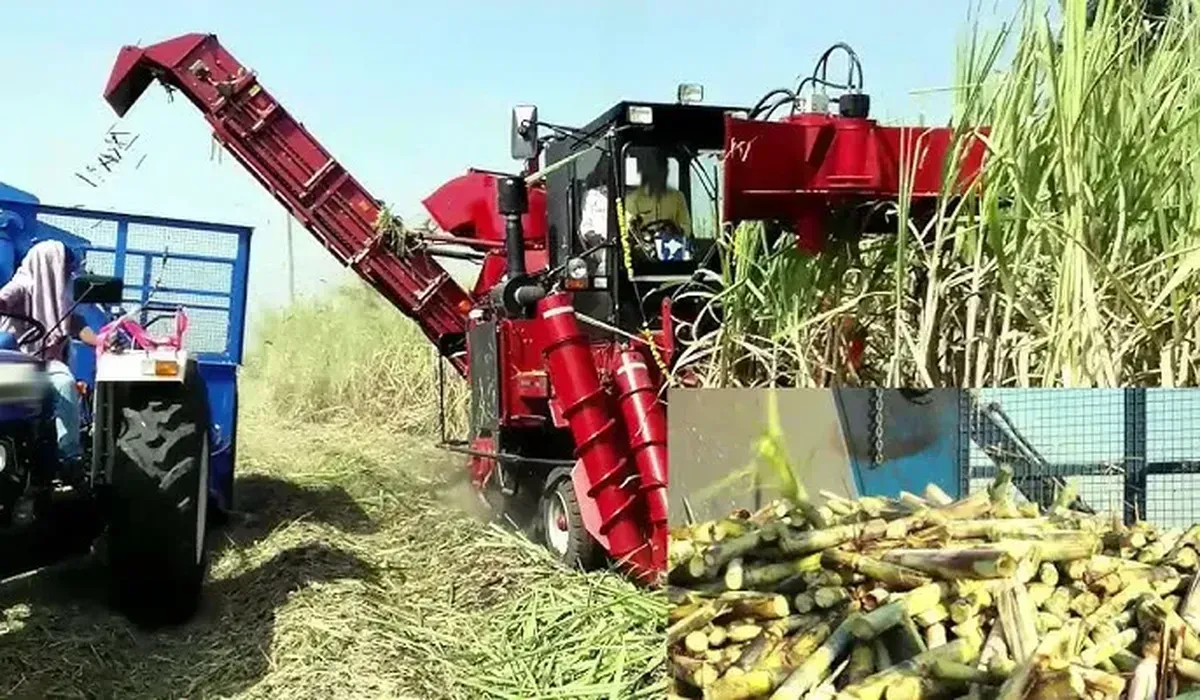

• Sugarcane Harvesters: Sugarcane harvesters require heavy-duty chains like the S32 agricultural chains to handle the tough, fibrous nature of sugarcane. These chains are used in the cutting and conveying mechanisms, ensuring efficient processing. Their strength and durability allow them to withstand the significant stresses involved in sugarcane harvesting, ensuring continuous operation and reduced maintenance needs.

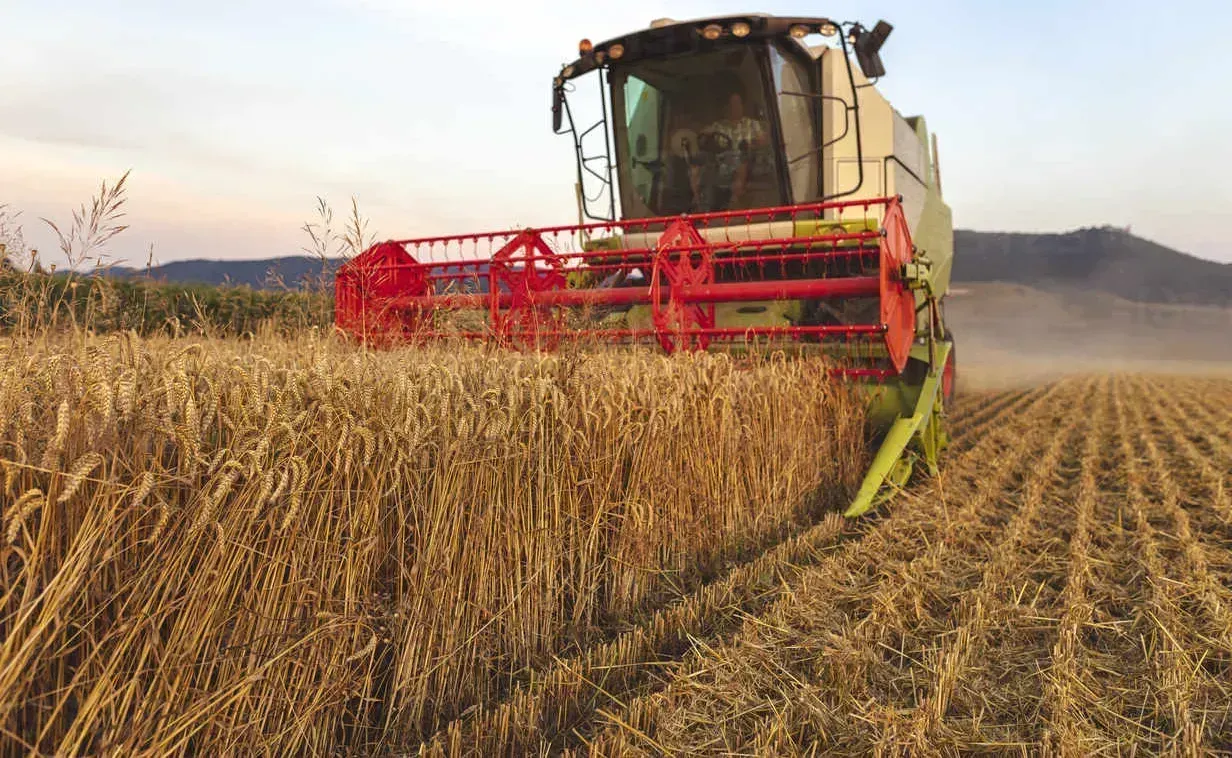

• Wheat Harvesters: Wheat harvesters utilize S32 chains to drive the complex systems needed for cutting, threshing, and cleaning wheat. The chains provide reliable power transfer, essential for handling the extensive workload during peak harvest times. Their ability to resist dust and chaff accumulation helps maintain operational efficiency and prolongs the service life of the machinery.

S32 Roller Chain Surface Treatment

The surface treatment of the S32 agricultural roller chain is a critical aspect that influences its durability, resistance to wear, and overall performance in agricultural machinery applications. Here are some common surface treatments and coatings used for enhancing the properties of roller chains like the S32:

1. Shot Peening:?Shot peening is a process that enhances the fatigue strength of the S32 roller chain by bombarding its surface with small spherical media. This treatment induces compressive stresses, which help to prevent crack formation and propagation. As a result, the chain gains increased durability and resistance to failures under cyclic loading conditions.
2. Polishing:?Polishing the S32 chain involves smoothing its surface to reduce friction and enhance its aesthetic appeal. This treatment minimizes wear by decreasing contact resistance between moving parts. A polished surface also aids in preventing the accumulation of debris, which can lead to premature wear and reduced efficiency in agricultural machinery.
3. Oxygenation:?Oxygenation, or oxidizing, forms a protective oxide layer on the chain’s surface. This treatment helps improve corrosion resistance, protecting the chain from environmental factors like moisture and chemicals. By enhancing its resistance to rust and corrosion, oxygenation ensures the chain maintains optimal performance and longevity in various agricultural settings.
4. Blackening:?Blackening is a surface treatment that provides a thin, protective layer on the S32 chain. This process enhances corrosion resistance and improves the chain’s appearance by giving it a uniform black finish. Blackening also helps reduce light reflection, which can be beneficial in environments where glare could be a concern.
5. Zinc-Plated:?Zinc plating involves coating the S32 agricultural chain with a layer of zinc, offering excellent corrosion protection. This treatment is particularly beneficial in preventing rust, especially when the chain is exposed to moisture and other corrosive elements. Zinc plating extends the chain’s lifespan and ensures reliable performance in harsh agricultural conditions.
6. Nickel-Plated:?Nickel plating provides a robust and corrosion-resistant finish for the S32 chain. This treatment enhances the chain’s resistance to environmental wear and adds a layer of protection against chemical exposure. The smooth, metallic finish also reduces friction, contributing to improved efficiency and longevity in agricultural machinery applications.
7. Anodized:?Although not typically used for steel chains, anodizing is a process more common with aluminum components. It involves creating a protective oxide layer that enhances corrosion resistance and surface hardness. For components that can be anodized, this treatment helps prevent wear and extends the service life in challenging agricultural environments.

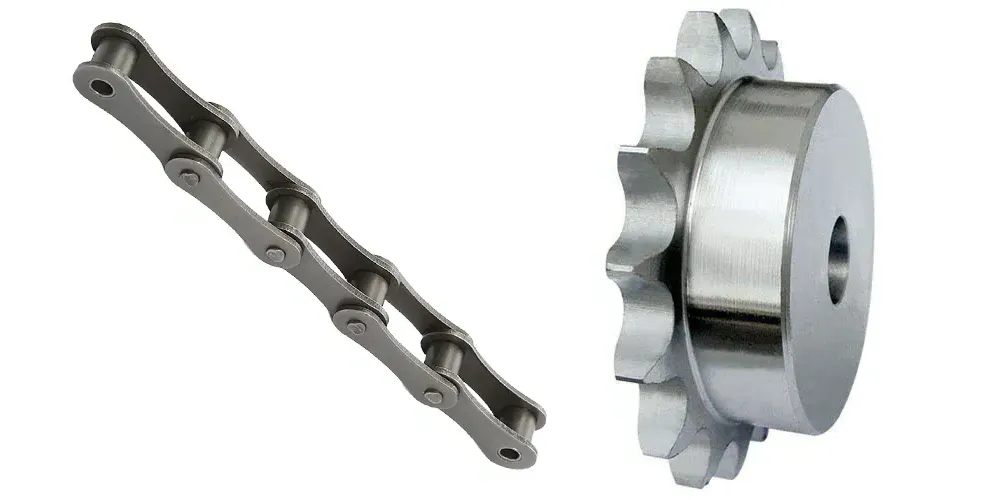

S32 Chain Sprockets and S32 Chains

S32 chain sprockets and S32 chains are integral components in agricultural machinery, working in tandem to ensure efficient power transmission and operation. The sprocket is a wheel with teeth that engage with the chain, allowing for smooth motion and effective transfer of mechanical energy. The precise engineering of both the chain and sprocket is crucial for maintaining alignment and reducing wear, ensuring longevity and reliability.The S32 chain is designed to handle the rigorous demands of agricultural environments. Its robust construction allows it to endure heavy loads, resist corrosion, and operate efficiently in conditions filled with dirt and debris. The chain’s links and rollers are crafted to minimize friction, enhancing the overall performance and reducing energy loss during operation.The sprocket, on the other hand, must be perfectly matched to the chain. The teeth of the S32 chain sprocket are designed to fit seamlessly with the S32 chain, ensuring that there is no slippage during motion. This precise fit is essential for maintaining the timing and synchronization of various machinery components, such as those found in harvesters and tractors.In agricultural machinery, these chains and chain sprockets are used in applications like driving conveyor belts, operating cutting mechanisms, and powering wheels. Their combined function is essential for tasks such as harvesting crops, where reliable and consistent power transmission is crucial. The sprocket-chain system allows for the conversion of rotational energy from motors or engines into actionable force, facilitating the movement and operation of machinery.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

FAQs:

Q: What is the S32 Roller Chain used for?A: The S32 Roller Chain is primarily used in agricultural machinery such as harvesters and tractors. It provides efficient power transmission and is designed to withstand harsh conditions.Q: What materials are used in S32 Roller Chains?A: S32 Roller Chains are made from high-quality steel, offering excellent durability, corrosion resistance, and the ability to handle heavy loads typical in agricultural applications.Q: How do I maintain an S32 Roller Chain?A: Regular maintenance includes cleaning, lubrication, and tension adjustments. Keeping the chain free of debris and properly lubricated will enhance its lifespan and performance.Q: Are S32 Roller Chains compatible with standard sprockets?A: Yes, they are designed to fit standard sprockets, but it’s crucial to ensure the sprocket size matches the chain specifications for optimal performance.Q: What are the signs of wear in an S32 Roller Chain?A: Signs of wear include elongation, rust, and visible damage to the links or rollers. Regular inspections can help detect these issues early.Q: Can S32 Roller Chains be repaired?A: Minor repairs are possible, such as replacing damaged links, but significant wear may require replacing the entire chain to ensure safety and efficiency.Q: How does the S32 Roller Chain improve machinery efficiency?A: Its design minimizes friction and energy loss, providing smooth operation. This efficiency translates to better performance and reduced fuel consumption in machinery.Q: What environments are suitable for S32 Roller Chains?A: S32 Roller Chains are ideal for environments with dirt, moisture, and other challenging conditions, thanks to their robust and corrosion-resistant construction.
