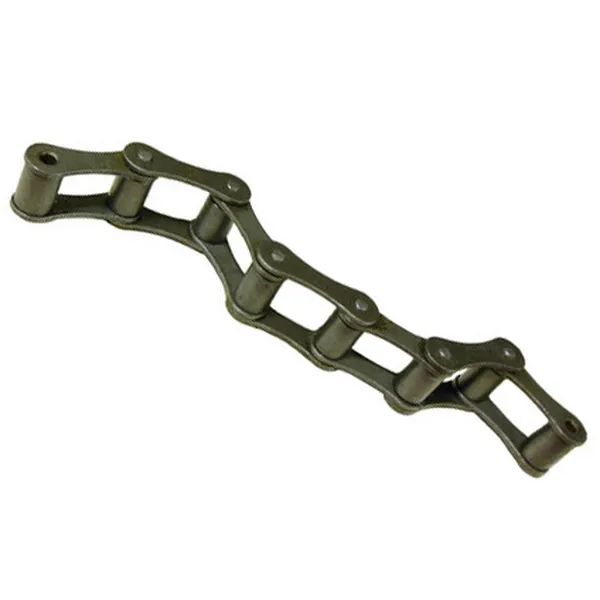

S55 Agricultural Roller Chain

Discover the Raydafon Group S55 Agricultural Roller Chain, engineered for peak performance and durability on your farm. This robust chain features premium materials and precision design to withstand demanding agricultural tasks, ensuring smooth operation in harsh conditions. Ideal for farmers and agricultural professionals, it enhances machinery efficiency and reduces maintenance, saving you time and costs. Experience the confidence of reliable performance that simplifies heavy-duty work, setting a new standard in durability. Choose Raydafon for superior quality that your equipment deserves.

Send Inquiry

Product Description

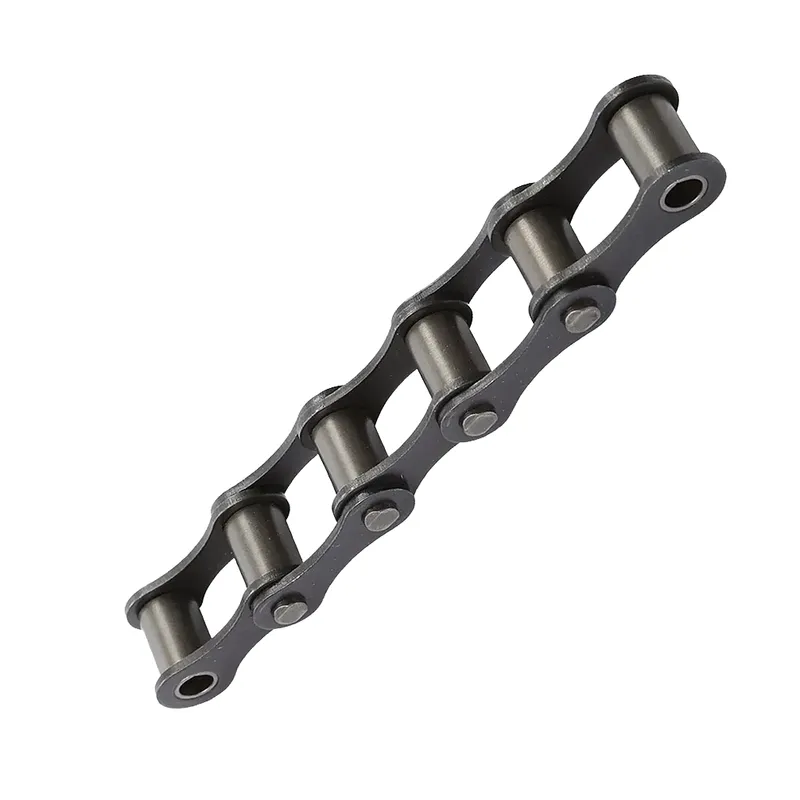

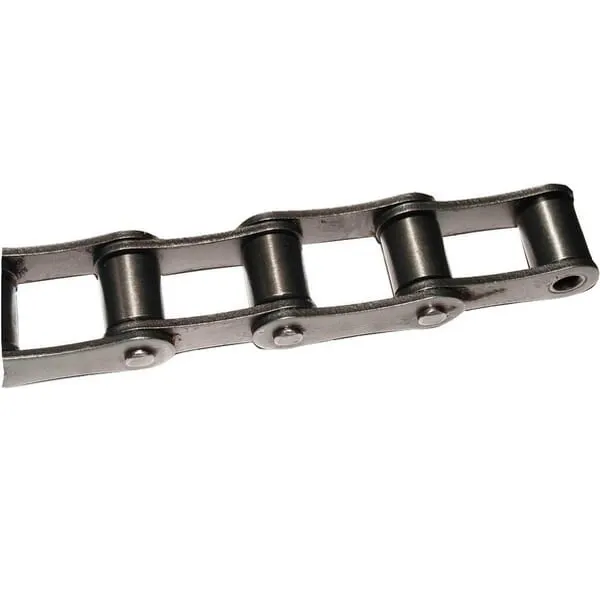

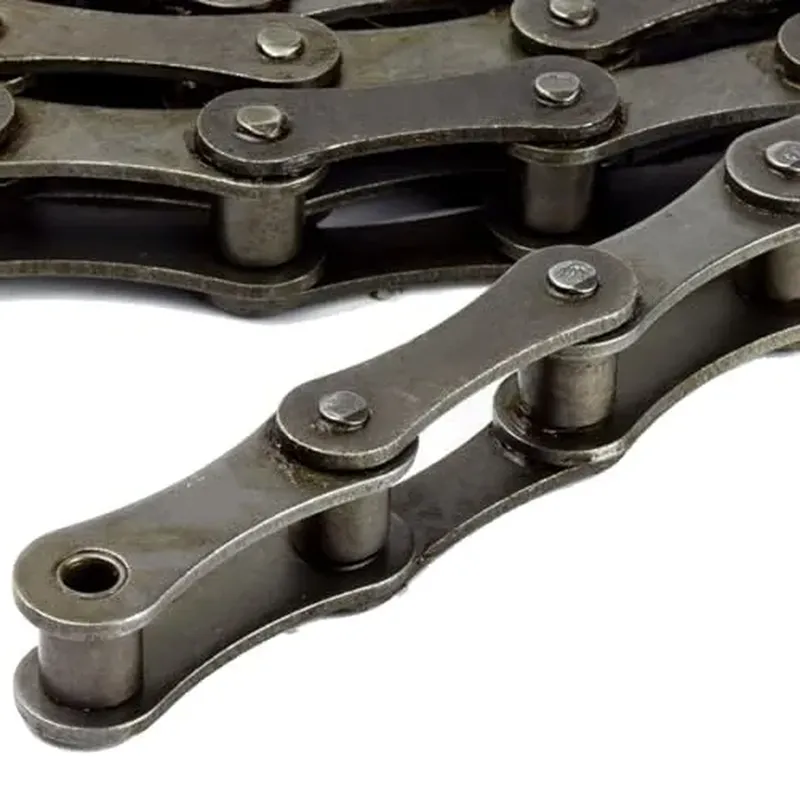

?S55 Roller Chain for Agricultural Applications

The S55 roller chain is a type of roller chain that is used in agricultural machinery. It is manufactured to DIN 8189 standards and is typically used in European-built equipment. The S55 chain features solid rollers, heat treated components and is supplied with a light, high-quality lubricant for extended working life. The S55 roller chain is used in a variety of agricultural machinery, including harvesters, balers, and combines. It is also used in some construction and industrial applications.Here are some of the key features of the S55 roller chain:

Solid rollers: The rollers are made of solid steel, which makes them more durable and resistant to wear and tear.
Heat-treated components: The pins, bushings, and other components are heat-treated to improve their strength and durability.
Light lubricant: The chains are supplied with a high-quality light lubricant that helps to reduce friction and wear.
Long working life: The S55 chain is designed to have a long working life, even in harsh operating conditions.

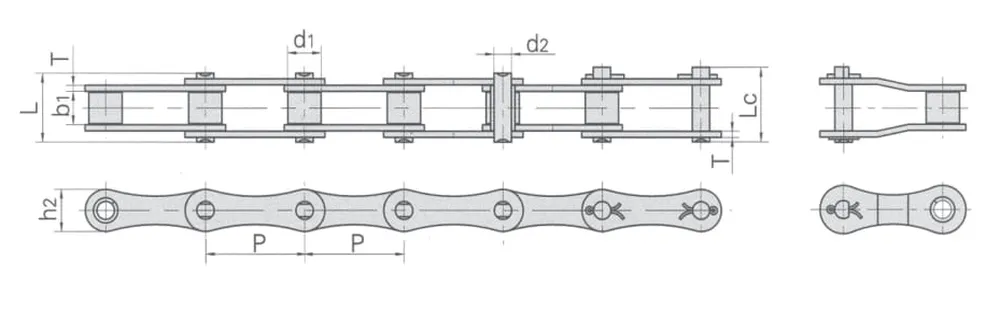

S55 Roller Chain Dimensions

Pitch (P):	41.40mm
Roller Diameter (d1):?	17.78mm
Width Between Inner Plates (b1):?	22.23mm
Pin Diameter (d2):?	5.72mm
Pin Length (L):	37.7mm
Connecting Link Pin Length (Lc):?	40.4mm
Inner Plate Depth (h2):?	17.3mm
Plate Thickness (T):?	2.8mm
Tensile Strength:?	7,868 LBS
Weight Per Meter:	3.97 LBS

Key Features of S55 Roller Chain for Agricultural

The S55 roller chain, specifically designed for agricultural applications, boasts a range of features that make it a preferred choice for use in farming equipment:

Durability and Strength: The S55 roller chain is crafted from high-quality steel, ensuring exceptional durability and strength. This construction enables the chain to withstand the harsh conditions commonly encountered in agricultural settings, such as exposure to dirt, moisture, and heavy loads. Its robust design reduces the likelihood of breakage, ensuring reliable performance over extended periods.
Corrosion Resistance: Thanks to its corrosion-resistant properties, the S55 roller chain is well-suited for environments where moisture and other corrosive elements are present. This resistance is achieved through specialized coatings and treatments that prevent rust and degradation, thereby prolonging the chain’s operational life and maintaining its integrity even in challenging weather conditions.
Smooth Operation: The precision-engineered components of the S55 roller chain contribute to its smooth operation. Solid rollers and accurately machined parts help minimize friction and wear, ensuring efficient power transmission. This smoothness not only enhances performance but also reduces energy consumption and wear on connected machinery, leading to cost savings.
Heat-Treated Side Plates: The side plates of the S55 roller chain undergo a heat treatment process to increase their strength and resilience. This treatment enhances the chain’s ability to handle high loads and resist stretching or deformation, which is crucial for maintaining the alignment and functionality of agricultural equipment during intensive use.
Versatility: The S55 roller chain is versatile, making it compatible with a wide range of agricultural machinery, including combines, balers, and conveyors. This adaptability allows farmers to use the same type of chain across different equipment, simplifying maintenance and inventory management while ensuring reliable performance across various applications.

S55 Roller Chain Attachments

The S55 roller chain can be equipped with various attachments to enhance its functionality and adapt it to specific tasks within agricultural forage harvesters. These attachments are designed to perform specialized functions and optimize the chain's performance in different applications. Here are some common attachments that can be found on the S55 roller chain:

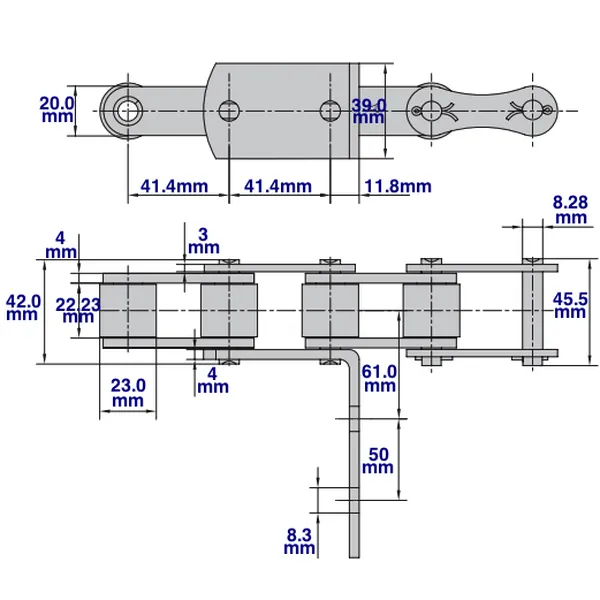

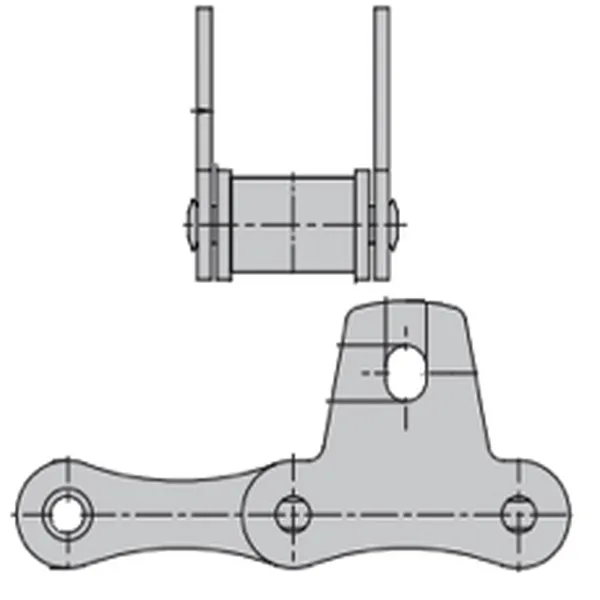

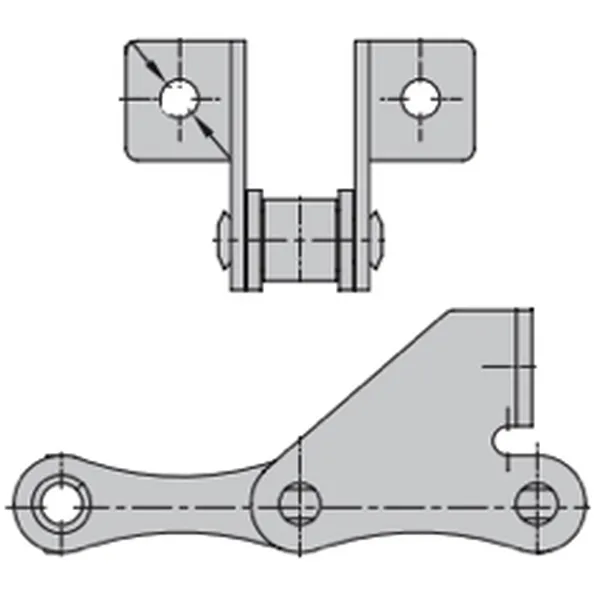

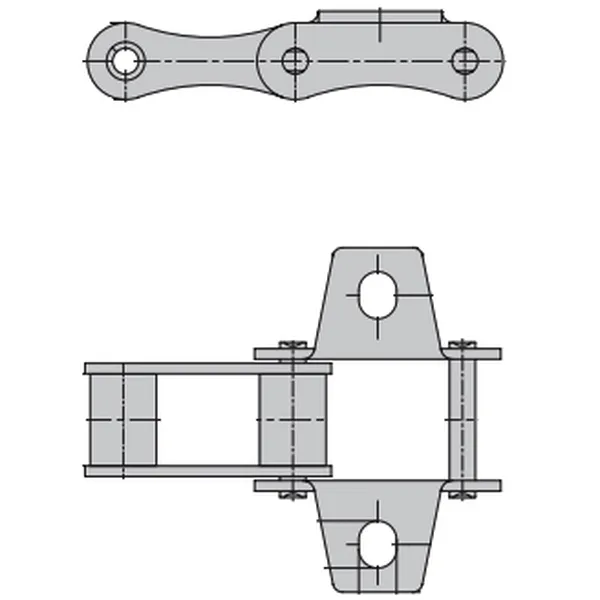

S55 Roller Chain with K1 Attachment	S55 Roller Chain with HF2 Attachment	S55 Roller Chain with F6 Attachment	S55 Roller Chain with K1 Attachment

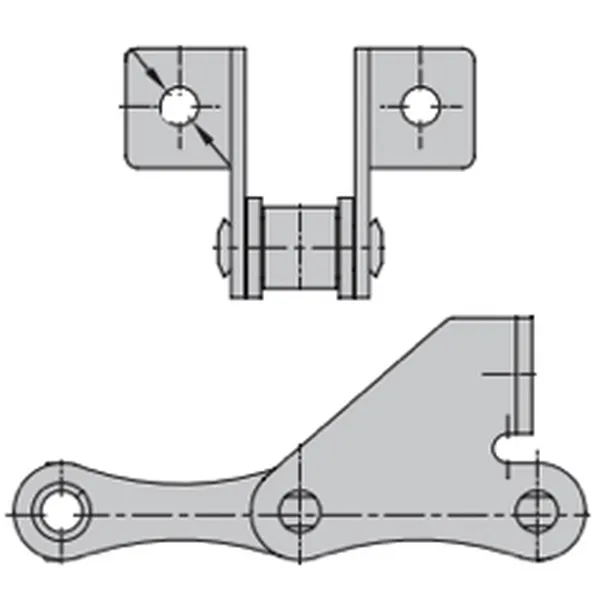

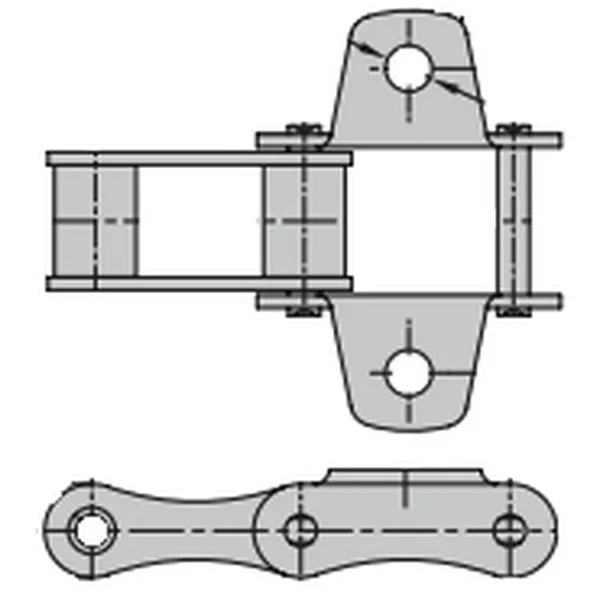

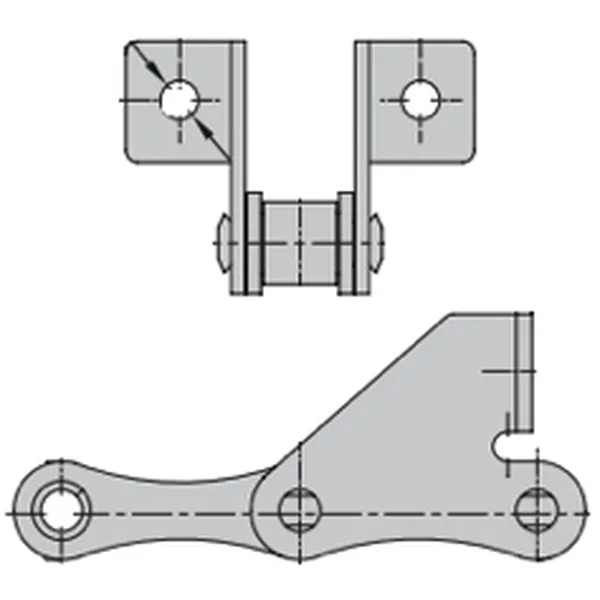

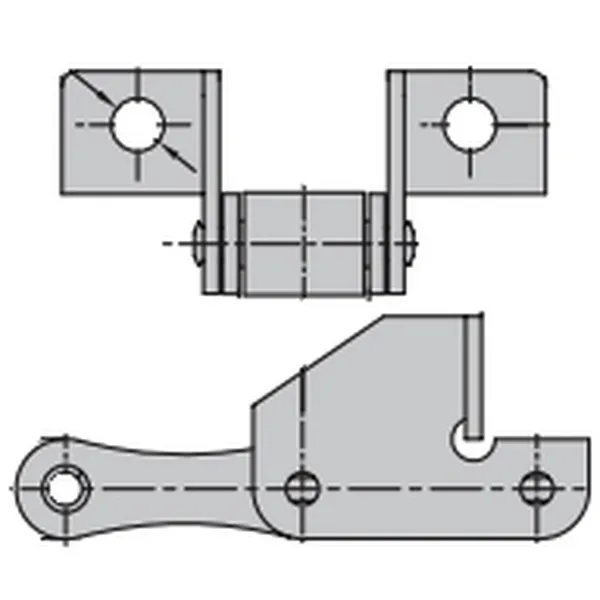

S55 Roller Chain with F7 Attachment	S55 Roller Chain with F1 Attachment	S55 Roller Chain with F5 Attachment	S55 Roller Chain with F3? Attachment

S55 Agricultural Roller Chain Applications

The S55 agricultural roller chain finds versatile applications across various farming equipment and machinery, playing a crucial role in ensuring the smooth and efficient operation of agricultural processes. Some common applications of the S55 roller chain in agriculture include:

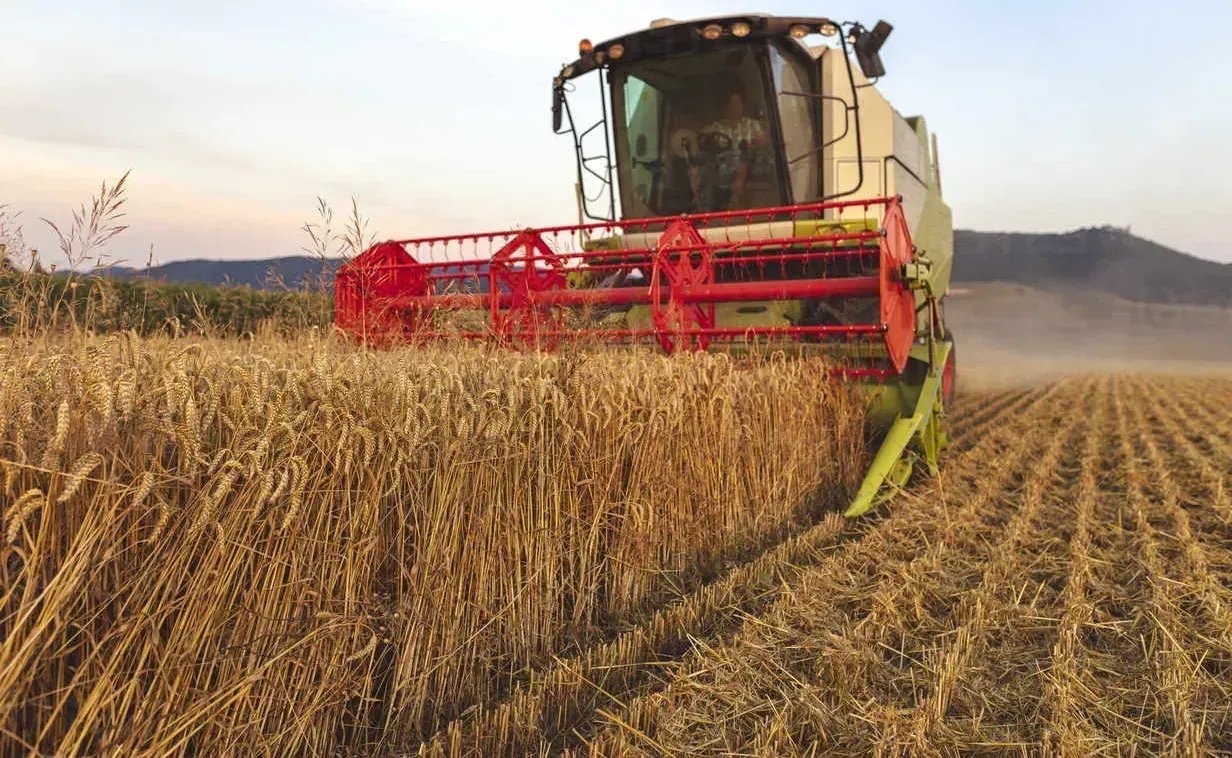

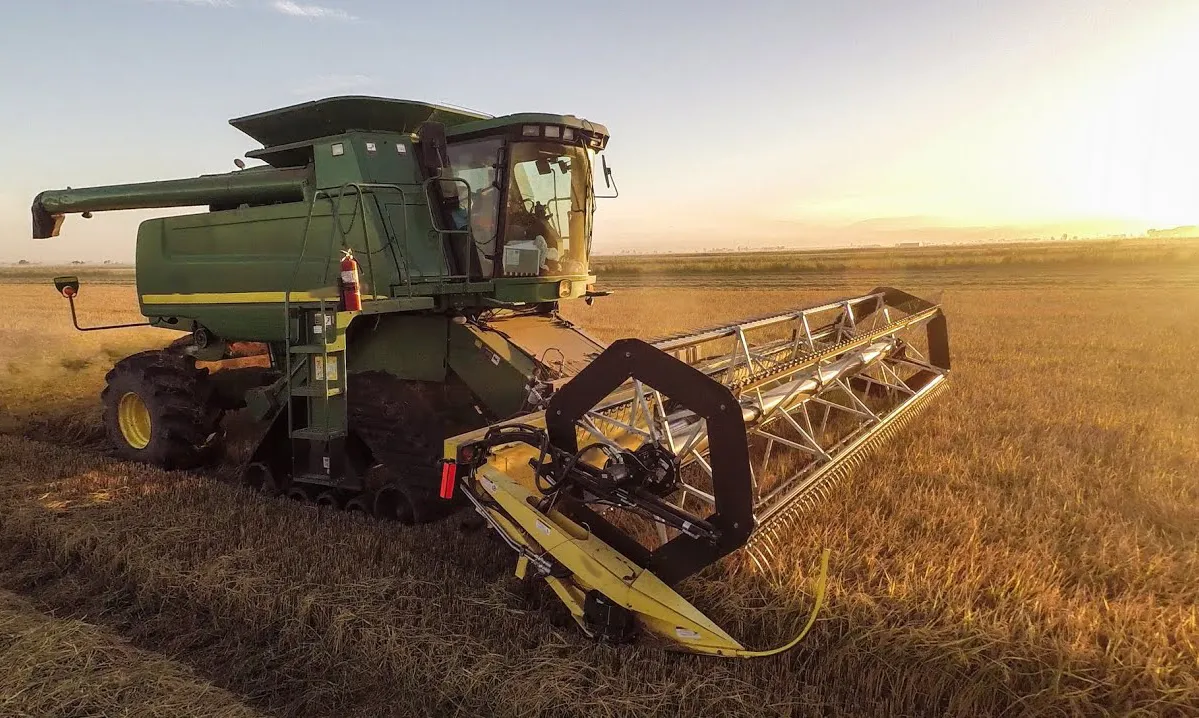

Combine Harvesters: In combine harvesters, the S55 roller chain plays a crucial role in the efficient transfer of power needed to perform simultaneous tasks like reaping, threshing, and winnowing. Its durability ensures it can handle the rigorous demands of continuous operation during harvest season, reducing downtime and maintenance costs.

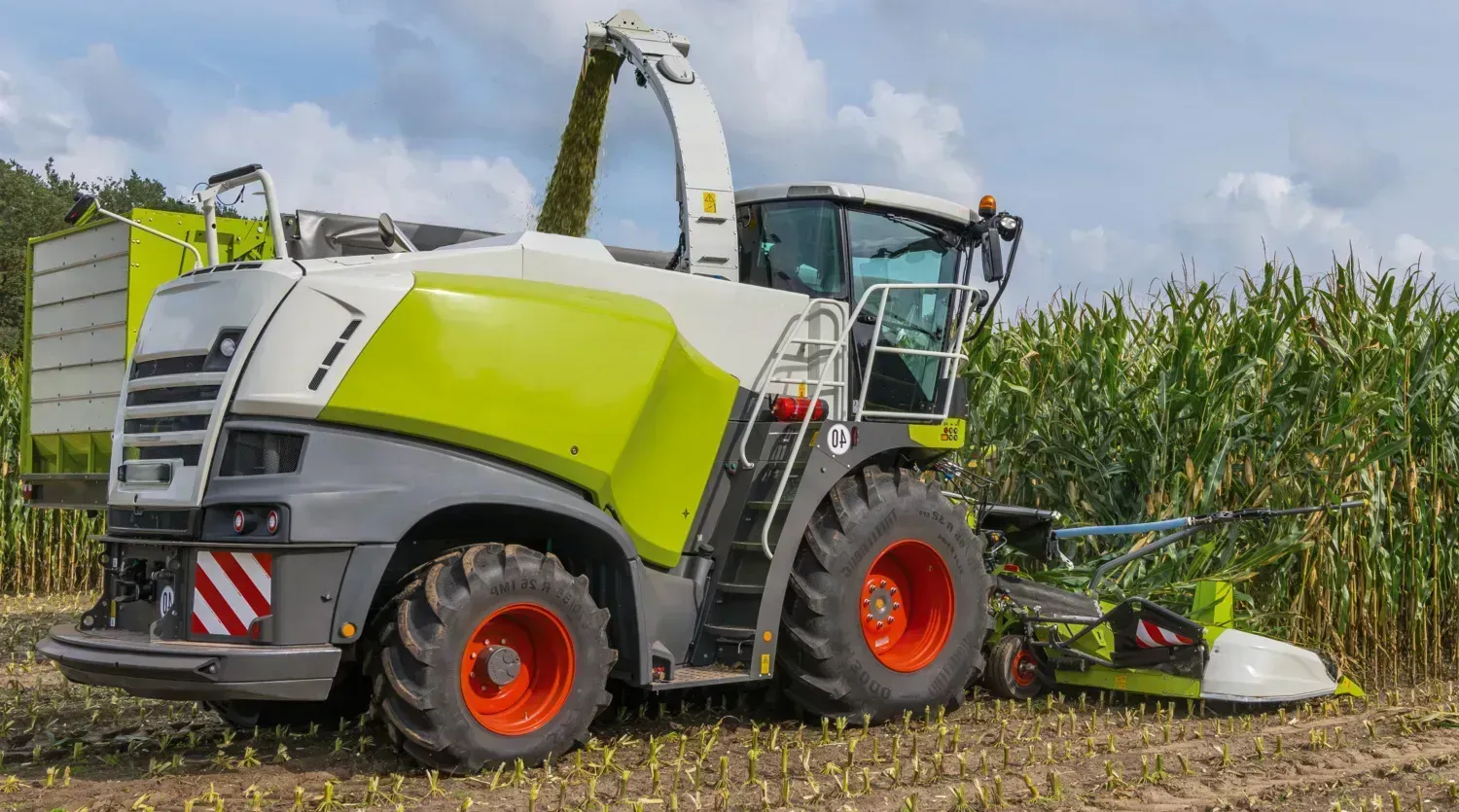

Forage Harvesters: Forage harvesters rely on the S55 agricultural chain to efficiently cut and gather crops like grass, corn, and other silage plants. The chain's high load capacity and smooth operation ensure consistent performance, enabling these machines to process large volumes of material quickly and with minimal wear and tear on the equipment.
Rice Harvesters: In rice harvesters, the S55 agricultural roller chain is essential for handling the specific challenges of harvesting rice, such as dealing with muddy conditions and high moisture content. Its corrosion resistance and robust construction make it ideal for maintaining performance and reliability, ensuring efficient rice collection and processing.
Corn Harvesters: The S55 roller chain is used in corn harvesters to manage the heavy loads and intense operational requirements of corn harvesting. Its strength and precision engineering help in efficiently stripping ears from stalks, conveying them through the machine, and ensuring minimal loss and damage during the harvesting process.

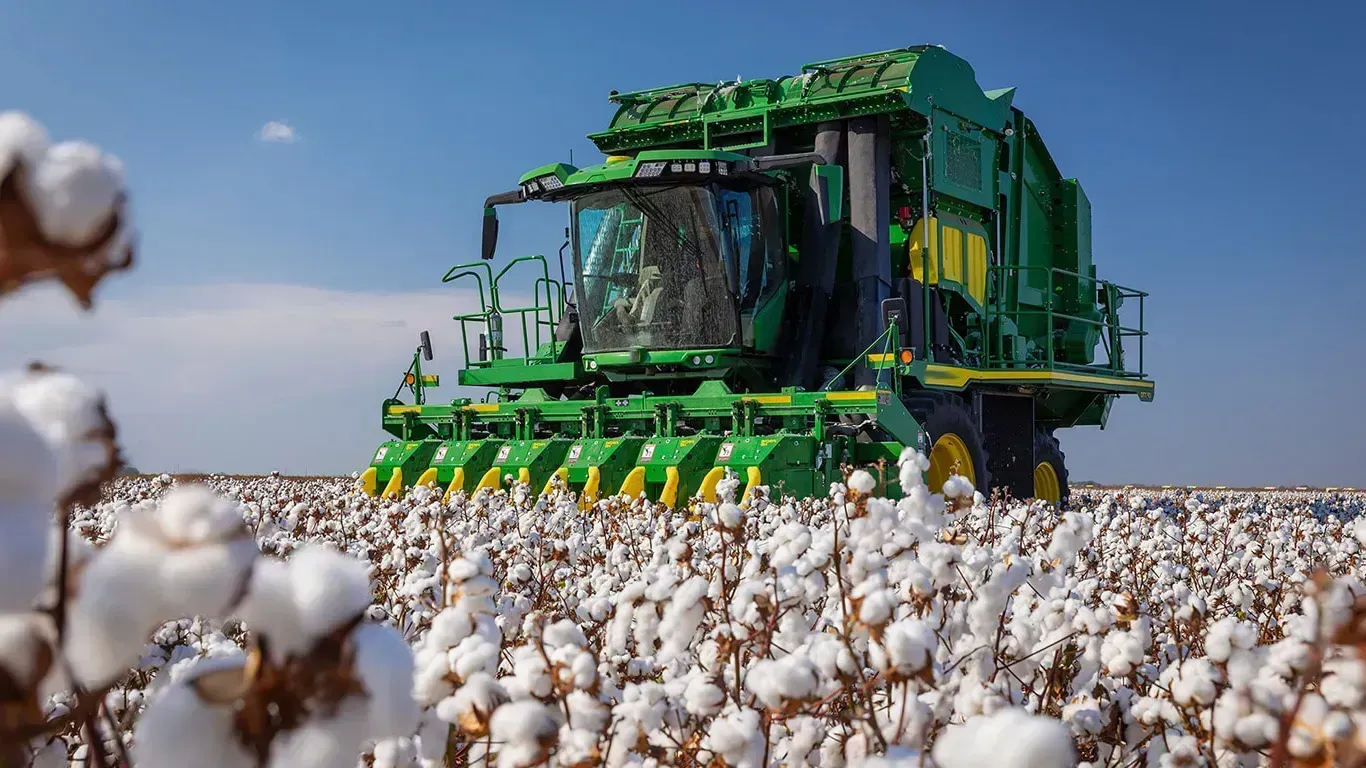

Cotton Harvesters: Cotton harvesters utilize the S55 agricultural roller chain to effectively handle the delicate yet demanding task of picking and processing cotton bolls. The chain’s smooth operation and reliability are vital in preventing fiber damage, maintaining machine efficiency, and ensuring the gentle handling necessary for high-quality cotton production.
Hay Round Balers: For hay round balers, the S55 agricultural chain is crucial in the baling process where hay is compacted into large, dense rolls. The chain’s high strength supports the heavy-duty requirements of compressing and binding the hay, ensuring consistent bale formation and robust performance even in challenging field conditions.

Other Types of Agricultural Roller Chain

Explore the various agricultural chain in our inventory, including A-Type Agricultural Roller Chains, C-Type agricultural roller chains, CA-Type agricultural roller chains, S-Type agricultural roller chains, MR-Type agricultural roller chains, and ANSI-type agricultural roller chains. Every product meets the tough standards you demand from your tools, such as fighting off debris accumulation and acclimating to nearly every temperature change. The agricultural roller chain goes through extensive testing and quality checks before it arrives at your farm. Try our agricultural flat link chain for smooth operations every day.C-Type agricultural roller chains are typically used as a gathering chain or conveyor chain. It features a straight sidebar for increased strength and better-conveying ability. This is the most common type of agricultural roller chain. Please note we stock a complete line of attachments for C-Type chains.CA-Type steel agricultural chains are the next most common agricultural chain.? With a straight heavy side plate, it is often used in the harvesting or fertilizing industry.? CA550 chains and CA557 chains are the most common option in the “CA” chains. We also carry a range of attachments for this chain.??Please do not hesitate to get in touch with any abnormal inquiries.

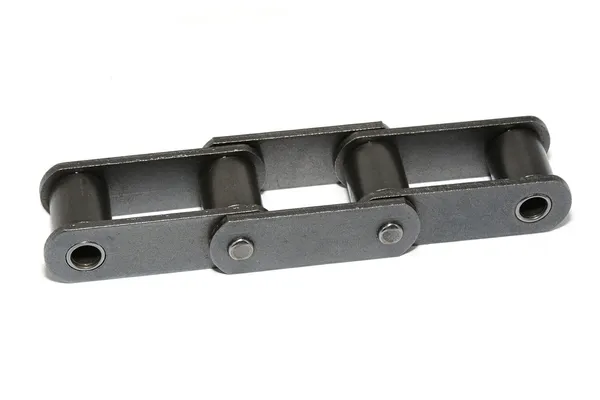

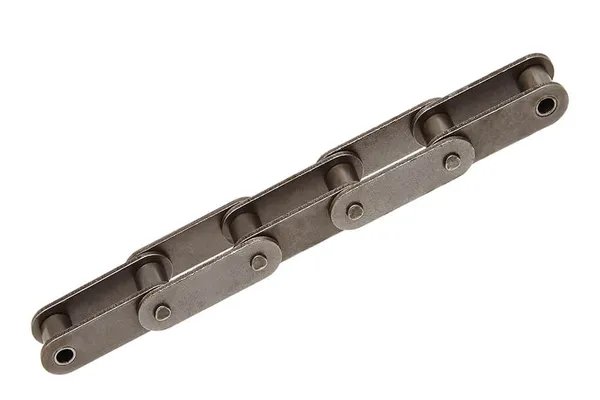

C Type Agricultural Roller Chain	CA550 Roller Chain

S55 Roller Chain Lubrication Operation?

Proper lubrication is essential for maintaining the performance and extending the lifespan of the S55 roller chain in agricultural applications. Here are the steps for lubricating an S55 roller chain effectively:

Preparation: Before lubricating, ensure the equipment is turned off and safely secured. Clean the chain thoroughly to remove dirt, debris, and old lubricant using a brush or compressed air. This step is crucial for preventing contaminants from causing wear and ensuring the lubricant adheres properly to the chain surfaces.
Select the Right Lubricant: Choose a lubricant specifically designed for roller chains, ideally one that offers high viscosity and corrosion resistance. The right lubricant will penetrate the chain’s internal components, reducing friction and wear. Consider environmental factors such as temperature and moisture when selecting the lubricant to ensure optimal performance.
Apply Lubricant: Apply the lubricant evenly across the entire length of the chain while rotating the chain slowly to ensure full coverage. Focus on the areas where the chain links pivot, as these points experience the most friction. Use a brush, spray, or drip method to ensure the lubricant reaches deep into the chain’s joints.
Remove Excess Lubricant: After application, wipe off any excess lubricant with a clean cloth. Excess lubricant can attract dust and debris, leading to increased wear. Ensuring only a thin film remains on the chain will help maintain cleanliness and improve the chain’s efficiency and lifespan by reducing unnecessary buildup.
Inspect the Chain: While lubricating, take the opportunity to inspect the chain for signs of wear, damage, or misalignment. Look for any stretching, cracks, or broken links, and address these issues promptly. Regular inspections during lubrication help prevent unexpected failures and maintain the overall health of the machinery.
Reassemble and Test: Once lubrication is complete, reassemble any components that were removed and ensure everything is securely in place. Run the equipment at a low speed to allow the lubricant to distribute evenly throughout the chain. Listen for unusual noises and monitor the chain’s movement to confirm smooth operation.

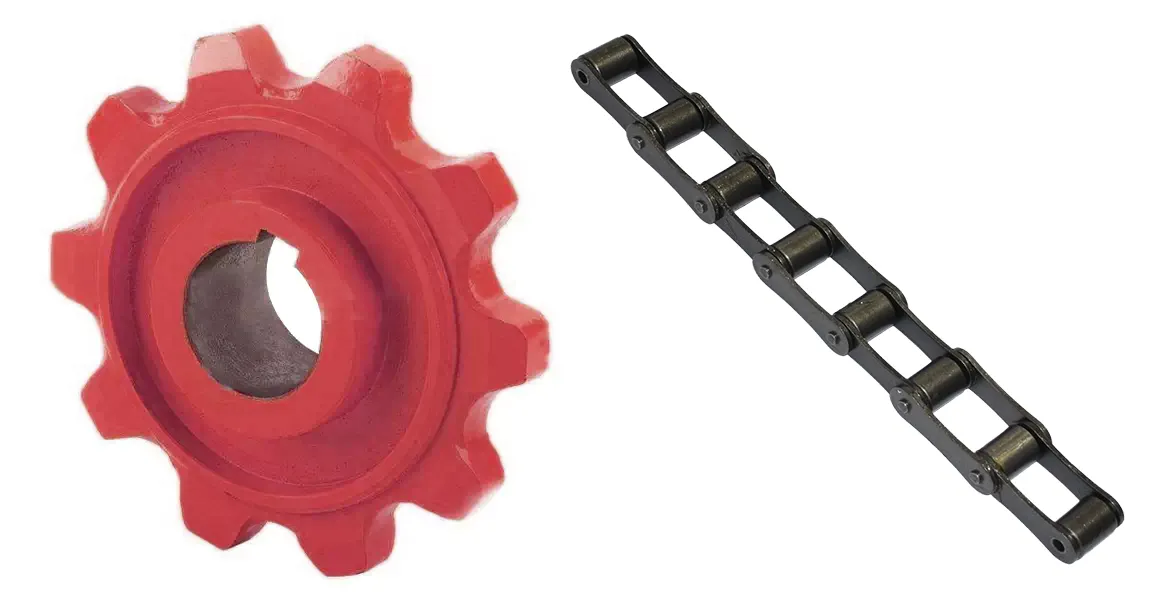

S55 Chain Sprockets for S55 Chains

S55 roller chain sprockets are an important component of the S55 agricultural chain system. The sprockets are designed to mesh with the chain, transferring power and motion between different components of the agricultural machinery. Here are some important things to know about S55 roller chain sprockets and the S55 agricultural chain:Tooth profile: S55 roller chain sprockets have a specific tooth profile that is designed to mesh with the chain. The tooth profile must match the chain to ensure proper engagement and efficient power transmission.Pitch: The pitch of the S55 roller chain must match the pitch of the chain. In the case of the S55 agricultural chain, both the chain and sprocket have a pitch of 0.625 inches (15.875 mm).Number of teeth: The number of teeth on the sprocket will depend on the specific application and the desired gear ratio. Different sprockets with different numbers of teeth can be used to adjust the speed and torque of the machinery.Material: S55 roller chain sprockets are typically made from high-quality steel or other durable materials to ensure long-lasting performance and resistance to wear and corrosion.Lubrication: Proper lubrication is important for the performance and longevity of the S55 agricultural chain and S55 roller chain sprockets. The chain and sprockets should be lubricated with a high-quality lubricant that is suitable for the specific application and operating conditions. S55 Agricultural Roller Chain

China Agricultural Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, agricultural chains, silent chains, PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

FAQs:

Q: What is the S55 roller chain used for?A: The S55 roller chain is primarily used in agricultural machinery, such as combine harvesters, forage harvesters, and balers. It is designed to handle the rigorous demands of these applications, providing reliable power transmission and durability in harsh conditions.Q: What materials are used in the S55 roller chain?A: The chain is typically made from high-quality steel, which offers excellent strength and resistance to wear and corrosion. This makes it suitable for use in environments where it may be exposed to dirt, moisture, and varying weather conditions.Q: How often should the S55 roller chain be lubricated?A: Lubrication frequency depends on the operating conditions and usage. Generally, regular lubrication is necessary to maintain optimal performance and prevent wear. It’s best to follow the manufacturer’s recommendations or establish a maintenance schedule based on specific operational needs.Q: Can the S55 roller chain be used in non-agricultural applications?A: While it is primarily designed for agricultural use, the S55 roller chain can be adapted for other industrial applications that require similar strength and durability. It’s essential to ensure compatibility with the specific requirements of non-agricultural machinery.Q: How do I know if my S55 roller chain needs replacement?A: Signs that the chain may need replacement include excessive wear, stretching, broken links, or visible damage. Regular inspections during lubrication and maintenance will help identify these issues early, allowing for timely replacement and avoiding equipment failure.Q: What are the benefits of using an S55 roller chain?A: The S55 roller chain offers several benefits, including high load capacity, corrosion resistance, and smooth operation. Its robust construction and precision engineering make it a reliable choice for demanding agricultural tasks, reducing downtime and maintenance costs.Q: How should the S55 roller chain be stored?A: Store the chain in a dry, clean environment to prevent rust and corrosion. If storing for an extended period, apply a protective lubricant or coating to maintain the chain’s condition. Proper storage helps extend the chain’s lifespan and ensures readiness for future use.Q: Is the S55 roller chain compatible with different agricultural machines?A: Yes, the S55 roller chain is versatile and can be used with various types of agricultural machinery, such as rice harvesters, corn harvesters, and cotton harvesters. Its adaptability makes it a convenient choice for operators who use multiple types of equipment.

Hot Tags: S55 Agricultural Roller Chain, OEM Agricultural Roller Chain, Customized Roller Chain Supplier
