Segmental Sprocket For Mining

Segmental Sprocket For Mining

In the high-stakes world of mining drive systems, where sprockets must deliver seamless power transmission and withstand extreme operational demands, segmental sprockets for mining emerge as innovative components for enhanced reliability and ease of service. These sprockets, designed with segmented construction to facilitate quick assembly and repairs, support efficient chain engagement in harsh underground environments, reducing downtime and maintenance costs while ensuring robust performance. As a senior mechanical engineer with extensive experience in mining gear systems, I can attest to their transformative impact on operational efficiency.

Upgrade your mining drive systems with our high strength segmental sprockets, showcasing key technical parameters: Tooth Profile: Customizable for chain pitch 100-200mm, Material: Alloy Steel (HRC50+ hardness for corrosion resistance), Shaft Diameter Compatibility: Customizable to suit different diameters, Weight: 10-50kg, Working Load Limit: 10-50 tons. Categories: Segmented for easy installation, Custom Variants for specific needs. Select sizes based on application: small for light-duty drives, medium for standard, large for heavy-duty. Ideal for coal conveyance or ore handling in diverse mines.

Segmental Sprocket For Mining Types:

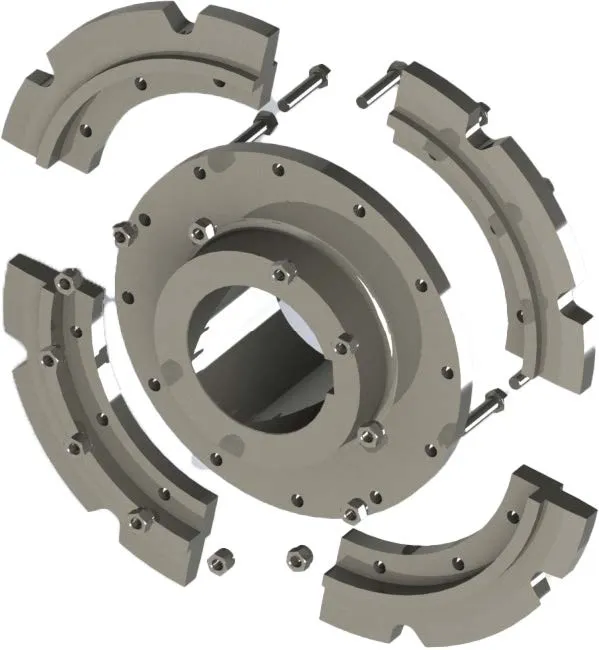

Segmental Sprocket

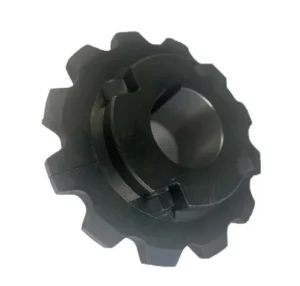

12T segmental sprocket sample (coated)

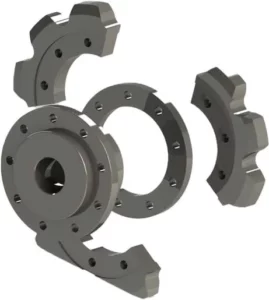

Segmental Sprocket (4 pcs)

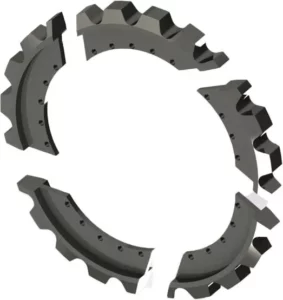

Segmental Sprocket Ring (5 pcs)

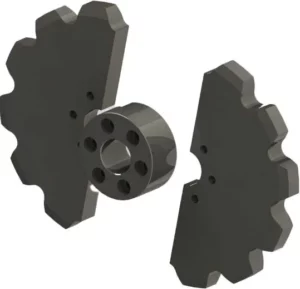

Segmental Sprocket (2 pcs)

Features of Segmental Sprockets for Mining:

As a senior mechanical engineer specializing in mining drive components, with firsthand experience in sprocket design and deployment, I detail the core features of our segmental sprockets for mining, also known as high durability mining segmental sprockets or maintenance-friendly mining drive sprockets. These sprockets are built to excel in tough mining conditions, offering exceptional accessibility and strength. Key features include:

• Ease of Installation: Segmented design allows quick assembly without full disassembly of shafts, reducing setup time in confined mining spaces.
• Accessibility for Maintenance: Modular segments enable easy access for inspections and repairs, minimizing operational interruptions in high-demand environments.
• Customisable to Suit Different Shaft Diameters: Flexible customization options adapt to various shaft sizes, ensuring a precise fit for diverse mining equipment.
• Robust Durability: Premium alloy steel construction provides superior resistance to wear and impact, extending service life in abrasive mining conditions.
• Reduce the Maintenance Time: Streamlined design and modular components cut maintenance duration by up to 50%, enhancing uptime in continuous operations.
• Reduce the Repairing Costs: Fewer full replacements and easier part swaps lower overall repair expenses, optimizing the budget in cost-sensitive mining projects.

These attributes, grounded in engineering precision and validated through field testing (as per sources like Mining Technology and Global Mining Review), address key challenges such as downtime and high costs in mining drives.

Applications of Segmental Sprockets for Mining:

Segmental sprockets for mining are integral in diverse drive scenarios, providing reliable chain engagement and support. As an engineer with practical knowledge, their applications include:

• Coal Drive in Underground Tunnels: Essential for powering conveyors in coal haulage, supporting high loads in room-and-pillar setups, with easy maintenance, and reducing stops in high-output tunnels.
• Ore Transmission in Metal Mines: Facilitate secure sprocket drives in dusty conditions, with customizable shafts minimizing halts in copper/iron processing.
• Potash and Salt Drive Operations: Robust models perform in saline humidity, enabling high-volume drives without frequent upkeep in harvesting sites.
• Hybrid Surface-Underground Drive Systems: Allow quick sprocket swaps (1m/s compatible) in transitional drives, optimizing power with designs for mixed equipment.
• Autonomous Drive Integrations: Pair with sensor-fitted drives in trials, offering data for optimized transmission, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Segmental Sprockets for Mining:

Proper installation of these maintenance-friendly mining drive sprockets not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper fitting.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the drive system and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the shaft, hubs, and chain for wear, alignment, and cleanliness, as debris can compromise the installation of high-durability mining segmental sprockets. From my experience, this step is crucial to avoid early failures in maintenance-friendly mining drive sprockets, ensuring the system is ready for optimal engagement.
• Sprocket Inspection and Handling: Unpack and examine the segmental sprockets for mining for any shipping damage, verifying specifications like tooth profile and shaft diameter compatibility match your requirements. Handle with care using appropriate lifting equipment to prevent scratching or deforming the alloy steel surfaces. As an expert, I recommend assembling segments on a clean surface to identify any anomalies, building trust in the product's reliability before integration.
• Removal of Existing Sprocket (If Applicable): Release tension from the chain and disassemble the old sprocket by removing bolts or segments systematically. Note wear patterns on teeth for future maintenance insights, as this informs adjustments for the new maintenance-friendly mining drive sprockets. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high-durability mining segmental sprockets.
• Positioning and Alignment of the New Sprocket: Position the new segments around the shaft, ensuring proper alignment with the chain path and even spacing for balanced engagement. Use alignment tools to maintain concentricity, avoiding offsets that could lead to uneven wear in segmental sprockets for mining. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the sprocket's durability and efficiency in demanding operations.
• Connection and Fastening: Secure segments with bolts or locking mechanisms, tightening to specified torque without over-stressing. Customize to suit shaft diameters for a snug fit. This step is vital for high durability mining segmental sprockets, as proper fastening distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to contact surfaces to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for maintenance-friendly mining drive sprockets, incorporating 2025 AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning alignment or fastening. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the segmental sprockets for mining operate at peak efficiency, fostering long-term trustworthiness in your mining setup.
• Post-Installation Support and Best Practices: Engage Raydafon's technical support for any queries, leveraging our detailed manuals and optional on-site expertise. Regular inspections every 500 hours, combined with predictive maintenance via integrated sensors, align with trends for sustained performance. My experience confirms that following these practices maximizes the lifespan and reliability of high-durability mining segmental sprockets, providing value through reduced downtime and enhanced safety.

Raydafon's Product Inspection Process:

Our rigorous inspection ensures the highest quality for segmental sprockets for mining. The process begins with raw material verification, where alloy steel is tested for chemical composition and purity using spectrometry to confirm compliance with ASTM standards. Next, during forging, each segment undergoes dimensional checks and hardness testing (HRC50+ via Rockwell method) post-heat treatment. Assembly follows, with prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests conducted on calibrated machines.

Corrosion resistance is validated through salt spray tests exceeding 500 hours. Final audits include visual inspections for defects and functional simulations on mock drives to verify smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, providing sprockets that perform reliably in mining conditions.

Raydafon's Strengths in Segmental Sprockets for Mining

With over 20 years of specialized manufacturing, Raydafon excels in the mining sprocket sector through innovative designs for segmental applications. Our strengths include ease of installation for quick setups, accessibility for maintenance to reduce time, and customizable options to suit different shaft diameters for versatility. Robust durability ensures longevity in harsh conditions, reducing maintenance time and repair costs. Backed by in-house R&D, we integrate technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly materials and processes.

Premium After-Sales Service

Raydafon's after-sales support for segmental sprockets for mining is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues. Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize sprocket life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

Raydafon collaborates with leading entities to advance segmental sprocket technology for mining, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring, as highlighted by industry developments. These alliances focus on sustainable innovations, such as low-emission materials. Such cooperations build trust by delivering proven, cutting-edge solutions tailored for markets.

What Are Segmental Sprockets for Mining?

What segmental sprockets for mining, aka high durability mining segmental sprockets or maintenance-friendly mining drive sprockets, are specialized alloy steel components for efficient chain engagement in mining drives.

Feature segmented design with customizable teeth for grip on shafts, robust construction for load. Withstand impacts in operations, strengthen reliability. Engineering: modular fastening, anti-wear. Premium steels HRC50+ resist damage.

How Do Segmental Sprockets for Mining Work?

How segmental sprockets for mining work involves segmented teeth engaging chains through rotation and torque transfer, with installation requiring precise shaft fitting for smooth function. The process starts with sprocket placement on the drive shaft, where customizable segments (to suit diameters) align with chains to transmit power.

Engineering details include fastening for accessibility without full disassembly, robust materials reducing wear, and regular checks to monitor engagement. Synchronization with chain speeds ensures efficient transmission, preventing slips.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halts impacting quotas; our sprockets consistently maintained moist conditions, extended runs/improved morale.

Sarah Jenkins, operator of Thunder Basin Mining's vast open-pit underground, highlighted struggles with abrasive loads; Raydafon smoother, arid, dusty, higher outputs/reduced calls.

David Ramirez, extractor?at Eagle Ridge Mines,?shared that we have high vibration; our minimized, seamless operations face safety challenges in the hills.

FAQ:

Q1: What makes installation easy? A: Segmented design allows quick assembly without full shaft removal.

Q2: How does it improve maintenance accessibility? A: Modular segments enable easy access for inspections and repairs.

Q3: Can it be customized for shaft diameters? A: Yes, customizable to suit different shaft diameters for precise fits.

Q4: How durable are these sprockets? A: Robust durability ensures long life in harsh mining conditions.

Q5: How does it reduce maintenance time? A: Ease of installation and accessibility cut service duration by up to 50%.

Q6: How does it lower repairing costs? A: Fewer full replacements and simpler repairs reduce overall expenses.
