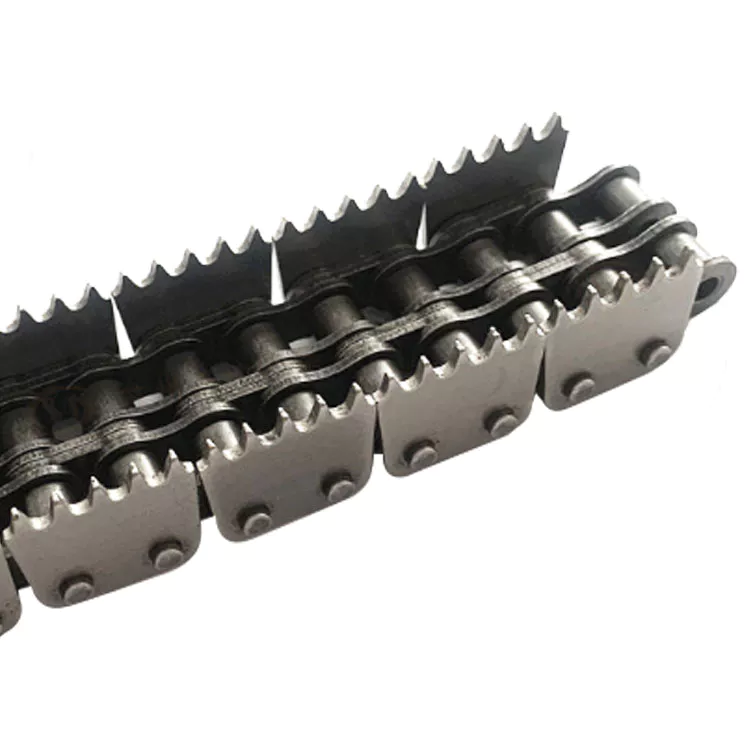

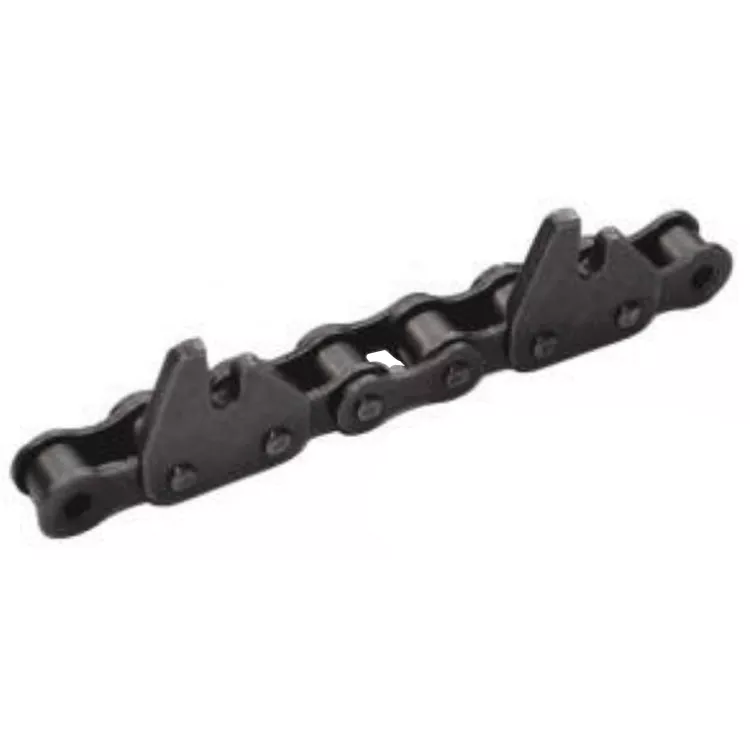

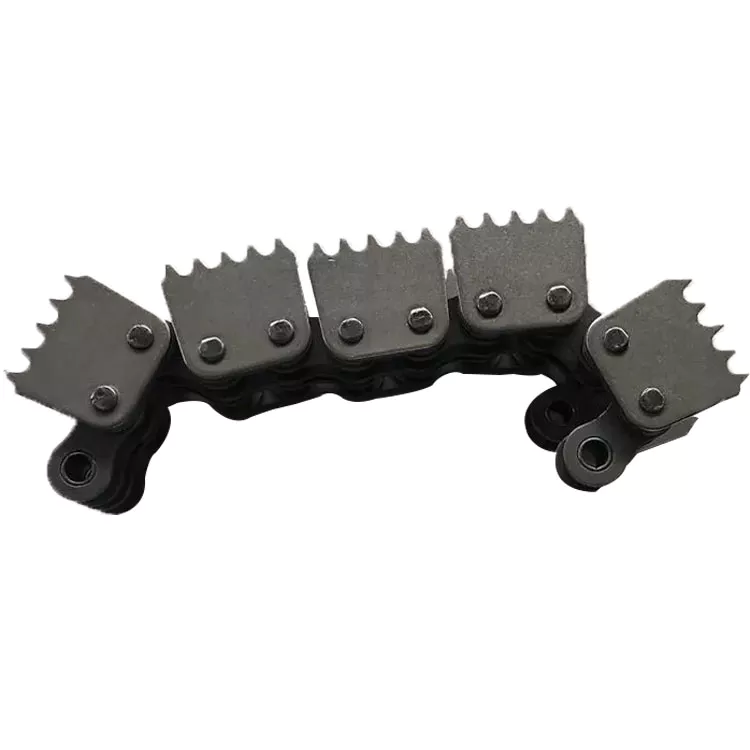

Sharp Top Cotton Swab Chain for Automatic Cotton Swab Machine

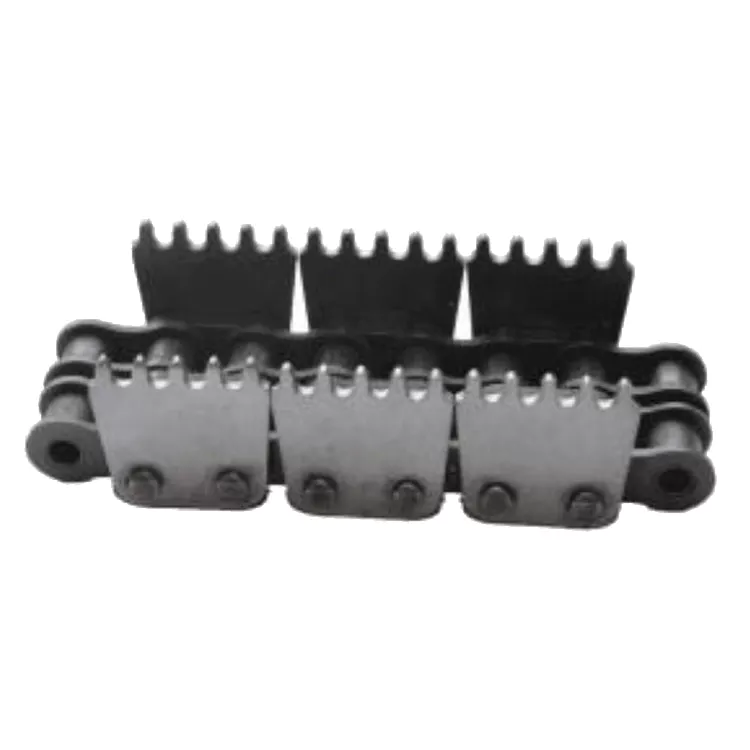

Cotton Swab Chain

The utility model relates to a conveying chain of a medical cotton swab machine, which comprises a chain unit, wherein the cotton swab chain unit is provided with an inner chain piece, the front side of the inner chain piece of the cotton swab chain is provided with a connecting hole, the connecting hole of the cotton swab chain is provided with a shaft core matching with the connecting hole, the outer wall of the cotton swab chain shaft core is sleeved with a kit matching with the shaft core, and the inner wall of the cotton swab chain shaft core is connected with a connecting piece matching with the shaft core, An outer chain piece matching with the connecting piece is sleeved on the outer wall of the end of the cotton swab chain connecting piece. The end of the outer chain piece of the cotton swab chain is an arc structure. The front side of the outer chain piece of the cotton swab chain is provided with a pin hole matching with the connecting piece. The upper part of the outer chain piece is respectively provided with convex a and convex B matching with convex a from left to right. The convex a, convex B and the outer chain piece are integrally formed structures. The connection between convex a and concave B is provided with an arc groove. The cotton swab chain has simple structure, low operation cost, convenient operation, high production efficiency and anti-tilting

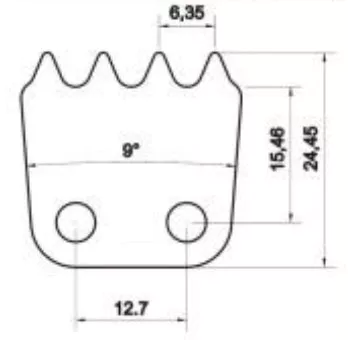

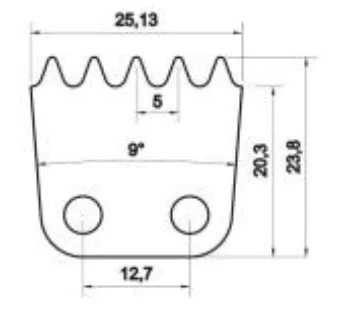

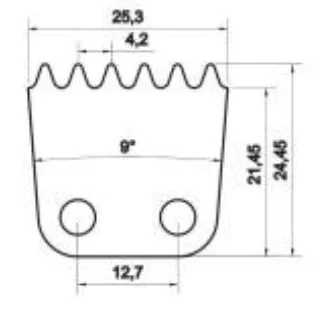

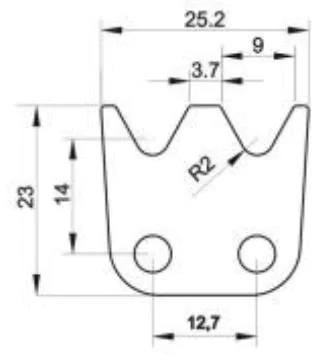

Suitable for producing different sizes cotton swabs

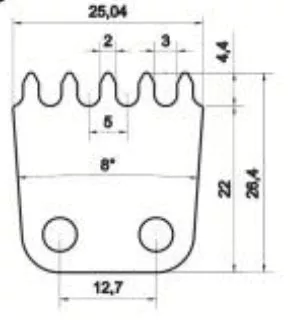

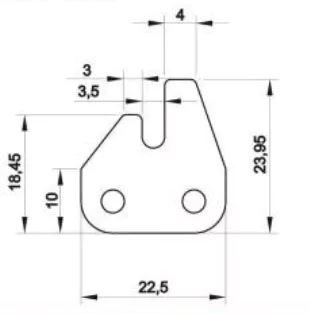

08B-F6	08B-F7	08B-F8	08B-F9	08B-F13

Principles of cotton swab chain

Due to the large amount of cotton swabs, automatic cotton swab production equipment is usually used in the existing technology to produce cotton swabs at high speed and in large quantities. The utility model relates to a batch discharging device for medical cotton swabs, which comprises a horizontal cotton swab conveying structure, a cotton swab batch collecting structure and a cotton swab counting structure. The horizontal cotton swab conveying structure is arranged in a forward and backward direction; The rear end of the horizontal cotton swab conveying structure is provided with a cotton swab conveying structure in a forward and backward oblique direction; The cotton swab conveying structure comprises a front rotating shaft arranged along the left and right directions, a rear rotating shaft arranged along the left and right directions and located behind the front rotating shaft, two conveying chains arranged side by side on the front rotating shaft and the rear rotating shaft, a slot evenly distributed on the conveying chain and matched with the stick, and two feeding wheels arranged side by side on the rear rotating shaft, The swab sending wheel is evenly distributed with notches matching with the swab and can receive the swab output at the junction of the swab sending wheel and the conveying chain. The distance between the adjacent notches is greater than the distance between the adjacent slots and is matched. The cotton swab batch collection structure is located directly below the swab sending wheel to receive the cotton swabs output by the swab sending wheel and output them in batches, The cotton swab counting structure is located at the adjacent upper part or the adjacent rear part of the swab feeding wheel for counting the swabs on the swab feeding wheel.

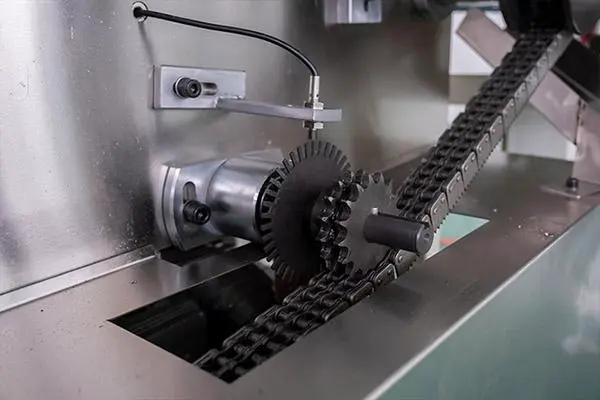

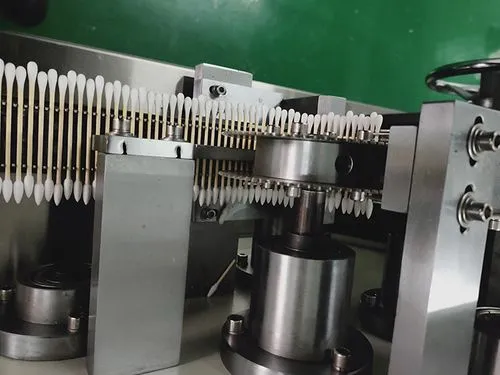

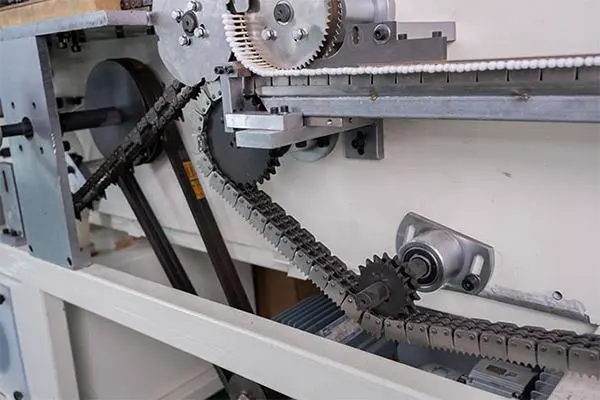

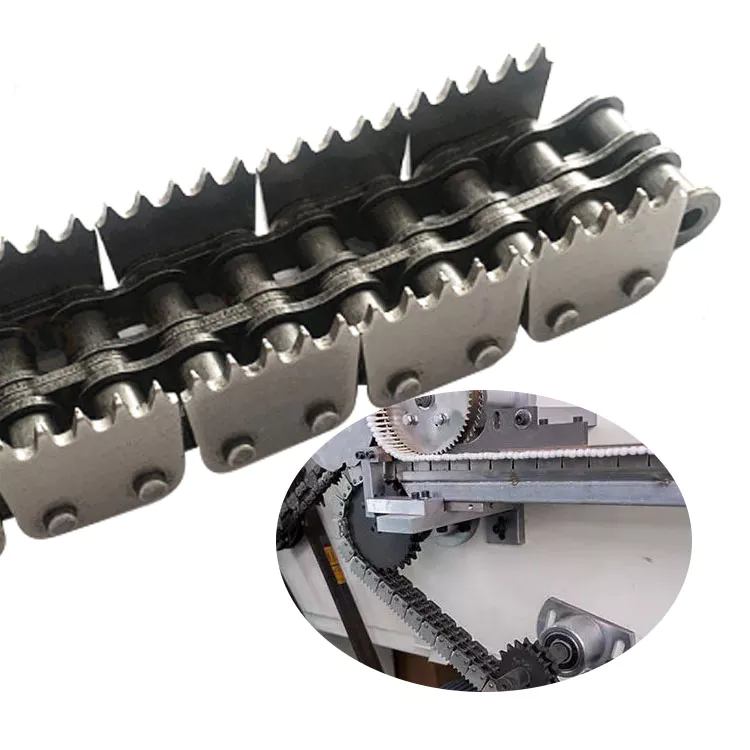

Cotton Swab Chain in operation
