Side Triangle Bracket for Building Construction

The Side Triangle Bracket of Ringlock scaffolding is made of 48.3 mm with 3.2 mm wall thickness outside diameter galvanized tube.They are used at the edge of a scaffolding to extend the reach or extension off of any side of the scaffolding; A platform can be laid on the side bracket to allow for construction processes closer to a building facade; the side bracket ringlock scaffold is usually with EN 12811, ANSI/SSFI SC100-5/05, AS/NZS 1576 and NCH2501 standards, the ring lock scaffolding triangle side bracket usually used in chemical industry projects in many of the countries like Israel, Argentina, Los Angeles, America.

1. Main Models and Specification

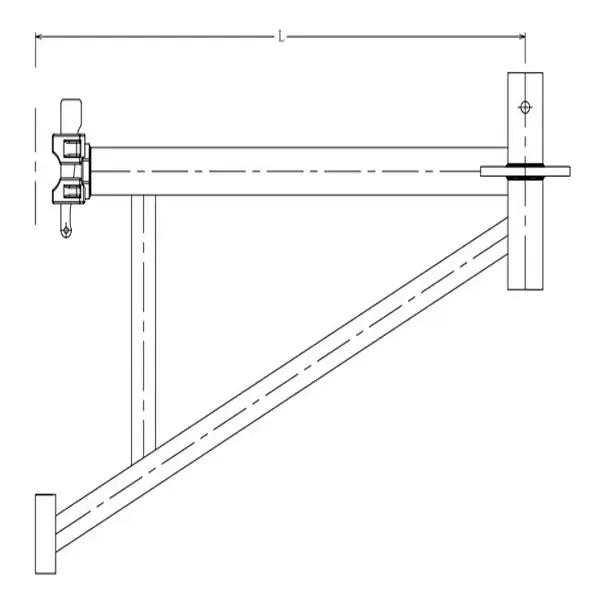

Ringlock Scaffolding Triangle Side Bracket
	Product code	Length(mm)	Material	Surface treatment
	TY-RBB036	360	Q235	Hot-dip galvanized/Painted
	TY-RBB039	390	Q235	Hot-dip galvanized/Painted
	TY-RBB073	730	Q235	Hot-dip galvanized/Painted
	TY-RBB109	1090	Q235	Hot-dip galvanized/Painted

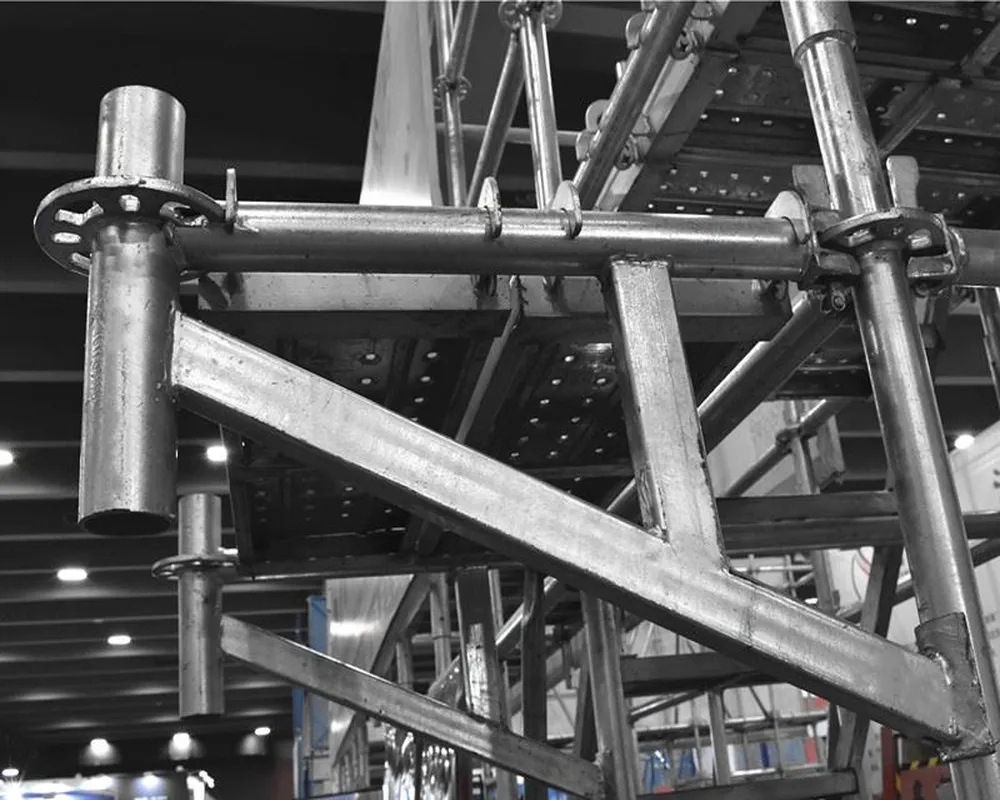

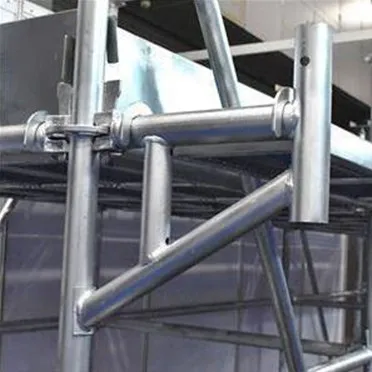

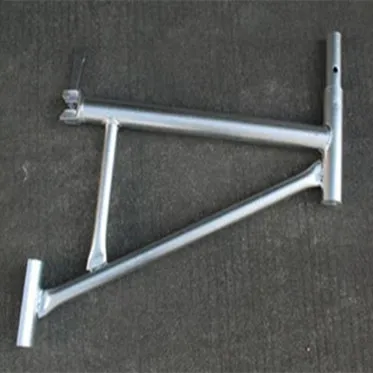

2. Product Show

3. Product Advantage

(1). High-quality materials, higher quality.Material--The product material is Q235 or Q345 carbon steel which is higher than the standard as the raw material.Quality assurance, not easy to crush deformation.(2). Advanced technology, better performanceProducts using advanced technology avoid the production malpractice of old craft, causing the anti-deformation and anti-stretching performance to be more robust and fit the scaffolding.(3). Anti-rust treatment, long service life.After passivation and surface galvanized anti-rust treatment, its corrosion resistance is better than the ordinary tub and has a longer service life.(4). Standard production, more secure.According to professional design and advanced technology, all products are manufactured in strict accordance with EN74 and BS1139 standards, quality guarantee, and ensure construction safety and personnel safety.

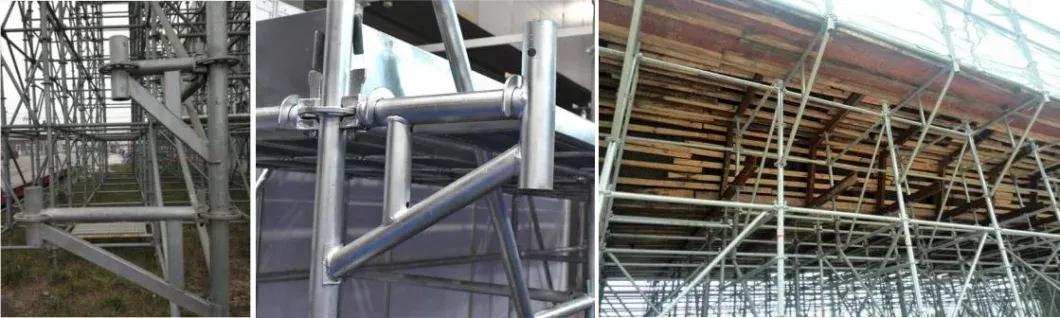

Application

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
