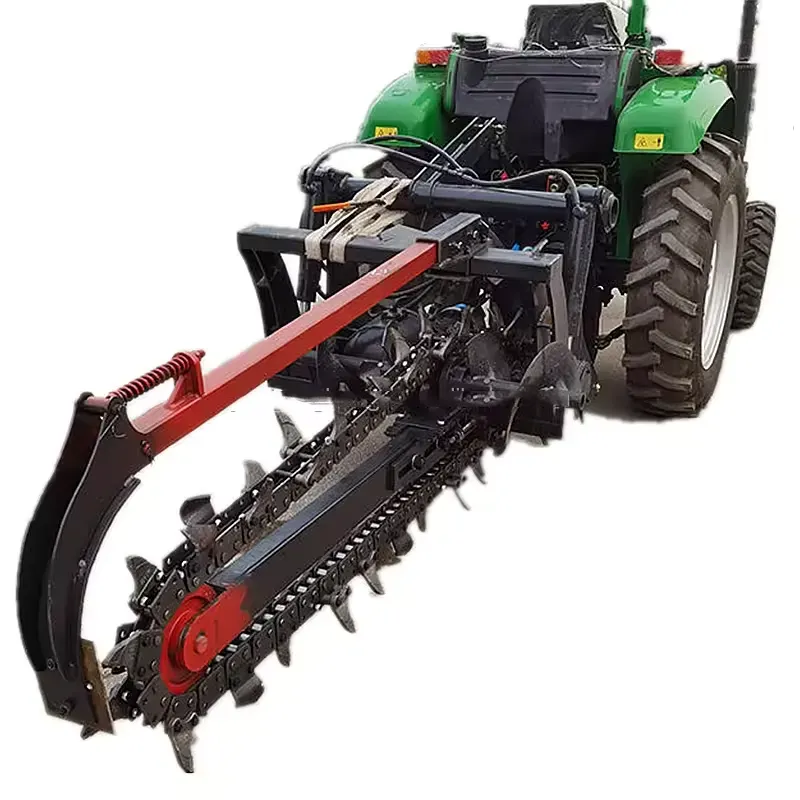

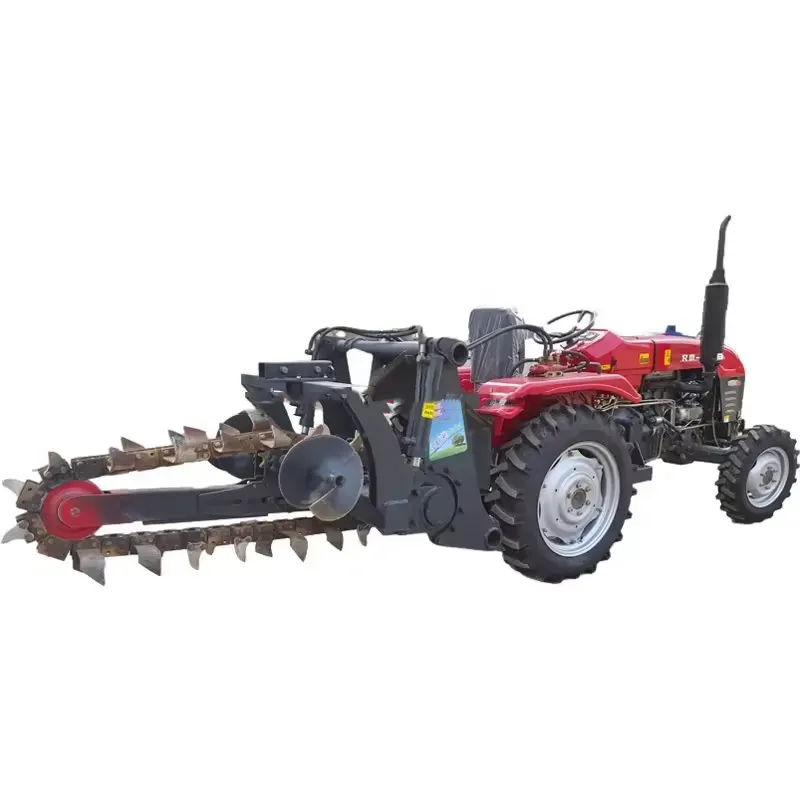

Single Chain Trencher Machine for 80hp Tractor

Introducing the single chain trencher machine for an 80hp tractor. This powerful and versatile machine is ideally suited for farming and trenching operations. Weighing in at 800kg, it is designed for high productivity with a year-long warranty. It is a new product for 2024, with the core components being a durable gearbox. The machine is designed for agricultural trenching operations and is in a new condition. This is a single chain trencher that can be matched with a power range of 50-80hp. It offers a trenching width of 15-20cm and a trenching depth of 1.5m. The machine is three-point mounted and comes with a 65Mn Spring steel or carbide blade.

Advantages of the Single Chain Trencher Machine

The single chain trencher machine offers numerous advantages for those in need of efficient and effective trenching solutions:

1. 1. High Productivity: The machine is designed for high productivity, meaning it can handle extensive trenching operations with ease.
   2. Robust Construction: The machine is built with a focus on durability and longevity, offering a reliable solution for trenching operations.
   3. Flexible Power Range: The machine can be matched with a power range of 50-80hp, offering versatility for different tractor models.

1. Efficient Trenching: With a trenching width of 15-20cm and a depth of 1.5m, the machine delivers efficient trenching operations.
2. Quality Components: The machine is built with quality core components, including a durable gearbox, ensuring continuous and smooth operations.
3. One Year Warranty: The machine comes with a one-year warranty, highlighting our confidence in the product's performance and durability.

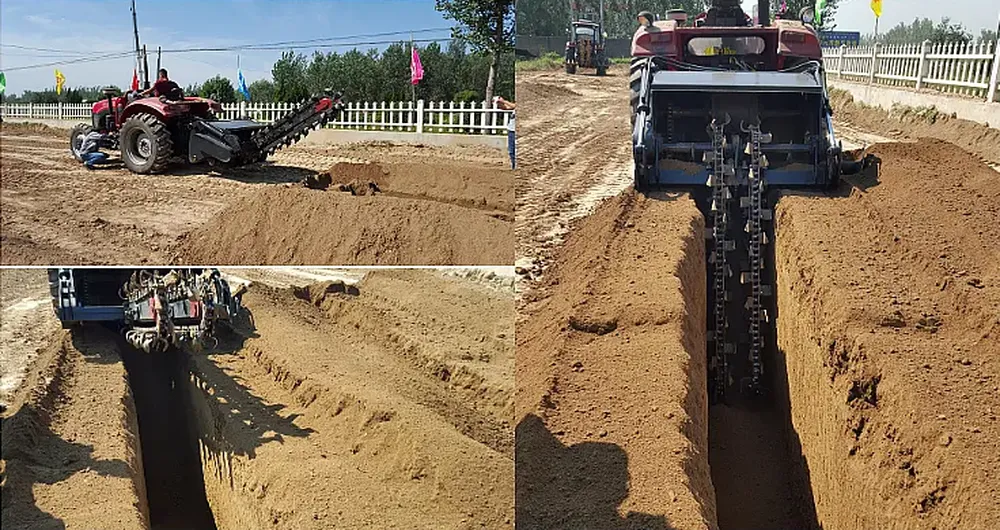

Applications of the Single Chain Trencher Machine

The single chain trencher machine is designed for a wide range of applications:

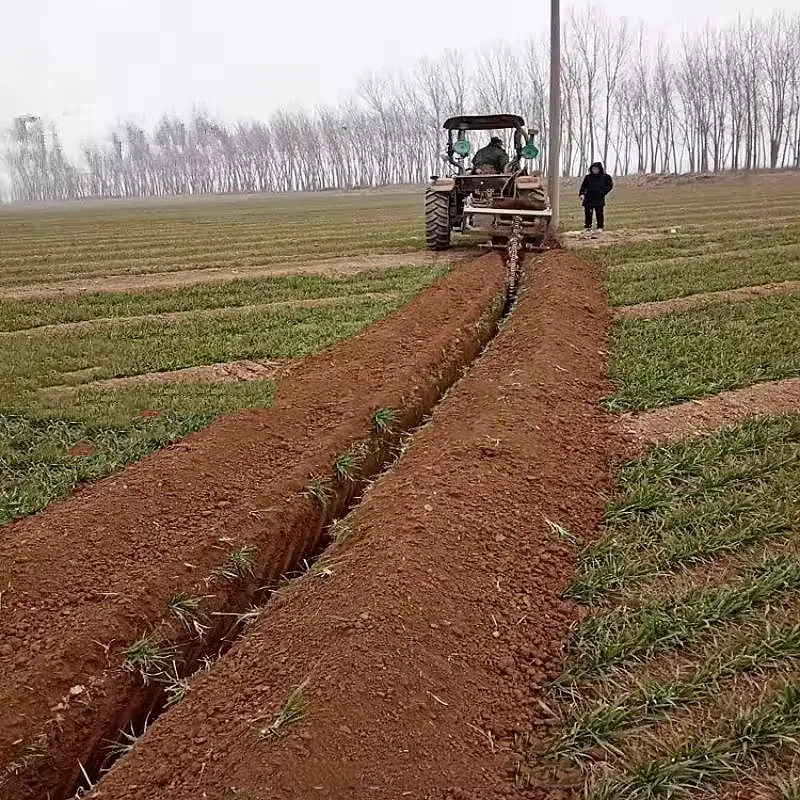

1. Agricultural Trenching: The machine is perfect for agricultural trenching operations, helping to prepare land for planting, irrigation, and other farming needs.
2. Landscaping: It can be used in landscaping projects for creating irrigation channels, planting trees, and more.
3. Construction: In construction projects, it can be used for laying cables, pipes, and other utilities underground.
4. Road Building: It is useful for creating trenches for drainage in road building.
5. Mining: In mining operations, it can be used for creating trenches for exploration and extraction activities.
6. Forestry: It can be used in forestry for creating firebreak trenches.

Key Components of the Tractor 3 Point Mounted Chain Trencher

The tractor 3-point mounted chain trencher is a versatile and powerful tool for digging precise trenches. Its design allows it to be attached to and powered by a tractor, leveraging the tractor's power for trenching operations. Here are the essential parts of a 3-point mounted chain trencher:

1. Three-Point Hitch: Allows the trencher to be attached to the tractor, using a standard type of linkage system on tractors.
2. Power Take-Off (PTO) Shaft: Transfers mechanical power from the tractor to the trencher, driving the trencher's chain mechanism.

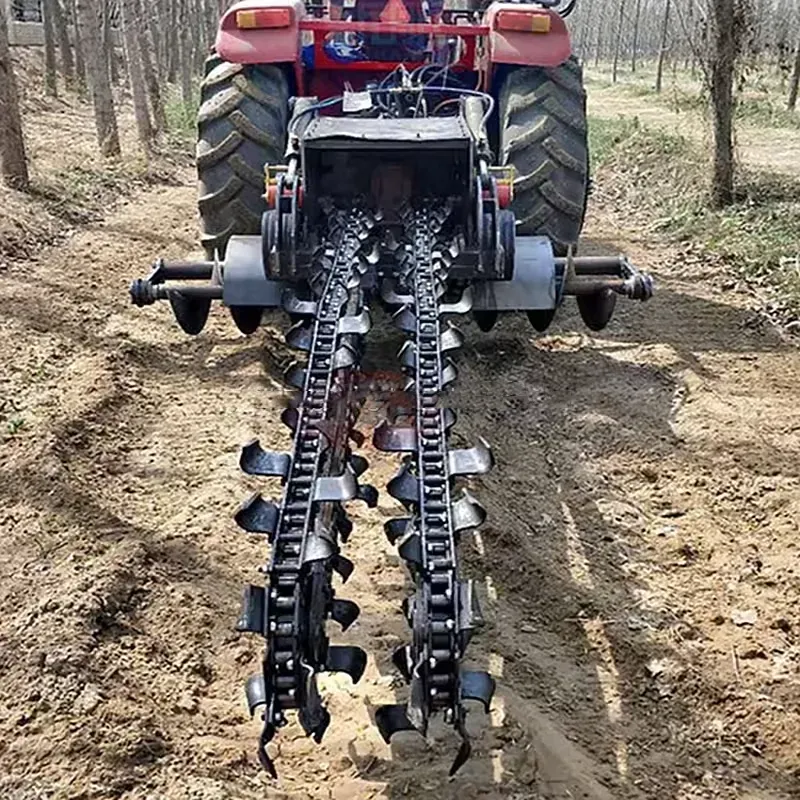

3. Chain with Digging Teeth: The primary digging component, this chain rotates around a metal frame or boom, equipped with teeth that cut through the soil.
4. Boom: Supports the chain and determines the depth of the trench. The boom length can often be adjusted to change the trench depth.
5. Drive System: Includes a gearbox and possibly a hydraulic motor, depending on the trencher model. This system translates the power from the PTO shaft to the movement of the chain.
6. Soil Ejection System: Removes excavated soil from the trench path. This system often consists of a conveyor or auger mechanism.

How Does the Tractor 3 Point Mounted Chain Trencher Work?

The tractor 3-point mounted chain trencher works through a combination of tractor power and specialized trenching equipment design. It utilizes the tractor's power take-off (PTO) system and is mounted to the tractor's three-point hitch, enabling it to dig trenches efficiently. Here??s a step-by-step breakdown of how it operates:

1. Attachment and Power Source: The trencher is attached to the tractor via the three-point hitch, and the trencher is powered by the tractor??s PTO shaft.
2. Chain and Boom Operation: When the PTO is engaged, it drives the trencher's chain mechanism. The teeth cut into the soil, breaking it up and removing it from the trench path.
3. Depth Control: The depth of the trench is controlled by the length of the boom and the adjustment mechanism on the trencher.

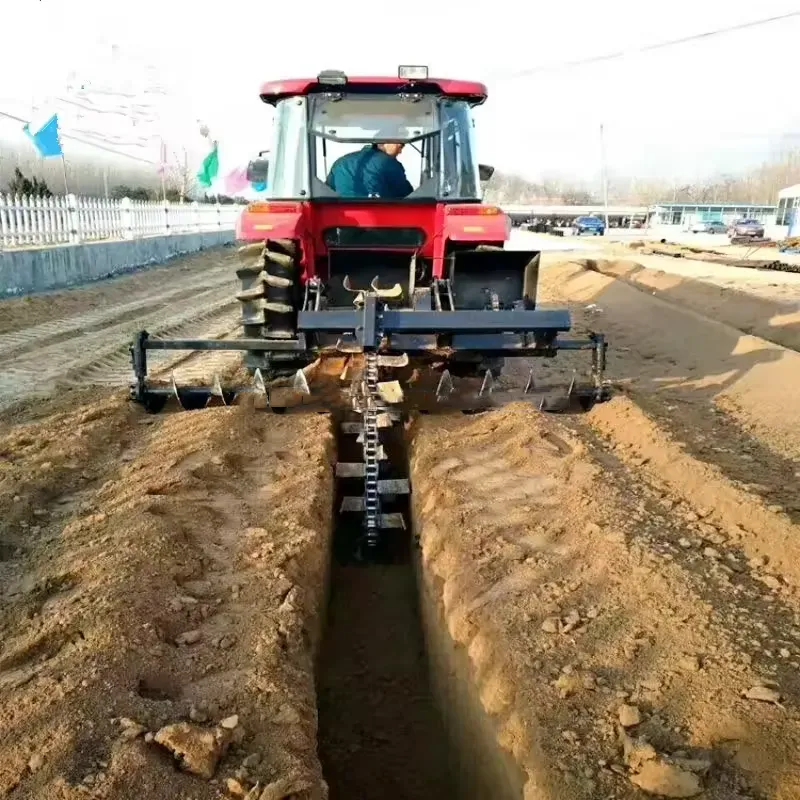

4. Movement and Trench Formation: As the tractor moves forward, the rotating chain digs a continuous trench in the soil.

How to Install the 3 Point Mounted Chain Trencher to Tractor

Installing a 3-point mounted chain trencher to a tractor involves several steps to ensure a secure and proper connection. Here's a general overview of how to attach a chain trencher to a tractor using the three-point hitch system:

1. Read Manuals: Start by thoroughly reading the operator's manuals for both the tractor and the trencher.
2. Positioning the Tractor and Trencher: Position the tractor close to the trencher so that the three-point hitch arms of the tractor are near the trencher's mounting points.
3. Attaching the Trencher: Use the tractor's controls to lower the three-point hitch to a height that aligns with the trencher's mounting brackets.
4. Connecting the PTO Shaft: Align the PTO shaft on the trencher with the PTO stub on the tractor.
5. Final Checks: Walk around the tractor and trencher to make a final inspection. Test the attachment in a safe, clear area to ensure it operates as expected.

Common Troubleshooting of the Single Chain Trencher Machine

Troubleshooting a tractor 3-point mounted chain trencher involves identifying and resolving common issues that may arise during its operation. Here are some common troubleshooting tips:

1. Trencher Won't Start or Operate: Ensure the PTO shaft is properly connected to both the tractor and the trencher.
2. Trencher Chain Doesn??t Move: Verify that the tractor's PTO is engaged and the tractor is running at the correct RPM.
3. Inefficient Trenching or Poor Trench Quality: Inspect the chain for worn or missing teeth. Replace them as needed to maintain effective trenching.
4. Trencher Vibrates Excessively: Check if the chain is evenly tensioned and not missing any teeth, which can cause imbalance.
5. Excessive Wear on Chain or Teeth: Hard, rocky, or abrasive soil can increase wear. Consider using teeth and chains designed for specific soil types.

Why Choose Raydafon's Tractor Mounted Chain Trencher?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

About Raydafon

Raydafon is a company that prides itself on professionalism and international certifications. We provide customized services, state-of-the-art production facilities, and comprehensive after-sales services. We are dedicated to providing the best agricultural machinery and equipment for our customers worldwide.[embed]https://youtu.be/f6nv2ByPjb8[/embed]Author: Yjx
