In the field of engineering, slewing drives play a crucial role in enhancing the performance of machinery. One such application of slewing drives is in boom articulation mechanisms, which require precise and smooth movements to perform their intended functions. In this article, we will discuss the working principle, installation location, function, and necessity of slewing drives in boom articulation mechanisms.
Slewing drives are composed of a slewing ring, gearbox, hydraulic motor, and multiple planetary gears. The gearbox is designed to increase torque and reduce the rotational speed of the slewing ring. The planetary gears transmit power from the hydraulic motor to the output shaft of the slewing drive, which is then used to articulate the boom.

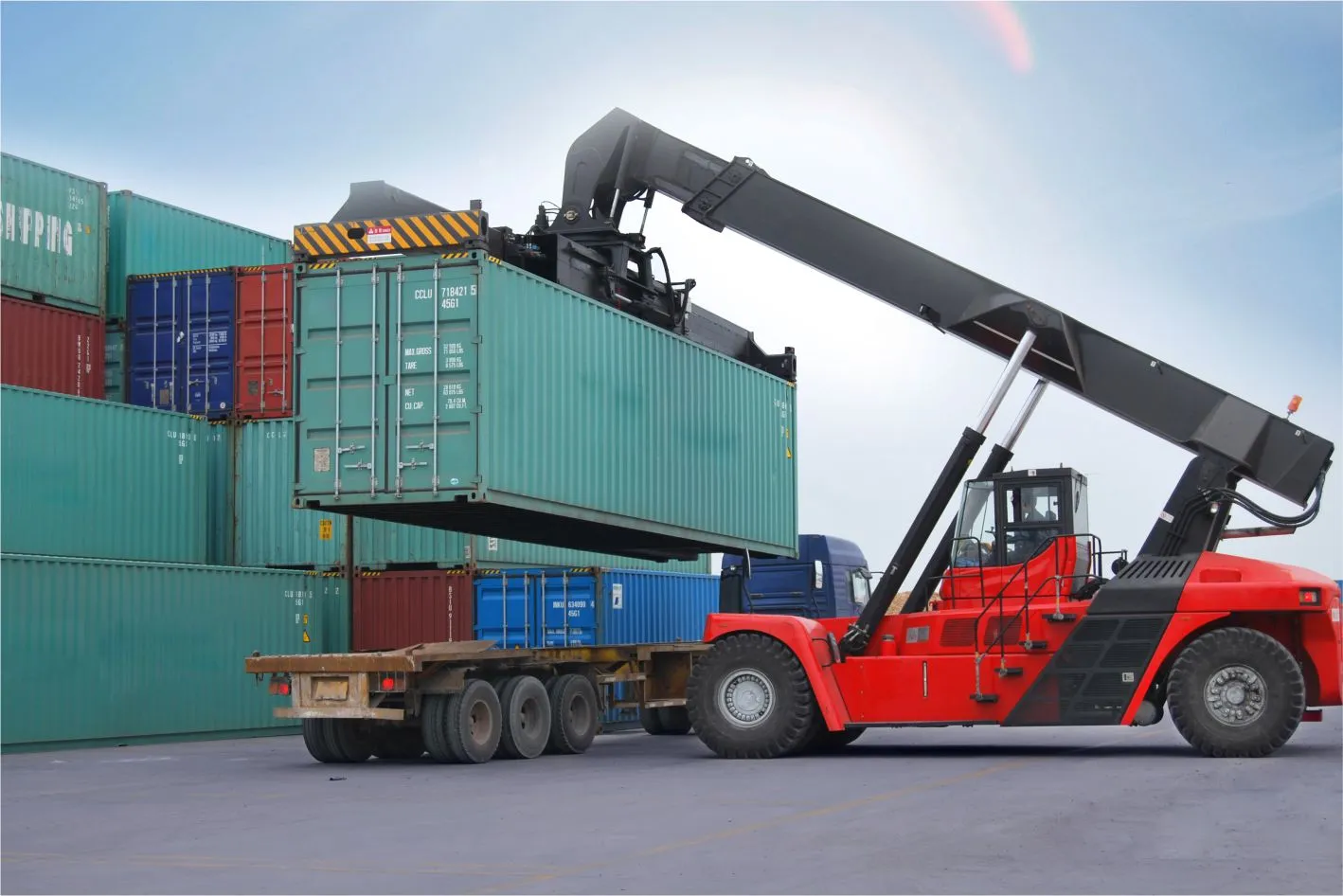

Slewing drives are installed between the upper and lower structures of the machine. The upper structure, which is connected to the boom, rotates on the lower structure, which provides the stability and support required for boom articulation mechanisms. The slewing drive is positioned between these two structures and is used to transmit the required torque and rotational movement to the upper structure.
The main function of the slewing drive in boom articulation mechanisms is to facilitate smooth and precise movement of the boom. This is achieved by increasing the torque and reducing the rotational speed of the slewing ring. The planetary gears transmit this power to the output shaft of the slewing drive, which is then used to articulate the boom.
The use of a slewing drive in boom articulation mechanisms is necessary to ensure the smooth and precise movement of the boom. Slewing drives are designed to provide the required torque and reduce the rotational speed of the slewing ring, which facilitates the controlled movement of the boom. Without a slewing drive, the boom would be unable to articulate effectively, reducing the overall performance of the machine.
We are a leading enterprise dedicated to the research, design, and manufacture of planetary gearboxes. Our focus on innovation and quality has made us a trusted partner for businesses in various industries. Our slewing drives are designed to meet the specific needs of our customers, ensuring optimal performance and longevity.
| Parameter | Factors to Consider |
|---|---|
| Ratio | Required output speed and torque |
| Input Speed | Maximum input speed of the gearbox |
| Output Torque | Required torque at the output shaft |
| Mounting Type | The type of mounting required for the application |
| Operating Temperature | The maximum and minimum operating temperatures of the gearbox |
| Backlash | The amount of play between the teeth of the gears |
| Efficiency | The efficiency of the gearbox at various loads |
When procuring a planetary gearbox/reducer, it is important to consider various factors to ensure optimal performance and longevity. These factors include the required output speed and torque, maximum input speed, required torque at the output shaft, type of mounting required, maximum and minimum operating temperatures, amount of play between the teeth of the gears, and efficiency of the gearbox at various loads.
By considering these factors and selecting the appropriate gearbox/reducer, businesses can ensure optimal performance and longevity, reducing maintenance costs and increasing overall productivity.
Author: Miya
