A slewing drive is a gearbox that can handle high loads and torque while providing precision movement. It is used in various applications that require the rotation of heavy equipment, such as construction cranes and solar trackers. The slewing drive is a crucial component in the construction crane because it is responsible for the rotation of the crane's turntable. In this article, we will discuss the working principle, installation position, function, and necessity of the slewing drive in the construction crane.

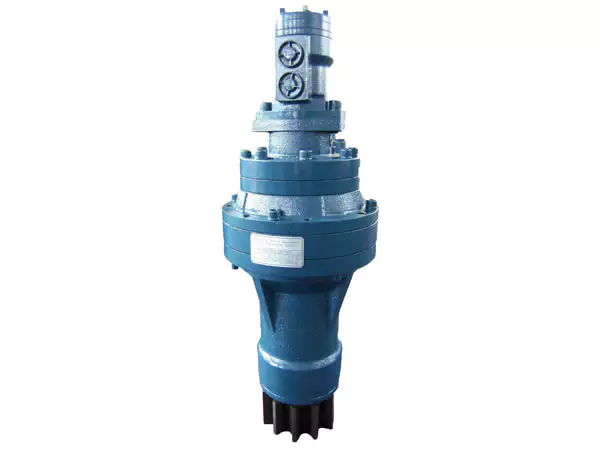

The slewing drive consists of two essential components: the slewing ring and the gearbox. The slewing ring is a large diameter bearing that supports the weight of the equipment and allows for rotation. The gearbox is a compact device that helps transmit power and torque from the motor to the slewing ring, providing the necessary rotation. The gearbox can be configured in a single or double enveloping worm gear, harmonic drive, or planetary configuration. The planetary configuration is the most common in construction cranes due to its high efficiency, compact size, and ability to handle high loads.
The slewing drive is installed between the crane's upper structure and the undercarriage. It is mounted directly onto the crane's turntable and provides the necessary rotation for the crane's boom. The installation process is straightforward and requires minimal maintenance once installed. The slewing drive is designed to operate in harsh environments and can withstand extreme temperatures, dust, and moisture.
The slewing drive's primary function is to provide the necessary rotation for the crane's turntable. It is responsible for moving heavy loads in a precise manner, making it an essential component in construction crane operations. The slewing drive's ability to handle high loads and torque also ensures the crane's stability during operation. Without the slewing drive, the crane's overall performance would be severely compromised, resulting in lower productivity and increased downtime.

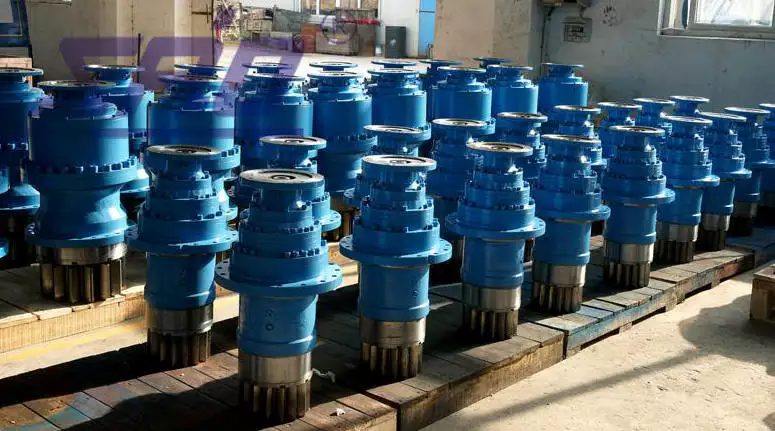

We are a leading enterprise dedicated to the research, design, and manufacture of planetary gearboxes. Our company specializes in the production of high-quality slewing drives that are widely used in construction cranes, solar trackers, wind turbines, and other heavy equipment. We use advanced technology and equipment to ensure the quality and reliability of our products, providing our customers with the best possible solutions for their specific needs.
| Parameter | Considerations |
|---|---|
| Gear Ratio | Depends on the application and torque requirements. A higher gear ratio provides greater torque but slower speed. |
| Input Speed | Should be within the gearbox's rated input speed range to avoid damage. |
| Output Torque | Depends on the load and torque requirements. A higher output torque provides greater power but slower speed. |
| Backlash | Should be minimized to avoid lost motion and reduce system errors. |
| Efficiency | Should be high to reduce power losses and improve overall system performance. |
When purchasing a planetary gearbox/reducer, it is essential to consider various factors to ensure that you select the right one for your application. These factors include gear ratio, input speed, output torque, backlash, and efficiency. By carefully considering these factors, you can choose the right planetary gearbox that meets your specific needs and provides reliable and efficient performance.
Author: Miya
