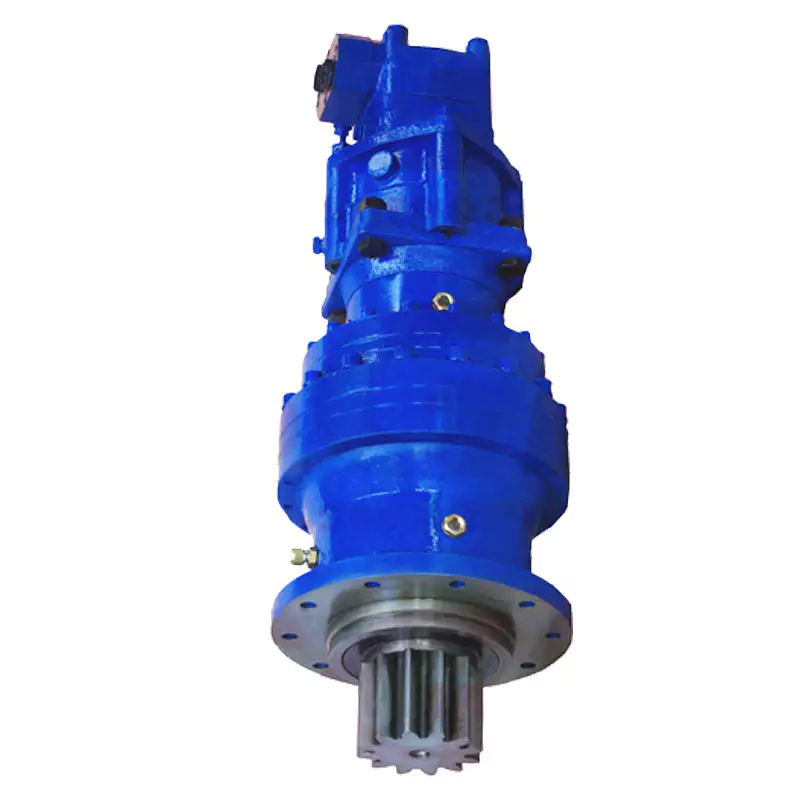

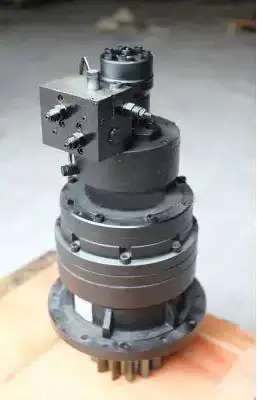

Slewing drive planetary gearbox is a crucial component in the operation of tower cranes. It is a gearbox that can handle heavy loads and is designed to withstand the harsh conditions of construction sites. In this article, we will discuss the working principle, installation location, function, and necessity of slewing drive planetary gearbox in tower cranes.
The working principle of a slewing drive planetary gearbox is based on the principles of planetary gears. The gearbox consists of a sun gear, planet gears, and a ring gear. The sun gear is connected to the input, while the ring gear is connected to the output. The planet gears are sandwiched between the sun gear and the ring gear. When the input rotates, it drives the sun gear, which in turn drives the planet gears. The planet gears rotate around their own axis and also rotate around the ring gear. This motion allows for a significant reduction in speed and an increase in torque.
The slewing drive planetary gearbox is installed at the base of the tower crane, where the rotating structure meets the fixed base. The gearbox is positioned horizontally and is bolted to the base. The output of the gearbox is connected to the slewing ring, which allows the crane to rotate 360 degrees.
The primary function of the slewing drive planetary gearbox is to control the rotation of the crane. The gearbox provides the necessary torque to move the crane and ensures that it can rotate smoothly and safely. The gearbox also acts as a speed reducer, allowing the crane to move at a slower, more controlled pace when lifting heavy loads. Additionally, the gearbox helps to distribute the load evenly across the crane's rotating structure, reducing wear and tear on the crane.
The slewing drive planetary gearbox is a necessary component in tower cranes, as it allows the crane to rotate safely and smoothly. Without the gearbox, the crane would be unable to rotate, making it difficult to maneuver and position loads. The gearbox also helps to prevent damage to the crane's rotating structure, as it evenly distributes the load across the structure.
We are a leading company dedicated to the research, design, and manufacture of planetary gearboxes. Our slewing drive planetary gearboxes are designed to meet the needs of tower cranes and other heavy-duty applications. We use high-quality materials and advanced manufacturing techniques to ensure that our gearboxes are reliable, durable, and efficient. Our team of experts is committed to providing our customers with the best possible products and services.
| Factor | Parameters to Consider |
|---|---|
| Load Capacity | The maximum load that the gearbox is rated for. |
| Ratio | The ratio of input speed to output speed. |
| Backlash | The amount of free play in the gearbox. |
| Operating Temperature | The range of temperatures at which the gearbox can operate. |
| Lubrication | The type and frequency of lubrication required. |
| Noise Level | The amount of noise the gearbox produces during operation. |
When selecting a planetary gearbox/reducer, it is important to consider factors such as load capacity, ratio, backlash, operating temperature, lubrication, and noise level. These parameters will help you determine which gearbox is best suited for your specific application.
