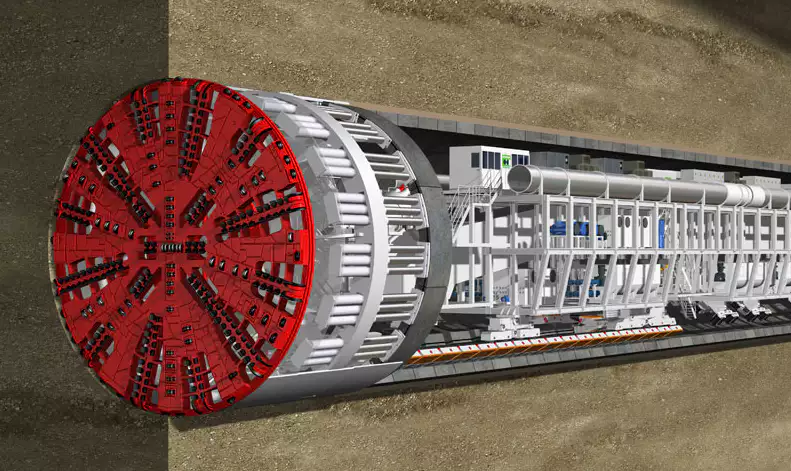

When it comes to tunnel boring machines, one of the most important components is the cutting head positioning drive. This drive is responsible for accurately positioning the cutting head, which is critical for ensuring the success of the tunneling operation. One key component of the cutting head positioning drive is the slewing drive planetary gearbox.
A slewing drive planetary gearbox is a type of gearbox that is designed to provide high torque at low speeds. It is frequently used in applications where precise positioning is required, such as in the cutting head positioning drive of a tunnel boring machine.
A slewing drive planetary gearbox works by using a set of planetary gears to transfer torque from the input shaft to the output shaft. The planetary gears are arranged in a way that allows them to rotate around the central sun gear, which is fixed in place. As the planetary gears rotate around the sun gear, they engage with an outer ring gear that is connected to the output shaft, causing it to rotate.
A slewing drive planetary gearbox is typically installed in the cutting head positioning drive of a tunnel boring machine. It may also be used in other applications where precise positioning is required, such as in cranes, solar trackers, or wind turbines.
The role of a slewing drive planetary gearbox in the cutting head positioning drive of a tunnel boring machine is to provide high torque at low speeds, which is necessary for accurately positioning the cutting head. Without a slewing drive planetary gearbox, the cutting head positioning drive would not be able to provide the level of precision required for a successful tunneling operation.
| Parameter | Considerations |
|---|---|
| Ratio | Consider the required output speed and torque, as well as the input speed and torque. |
| Backlash | Consider the application requirements for precision and positioning accuracy. |
| Mounting | Consider the available space and mounting requirements of the application. |
| Size | Consider the physical size and weight of the gearbox, as well as the available space for installation. |
| Efficiency | Consider the level of efficiency required for the application, as well as any energy-saving goals. |
| Cost | Consider the budget for the application and the total cost of ownership over the expected lifespan of the gearbox. |
At our company, we are dedicated to the development, design, and manufacturing of planetary gearboxes. We are a leading enterprise in the industry, with a focus on providing high-quality products and exceptional customer service. Our team of experts is committed to working closely with our customers to ensure that we are meeting their specific needs and providing them with the best possible solutions.
Thank you for considering our company for your planetary gearbox needs. We look forward to the opportunity to work with you.
