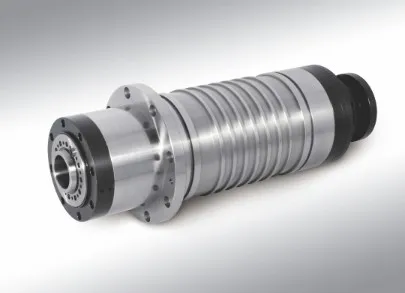

Spindle Motor Used for Lathe JSZD150H

You will find several different types of spindles accessible for the lathe. These incorporate Belt-driven, Direct-drive, and Heavy-duty spindles. Find out additional about every kind and which can be very best for your machine. You may want to pick out a spindle that will manage the quantity of performance you'll want to do.Stepper motorsA spindle motor is actually a rotating part inside a lathe. A lathe commonly employs two unique motor types, one for your spindle and one for your carriage. A spindle motor usually rotates at two speeds: a single for quick rotation and 1 for slow rotation. The motor is created to operate on increments of a fraction of a flip.There are two most important types of stepper motors: standard and different. Both have a linear controller and might set feed prices between one and twenty-five inches per minute. They can be also offered with both a 15 or thirty-tooth cog pulley. In both cases, the feed fee is proportional to the RPM.Among these controllers is definitely the Nextion. It attributes a touch-screen interface and might handle 4 amps of the present. It also features a common placement and fits into a present MDF rose engine.Belt-driven spindlesSpindles are among the most crucial components of a lathe, and there are actually two kinds: belt-driven and direct-drive. Belt-driven spindles would be the common alternative for lathes due to the fact they've got a straightforward structure and permit for effortless servicing. Direct-drive spindles can spin up to twice as fast as their belt-driven counterparts, producing them the most beneficial selection for high-volume manufacturing runs.The motorized spindle is far more complicated and involves greater horsepower, but it has numerous rewards, together with large torque and no tooth loss troubles. Motorized spindles also demand extra complex housing than belt-driven spindles. These machines generally have numerous spindle elements. Taking into consideration the manufacturing value is a crucial consideration, and stability needs to be located involving the price of creating just about every spindle sort. The vertical and horizontal spindles are very similar, however, you will discover some subtle variations that make just about every alternative ideal for diverse applications.Belt-driven spindles are available in a number of sizes. They can be custom-made to meet unique necessities and can be ordered at different speeds. Furthermore to normal spindle designs, HDT spindles are available in two distinct sizes - 150 mm and 170 mm. They are really also available with an optional highest electrical power of 5.6kW.Direct-drive spindlesDirect-drive spindle motors for any lathe are developed to drive the spindle devoid of the use of a gearbox. This helps make them a financial choice for most applications. They also present an increased torque for rough machining. A direct-drive spindle motor can attain a continuous electrical power rating of 150 % in 15 minutes and 200 percent in three minutes. This provides it with much more performance headroom than any other drive presently in the marketplace.Whilst direct-drive spindle motors are intimidating to install at first, they deliver long-term worth. Owning a motor that can optimize machine functionality, reduce interruptions, and maximize throughput, can be a crucial benefit. Even right after 10 years, a direct-drive spindle motor can execute as effectively as a brand-new single.Direct-drive spindle motors to get a lathe to give larger torque electrical power and quicker activation than belt-driven spindles. A direct-drive spindle is additionally easier to preserve than a belt-driven one in particular. The benefit of direct-drive spindles more than belt-driven spindles is the fact that they need fewer components to exchange.Heavy-duty spindlesHeavy-duty spindles are a crucial part of the lathe and also have a wide array of applications. They're made use of for any wide range of machining processes and therefore are appropriate for producing components up to 12 m in length. PTG Hefty Industries was awarded the purchase on account of its skills in manufacturing technologies and modular layout, which enabled it to meet the demands of the purchaser.The spindle may be the most important element of a lathe and is linked to your engine axle through the headstock. It is actually a rotating element and is typically a metal plate or disc. Some spindles are mounted flush together with the headstock even though other individuals are mounted above the bed.There are two major forms of spindles for lathes. One particular is direct-drive as well as the other is belt-drive. Belt-drive spindles are generally utilized for older lathes. They take longer to spin as much as their optimum RPMs and are slower to slow down. Being a consequence, they may get twice as lengthy to machine a workpiece. In contrast, direct-drive spindles are considerably more rapidly than belt-driven spindles, making them suitable for high-volume production runs.

1. The frequency converter has to match the electric spindle unit. The basic frequency or even the nominal frequency as well as voltage will have to meet the technical parameters of the electrical spindle.2. Electric spindle is generally cooled by circulating water. Cooling water needs to be rust-proof and filtered clean. When acquiring water, the inlet must be under the electric spindle.three. When working with an oil mist lubricated spindle, the stress regulating valve on the oil mist gadget should be adjusted to 0.25~0.3 MPA the fog pressure should be 0.1~0.2 MPA and the variety of drops of oil must be 60-70 drops/min. and also the lubricating oil ought to be bell oil or turbine oil No. 20.four. The velocity around the motorized spindle guide is definitely the highest velocity, and it can not be elevated, nevertheless, it may be employed to reducethe pace, voltage, and frequency are reduced once the speed is lowered.5. The rotation course with the motorized spindle is usually counter-clockwise (viewed in the shaft). except for exclusivedemands.6. The motorized spindle lubricated by oil mist has to be linked with water and gasoline prior to it could possibly commence and cease water and fuel supply after shutdown.Explanation: unique operation is required according to the electric spindle guidelines.
