Square Baler Gearbox RDF-DFK45 for Big Square Baler

Square Baler Gearbox RDF-DFK45 for Big Square Baler

The Square Baler Gearbox RDF-DFK45 is a specialized gearbox designed for big square balers, a type of agricultural equipment used extensively in large-scale farming operations to compress and package vast quantities of crop material into large, square-shaped bales. The RDF-DFK45 gearbox is engineered to meet the demanding requirements of these balers, ensuring efficient and reliable operation.The RDF-DFK45 Square Baler Gearbox is crucial for transmitting the mechanical power from the tractor's Power Take-Off (PTO) to the operational components of the big square baler, such as the plunger and the knotters. It is designed to manage and regulate the high torque and speed provided by the tractor’s PTO, ensuring the baler’s components operate at optimal speeds for effective and efficient baling.

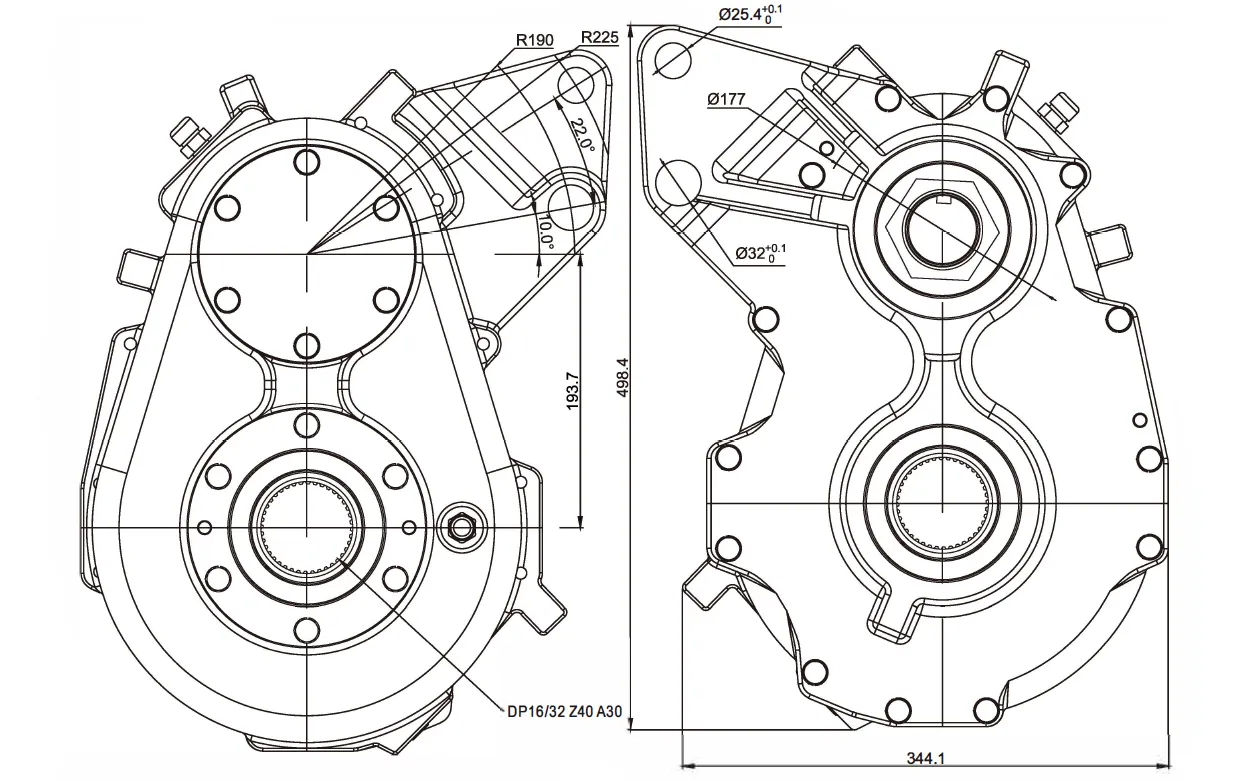

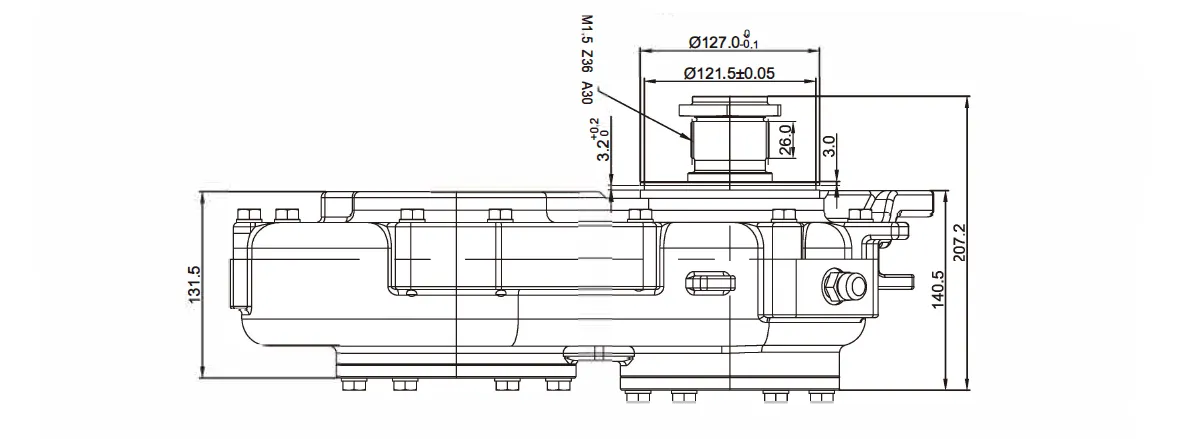

Square Baler Gearbox RDF-DFK45 Dimensions

Square Baler Gearbox RDF-DFK45 Technical Data

i			Suitable	Rpm input	Rpm outputr/min	Power		Toothing
				r/min	r/min	kw	hp
2.1: 1			Big Square Baler	266	126	45	60	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept custom.

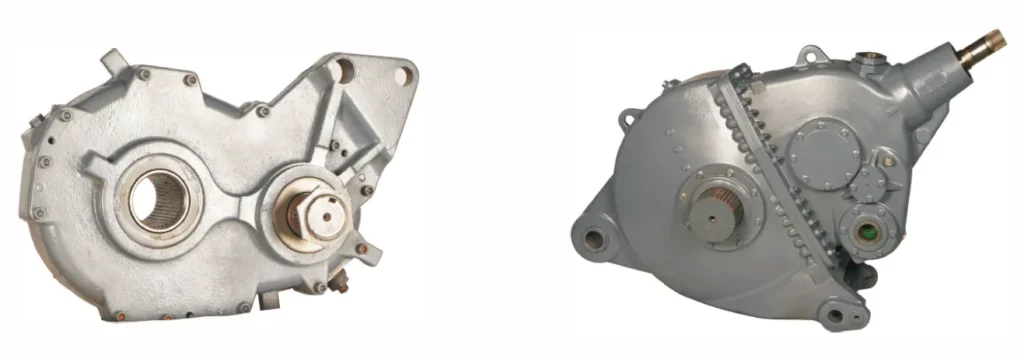

Components of Square Baler Gearbox RDF-DFK45

The Square Baler Gearbox RDF-DFK45, designed specifically for big square balers, is comprised of various components that together ensure the efficient operation and durability of the baler. Here are the structural components of the Square Baler Gearbox RDF-DFK45:1. Input Shaft: This is the shaft that receives power from the tractor's power take-off (PTO). It transfers the rotational force to the gearbox for further transmission.2. Gears: The gearbox contains a set of helical gears that transmit power and torque from the input shaft to the output shaft. These helical gears are carefully designed with specific teeth profiles and ratios to achieve the desired speed and torque output.3. Output Shaft: This shaft is responsible for transferring the power from the gearbox to the various components of the baler, such as the plunger, feeder, and knotter system.4. Bearings: Bearings are used throughout the gearbox to support the rotating shafts and reduce friction. They ensure smooth operation and help distribute loads evenly.5. Housing: The gearbox components are contained within a housing or casing that provides structural support and protection. The housing is typically made of durable materials such as cast iron or aluminum alloy.6. Seals and Gaskets: Seals and gaskets are used to prevent oil leaks and maintain the integrity of the gearbox. They are placed at various points, such as shaft openings and joints, to ensure a tight seal and prevent the entry of contaminants.7. Lubrication System: The gearbox incorporates a lubrication system to ensure proper lubrication of all moving parts. This system typically includes oil passages, seals, and oil reservoirs to provide lubrication and cooling to the gears and bearings.

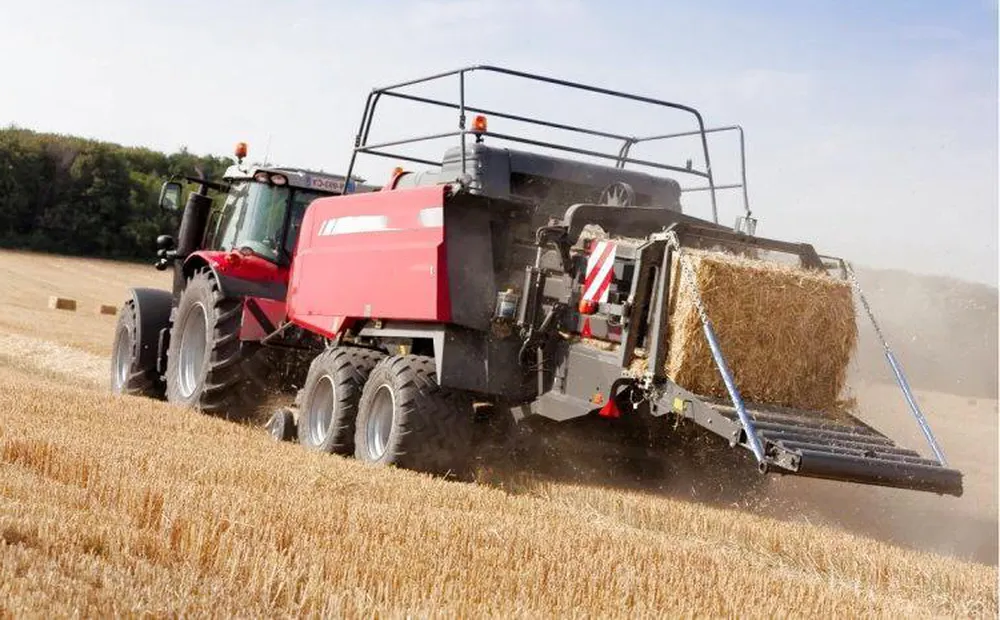

Applications of Square Baler Gearbox RDF-DFK45

The Square Baler Gearbox RDF-DFK45, designed specifically for big square balers, is integral to large-scale agricultural operations, particularly where efficient, high-volume baling is required. The robust construction and efficient power transmission of the RDF-DFK45 make it suitable for various applications within the agricultural sector. Here are some of the primary applications of the Square Baler Gearbox RDF-DFK45 in big square baler operations:1. Hay Production: The RDF-DFK45 gearbox is essential in driving the mechanisms of big square balers used for baling large quantities of hay. It ensures optimal operation of the baler, compressing hay into large, tightly bound square bales. These large bales are convenient for handling, storage, and transportation, making them ideal for large-scale livestock feed operations and commercial hay producers.2. Straw Processing: In straw baling, the RDF-DFK45 square baler gearbox facilitates the smooth functioning of the baler as it processes and bales straw, a by-product of cereal grain harvesting like wheat and barley, in large volumes. The resulting large straw bales are utilized for various purposes, such as animal bedding, feed, mulching, or as raw material in industries like construction (e.g., straw-bale houses) and manufacturing.3. Cotton Baling: The gearbox ensures the efficient operation of the baler in compressing large quantities of cotton into compact bales, crucial for ease of handling, storage, and transportation in the cotton industry. Efficient baling of cotton in large quantities is essential for maintaining the quality of the cotton fiber and optimizing the supply chain from the farm to textile mills.4. Silage Baling: The RDF-DFK45 square baler gearbox can be utilized in balers for compacting and baling large volumes of silage–fermented, high-moisture fodder stored in bales for livestock feeding. Baled silage is protected from air and moisture, preserving its nutritional value and ensuring a steady supply of quality feed for livestock, especially in regions with long winters or dry seasons.

Choose the Right Square Baler Gearbox RDF-DFK45 for Big Square Baler

Choosing the right Square Baler Gearbox RDF-DFK45 for your big square baler involves considering several factors to ensure compatibility, efficiency, and longevity. Here’s a guide to help you make an informed decision:1. Understand Your Baler's Requirements: Ensure that the RDF-DFK45 model is compatible with your specific big square baler model. Know the power requirements of your baler. The gearbox should be able to handle the tractor's power output without overloading.2. Baling Capacity: Consider the volume of work your baler handles. The RDF-DFK45 should be robust enough to handle your typical workload and the type of material you're baling (hay, straw, cotton, etc.).3. Check Gearbox Specifications: Ensure that the gearbox's torque and speed ratings align with your baler's operational requirements. It should provide the right speed and torque to efficiently drive the baler's mechanisms. Understand the gear ratios offered by the RDF-DFK45 and how they will affect your baler's performance.4. Material Quality: The gearbox should be made from high-quality, durable materials capable of withstanding the rigors of heavy-duty baling. Look for a gearbox with a sturdy, well-designed construction that promises longevity and can handle the stresses of large-scale baling operations.5. Ease of Maintenance: Consider how easy it is to perform regular maintenance tasks like lubrication, oil changes, and part replacements.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
