SS10B-U2 Stainless Steel Roller Chain with U Type Attachment

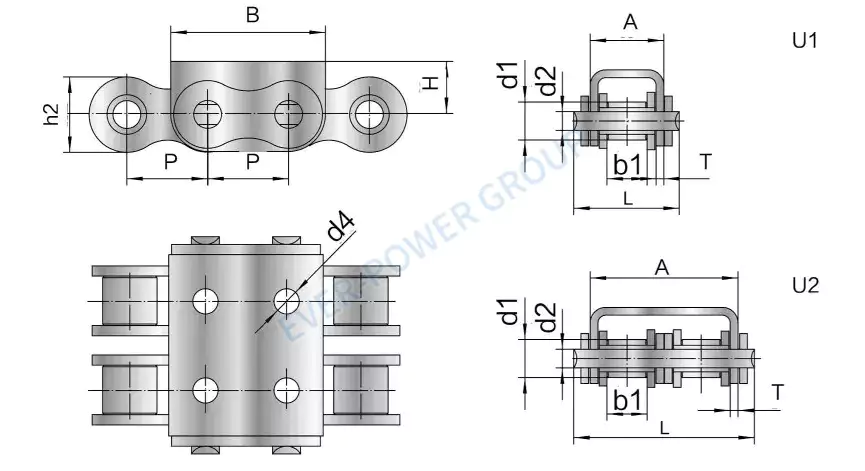

Dimensions of SS10B-U2 Stainless Steel Roller Chain with U Type Attachment

The following are the size and detail parameters of the SS10B-U2 Stainless Steel Roller Chain with U Type Attachment.

Overview of SS10B-U2 Stainless Steel Roller Chain with U Type Attachment

The SS10B-U2 Stainless Steel Roller Chain with U Type Attachment is a high-quality chain suitable for heavy-duty applications that require corrosion resistance and durability. This roller chain is made of durable stainless steel material, including the main body and the U-shaped attachment.The chain features a simple yet robust structure that ensures a smooth and efficient transmission of power. The U-type attachment provides a secure and reliable connection point for loads, making it ideal for machines that require frequent attachment and detachment of loads.This chain is suitable for use in corrosive environments, such as food processing, pharmaceuticals, and chemical plants. It can also be used in applications that require high strength and durability, such as mining, forestry, and construction equipment.

Structure of SS10B-U2 Stainless Steel Roller Chain with U Type Attachment

The SS10B-U2 Stainless Steel Roller Chain with U Type Attachment is designed with the following structure:Chain Section: It is an improved version of the standard roller chain, ensuring basic transmission functionality and strength. It is typically manufactured using 304 or 316 stainless steel. The pins, bushings, and plates between the chain links are also made of stainless steel to ensure corrosion resistance.U Type Attachment: The attachment plates are made of stainless steel and fixed on the pins or plates of the chain. They are tightly connected to the chain, providing a flat bearing or conveying surface. The U-shaped structure allows for better encapsulation and stabilization of the conveyed materials.

Ever Power Stainless Steel Materials

• The SS10B-U2 Stainless Steel Roller Chain with U Type Attachment boasts a durable stainless steel construction.
• Our company offers a range of stainless steel materials including the 304, 316, 400, and 600 series for customers to choose from.
• The 304 series is a popular choice for its corrosion resistance and affordability.
• The 316 series is known for its superior corrosion resistance, making it suitable for harsh environments.
• The 400 series is magnetic and has excellent heat resistance, making it ideal for applications requiring high strength and durability.
• The 600 series is a precipitation-hardened stainless steel, known for its high strength and resistance to corrosion and heat.

Applications of SS10B-U2 Stainless Steel Roller Chain with U Type Attachment

This type of chain is designed for a variety of applications where corrosion resistance and high strength are required. Some common applications include:

• Food and beverage processing: conveying food, beverage packaging, or direct contact with food
• Pharmaceutical industry: conveying pharmaceutical raw materials, bottled drugs, etc., conforming to GMP hygiene requirements
• Chemical industry: conveying corrosive chemicals or operating in high humidity environments
• Agriculture and aquatic product processing: conveying seeds, grains, or aquatic products
• Other industries with high cleanliness requirements, such as electronic manufacturing, optical instrument production, etc.

Why Choose Raydafon Stainless Steel Roller Chains?

Raydafon's SS10B-U2 Stainless Steel Roller Chain with U Type Attachment stands out due to its exceptional strength and durability. While the strength of most stainless steel chains is generally equivalent to that of carbon steel, our factory's stainless steel chains can reach 60%-70% of the strength of carbon steel. Available in 304, 316L (resistant to strong acid and corrosion), and 310S (resistant to ultra-high temperature), our chains have small gaps and high tightness to ensure optimal performance.Our biggest advantage lies in the superior quality of our chain plates. During the heat treatment process, the chain plates undergo deformation or elimination of internal stress through pressure control during the cooling process, ensuring the size accuracy and mechanical properties of the chain. Additionally, our chains undergo high-pressure processing to increase material durability. The chain plate thickness is even, and the bright strip formed by punching twice ensures a tight fit between the small tubes and the shaft, with high tightness. All holes are in the center of the chain plate, without any deviation. The flatness of the chain plate is also high.With our commitment to excellence, Raydafon's SS10B-U2 Stainless Steel Roller Chain with U Type Attachment is the ideal choice for demanding industrial applications.

How To Select Sprockets For Stainless Steel Chains?

When it comes to selecting the right sprockets for SS10B-U2 Stainless Steel Roller Chain with U Type Attachment, there are a few key factors to consider. The first is the pitch diameter, which should match the pitch of the chain. It is important to ensure a proper fit to prevent any misalignment or premature wear.Another important consideration is the number of teeth on the sprocket. The number of teeth affects the speed ratio and torque transmission between the chain and the sprocket. It is crucial to choose a sprocket with the appropriate number of teeth to ensure optimal performance.At our company, we offer a wide range of sprockets to suit various needs. Our stainless steel sprockets are designed to provide durability and resistance to corrosion, making them ideal for applications that require high strength and reliability. Whether you need simple or complex sprocket configurations, we have options available to meet your requirements.Choose our high-quality stainless steel sprockets for your SS10B-U2 Stainless Steel Roller Chain with U Type Attachment and experience the reliability and performance that our products offer.For more information or to place an order, please contact us. We are here to assist you in finding the perfect sprockets for your stainless steel chains.
