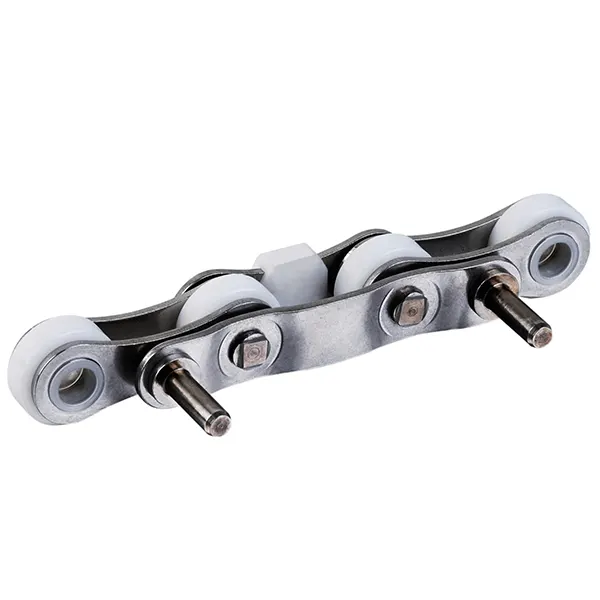

Stainless Steel Freezing Chain P50.8FTC10-F

Introduction

Stainless Steel Freezing Chain P50.8FTC10-F is a conveyor chain specially designed for low-temperature freezing tunnels. It is made of high-quality Stainless Steel material to ensure stable operation under extreme conditions. This product integrates Self-lubricating Chain technology to reduce maintenance requirements. Meanwhile, it has a powerful Tensile Strength of Tensile Strength 42kN and is suitable for various IQF Freezer Chain application scenarios.In the food industry, stainless steel freezing chains such as P50.8FTC10-F have become core components of efficient freezing systems. It supports the operation of cryogenic tunnel chain, helping enterprises achieve rapid freezing and improve production efficiency. Whether you are dealing with ice cream or cold drinks, this low-temperature conveyor chain for food freezing offers excellent performance.

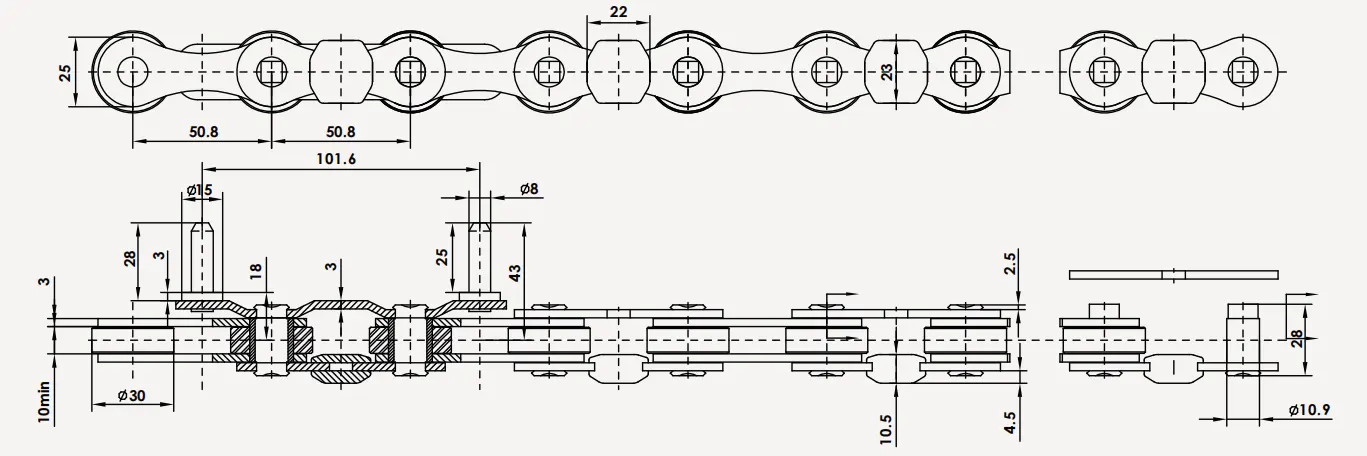

Technical Specifications

Parameter	Specification
Model	P50.8FTC10-F
Material	Stainless Steel
Lubrication Type	Self-lubricating Chain
Tensile Strength	Tensile Strength 42kN
Chain Pitch	50.8mm
Operating Temperature	-40°C to +150°C
Application Type	IQF Freezer Chain, cryogenic tunnel chain

Product Features

Our Stainless Steel Freezing Chain P50.8FTC10-F stands out with its unique features:

• Stainless Steel material: High-quality stainless steel is adopted to ensure the corrosion-resistant freezing chain characteristics, resist moisture and chemical corrosion, and extend the service life.
• Self-lubricating Chain design: Built-in self-lubrication mechanism reduces friction and wear, making it an ideal choice for wear-resistant conveyor chain, maintaining high efficiency even during continuous operation.
• Strength 42kN: Strong Tensile strength, supporting heavy-duty applications, suitable for high-efficiency conveyor chain for tunnel freezer systems.
• Customized options: We offer custom tunnel freezer chain for food processing services and adjust the specifications according to your requirements to adapt to different freezing tunnel chain for cold drinks processing.

These features make the P50.8FTC10-F perform well in the stainless steel deep freezing tunnel chain for ice cream production, helping enterprises reduce operating costs.

Applications

Stainless Steel Freezing Chain P50.8FTC10-F is widely applied in various scenarios of the food processing industry. It can be used in the IQF Freezer Chain system to serve individual rapid freezing equipment and ensure uniform transportation of food in a low-temperature environment. In the Cryogenic Tunnel Chain environment, that is, in liquid nitrogen or CO2 freezing tunnels, it can provide a stable chain solution for continuous freezing systems; It is suitable for food freezing production lines and can be used as a stainless steel deep freezing tunnel chain for ice cream production. It is also applicable to cold drink and seafood processing. In industrial-grade applications, it serves as a customized frozen tunnel chain for the food industry and can be used as a low-temperature conveying chain for food freezing, supporting the operation of large-scale production lines. Whether you are building a new factory or upgrading your existing equipment, this product can be seamlessly integrated into your cold drink processing frozen tunnel chain system.

Customer Reviews

[su_table responsive="yes"]

Klara Dravniece, Operations Analyst	Renato Cordeiro, Process Improvement Lead	Halina Rojek, Sanitation Coordinator
We monitor motor strain closely and noticed a drop after switching to these chains. Probably due to better glide efficiency. They clean up quickly after wash-down, and joints remain firm.	Durable product. No visible fatigue around pivot points even after 1000+ hours. Metalwork looks uniform. One link had a rough edge that needed filing, but it hasn’t impacted performance.	Chains rinse clean without chemical residue. No hidden cavities, and we can inspect the joints easily. They’ve met our food safety checklists with no concerns. Very suitable for dairy production lines.

[/su_table]

Why Choose Us?

As a professional industrial quick freezing tunnel chain supplier in china, we offer full-chain support from design to delivery. Our chain solutions for continuous freezer systems has served numerous food enterprises, ensuring that each product complies with international standards. Contact us immediately for quotations or customized services of stainless steel freezing chain.
