Stainless Steel Freezing Tunnel Chain P50FTC17-H

Introduction

Stainless Steel Freezing Tunnel Chain P50FTC17-H is a high-quality chain product specially designed for the food processing industry. As a leading tunnel freezer chain, it is made of stainless steel to ensure stable operation in low-temperature environments. This product is widely used in the conveyor chain for tunnel freezer system to help enterprises improve production efficiency.

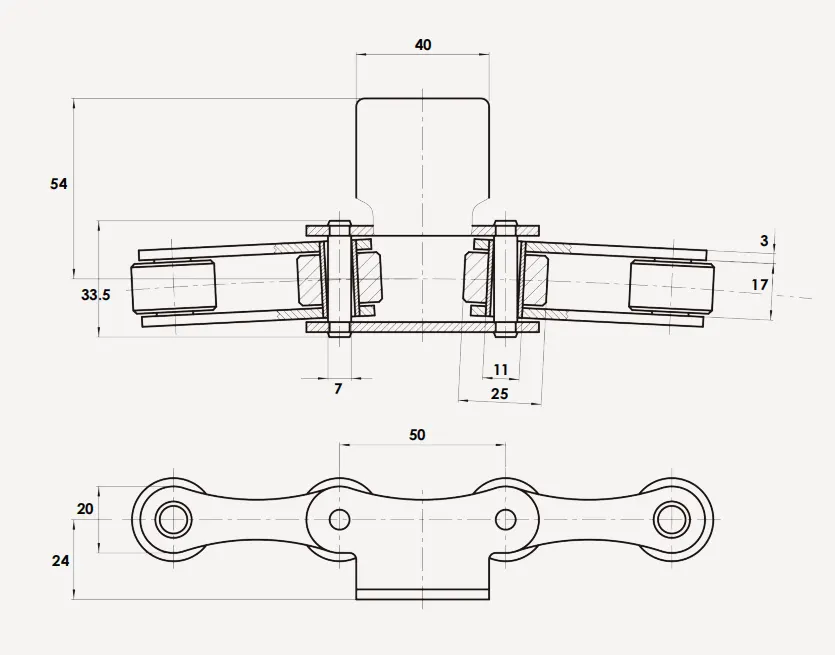

Detailed Specifications

The following are the detailed technical parameters of Stainless Steel Freezing Tunnel Chain P50FTC17-H to ensure that you can have a comprehensive understanding of the performance indicators of this tunnel freezer chain. We are committed to providing high-standard stainless steel freezing chain to meet the demanding industrial requirements.

Parameter	Specification
Material Type	Stainless Steel
Chain Type	Side Bow Chain
Tensile Strength	Tensile Strength 38kN
Self-lubricating Option	Self-lubricating also available
Chain Plate Material	Chain Plates: SS304 SS316L
Bush Material	Bush: SS304 + PE / PEEK
Pin Material	Pin: AISI 630 (17-4PH) HRC 40-45
Roller Material	Roller: POM

Product Features

Stainless Steel Freezing Tunnel Chain P50FTC17-H stands out for its outstanding design and materials. As a Side Bow Chain, it has excellent side-bending flexibility and is suitable for complex freezing tunnel chain layouts. The Tensile Strength of this chain reaches 38kN, ensuring it is not prone to breakage under high load conditions. In addition, the Self-lubricating also available option can further reduce maintenance requirements and extend service life.

• Chain Plates: SS304, SS316L, offer excellent corrosion resistance and are suitable for humid and low-temperature environments.
• Bush: SS304 + PE/PEEK, combining stainless steel with high-performance polymers, enhances wear resistance and lubrication effect.
• Pin: AISI 630 (17-4PH) HRC 40-45, heat-treated to ensure high hardness and fatigue resistance.
• Roller: POM, made of polyoxymethylene material, is lightweight and low-temperature resistant, reducing friction loss.

These features make Stainless Steel Freezing Tunnel Chain P50FTC17-H the preferred choice for food processing freezer chain, helping users achieve efficient transmission in tunnel freezing systems.

Applications

We are experts in the field of stainless steel freezing chain, providing customized services and rapid delivery. Stainless Steel Freezing Tunnel Chain P50FTC17-H has undergone rigorous testing to ensure reliable quality. If you have any demand for freezing tunnel chain or tunnel freezer chain, please feel free to contact us for quotations or samples. Act now to boost your productivity!In conclusion, the Stainless Steel Freezing Tunnel Chain P50FTC17-H is an ideal choice for the food processing industry, combining durability and innovative design. Explore more of conveyor chain for tunnel freezer products and contact us to start collaborating.
