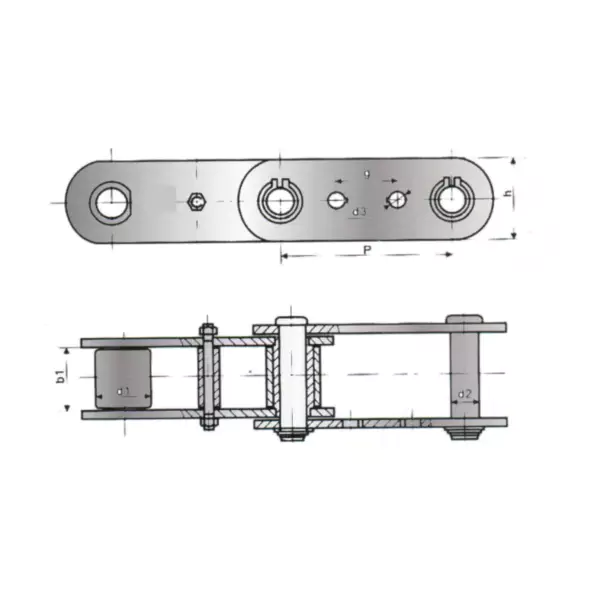

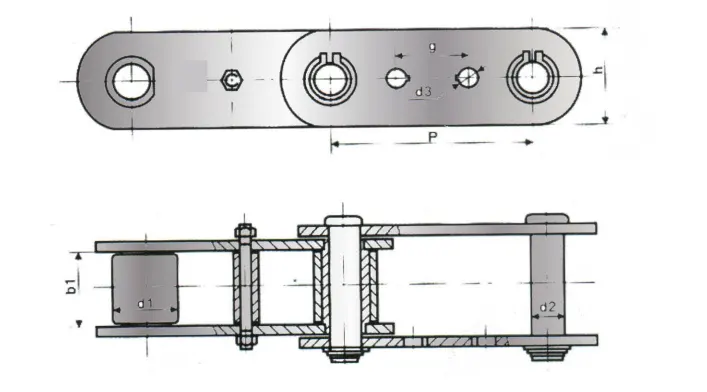

| Pitch | WidthBetweenInner Plates | RollerDiameter | Pin Diameter | Plate Height | Attachment Dimension | Weight PerMeter | UltimateTensileStrength | Note | ||
| P | b1 | d1 | d2 | h | f | g | d3 | Q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | kg/m | KN | |
| 75 | 30 | 29 | 14.5 | 38.1 | 75 | 75 | 14 | 11.03 | 200 | / |
| 100 | 37.1 | 34.9 | 16 | 44.5 | 100 | 100 | 16 | 14.14 | 250 | / |
| 100 | 66.3 | 52 | 27 | 80 | 100 | 100 | 18 | 35.38 | 650 | / |
| 125 | 57.2 | 50.8 | 24 | 63.5 | 110 | 125 | 22 | 25.53 | 650 | / |
| 125 | 66.7 | 57.2 | 28 | 76.2 | 110 | 125 | 18 | 42.8 | 800 | / |
| 125 | 70 | 62 | 33 | 90 | 110 | 125 | 18 | 46.24 | 1000 | / |
| 150 | 66.7 | 57.2 | 28 | 76.2 | 140 | 150 | 22 | 37.75 | 800 | / |
| 150 | 30 | 31.8 | 14.5 | 38.1 | 75 | 75 | 14 | 8.2 | 200 | / |
| 160 | 37.1 | 34.9 | 16 | 44.5 | 75 | 75 | 14 | 11.91 | 28.5 | / |
| 160 | 56 | 60 | 30 | 82 | 100 | 80 | 14 | 40 | 740 | TB500 |
| 200 | 37.1 | 34.9 | 16 | 44.5 | 100 | 100 | 16 | 11.8 | 250 | / |
| 200 | 52 | 44.5 | 19 | 60 | 80 | 100 | 18 | 19.55 | 380 | NE100 |
| 200 | 60 | 50 | 25 | 75 | 100 | 100 | 22 | 26 | 456 | NE100 Strengthen |
| 200 | 58 | 48.5 | 22 | 74 | 80(100) | 100 | 18 | 224 | 500 | NE150 |
| 200 | 57.2 | 50.8 | 24 | 65 | 100 | 100 | 16 | 20.84 | 456 | / |
| 250 | 67.4 | 63.5 | 31.75 | 90 | 80 | 100 | 18 | / | 750 | NE200 |
| 250 | 57.5 | 50 | 24 | 64 | 110 | 125 | 18 | / | 456 | NBC600H |
| 250 | 66.7 | 57.2 | 28 | 76.2 | 110 | 125 | 18 | 29.88 | 800 | / |
| 300 | 55 | 60 | 30 | 82 | 160 | 120 | 17 | 35.73 | 750 | NE400.5a |
In this section, we will provide an overview of the Stainless Steel Metallurgical Bucket Lifting Chain, its main features, and applications in various industries.
1. Chain Links: The Building Blocks of Strength and Durability
2. Pins and Bushings: Ensuring Smooth Articulation
3. Side Plates: Reinforcing Structural Integrity
4. Rollers: Enhancing Flexibility and Load Distribution
1. Stainless Steel: Optimum Corrosion Resistance for Harsh Environments
2. Metallurgical Expertise: Precision and Quality Assurance
3. Heat Treatment Process: Enhancing Chain Strength and Hardness
4. Surface Coating: Additional Protection and Lubrication
1. High Load Capacity: Tackling Heavy-Duty Applications
2. Excellent Corrosion Resistance: Ideal for Challenging Environments
3. Superior Wear Resistance: Prolonging Chain Lifespan
4. Reliable Performance: Ensuring Continuous Operation
1. Metallurgical Industry: Smelting and Mining Operations
2. Construction and Building: Heavy Lifting and Material Handling
3. Shipping and Port Operations: Efficient Cargo Handling
4. Energy and Power Generation: Reliable Equipment Support
1. Regular Inspections: Identifying Signs of Wear and Damage
2. Proper Lubrication: Ensuring Smooth Operation
3. Load Capacity Monitoring: Preventing Overloading
4. Safety Precautions: Protecting Personnel and Equipment
In conclusion, the Stainless Steel Metallurgical Bucket Lifting Chain is a robust and reliable solution for heavy-duty lifting operations. With its superior strength, corrosion resistance, and durability, it meets the demands of various industries including metallurgical, construction, shipping, and energy. By choosing this chain, you can ensure safe and efficient material handling while minimizing downtime and maintenance costs.
Raydafon Stainless Steel Metallurgy Industry Chains stand out in the market due to their unique selling points. Our chains are specifically designed for the demanding requirements of the metallurgical industry, with a focus on exceptional product quality, reliable performance, and outstanding service.
Our Stainless Steel Metallurgical Bucket Lifting Chains are manufactured using high-grade stainless steel, ensuring excellent corrosion resistance and durability. They are built to withstand the harsh conditions and heavy loads commonly found in metallurgical applications, providing long-lasting and reliable operation.
At Raydafon, we take pride in our strong production capabilities. Our state-of-the-art manufacturing facilities are equipped with advanced machinery and technologies, allowing us to produce chains with precision and efficiency. With strict quality control measures in place, we ensure that every chain meets the highest standards and adheres to the specific requirements of our customers in the metallurgy industry.
In addition to our Stainless Steel Metallurgical Bucket Lifting Chains, we also offer a wide range of other stainless steel roller chains for various applications. Whether it's for conveyor systems, drive mechanisms, or other industrial purposes, our diverse product portfolio caters to the needs of different industries and ensures optimal performance and longevity.
When it comes to choosing the right sprockets for your Stainless Steel Metallurgical Bucket Lifting Chain, there are a few important factors to consider. First and foremost, you need to determine the size and pitch of the chain. This will ensure that the sprocket teeth perfectly match the chain links, allowing for smooth and efficient operation.
Another crucial aspect is the material of the sprocket. Stainless steel sprockets are highly recommended for their durability, corrosion resistance, and ability to withstand high temperatures. These qualities make them ideal for applications in harsh industrial environments.
Furthermore, it's essential to select a sprocket with the appropriate number of teeth. The number of teeth affects both the speed and torque of the chain drive system. A higher number of teeth will result in slower speed but higher torque, while a lower number of teeth will provide higher speed but lower torque.
At our company, we offer a wide range of sprockets to meet your specific needs. From different sizes and pitches to various tooth counts, we have the perfect sprocket for your Stainless Steel Metallurgical Bucket Lifting Chain. Our sprockets are made from high-quality stainless steel, ensuring long-lasting performance and reliability.
