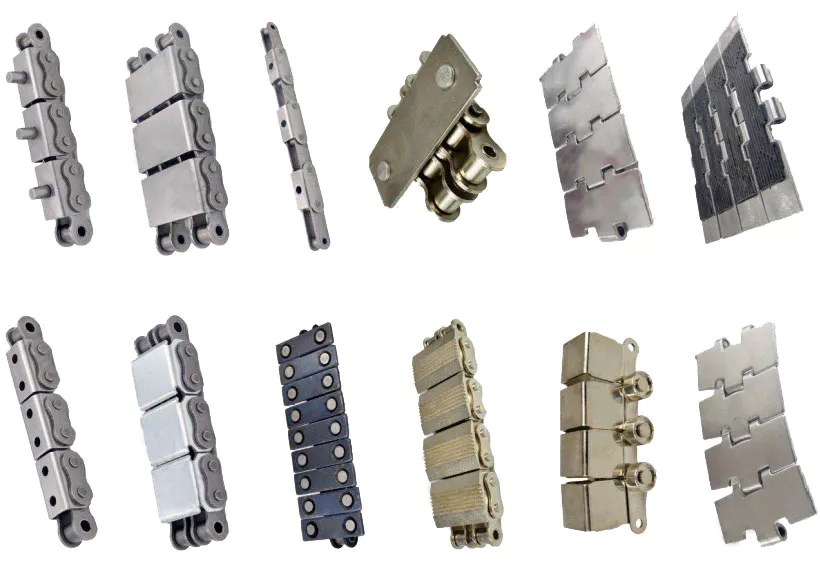

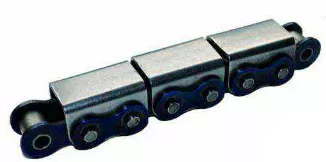

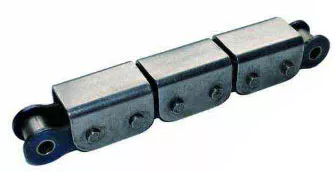

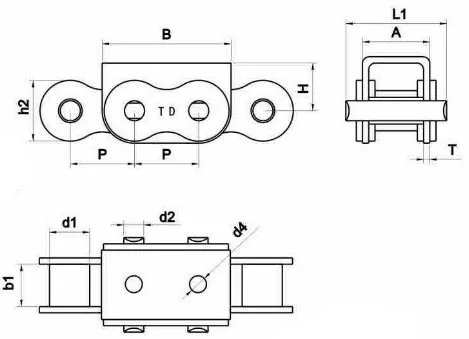

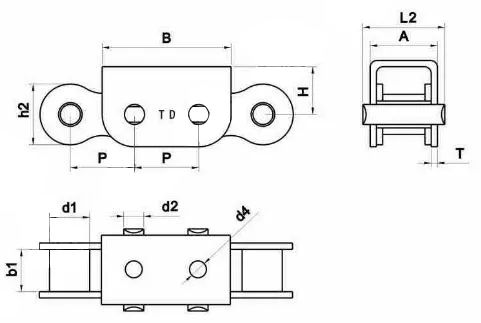

A type with outer plate | B type without outer plate |
 |  |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Plate depth | Pin length | |
P | d1 max | b1 min | d2 max | h2 max | L1 max | L2max | |
04C-U1 | 6.35 | 3.3 | 3.18 | 2.31 | 6 | 10.6 | 8.9 |
06B-U1 | 9.525 | 6.35 | 5.72 | 3.28 | 8 | 16.1 | 13.2 |
08A-U1 | 12.7 | 7.95 | 7.85 | 3.96 | 12 | 19.4 | 16.6 |
08B-U1 | 12.7 | 8.51 | 7.75 | 4.45 | 11.8 | 19.8 | 16.7 |
10A-U1 | 15.875 | 10.16 | 9.4 | 5.08 | 15 | 23.5 | 20.5 |
10B-U1 | 15.875 | 10.16 | 9.65 | 5.08 | 14.7 | 23 | 19.5 |
12A-U1 | 19.05 | 11.91 | 12.57 | 5.94 | 16 | 30.7 | 25.9 |
12B-U1 | 19.05 | 12.07 | 11.68 | 5.72 | 16 | 25.7 | 22.5 |
16A-U1 | 25.4 | 15.88 | 15.75 | 7.92 | 24 | 37.2 | 31 |
16A-U1F1 | 25.4 | 15.88 | 15.75 | 7.92 | 24 | 37.2 | 31 |
16B-U1 | 25.4 | 15.88 | 17.02 | 8.28 | 21 | 39.7 | 33.7 |
20B-U1 | 31.75 | 19.05 | 19.56 | 10.19 | 26.4 | 48 | 41 |
24A-U1 | 38.1 | 22.23 | 25.22 | 11.1 | 35.7 | 58.3 | 50.3 |
24B-U1 | 38.1 | 25.4 | 25.4 | 14.63 | 33.2 | 61.6 | 52 |
32A-U1 | 50.8 | 28.58 | 31.55 | 14.27 | 47.8 | 76.2 | - |
P27.5 | 27.5 | 11.91 | 12.57 | 5.94 | 16 | 30 | 25.7 |
C2050-U1 | 31.75 | 10.16 | 9.4 | 5.08 | 15 | 24 | 20 |

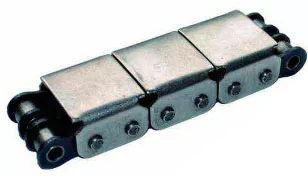

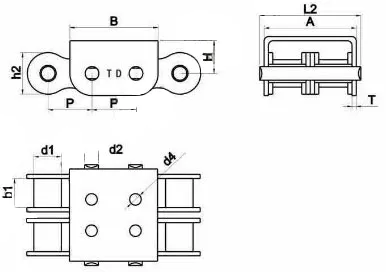

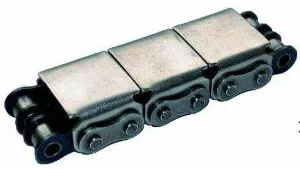

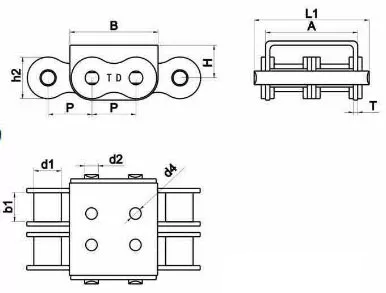

A type with outer plate | B type without outer plate |
 |  |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Plate depth | Pin length | |
P | d1 max | b1 min | d2 max | h2 max | L1 max | L2max | |
08B-U2 | 12.7 | 8.51 | 7.75 | 4.45 | 11.8 | 34.1 | 31.2 |
08B-U2F1 | |||||||
08B-U2F2 | |||||||
08B-U2F3 | |||||||
10A-U2 | 15.875 | 10.16 | 9.4 | 5.08 | 15 | 41.8 | 36 |
10A-U2F1 | 35.5 | ||||||
10A-U2F1 | 36 | ||||||
10A-U2F2 | 33.7 | ||||||
10B-U2 | 9.65 | 14.7 | 35.9 | 35.9 | |||
12A-U2 | 19.05 | 11.91 | 12.57 | 5.94 | 16 | 51 | 47 |
12A-U2F1 | 51 | 47 | |||||
12A-U3 | 65.8 | 61 | |||||
12B-U2 | 12.07 | 11.68 | 5.72 | 45.3 | 42.9 | ||
12B-U2F1 | 46.6 | 42.9 | |||||
12B-U2F2 | 45.3 | 42.9 | |||||
16A-U2 | 25.4 | 15.88 | 15.75 | 7.92 | 24 | 66.7 | 61.2 |
16B-U2 | 25.4 | 15.88 | 17.02 | 8.28 | 21 | 71.7 | 67 |
24A-U2 | 38.1 | 22.23 | 25.22 | 11.1 | 35.7 | 104 | 94.4 |
 |  |

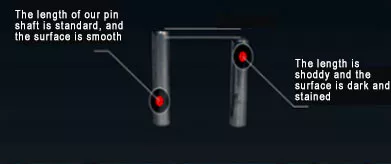

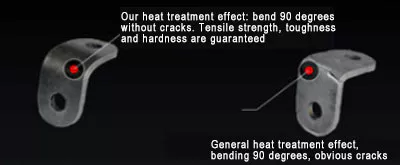

Heat treatment processThrough excellent standard and excellent heat treatment and quenching process, the hardness, strength, toughness, tensile strength and service life of parts can be improved | Pin screenEach pin shaft has been strictly selected manually, without cutting corners |
 |  |

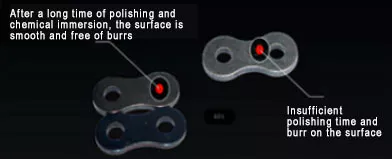

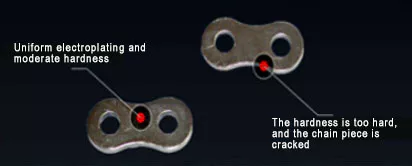

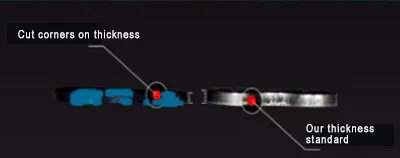

Chip screeningCustomize the thickness from the raw material chain plate without cutting corners | Surface treatmentAdd chemical raw materials with a grinder, and the surface shall be smooth and free of burrs after the long sealing room is fully polished |
 |  |

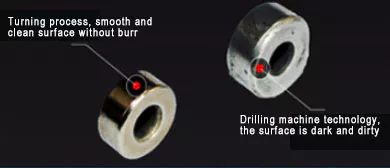

Surface electroplatingEach zero cow is fully electrolyzed, the surface thickness is uniform, and the service life is improved | Accessory processEach roller is made by |
