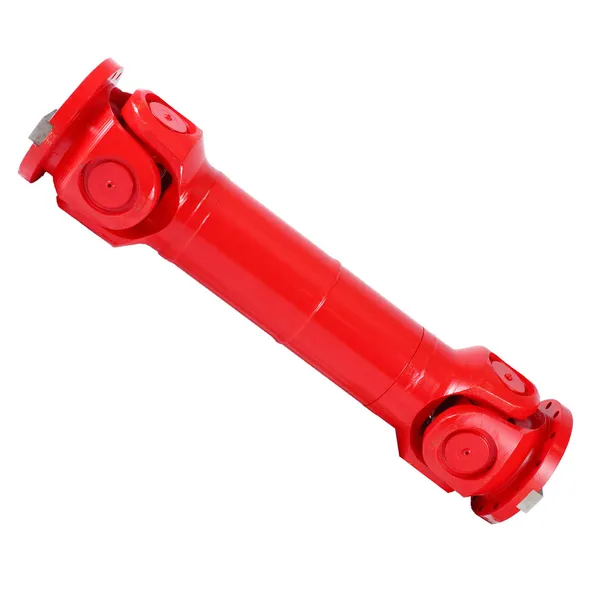

SWC-BH Standard Flex Welding Type Universal Coupling

SWC-BH Standard Flex Welding Type Universal Joint Coupling

The SWC-BH standard flex welding type universal coupling is a type of flexible coupling used to connect two shafts together. It is designed to transmit torque while accommodating for misalignment and axial movement between the shafts. The SWC-BH standard flex welding type universal coupling is made up of two halves, each with a flange that is bolted to the end of a shaft. The two halves are connected by a flexible element, typically made of rubber or polyurethane, which allows for angular and radial misalignment between the shafts. The coupling also has an axial sliding feature that allows for axial movement of the shafts.The SWC-BH standard flex welding type universal coupling is commonly used in industrial applications such as pumps, compressors, and generators, where misalignment between shafts can occur due to factors such as thermal expansion, vibration, or improper installation. The SWC-BH standard flex welding type universal coupling provides a reliable and flexible connection that can help reduce stress on the shafts and other components and improve overall system performance.

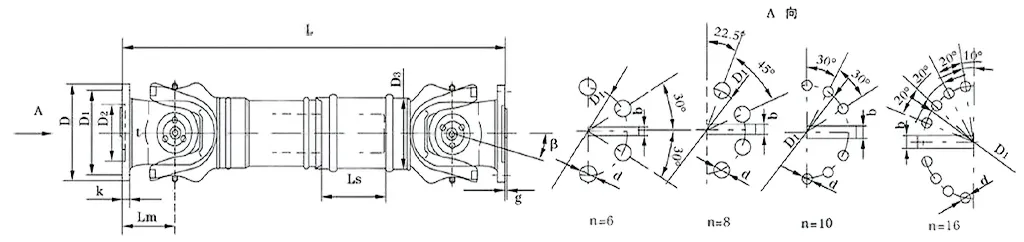

SWC-BH Standard Flex Welding Type Universal Coupling Dimensions:

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angleβ(°)	Weary torqueTfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC58BH	58	0.15	0.075	≤22	35	325	47	30	38	35	4-5	3.5	1.5	-	-	-	-	2.2	-
SWC65BH	65	0.25	0.125	≤22	40	360	52	35	42	46	4-6	4.5	1.7	-	-	-	-	3	-
SWC75BH	75	0.5	0.25	≤22	40	395	62	42	50	58	6-6	5.5	2	-	-	-	-	5	-
SWC90BH	90	1	0.5	≤22	45	435	74.5	47	54	58	4-8	6	2.5	-	-	-	-	6.6	-
SWC100BH	100	1.5	0.75	≤25	55	390	84	57	60	58	6-9	7	2.5	-	-	0.0044	0.00019	6.1	0.35
SWC120BH	120	2.5	1.25	≤25	80	485	102	75	70	68	8-11	8	2.5	-	-	0.0109	0.00044	10.8	0.55
SWC150BH	150	5	2.5	≤25	80	590	13	90	89	80	8-13	10	3	-	-	0.0423	0.00157	24.5	0.85
SWC160BH	160	10	5	≤25	80	660	137	100	95	110	8-17	15	3	20	12	0.145	0.006	68	1.72
SWC180BH	180	20	10	≤25	100	810	155	105	114	130	8-17	17	5	24	14	0.175	0.007	70	2.8
SWC200BH	200	32	16	≤15	110	860	170	120	127	135	8-17	19	5	28	16	0.31	0.013	86	3.6
SWC225BH	225	40	20	≤15	140	920	196	135	152	120	8-17	20	5	32	9	0.538	0.0234	122	4.9
SWC250BH	250	63	31.5	≤15	140	1035	218	150	168	140	8-19	25	6	40	12.5	0.966	0.0277	172	5.3
SWC285BH	285	90	45	≤15	140	1190	245	170	194	160	8-21	27	7	40	15	2.011	0.051	263	6.3
SWC315BH	315	125	63	≤15	140	1315	280	185	219	180	10-23	32	8	40	15	3.605	0.0795	382	8
SWC350BH	350	180	90	≤15	150	1410	310	210	267	194	10-23	35	8	50	16	7.053	0.2219	582	15
SWC390BH	390	250	125	≤15	170	1590	345	235	267	215	10-25	40	8	70	18	12.164	0.2219	738	15
SWC440BH	440	355	180	≤15	190	1875	390	255	325	260	16-28	42	10	80	20	21.42	0.4744	1190	21.7
SWC490BH	490	500	250	≤15	190	1985	435	275	325	270	16-31	47	12	90	22.5	32.86	0.4744	1452	21.7
SWC550BH	550	710	355	≤15	240	2300	492	320	426	305	16-31	50	12	100	22.5	68.92	1.357	2380	34

SWC-BH Standard Flex Welding Type Universal Coupling Assembly:

The SWC-BH standard flex welding type universal coupling is a complex assembly consisting of the following parts:1. Yokes: The yokes are the main components of the coupling and are responsible for connecting the coupling to the shafts. The yokes are made of high-quality steel and are designed to withstand high torque loads.2. Cross joints: The cross joints are located between the yokes and are responsible for allowing the shafts to rotate at different angles. The cross joints are made of high-quality steel and are designed to withstand high misalignments.3. Bearings: The bearings are located between the cross joints and the yokes and are responsible for supporting the weight of the coupling and the shafts. The bearings are made of high-quality steel and are designed to withstand high loads.4. Seals: The seals are located between the bearings and the yokes and are responsible for preventing the ingress of dirt and moisture. The seals are made of high-quality materials and are designed to withstand high temperatures and pressures.

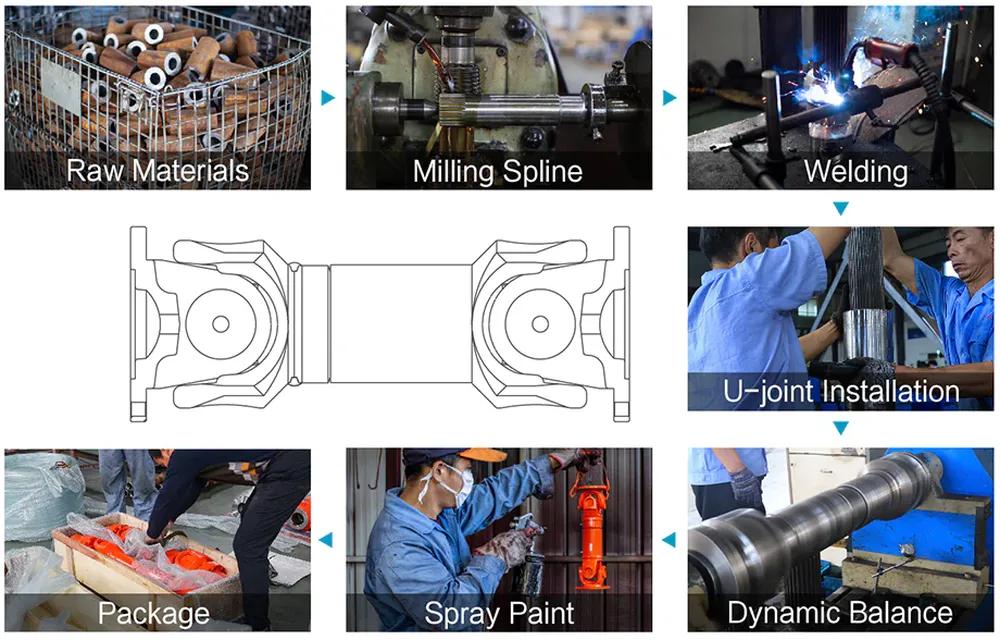

SWC-BH Standard Flex Welding Type Universal Coupling Production Process:

1, First of all, the forging blank at both ends of the central hole drilling, rough car outside a few big steps.2, Conduct tempering.3, Semi-precision car steps, outer circle, and length of the spare, and then take the center frame car to the total length.4, Drilling of through holes in the central frame.5, Enamel tapered holes at both ends, bore bored heads at both ends and drill center holes to prepare for grinding.6, Fine turning of each gear outer circle and step plane with grinding allowance, and chamfering of each groove on the outer circle.7, Grinding all kinds of cylindrical and step planes to size.8, Process each thread on this lathe after assembly.

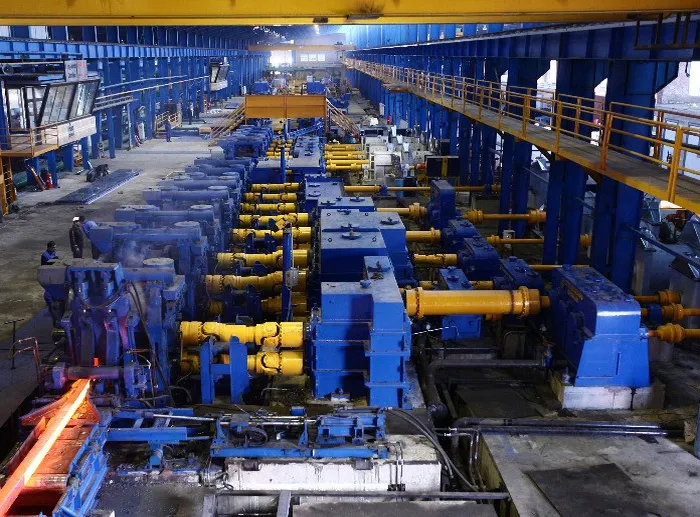

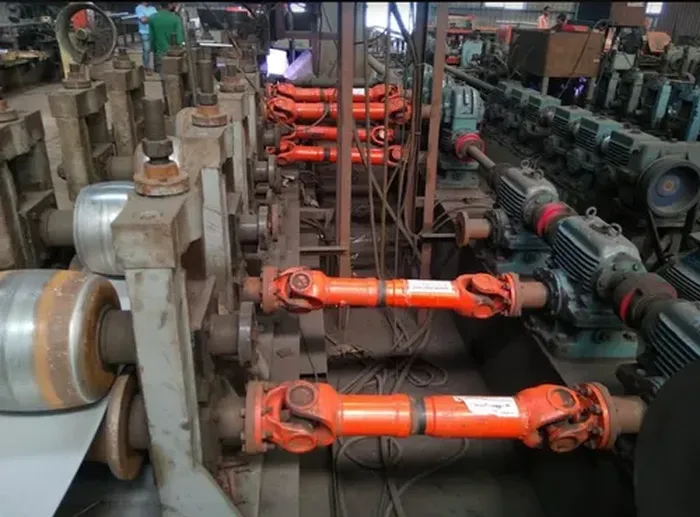

SWC-BH Standard Flex Welding Type Universal Coupling Application:

The SWC-BH standard flex welding type universal coupling is a versatile joint that can be used in a wide variety of applications. Some of the most common applications for the SWC-BH universal joint include:(1) In construction machinery, the SWC-BH standard flex welding type universal coupling can be used to transmit power between the engine and the driveshaft of a bulldozer or excavator. This allows the machine to operate smoothly and efficiently, even when the ground is uneven or the machine is making sharp turns.(2) In mining machinery, the SWC-BH standard flex welding type universal coupling can be used to transmit power between the engine and the conveyor belt of a mining truck. This allows the truck to transport large quantities of material quickly and efficiently, even when the belt is not perfectly aligned.(3) In material handling machinery, the SWC-BH standard flex welding type universal coupling can be used to transmit power between the engine and the lifting mechanism of a forklift. This allows the forklift to lift and move heavy objects safely and easily, even when the load is not perfectly balanced.(4) In power generation equipment, the SWC-BH standard flex welding type universal coupling can be used to transmit power between the turbine and the generator. This allows the generator to produce electricity even when the turbine is not perfectly aligned.(5) In marine applications, the SWC-BH standard flex welding type universal coupling can be used to transmit power between the engine and the propeller of a ship. This allows the ship to move smoothly and efficiently, even in rough seas.The SWC-BH standard flex welding type universal coupling is a versatile and reliable product that can be used in a variety of applications. If you are looking for a flexible coupling that can help to improve the performance and efficiency of your machinery, the SWC-BH coupling is a great option.

China Universal Coupling Manufacturers

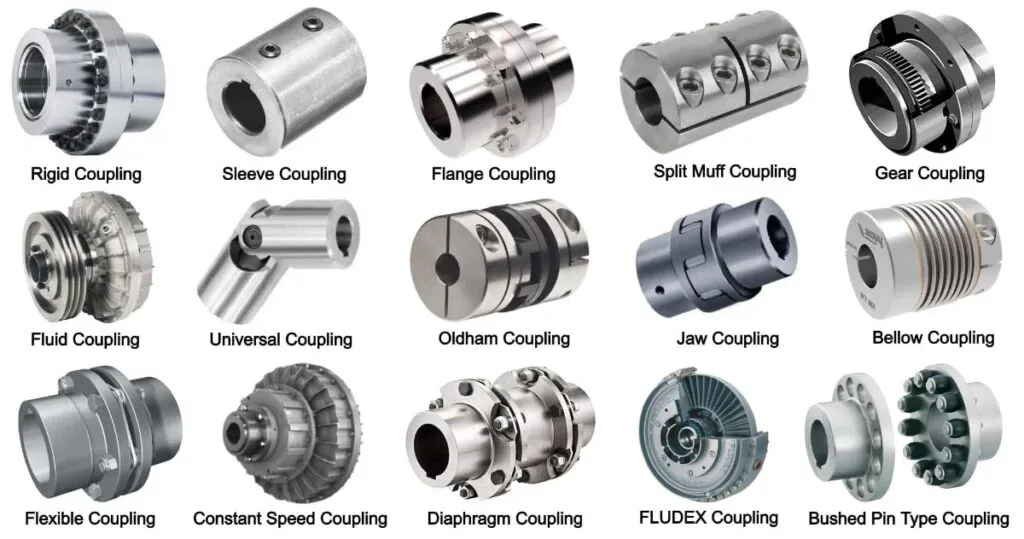

Raydafon products sell well in the domestic market and have been exported to the international market. In order to meet the needs of different customers, our company undertakes other non-standard couplings, imported couplings design, replacement, and manufacturing; in this regard, Raydafon has accumulated a wealth of experience. Our goal is to become the first choice of businessmen with strict quality control, qualified delivery control, and excellent service. The main products are standard serpentine spring couplings, spacer couplings, universal couplings, star-shaped elastic couplings, tire couplings, drum-type gear couplings, servo motor couplings, sprocket chain couplings, rigid couplings, flexible sleeve pin couplings, flexible pin couplings, HRC couplings, jaw couplings, etc., a total of 29 series, more than five hundred and eighty specifications. There are twenty-nine series and more than five hundred and eighty kinds of specifications. They are widely used in metallurgy, mining, shipbuilding, paper-making, and heavy machinery industries.Our company has a group of professional technicians with rich practical experience, and we have a group of excellent sales staff to provide your company with advanced transmission and conveying technology services at all times, to ensure the smooth and efficient operation of your company's equipment. We are always full of enthusiasm, a sincere attitude of cooperation, win-win business philosophy, and zealously welcome customers at home and abroad to visit our company and negotiate.
