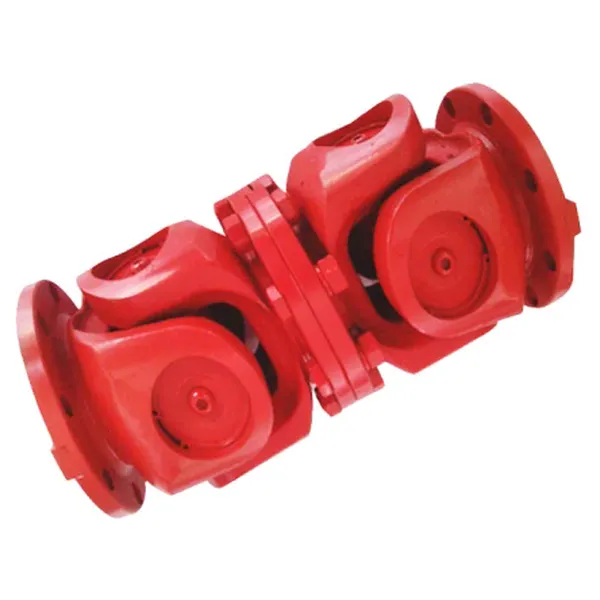

SWC-WD Short Without Flex Flange Type Universal Coupling

SWC-WD Short Without Flex Flange Type Universal Joint Coupling

The SWC-WD short without flex flange type universal coupling is a type of universal joint coupling used in mechanical power transmission systems. It is designed to transmit torque between two shafts that are not in line with each other or that have some degree of misalignment between them. The SWC-WD short without flex flange type universal coupling consists of two hubs or flanges that are connected by a short, intermediate shaft. The hubs are attached to the shafts being connected, while the intermediate shaft is supported by bearings and acts as a flexible joint to accommodate misalignment.One of the distinguishing features of the SWC-WD short without flex flange type universal coupling is that it does not have a flexible element, such as a rubber or metal disc, between the hubs. This makes it a more compact and lightweight design compared to other types of universal joints. The SWC-WD short without flex flange type universal coupling is commonly used in heavy-duty applications such as mining, steel production, and marine propulsion systems, where high torque and misalignment are present.

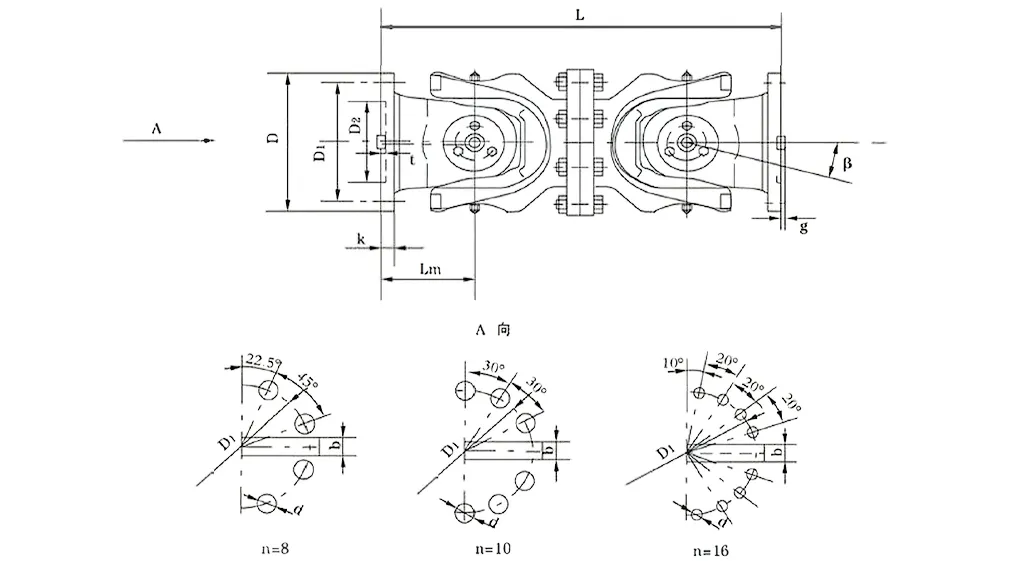

SWC-WD Short Without Flex Flange Type Universal Coupling Dimensions:

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torqueTfKN·m	Size (mm)									Weight (kg)
					Lmin	D1(js11)	D2(H7)	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm
SWC180WD	180	12.5	6.3	≤25	440	155	105	110	8-17	17	5	-	-	0.145	52
SWC225WD	225	40	20	≤15	480	196	135	120	8-17	20	5	32	9.0	0.355	82
SWC250WD	250	63	31.5		560	218	150	140	8-19	25	6	40	12.5	0.831	127
SWC285WD	285	90	45		640	245	170	160	8-21	27	7	40	15.0	1.715	189
SWC315WD	315	125	63		720	280	185	180	10-23	32	8	40	15.0	2.820	270
SWC350WD	350	180	90		776	310	210	194	10-23	35	8	50	16.0	4.791	370
SWC390WD	390	250	125		860	345	235	215	10-25	40	8	70	18.0	8.229	524
SWC440WD	440	355	180		1040	390	255	260	16-28	42	10	80	20.0	15.320	798
SWC490WD	490	500	250		1080	435	275	270	16-31	47	12	90	22.5	25.740	1055
SWC550WD	550	710	355		1220	492	320	305	16-31	50	12	100	22.5	46.780	1524
SWC620WD	620	1000	500		1360	555	380	340	10-38	55	12	100	25.0	83.760	2120

* 1. Tf-under the alternation load the torque which permits according to the fatigue strength.

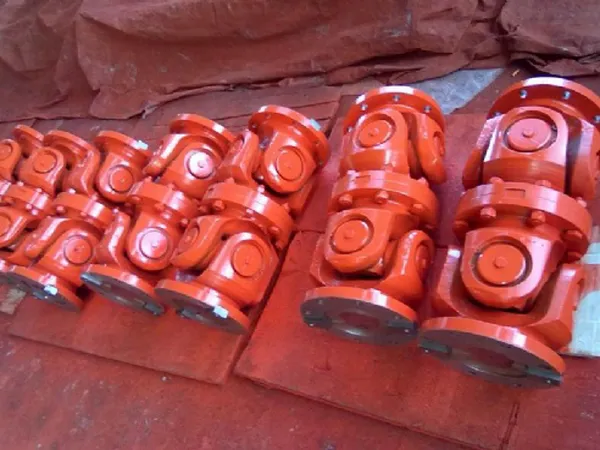

Features of SWC-WD Short Without Flex Flange Type Universal Coupling:

The features of the SWC-WD short without flex flange type universal coupling include:1. High torque transmission: The SWC-WD short without flex flange type universal coupling is designed to transmit high torque between two shafts that are not in line with each other. It is suitable for heavy-duty applications that require high torque transmission.2. Compact design: The SWC-WD short without flex flange type universal coupling's design is more compact compared to other types of universal joints, as it does not have a flexible element between the hubs. This makes it easier to install in tight spaces.3. Low maintenance: The SWC-WD short without flex flange type universal coupling is designed for low maintenance. It does not require lubrication and can operate in harsh environments with minimal wear and tear.4. High misalignment capacity: The SWC-WD short without flex flange type universal coupling can accommodate misalignment between the two shafts. This helps to reduce stress on the shafts and bearings, leading to longer service life.5. Easy installation: The SWC-WD short without flex flange type universal coupling is easy to install and can be quickly connected or disconnected from the shafts.6. Durable construction: The SWC-WD short without flex flange type universal coupling is made from high-strength materials such as alloy steel, which makes it durable and able to withstand high loads and harsh environments.7. Wide range of sizes: The SWC-WD short without flex flange type universal coupling is available in a wide range of sizes to suit various applications and torque requirements.

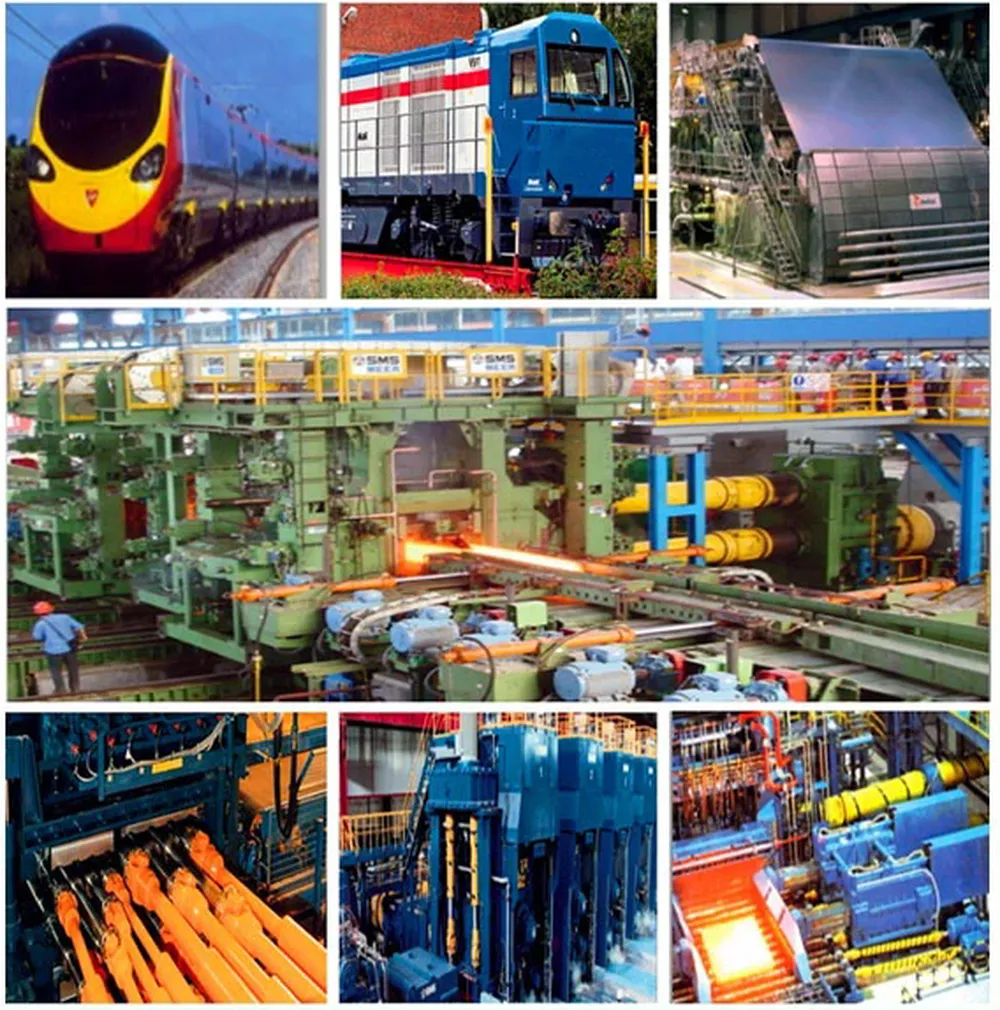

Applications of SWC-WD Short Without Flex Flange Type Universal Coupling:

The SWC-WD short without flex flange type universal coupling is a versatile coupling that can be used in a variety of applications. Some of the most common applications include:(1) Automotive equipment: The SWC-WD short without flex flange type universal coupling is commonly used in automotive equipment, such as cars, trucks, and tractors. It is used to connect the engine to the transmission and to connect the transmission to the driveshaft. The coupling helps to transmit power from the engine to the wheels, and it also helps to absorb vibration and noise.(2) Agricultural equipment: The SWC-WD short without flex flange type universal coupling is also commonly used in agricultural equipment, such as harvesters, combines, and tractors. It is used to connect the engine to the transmission and to connect the transmission to the driveline. The coupling helps to transmit power from the engine to the wheels, and it also helps to absorb vibration and noise.(3) Construction equipment: The SWC-WD short without flex flange type universal coupling is also commonly used in construction equipment, such as excavators, bulldozers, and cranes. It is used to connect the engine to the transmission and to connect the transmission to the hydraulic system. The coupling helps to transmit power from the engine to the wheels, and it also helps to absorb vibration and noise.(4) Other industrial applications: The SWC-WD short without flex flange type universal coupling is also used in other industrial applications, such as conveyor belts and power transmission systems. It is used to connect the motor to the driveline and to connect the driveline to the conveyor belt or power transmission system. The coupling helps to transmit power from the motor to the conveyor belt or power transmission system, and it also helps to absorb vibration and noise.Overall, the SWC-WD short without flex flange type universal coupling is a versatile and reliable coupling that is ideal for a variety of applications. It is used in automotive, agricultural, construction, and other industrial applications.

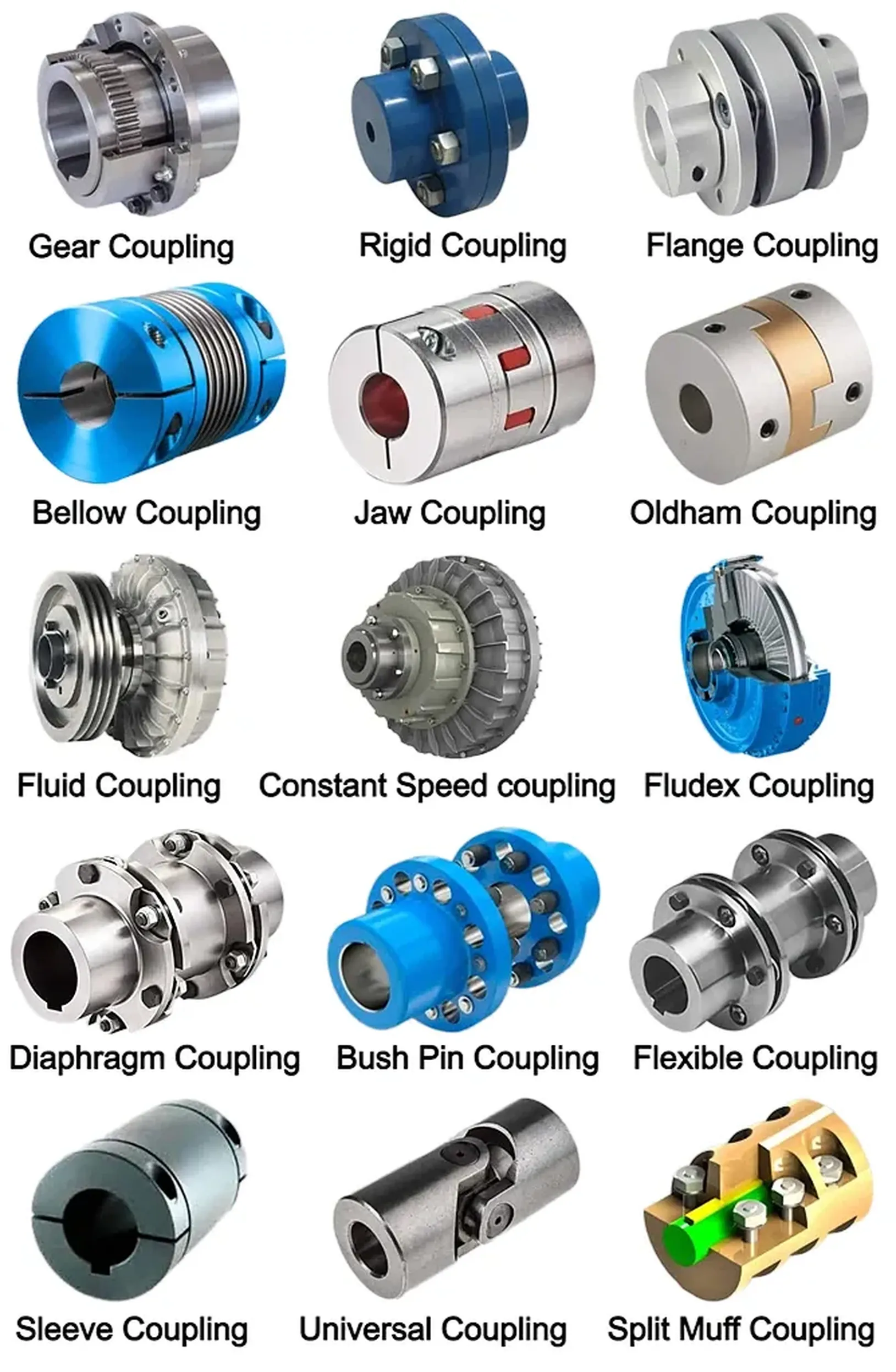

China Universal Coupling Manufacturers
