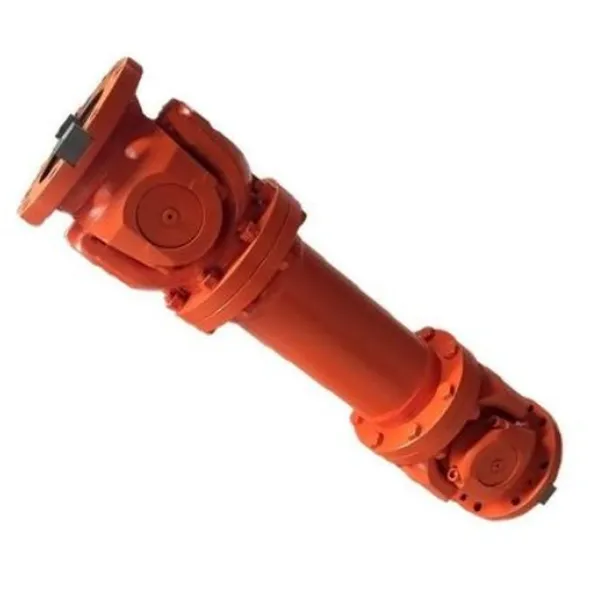

SWC-WF Without Flex Flange Type Universal Coupling

SWC-WF Without Flex Flange Type Universal Joint Coupling

The SWC-WF without flex flange type universal coupling is a type of universal joint that has two bending joints. This allows it to operate at angles up to 90 degrees. It is a without flex flange type, which means that it does not have a flexible coupling between the two bending joints. This makes it more rigid and better suited for applications where there is a lot of vibration or shock.The SWC-WF without flex flange type universal coupling is a kind of the most commonly used with the characteristics of its structure can not in the same axis or axis angle or larger axial movement of two large equiangular continuous rotary speed, and reliably transfer torque and motion. It can be widely used in metallurgy, lifting, transportation, mining, petroleum, shipbuilding, coal, rubber, paper machinery, and other heavy machinery industry machinery shaft in the transmission torque. Overall, the SWC-WF without flex flange type universal coupling is a high-quality and reliable product that is well-suited for a variety of applications. It is more expensive than other types of universal joints, but it offers a number of advantages, such as its ability to operate at angles up to 90 degrees and its durability.

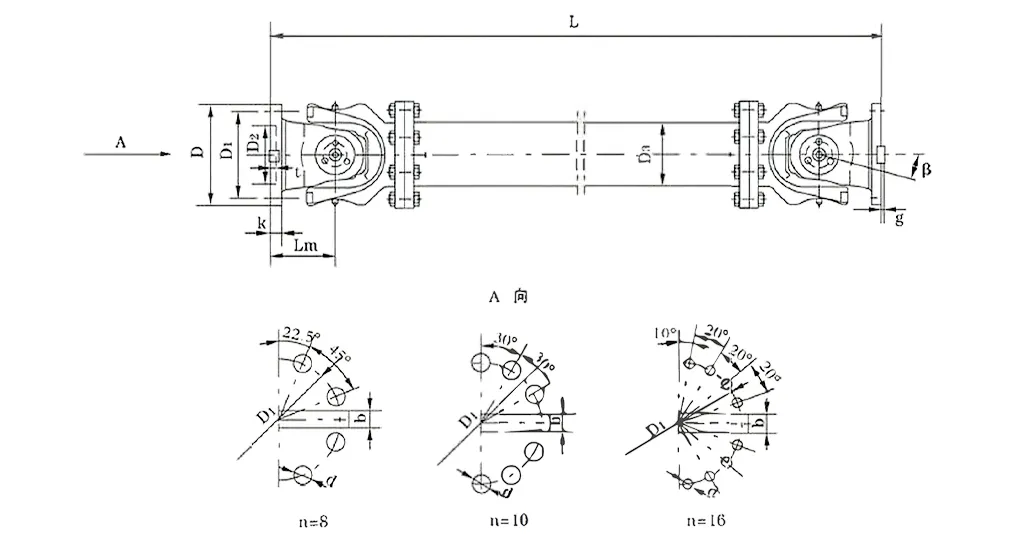

SWC-WF Without Flex Flange Type Universal Coupling Dimensions:

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torqueTfKN·m	Size (mm)										Rotating inertiakg.m2		Weight (kg)
					Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC285WF	285	90	45	≤15	810	245	170	194	160	8-21	27	7	40	15	2.664	0.051	220	6.3
SWC315WF	315	125	63		915	280	185	219	180	10-23	32	8	40	15	4.469	0.0795	300	8.0
SWC350WF	350	180	90		980	310	210	267	194	10-23	35	8	50	16	7.388	0.2219	412	15.0
SWC390WF	390	250	125		1100	345	235	267	215	10-25	40	8	70	18	13.184	0.2219	588	15.0
SWC440WF	440	355	180		1290	390	255	325	260	16-28	42	10	80	20	23.250	0.4744	880	21.7
SWC490WF	490	500	250		1360	435	275	325	270	16-31	47	12	90	22.5	40.750	0.4744	1173	21.7
SWC550WF	550	710	355		1510	492	320	426	305	16-31	50	12	100	22.5	68.480	1.3570	1663	34.0
SWC620WF	620	1000	500		1690	555	380	426	340	10-38	55	12	100	25	127.530	1.3570	2332	34.0

* 1. Tf-under the alternation load the torque which permits according to the fatigue strength.* 2. L-install length, which is according to the requirement.

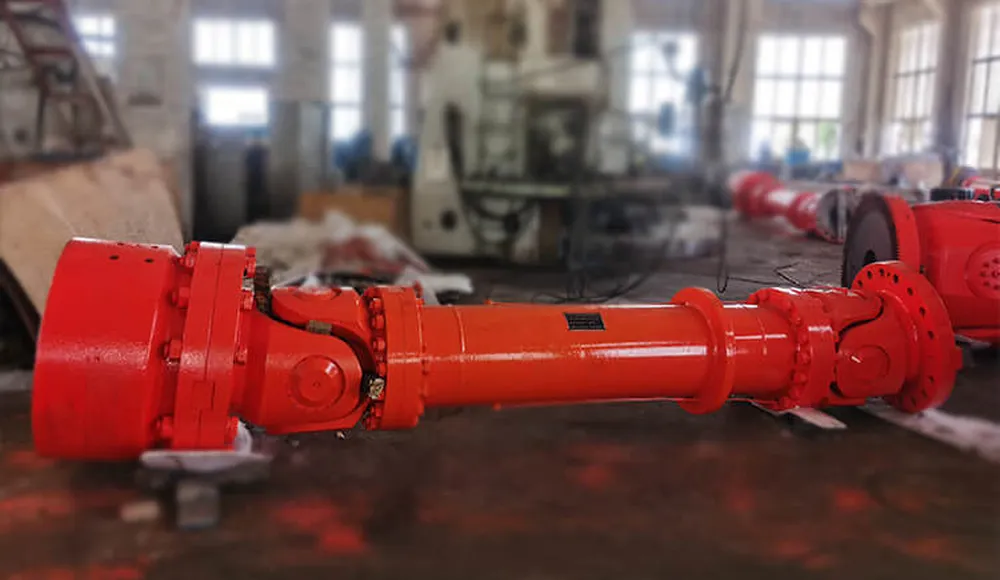

Advantages of SWC-WF Without Flex Flange Type Universal Coupling:

The SWC-WF without flex flange type universal coupling has several advantages over other types of universal joints. These advantages include:1. Flexibility: The SWC-WF without flex flange type universal coupling can transmit power between two shafts that are at an angle of up to 90 degrees. This makes it ideal for applications where there is a high degree of misalignment, such as in mobile machinery or agricultural equipment.2. Durability: The SWC-WF without flex flange type universal coupling is made from high-quality materials and is designed to withstand harsh environments. It is also equipped with a set of bearings that help to reduce friction and vibration, which can extend the life of the coupling.3. Ease of maintenance: The SWC-WF without flex flange type universal coupling is easy to install and maintain. The bearings are easily accessible and can be replaced if necessary.4. Double-joint design: The double-joint design allows the SWC-WF without flex flange type universal coupling to transmit power between two shafts that are at an angle of up to 90 degrees. This makes it ideal for applications where there is a high degree of misalignment.5. Cost-effectiveness: The SWC-WF without flex flange type universal coupling is a cost-effective solution for applications that require a high degree of flexibility and durability.Overall, the SWC-WF without flex flange type universal coupling is a versatile and reliable coupling that offers a number of advantages over other types of universal joints. It is a good choice for applications that require a high degree of flexibility, durability, and ease of maintenance.

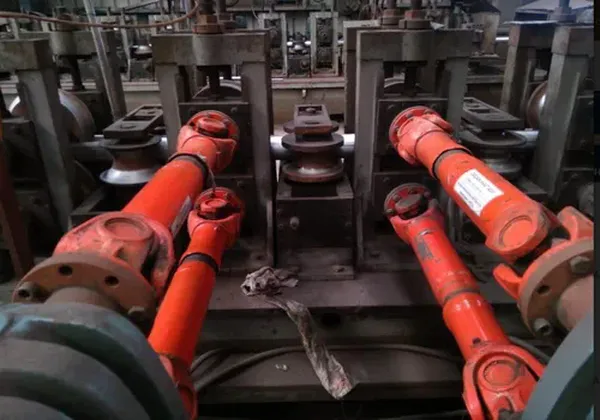

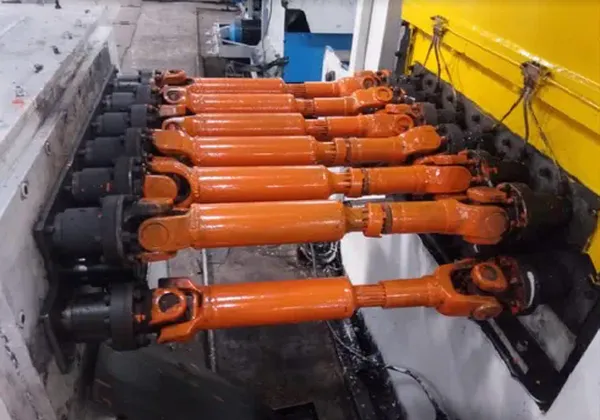

SWC-WF Without Flex Flange Type Universal Coupling Maintenance:

The SWC-WF without flex flange type universal coupling is a relatively low-maintenance coupling, but it is important to perform regular inspections and maintenance to ensure its continued operation.Here are some tips for maintaining your SWC-WF without flex flange type universal coupling:

• Inspect the coupling regularly for signs of wear and tear. Look for cracks, dents, or other damage to the coupling housing or the bearings. If you see any damage, replace the coupling immediately.
• Lubricate the bearings regularly. The bearings in the coupling should be lubricated with high-quality grease at least once a month. This will help to reduce friction and wear and tear, and it will extend the life of the coupling.
• Inspect the coupling for leaks. If you see any leaks from the coupling, it is important to repair them as soon as possible. Leaks can cause the coupling to overheat and fail.
• Replace the coupling if it becomes damaged or worn. Even if the coupling does not show any obvious signs of damage, it is a good idea to replace it every five years or so. This will help to ensure that your equipment is safe and reliable.

By following these tips, you can help to keep your SWC-WF without flex flange type universal coupling in good working order and extend its service life.Here are some additional tips for maintaining your SWC-WF without flex flange type universal coupling:

• Avoid overloading the coupling. Overloading can cause premature wear and tear on the coupling and may lead to failure.
• Do not operate the coupling in harsh environments. Harsh environments, such as high temperatures or extreme dust or dirt conditions, can shorten the life of the coupling.
• If the coupling is used in a mobile application, make sure that it is properly aligned. Improper alignment can cause premature wear and tear on the coupling.
