SWC-CH Long Flex Welding Type Universal Coupling

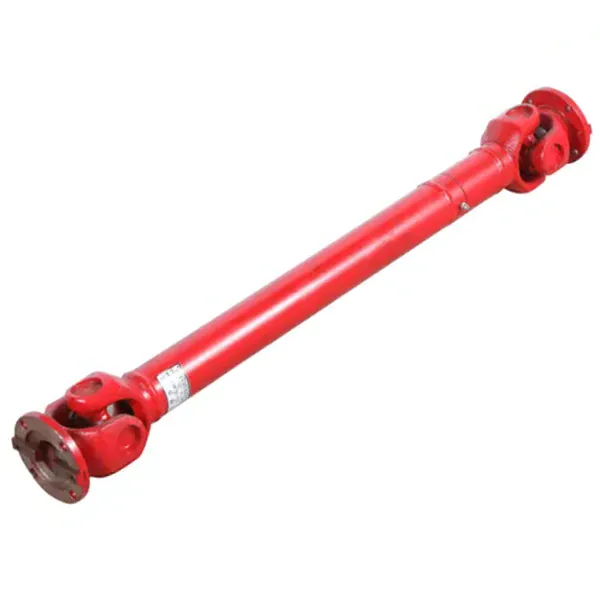

SWC-CH Long Flex Welding Type Universal Joint Coupling

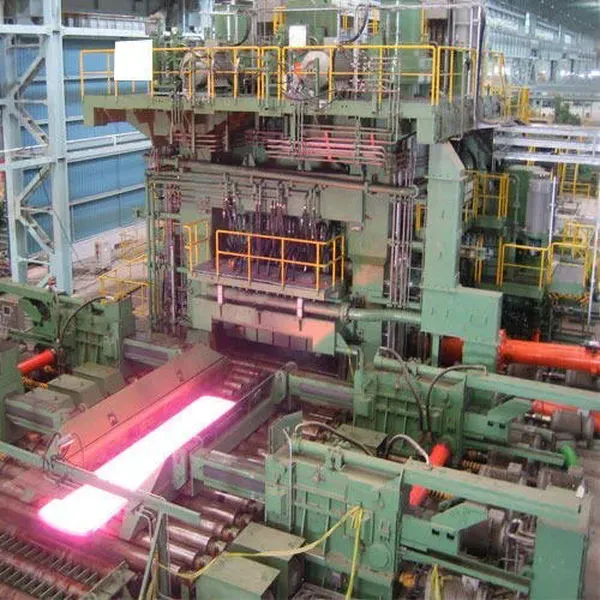

The SWC-CH long flex welding type universal coupling is a type of universal joint that is designed to transmit power between two shafts that are not in line with each other. It is a flexible coupling, which means that it can compensate for misalignments of up to 25 degrees. The SWC-CH long flex welding type universal coupling is made of 35CrMo material and is available in a variety of sizes to meet the needs of different applications. SWC-CH long flex welding type universal coupling is widely used in rolling mills, punches, straighteners, crushers, ship drives, paper-making equipment, common machinery, water pump equipment, test bench, and other mechanical applications.

SWC-CH Long Flex Welding Type Universal Coupling Features:

1. The ability to have a large angle compensation.2. The structure is compact and reasonable. SWC-CH type universal coupling with an integral fork, so carrying is more reliable.3. The carrying capacity. Compared with other types of the same diameter rotary joint axis, it delivers more torque, the turning diameter of restricted mechanical equipment, and the complete range is more advantageous.4. High transmission efficiency. Its transmission efficiency of 98-99.8% for high-power transmission, energy-saving effect.5. carrying smooth, low noise, easy assembly, and disassembly maintenance.

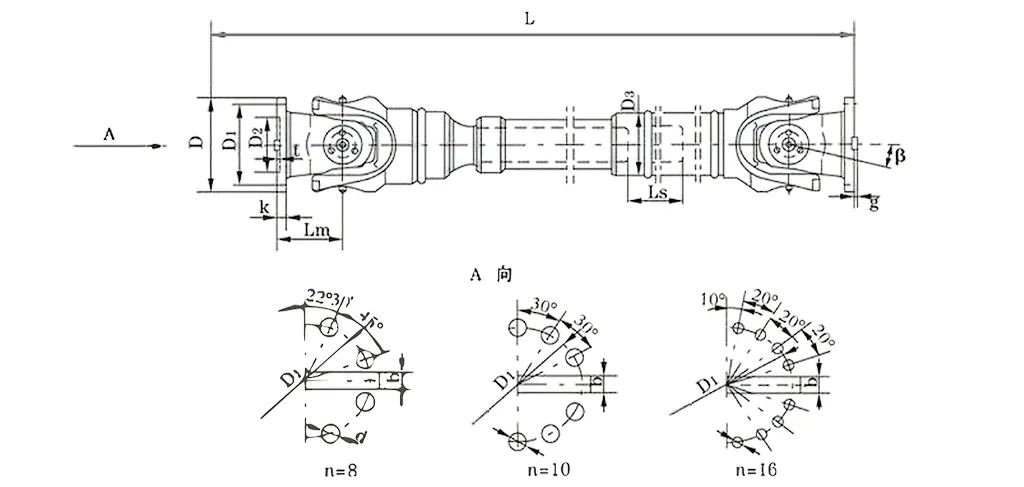

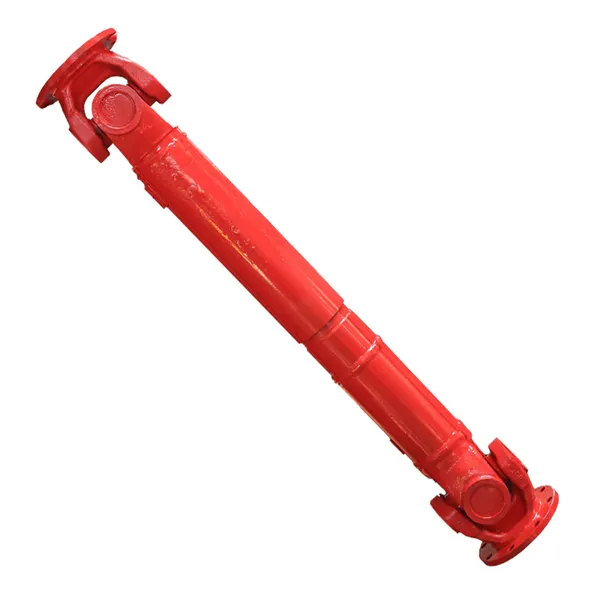

SWC-CH Long Flex Welding Type Universal Coupling Dimensions:

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torque TfKN·m	Flex quantityLs mm	Size (mm)										Rotating inertiakg.m2		Weight (kg)
						Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC180CH1	180	12.5	≤25	6.3	200	925	155	105	114	110	8-17	17	5	-	-	0.181	0.0070	74	2.8
SWC180CH2					700	1425										0.216		104
SWC225CH1	225	40	≤15	20	220	1020	196	135	152	120		20		32	9	0.561	0.0234	132	4.9
SWC225CH2					700	1500										0.674		182
SWC250CH1	250	63		31.5	300	1215	218	150	168	140	8-19	25	6	40	12.5	1.016	0.0277	190	5.3
SWC250CH2					700	1615										1.127		235
SWC285CH1	285	90		45	400	1475	245	170	194	160	8-21	27	7		15	2.156	0.0510	300	6.3
SWC285CH2					800	1875										2.360		358
SWC315CH1	315	125		63	400	1600	280	185	219	180	10-23	32	8			3.812	0.0795	434	8.0
SWC315CH2					800	2000										4.150		514
SWC350CH1	350	180		90	400	1715	310	210	267	194		35		50	16	7.663	0.2219	672	15.0
SWC350CH2					800	2115										8.551		823
SWC390CH1	390	250		125	400	1845	345	235	267	215	10-25	40		70	18	12.730		817
SWC390CH2					800	2245										13.617		964
SWC440CH1	440	355		180	400	2110	390	255	325	260	16-28	42	10	80	20	22.540	0.4744	1312	21.7
SWC440CH2					800	2510										24.430		1537
SWC490CH1	490	500		250	400	2220	435	275	325	270	16-31	47	12	90	22.5	33.970		1554
SWC490CH2					800	2620										35.870		1770
SWC550CH1	550	710		355	500	2585	492	320	426	305	16-31	50		100		72.790	1.3570	2585	34.0
SWC550CH2					1000	3085										79.570		3045

* 1. Tf-under the alternation load the torque which permits according to the fatigue strength.* 2. Lmin-the least length after the cut.* 3. L-install length, which is according to the requirement.

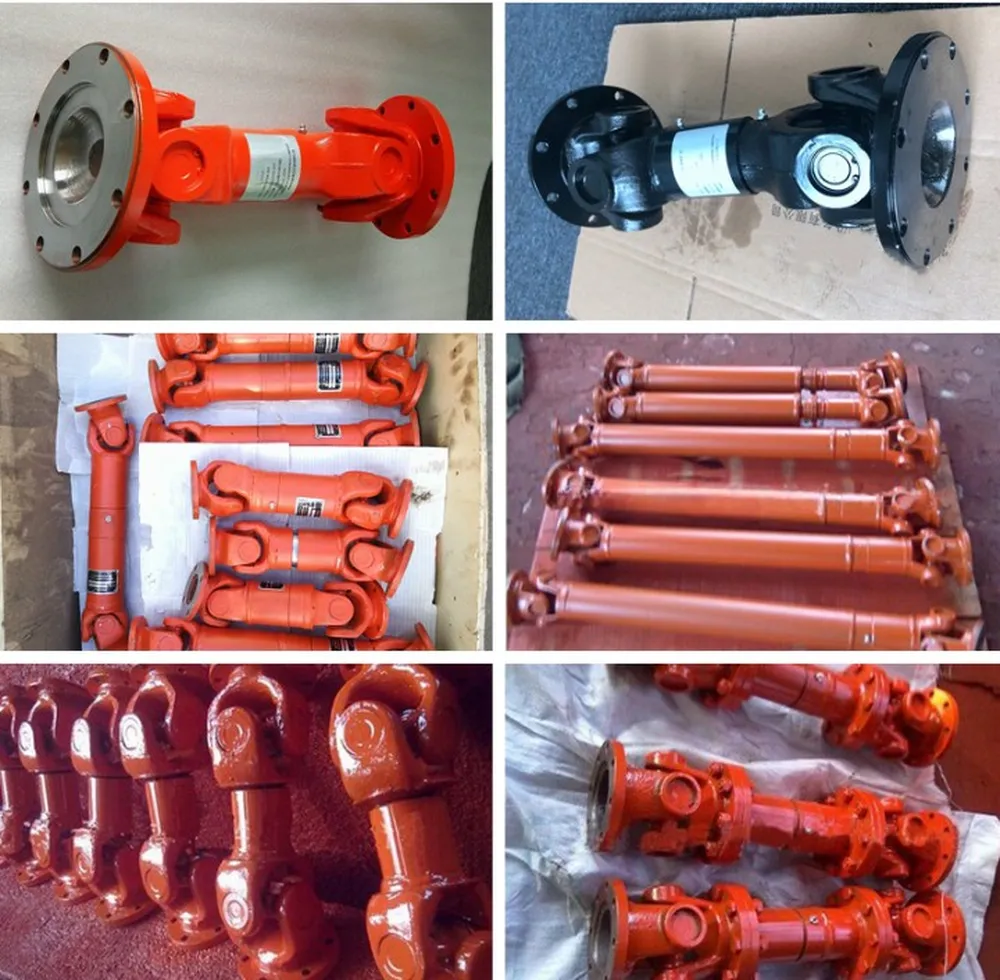

SWC-CH Long Flex Welding Type Universal Coupling Advantages:

The SWC-CH long flex welding type universal coupling has the following advantages:1. Flexible design: The SWC-CH long flex welding type universal coupling can compensate for misalignments of up to 25 degrees. This makes it ideal for applications where the shafts are not perfectly aligned, such as in construction machinery, mining machinery, and agricultural machinery.2. Durable construction: The SWC-CH long flex welding type universal coupling is made of 35CrMo material, which is a high-strength, wear-resistant steel. This makes it ideal for applications where the coupling is subject to high loads and vibrations.3. High transmission efficiency: The SWC-CH long flex welding type universal coupling has a high transmission efficiency of up to 98%. This means that it loses very little power when transmitting torque from the driving shaft to the driven shaft.4. Long service life: The SWC-CH long flex welding type universal coupling is designed to last for many years with proper maintenance.

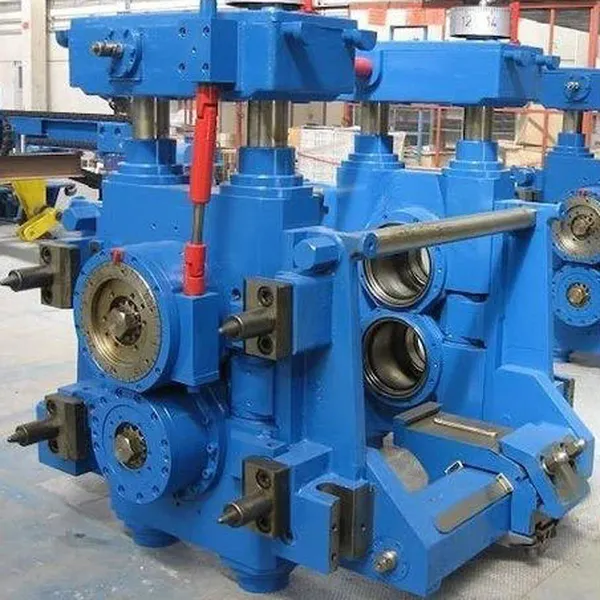

SWC-CH Long Flex Welding Type Universal Coupling Applications:

The SWC-CH long flex welding type universal coupling is a versatile and reliable coupling that is ideal for a variety of applications. Some of the most common applications include:(1) Construction machinery: The SWC-CH long flex welding type universal coupling is used in a wide variety of construction machinery, such as excavators, bulldozers, and cranes. It helps to ensure that the machinery operates smoothly and efficiently, even when the shafts are not perfectly aligned.(2) Mining machinery: The SWC-CH long flex welding type universal coupling is also used in mining machinery, such as loaders, haulers, and drills. It helps to transmit power from the engine to the working parts of the machinery, even when the shafts are subject to high loads and vibrations.(3) Agricultural machinery: The SWC-CH long flex welding type universal coupling is used in a variety of agricultural machinery, such as tractors, harvesters, and combines. It helps to ensure that the machinery operates smoothly and efficiently, even when the shafts are not perfectly aligned.(4) Marine machinery: The SWC-CH long flex welding type universal coupling is used in marine machinery, such as ships and boats. It helps to transmit power from the engine to the propeller, even when the shafts are subject to high loads and vibrations.(5) Power generation equipment: The SWC-CH long flex welding type universal coupling is used in power generation equipment, such as turbines and generators. It helps to transmit power from the prime mover to the generator, even when the shafts are not perfectly aligned.
