SWC-WH Without Flex Welding Type Universal Coupling

SWC-WH Without Flex Welding Type Universal Joint Coupling

The SWC-WH without flex welding type universal coupling is a type of universal coupling that is used to connect two shafts that are not in line with each other. It consists of a pair of hinges located close together, oriented at 90° to each other, and connected by a cross shaft. The SWC-WH type universal coupling is not a constant velocity joint, but it can transmit power between shafts that are up to 25° out of alignment. The SWC-WH without flex welding type universal coupling is a welded type of coupling, which means that the two shafts are welded to the coupling. This makes it a more rigid coupling than a flanged coupling, and it is better suited for applications where there is a lot of vibration or shock. It can be used in a variety of applications, including rolling mills, hoisting equipment, and other heavy machinery.

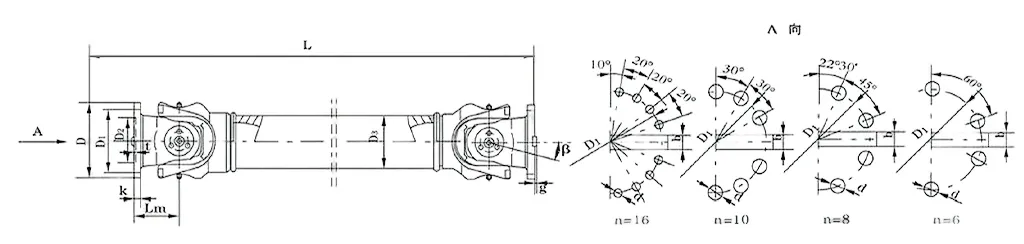

SWC-WH Without Flex Welding Type Universal Coupling Dimensions:

No.	Gyration diameter Dmm	Nominal torqueTnKN·m	Axes fold angle  β(°)	Weary torqueTfKN·m	Size (mm)										Rotating inertiakg.m2		Weight (kg)
					Lmin	D1(js11)	D2(H7)	D3	Lm	n-d	k	t	b(h9)	g	Lmin	Increase100mm	Lmin	Increase100mm
SWC100WH	100	1.25	0.63	25°	243	84	57	60	55	6-9	7	2.5	-	-	0.0039	0.00019	4.5	0.35
SWC120WH	120	2.5	1.25	25°	307	102	75	70	65	8-11	8	2.5	-	-	0.0096	0.00044	7.7	0.55
SWC150WH	150	5	25	25°	350	130	90	89	80	8-13	10	3	-	-	0.371	0.00157	18	24.5
SWC180WH	180	12.5	6.3	25°	180	155	105	114	110	8-17	17	5	-	-	0.15	0.007	48	2.8
SWC225WH	225	40	20	15°	520	196	135	152	120	8-17	20	5	32	9	0.365	0.0234	78	4.9
SWC250WH	250	63	31.5	15°	620	218	150	168	140	8-19	25	6	40	12.5	0.817	0.0277	124	5.3
SWC285WH	285	90	45	15°	720	245	170	194	160	8-21	27	7	40	15	1.756	0.051	185	6.3
SWC315WH	315	125	63	15°	805	280	185	219	219	10-23	32	8	40	15	2.893	0.0795	262	8
SWC350WH	350	180	90	15°	875	310	210	267	194	10-23	35	8	50	16	5.013	0.2219	374	15
SWC390WH	390	250	125	15°	955	345	235	267	215	10-25	40	8	70	18	8.406	0.2219	506	15
SWC440WH	440	355	180	15°	1155	390	255	325	260	16-28	42	10	80	20	15.79	0.4744	790	21.7
SWC490WH	490	500	250	15°	1205	435	275	325	270	16-31	47	12	90	22.5	26.54	0.4744	1014	21.7
SWC550WH	550	710	355	15°	1355	492	320	426	325	16-31	50	12	100	22.5	48.32	1.357	1526	34

SWC-WH Without Flex Welding Type Universal Coupling Advantages:

Here are some of the advantages of the SWC-WH without flex welding type universal coupling:

• Rigid coupling that can withstand a lot of vibration and shock. The welded construction of the SWC-WH without flex welding type universal coupling makes it very rigid, which helps to reduce vibration and shock transmission. This makes it a good choice for applications where there is a lot of vibration, such as in rolling mills and hoisting equipment.
• Versatile coupling that can be used in a variety of applications. The SWC-WH without flex welding type universal coupling can be used to connect shafts that are up to 25° out of alignment. This makes it a versatile coupling that can be used in a variety of applications, such as in conveyor systems and machine tools.
• Long service life. The welded construction of the coupling makes it very durable. The SWC-WH without flex welding type universal coupling can also be lubricated to extend its service life.

Here are some of the disadvantages of the SWC-WH without flex welding type universal coupling:

• Not a constant velocity joint. The SWC-WH without flex welding type universal coupling is not a constant velocity joint, which means that there will be some speed loss between the input and output shafts. This can be a problem in applications where precise speed control is required.
• Not as easy to disassemble as a flanged coupling. The welded construction of the SWC-WH without flex welding type universal coupling makes it more difficult to disassemble than a flanged coupling. This can be a problem if the coupling needs to be serviced or replaced.

Overall, the SWC-WH without flex welding type universal coupling is a reliable and durable coupling that is well suited for a variety of applications where a rigid coupling is required. However, it is not a constant velocity joint, and it can be more difficult to disassemble than a flanged coupling.

SWC-WH Without Flex Welding Type Universal Coupling Applications:

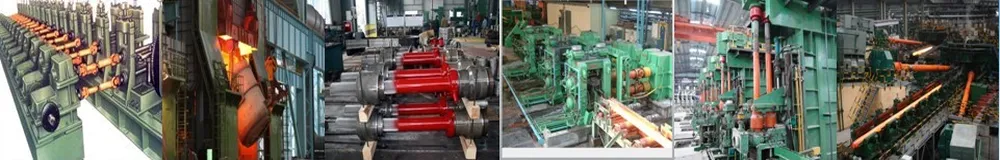

The SWC-WH without flex welding type universal coupling is a versatile coupling that can be used in a variety of applications. Some of the most common applications include:1. Conveyor systems: The SWC-WH without flex welding type universal coupling can be used to connect the drive shaft to the conveyor belt in a conveyor system. This allows the conveyor belt to move smoothly and efficiently, even when the drive shaft is not in line with the conveyor belt.2. Machine tools: The SWC-WH without flex welding type universal coupling can be used to connect the motor to the spindle in a machine tool. This allows the spindle to rotate smoothly and precisely, even when the motor is not in line with the spindle.3. Rolling mills: The SWC-WH without flex welding type universal coupling can be used to connect the drive shaft to the rolls in a rolling mill. This allows the rolls to rotate smoothly and evenly, even when the drive shaft is not in line with the rolls.4. Hoisting equipment: The SWC-WH without flex welding type universal coupling can be used to connect the motor to the hoisting cable in hoisting equipment. This allows the hoisting cable to move smoothly and efficiently, even when the motor is not in line with the hoisting cable.5. Other heavy machinery: The SWC-WH without flex welding type universal coupling can be used in a variety of other heavy machinery applications, such as in agricultural machinery, construction machinery, and mining machinery.The SWC-WH without flex welding type universal coupling is a reliable and durable coupling that can provide years of trouble-free service. It is a good choice for applications where a rigid coupling is required and where there is a lot of vibration or shock.
