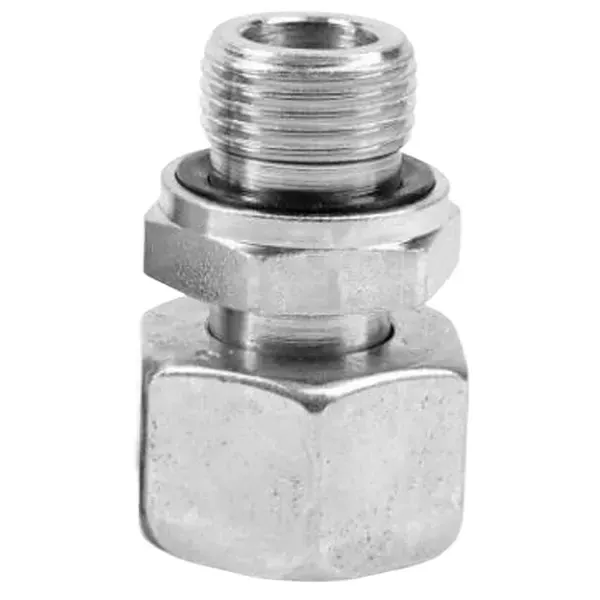

Swivel Connector-EGE-M-ED Hydraulic Fittings

Swivel Connector-EGE-M-ED Hydraulic Fittings

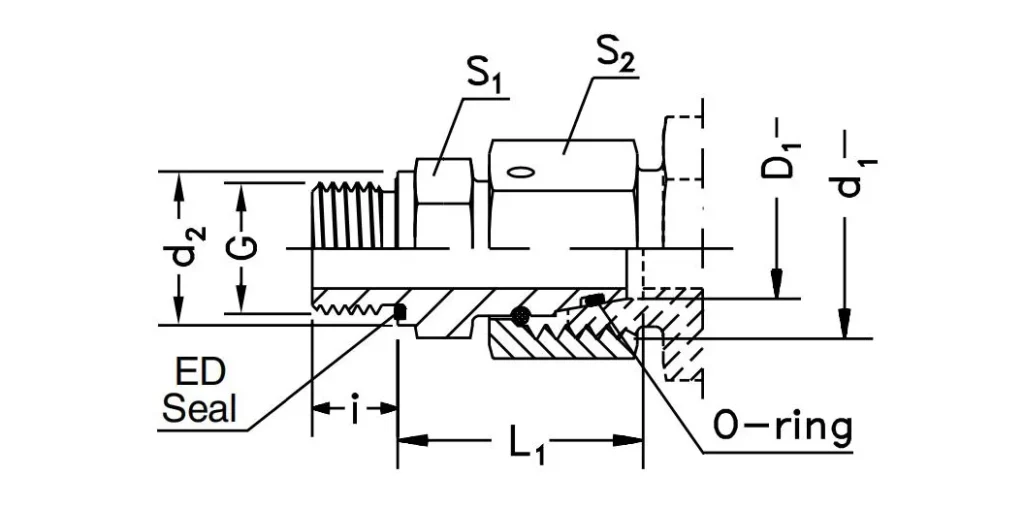

Swivel Connector-EGE-M-ED Hydraulic Fitting Size Chart:

EGE-M-EDPart NO.	Series Working Pressure(bar/psi)	D1Tube o.d.	Gmale thread BSPP	d1	d2	i	L1	S1	S2
EGE06LRED	L light315 bar4560 psi	6	M10x1	M12 x1.5	14	8	24.5	14	14
EGE08LRED		8	M12x1.5	M14x1.5	19	12	29.5	19	17
EGE10LRED		10	M14x1.5	M16x1.5	19	12	27.5	19	19
EGE12LRED		12	M16x1.5	M18x1.5	22	12	34	22	22
EGE15LRED		15	M18x1.5	M22x1.5	27	14	32	27	27
EGE18LRED		18	M22x1.5	M26x1.5	27	14	31.5	27	32
EGE22LRED	160 bar2320 psi	22	M26x1.5	M30 x2	32	16	32.5	32	36
EGE28LRED		28	M33x2	M36 x2	40	18	35	41	41
EGE35LRED		35	M42x2	M45 x2	50	20	42.5	50	50
EGE42LRED		42	M48x2	M52 x2	55	22	46.5	55	60
EGE06SRED	S heavy630 bar9130 psi	6	M12x1.5	M14x1.5	19	12	27	19	17
EGE08SRED		8	M14x1.5	M16x1.5	19	12	29.5	19	19
EGE10SRED		10	M16x1.5	M18x1.5	22	12	32	22	22
EGE12SRED		12	M18x1.5	M20x1.5	22	12	34	22	24
EGE14SRED		14	M20x1.5	M22x1.5	27	14	36.5	27	27
EGE16SRED	400 bar5800 psi	16	M22x1.5	M24 x1.5	27	14	37	27	30
EGE20SRED		20	M27x2	M30 x2	32	16	43	32	36
EGE25SRED		25	M33x2	M36 x2	40	51	48	41	46
EGE30SRED		30	M42x2	M42 x2	50	20	51	50	50
EGE38SRED	315 bar4560 psi	38	M48x2	M52 x2	55	22	60	55	60

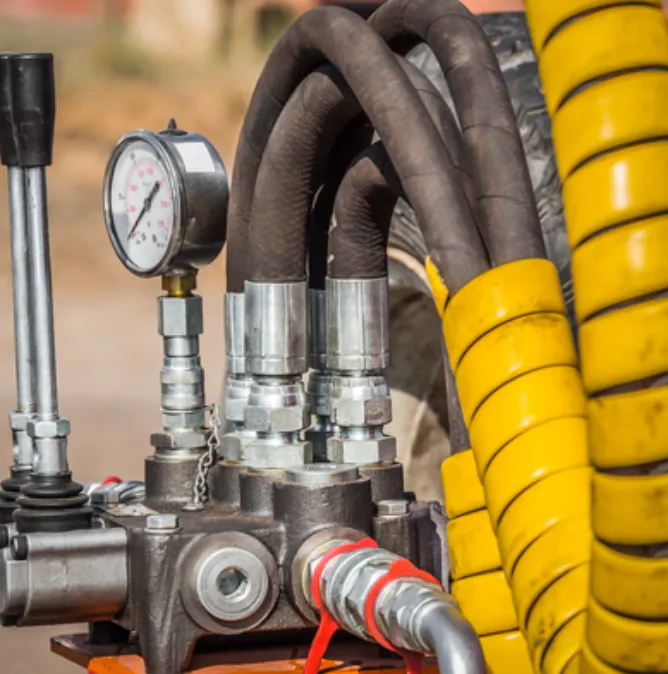

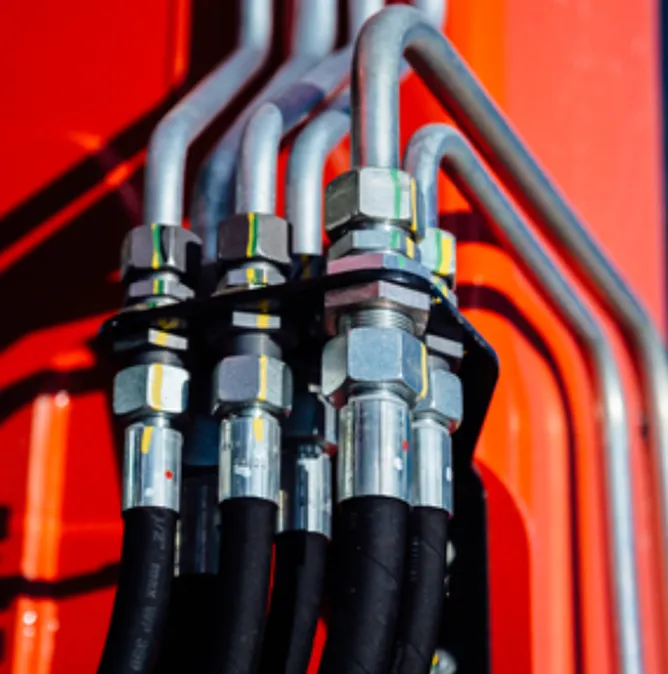

Applications of Swivel Connector-EGE-M-ED Hydraulic Fittings:

The Swivel Connector-EGE-M-ED Hydraulic Fittings find applications in various industries and hydraulic systems where flexible and leak-free connections are required. Some common applications include:1. Industrial Machinery: These Swivel Connector-EGE-M-ED Hydraulic Fittings are used in industrial machinery such as hydraulic presses, machine tools, conveyor systems, and hydraulic power units. They provide a secure connection between hydraulic components, allowing for smooth operation and precise control.2. Construction Equipment: Swivel Connector-EGE-M-ED Hydraulic Fittings are utilized in construction machinery like excavators, cranes, loaders, and bulldozers. These fittings enable the connection of hydraulic hoses in mobile equipment, accommodating movement and rotation without compromising the hydraulic system's integrity.3. Agricultural Machinery: In agricultural applications, these Swivel Connector-EGE-M-ED Hydraulic Fittings are employed in tractors, harvesters, sprayers, and irrigation systems. They ensure reliable connections between hydraulic components, allowing for efficient operation and control of hydraulic functions.4. Mobile Hydraulic Applications: Swivel Connector-EGE-M-ED Hydraulic Fittings are commonly used in mobile hydraulic systems, including hydraulic cylinders on trucks, trailers, and other vehicles. They allow for flexible movement and rotation of hydraulic hoses, accommodating the articulation and steering of mobile equipment.5. Manufacturing and Process Equipment: These Swivel Connector-EGE-M-ED Hydraulic Fittings are found in manufacturing plants and process equipment where hydraulic power is utilized. They are used in hydraulic systems for material handling, robotics, automated machinery, and other industrial applications.6. Oil and Gas Industry: Swivel Connector-EGE-M-ED Hydraulic Fittings are employed in hydraulic systems within the oil and gas industry. They are used in drilling rigs, wellhead control systems, hydraulic power units, and offshore equipment, providing reliable connections in demanding environments.7. Marine and Offshore Applications: These Swivel Connector-EGE-M-ED Hydraulic Fittings are suitable for marine and offshore hydraulic systems, including shipboard equipment, offshore platforms, and subsea installations. They offer reliable connections that can withstand the harsh conditions encountered in marine environments.8. Automotive Industry: Swivel Connector-EGE-M-ED Hydraulic Fittings are used in hydraulic systems within the automotive industry. They are found in vehicle suspension systems, power steering systems, braking systems, and other hydraulic applications.
