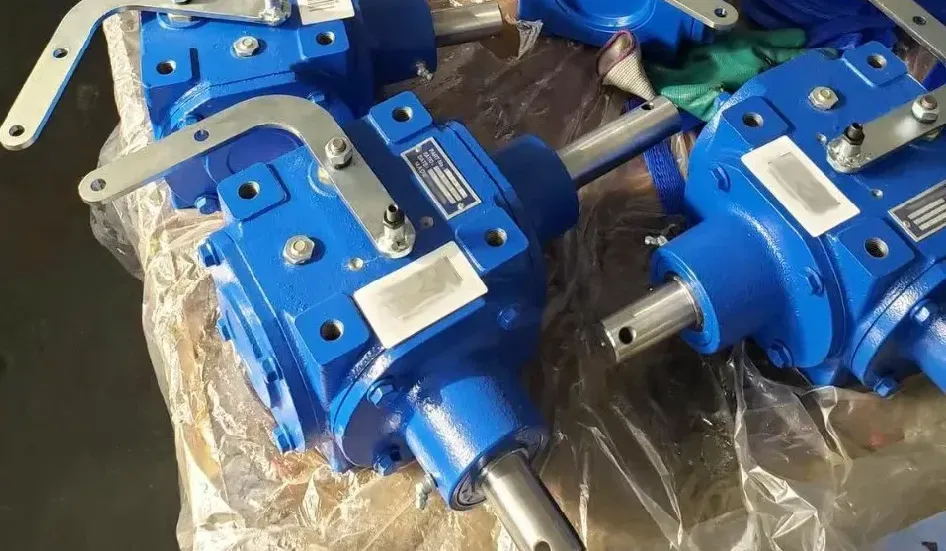

T Series Grain Storage Gearbox RDF-4090 for Agricultural Grain Storage

The T Series Grain Storage Gearbox is a specialized mechanical device designed primarily for use in agricultural grain storage systems. This gearbox is part of the machinery that drives the grain handling equipment, such as conveyors and elevators, which are essential for moving grains into and out of storage facilities. It is engineered to provide high torque and efficient power transmission, ensuring reliable operation under the demanding conditions typical in agricultural environments.The gearbox features a robust construction with a durable casing that protects its internal components against dust, debris, and the elements, which are common in agricultural settings. Its design typically includes helical or bevel gears, which are known for their ability to handle high loads and offer quiet operation. The T Series is also characterized by its versatility in mounting options, allowing it to be integrated into various types of machinery without significant modifications. Additionally, it often comes with customization options for gear ratios, shaft configurations, and lubrication systems to meet specific operational requirements, making it a crucial component in enhancing the efficiency and reliability of grain storage operations.

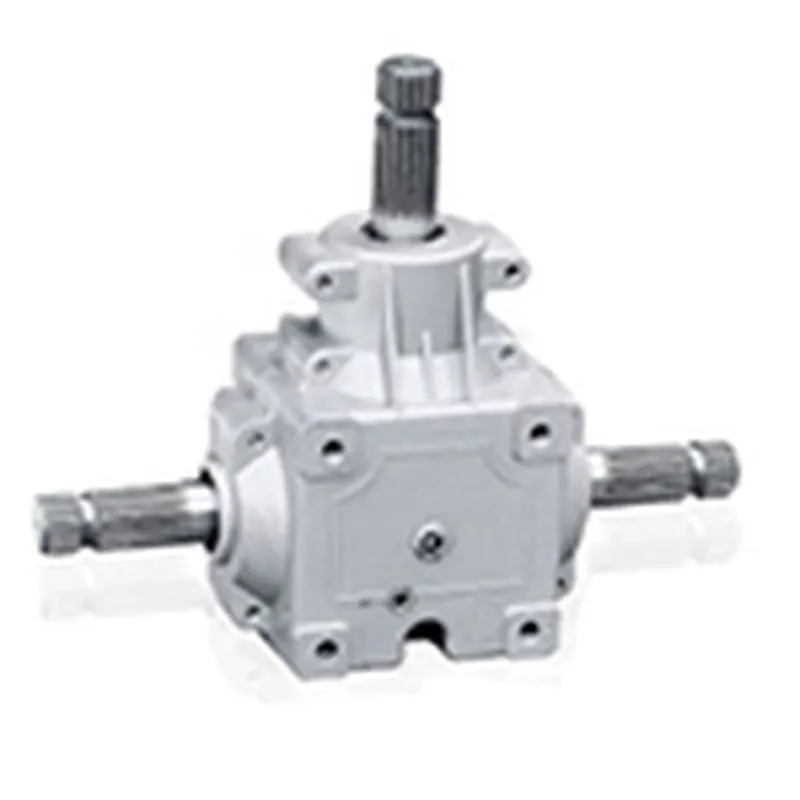

T Series Grain Storage Gearbox RDF-4090 Specifications

Product Name	Grain storage gearbox
Material	A380 for housing, 40CrMnTi for gear shaft.
Color	Customized
Ratio	1:35:1
Rate power	45HP
Weight	13.2KG
Used	Grain storage

Benefits of Using the T Series Grain Storage Gearbox for Agricultural

The T Series Grain Storage Gearbox offers several benefits when used in agricultural grain storage applications:

1. Enhanced Durability and Reliability: The T Series Grain Storage Gearbox is constructed with high-quality materials and robust engineering and is designed to withstand the harsh conditions of agricultural environments. This includes resistance to dust, moisture, and mechanical wear, which extends the life of the gearbox and reduces the frequency of maintenance, thus ensuring continuous and reliable operation during critical farming periods.
2. High Torque and Efficiency: These gearboxes are engineered to provide high torque output, which is essential for handling the heavy loads associated with moving large quantities of grain. The efficient power transmission ensures that machinery operates at peak performance with minimal energy waste, leading to cost savings on energy and improved overall system efficiency.
3. Quiet Operation: The use of helical or bevel gears in the T Series Gearboxes contributes to quieter operation compared to other gear systems. This feature is particularly beneficial in large-scale grain storage facilities where noise reduction creates a more comfortable working environment and reduces noise pollution, aligning with environmental compliance requirements.
4. Versatile Mounting and Integration: The versatile mounting options offered by the T Series allow for easy integration into a variety of grain handling systems without significant modifications. This flexibility facilitates the retrofitting of existing equipment or the design of new installations, making it a practical choice for both upgrades and new projects.
5. Customization Options: The gearbox can be customized to suit specific operational needs, including different gear ratios, shaft configurations, and lubrication systems. This adaptability allows users to optimize the gearbox for specific tasks or conditions, enhancing the performance and efficiency of grain handling operations tailored to individual agricultural needs.

Applications of the T Series Grain Storage Gearbox for Agricultural

The T Series Grain Storage Gearbox finds numerous applications in agricultural settings, particularly in grain storage and handling systems. Here are some key uses:

• Grain Elevators: These gearboxes are commonly used in grain elevators to power the lifting mechanisms that transport grain vertically from ground level to different storage or processing levels. The high torque and efficiency of the T Series gearboxes ensure smooth and reliable movement of grain, even in high-capacity settings.
• Conveyors: In agricultural grain handling, conveyors are essential for moving grain over short to medium distances, such as from trucks to storage bins or between different parts of a facility. The T Series gearboxes drive these conveyors, providing the necessary power to operate belts or augers efficiently and with the required load capacity.

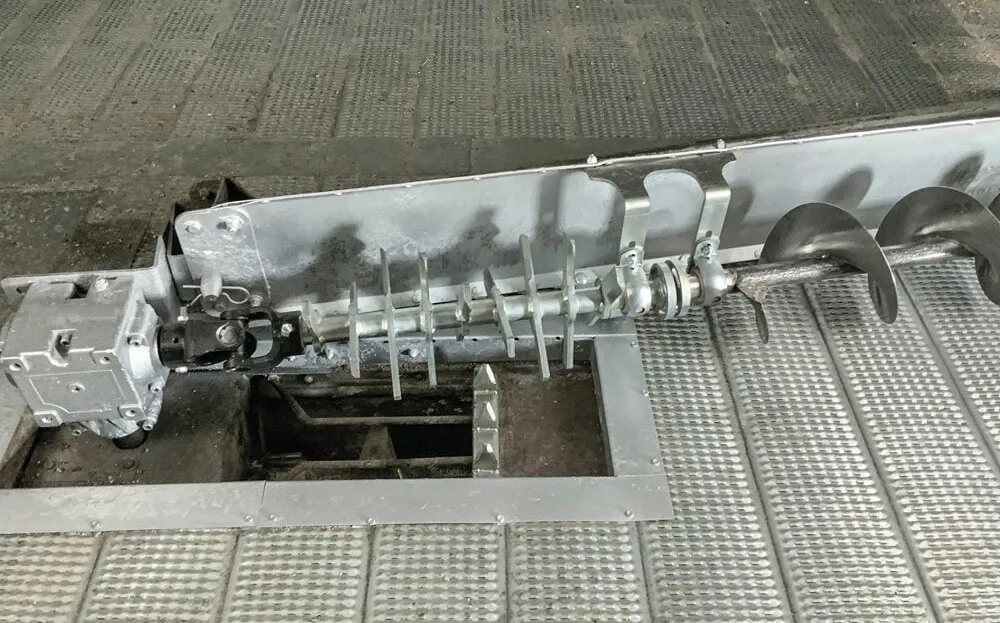

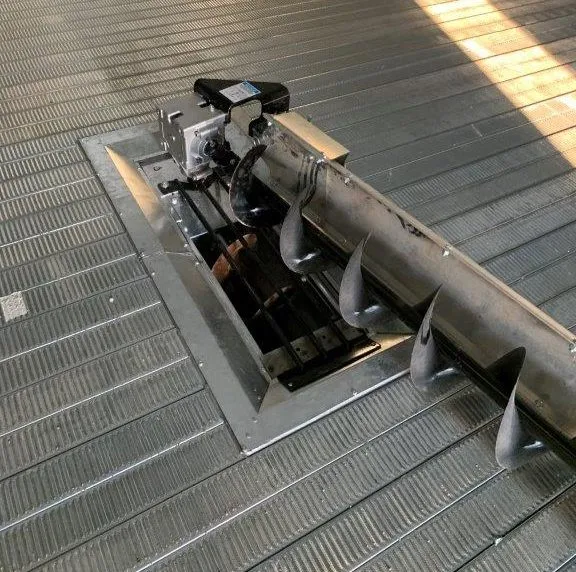

• Augers: Augers are used for drilling and moving grain within storage facilities. The T Series gearboxes power these augers, ensuring they can handle the physical demands of moving large volumes of grain without clogging or stalling, thus maintaining continuous flow and reducing bottlenecks in grain intake and output processes.
• Fans and Blowers: In grain storage, maintaining the quality of the grain is paramount. Gearboxes in this series are used to operate fans and blowers for aeration systems that help control the temperature and moisture levels inside silos, preventing spoilage and ensuring the longevity of stored grain.
• Mixers: Mixers are used to blend different types of grains or to add treatments such as pesticides or fertilizers. T Series gearboxes provide the torque needed for the heavy-duty operation of these mixers, ensuring uniform mixing and processing that meets agricultural standards.
• Load-Out Systems: These systems are used for the final stage of grain handling, where grain is loaded into trucks, railcars, or ships for transport. The gearboxes ensure that these systems can operate reliably and efficiently, managing high loads and rapid operations critical to maintaining the efficiency of grain distribution channels.

Working Principle:

The working principle of the T Series Grain Storage Gearbox revolves around the efficient transmission of power from an input source, typically an electric motor or an engine, to an output shaft that drives various components of grain storage and handling equipment. Here's a breakdown of its operation:

1. Input Power: The gearbox receives input power from a prime mover, such as an electric motor or an engine, which provides rotational energy. This input power is usually connected to the gearbox via a coupling or a belt drive.
2. Speed Reduction: The gearbox contains a series of gears, typically helical or bevel gears, arranged in specific configurations. These gears mesh together to transmit torque and reduce the rotational speed of the input shaft. The reduction in speed is crucial for increasing torque output, which is necessary for handling the heavy loads associated with grain storage and handling equipment.
3. Torque Amplification: As the speed decreases, the torque output increases proportionally due to the gear reduction mechanism. This amplified torque is essential for powering the various components of grain handling equipment, such as conveyors, elevators, augers, and mixers, which require substantial force to move grain efficiently.
4. Directional Control: Depending on the design and configuration of the gearbox, it can also control the direction of rotation of the output shaft. This capability is important for ensuring that grain handling equipment operates in the desired direction, facilitating processes such as loading, unloading, and mixing of grain.
5. Output Shaft: The output shaft of the gearbox transfers the reduced-speed, high-torque rotational energy to the equipment it drives. This shaft is connected to pulleys, sprockets, or directly to the driven machinery, transmitting power to move grain vertically, horizontally, or in any desired direction within the storage facility.
6. Efficiency and Lubrication: To ensure smooth operation and minimize energy losses due to friction and heat, the gearbox requires adequate lubrication. Lubricants help reduce wear and tear on the gears and bearings, maintaining the efficiency and longevity of the gearbox.

Proper Maintenance:

Proper maintenance of the T Series Grain Storage Gearbox is essential for ensuring its longevity, reliability, and optimal performance in agricultural settings. Here's a comprehensive guide to its maintenance:

• Regular Inspection: Schedule routine inspections of the gearbox to check for any signs of wear, damage, or leaks. Look for oil leaks, abnormal noises during operation, and any visible damage to the casing or components.
• Lubrication: Proper lubrication is critical for reducing friction, minimizing wear, and maintaining the efficiency of the gearbox. Follow manual recommendations for the type and quantity of lubricant required. Regularly check lubricant levels and top up or replace lubricants as needed.
• Temperature Monitoring: Keep track of the operating temperature of the gearbox. Excessive heat can indicate issues such as overloading, inadequate lubrication, or misalignment. Address any overheating promptly to prevent damage to internal components.
• Alignment: Ensure proper alignment of the gearbox with connected equipment such as motors, shafts, and driven machinery. Misalignment can cause premature wear and damage to gears and bearings. Regularly check alignment and make adjustments as necessary.
• Seal Inspection: Check the seals and gaskets of the gearbox for signs of wear, damage, or deterioration. Damaged seals can lead to oil leaks and contamination, compromising the performance and longevity of the gearbox. Replace seals and gaskets as needed.
• Gear Inspection: Periodically inspect the gears for signs of wear, pitting, chipping, or tooth damage. Worn or damaged gears can lead to reduced efficiency and increased risk of failure. Replace any damaged gears promptly to prevent further damage to the gearbox.
• Bearing Maintenance: Inspect bearings for signs of wear, corrosion, or excessive play. Properly functioning bearings are essential for smooth operation and load distribution within the gearbox. Replace worn or damaged bearings according to manufacturer recommendations.
• Cleanliness: Keep the gearbox and surrounding area clean and free of debris, dust, and contaminants. Regularly remove dirt and debris from the exterior of the gearbox to prevent ingress into the housing, which can cause damage to internal components.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc.

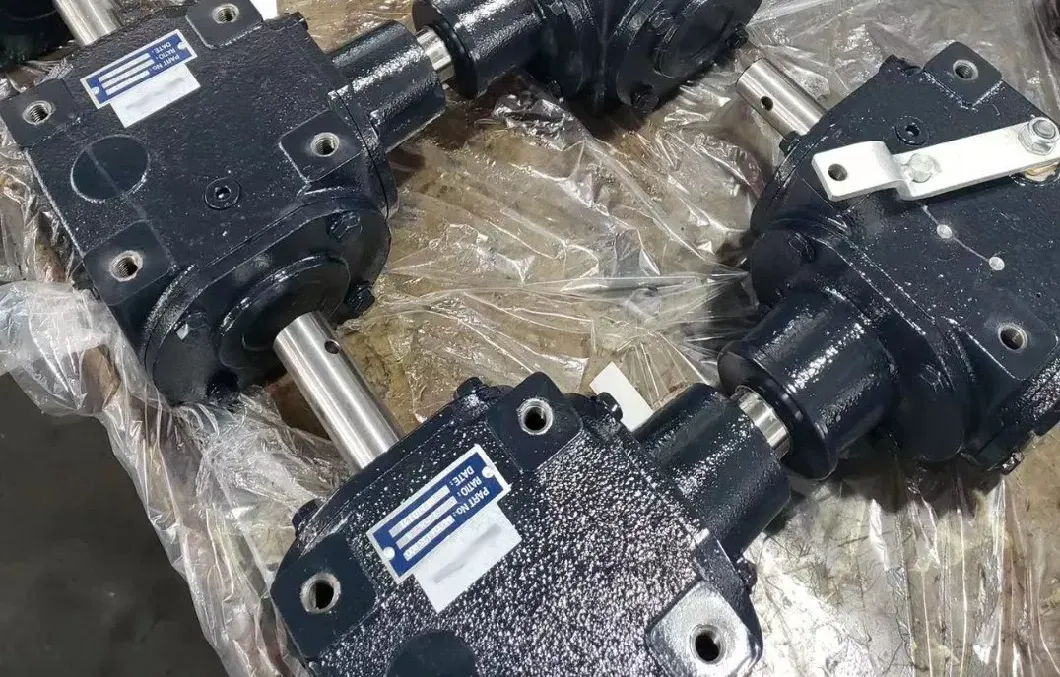

Grain Transportation Gearbox Manufacturers

Raydafon is a prominent manufacturer of high-performance grain transportation gearboxes for a variety of applications. Our grain transportation gearboxes are a powerful replacement option for Replacement of Comer Industries, John Deere, Bush Hog, Replacement of Bonfiglioli, Case IH, New Holland, Claas, Kubota, Land Pride, Kuhn, and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom grain transportation gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a grain transportation gearbox. If you want to buy a grain transportation gearbox, please get in touch with us.
