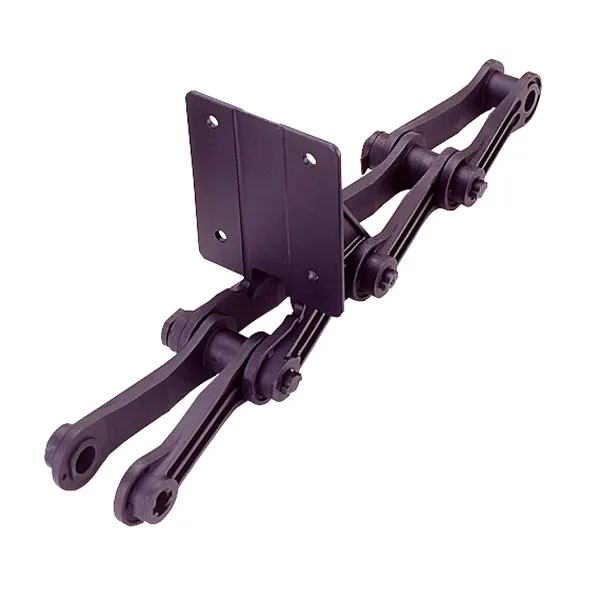

TAW730 Wastewater Treatment Chain

TAW730 Wastewater Treatment Chain

The TAW730 Wastewater Treatment Chain is a type of roller chain that is specifically designed for use in wastewater treatment facilities. It is made from high-strength materials and is designed to withstand the corrosive and abrasive environment of wastewater. The TAW730 chain is also self-lubricating, which reduces maintenance requirements.

The TAW730 Wastewater Chain is commonly used in rectangular clarifiers and collectors. Clarifiers are used to settle out solids from wastewater, while collectors collect the settled solids and remove them from the clarifier. The TAW730 Water Treatment Chain is also used in other wastewater treatment applications, such as grit chambers and sludge thickeners.

The TAW730 Wastewater Treatment Chain is available in a variety of materials, including cast steel, stainless steel, and engineered plastic. The specific material that is best for a particular application will depend on the specific operating conditions.

Here are some of the benefits of using the TAW730 Wastewater Treatment Chain:

• High strength and durability
• Corrosion and abrasion resistance
• Self-lubricating for reduced maintenance
• Available in a variety of materials to suit different operating conditions

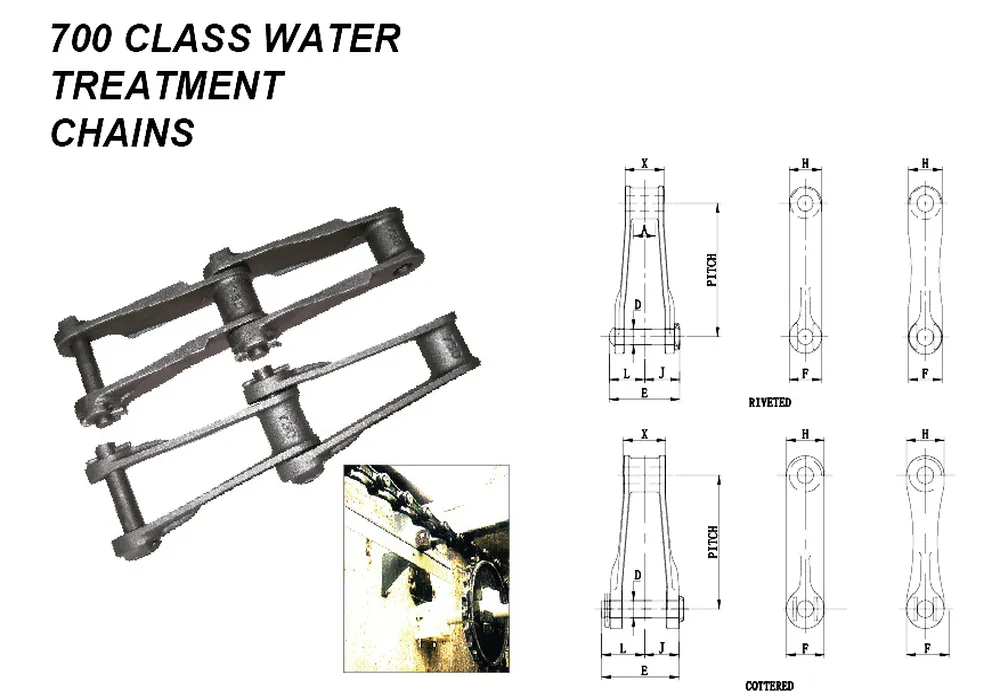

TAW730 Wastewater Treatment Chain Dimensions:

Chain No.	Pitch in Inches	Weight Per Foot LBS.	Average Ultimate Strength LBS.	Maximum Working Load LBS.	A	C	D	E	F	H	X	Available Attachments
TAW730	6.000	6.10	420000	4310	3.81	3.31	0.75	1.13	1.75	1.50	2.00	A42,A53,AM116,F2,F3(SF4),F22-6,F22-8,M1,K2

TAW730 Wastewater Treatment Chain Attachments:

TAW730 Wastewater Treatment Chain is manufactured with a full cast link and hardened carbon-steel pins for ultimate strength while maintaining a lightweight and features an average ultimate strength of 40,000 LBS and a maximum recommended working load of 4,500 LBS. It is a part of the heavy-duty 700-Class series pintle chain and is a common in-stock item. Raydafon has a premium TAW730 chain in either riveted or cottered construction. Something special about this chain is the T-head pins that eliminate pin rotation while at the same time preventing the entrance of dirt and or grit. As a drive chain, the TAW730 Wastewater Chain is designed to travel in just one direction (the direction of their barrel ends). This chain is primarily used in wastewater applications such as rectangular clarifiers, as well as other conveying applications. Attachments available for TAW730 pintle chain are: A42, A53, AM116, F2, F3(SF4), F22-6, F22-8, M1, K2, as well as custom attachments upon request. We can supply the chain with attachments already assembled onto the chain in any configuration needed, and within a fast assembly time.

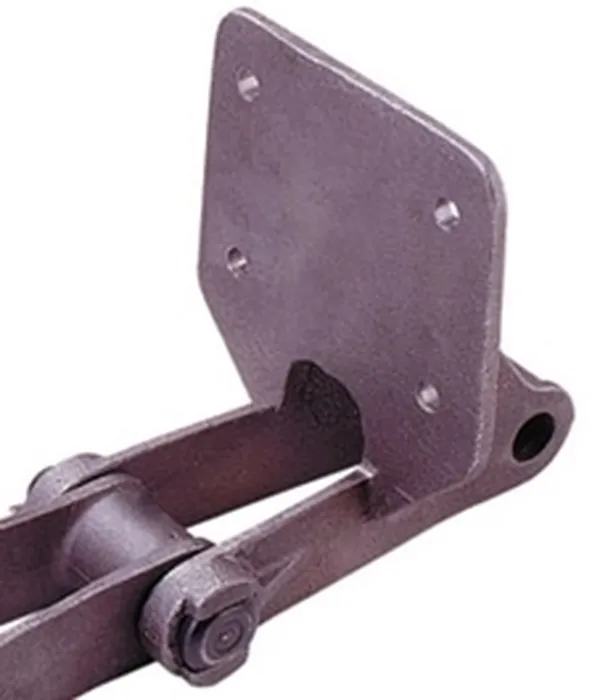

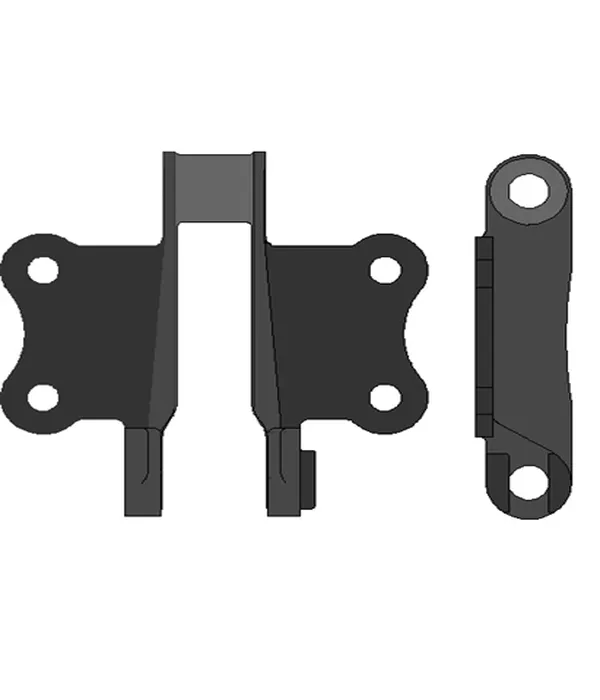

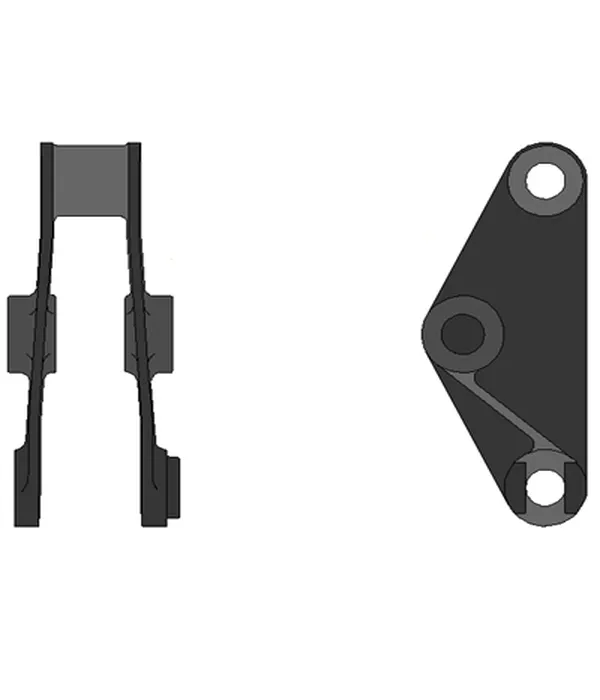

TAW730 Wastewater Chain F226 Attachment	TAW730 Wastewater Chain K2 Attachment	TAW730 Wastewater Chain M1 Attachment

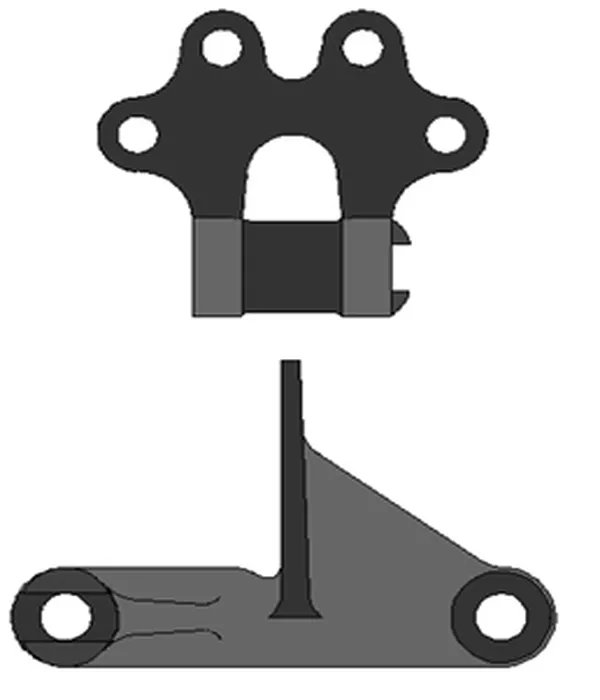

TAW730 Wastewater Chain F228 Attachment	TAW730 Wastewater Chain F2 Attachment

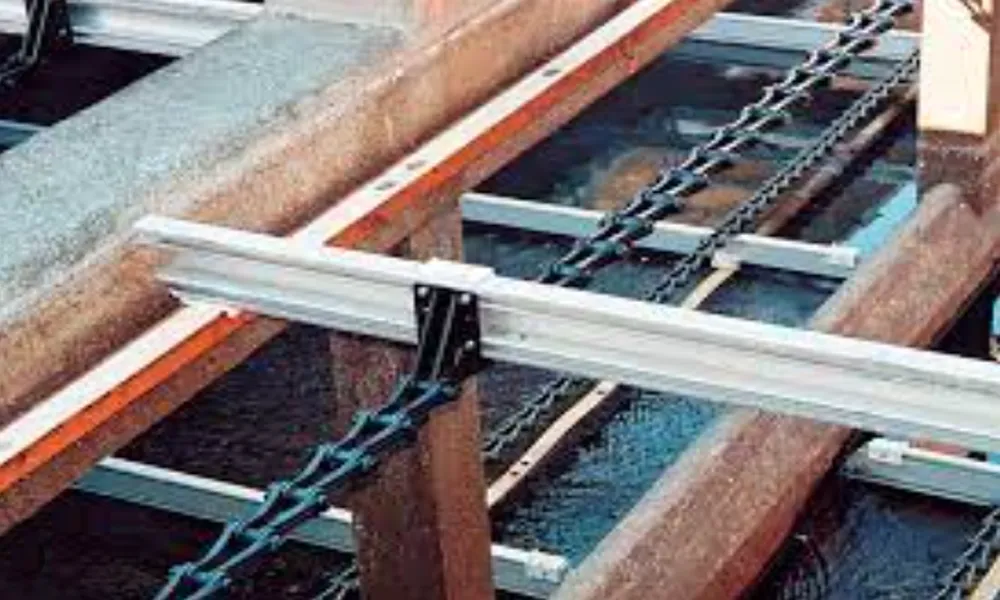

Advantages of TAW730 Wastewater Treatment Chain:

The TAW730 wastewater treatment chain is a type of roller chain that is specifically designed for use in wastewater treatment facilities. It is a highly durable and corrosion-resistant chain that can withstand the harsh conditions of wastewater treatment plants.

Some of the advantages of the TAW730 wastewater treatment chain include:

• Durability: The TAW730 wastewater treatment chain is made from high-strength steel and is designed to withstand heavy loads and abrasive conditions.
• Corrosion resistance: The TAW730 wastewater treatment chain is treated with a special zinc coating that protects it from corrosion. This is important because wastewater can be very corrosive, especially if it contains chemicals or other aggressive substances.
• Low maintenance: The TAW730 wastewater treatment chain is self-lubricating and easy to maintain. This means that it does not require a lot of time or effort to keep it running smoothly.
• Longevity: The TAW730 wastewater treatment chain is built to last and can provide many years of service. This makes it a cost-effective choice for wastewater treatment facilities.

In addition to these advantages, the TAW730 wastewater treatment chain is also available in a variety of sizes and configurations to meet the specific needs of different wastewater treatment plants.

Here are some specific examples of how the TAW730 wastewater treatment chain can be used in wastewater treatment plants:

• Conveying sludge: The TAW730 wastewater treatment chain can be used to convey sludge from one stage of the treatment process to the next. For example, it can be used to convey sludge from the primary clarifier to the secondary clarifier.
• Driving aeration equipment: The TAW730 wastewater treatment chain can be used to drive aeration equipment, such as blowers and mixers. This equipment is used to add oxygen to the wastewater, which is essential for the biological treatment process.
• Powering pumps: The TAW730 wastewater treatment chain can be used to power pumps that move wastewater through the treatment process.

Overall, the TAW730 wastewater treatment chain is a versatile and durable chain that can be used for a variety of applications in wastewater treatment plants.

700 Series Wastewater Chain Sprockets and 700 Class Wastewater Chain:

The 700 series wastewater chain sprockets and 700 class wastewater chain are components used in wastewater treatment systems and conveyance systems to transport and treat wastewater. These components are designed to withstand the harsh and corrosive environments typically found in wastewater treatment plants.700 Series Wastewater Chain Sprockets: These sprockets are specifically designed to work with the 700 class wastewater chain. Sprockets are toothed wheels that engage with the chain, allowing it to move and transfer power. The 700 series sprockets are typically made from materials that offer high strength and corrosion resistance, such as stainless steel or high-grade plastics. They are designed to provide reliable and efficient operation in wastewater applications.700 Class Wastewater Chain: The 700 class wastewater chain refers to a specific type of chain used in wastewater treatment plants. This type of chain is designed to handle the demanding conditions of wastewater treatment, including exposure to chemicals, abrasive materials, and high moisture levels. It is typically constructed using materials that offer resistance to corrosion and wear, such as stainless steel or special coatings. The 700 class wastewater chain is designed to provide durability and long service life in wastewater applications.Both the 700 series wastewater chain sprockets and the 700 class wastewater chain are crucial components in wastewater treatment systems. They work together to facilitate the movement and treatment of wastewater, ensuring the efficient operation of the system. These components are typically selected based on the specific requirements of the wastewater treatment plant, considering factors such as chain pitch, material compatibility, and operating conditions.

700 Class Wastewater Treatment Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
