TDO Type Double-row Inch Size Tapered Roller Bearings

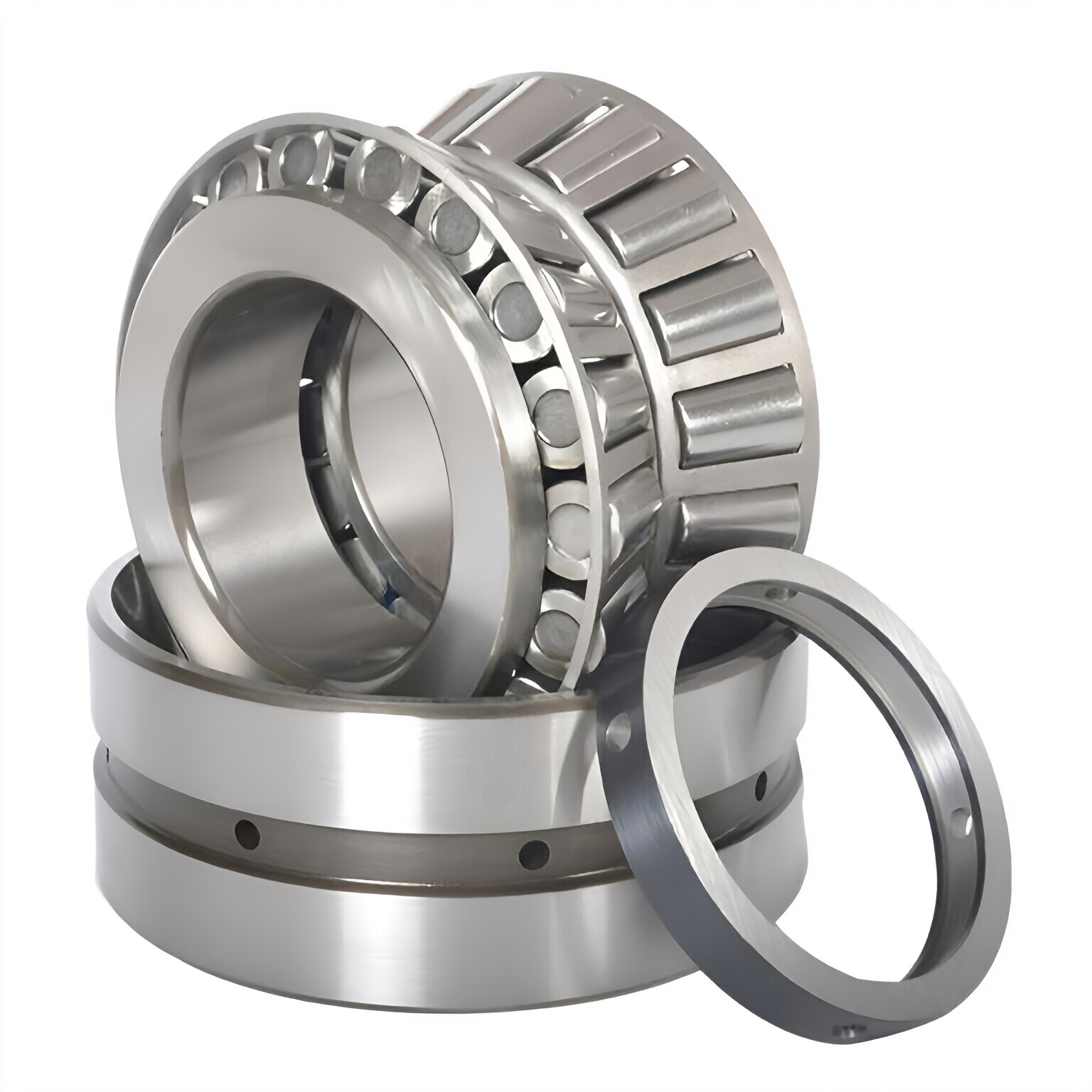

TDO Type Double-row Inch Size Tapered Roller BearingsTDO Type double row inch size tapered roller bearings are a common type of tapered roller bearings. It has a one-piece (double) outer ring and two single inner rings. TDO Type double row inch tapered roller bearings are usually supplied with an inner-ring spacer as a pre-set assembly. This configuration gives a wide practical bearing spread and is frequently chosen for applications where overturning moments are a significant load component. TDO bearings can be used in fixed (locating) positions or allowed to float in the housing bore, for example, to compensate for shaft expansion. TDO CD outer rings also are available in most sizes. These outer rings have holes in the O.D. that permit the use of pins to prevent external ring rotation in the housing.

Product parameter

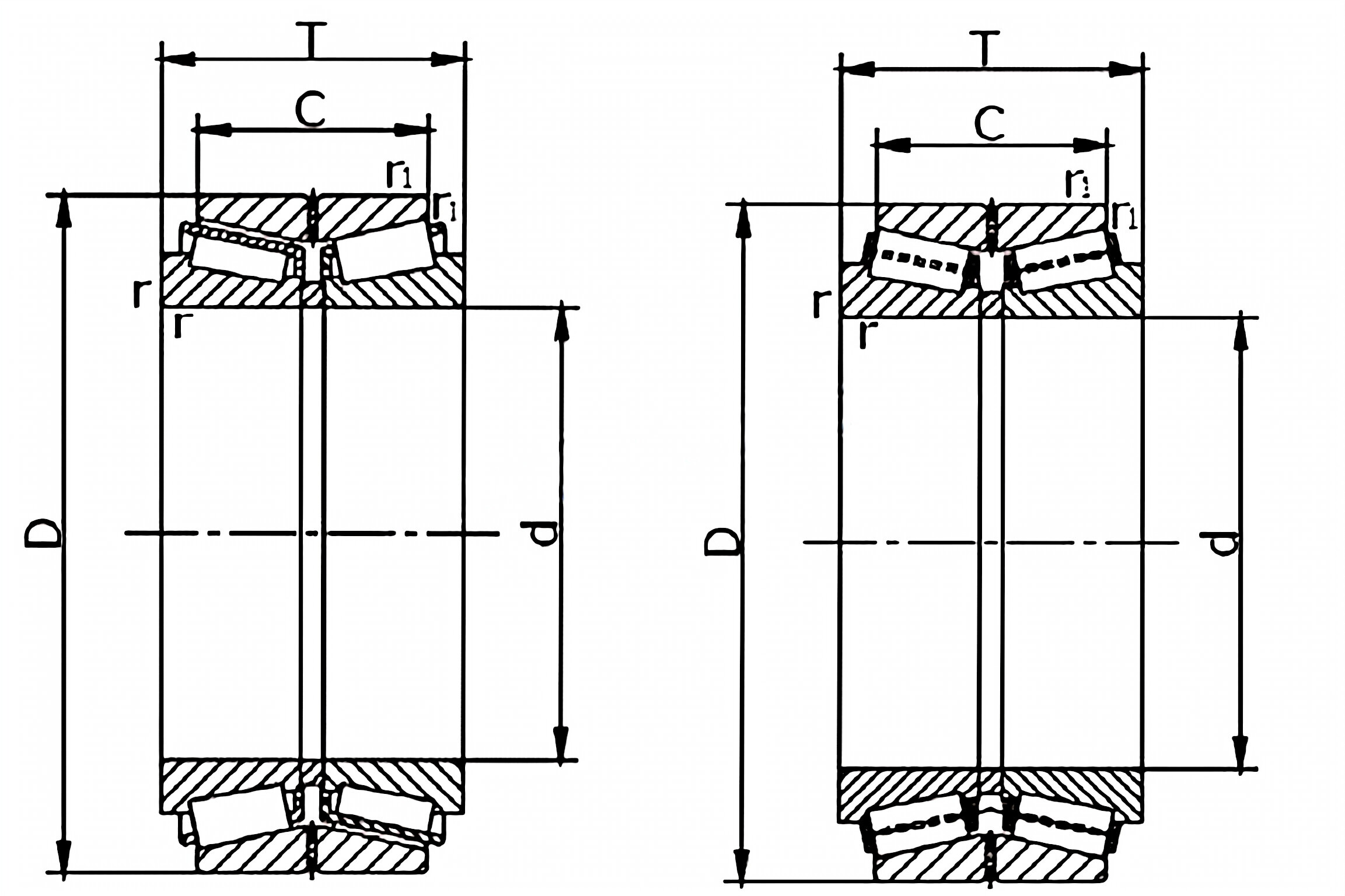

Boundary dimensions(mm)				Mass(kg)	Bearing NO.
d	D	T	C		Raydafon
11.987	30.480	25.400	21.260	0.09	A2047/A2120D
14.989	34.988	25.174	20.638	0.11	A4059/A4138D
16.993	47.000	31.750	25.212	0.29	05066/05185D
19.050	47.000	31.750	25.212	0.27	05075/05185D
19.050	57.150	49.212	36.512	0.65	21075/21226D
19.987	47.000	31.750	25.212	0.27	05079/05185D
20.000	50.005	33.340	25.400	0.31	07079/07196D
24.384	80.962	55.562	39.688	1.43	43096/43319D
24.981	50.005	25.400	33.340	0.27	07098/07196D
24.981	62.000	39.688	36.258	0.60	17098/17245D
25.000	50.005	33.340	25.400	0.27	07097/07196D
25.000	62.000	39.688	36.258	0.60	17098X/17245D
25.400	50.005	33.340	25.400	0.27	07100-S/07196D
25.400	50.005	33.340	25.400	0.27	07100-SA/07196D
25.400	63.500	46.038	36.512	0.73	15101/15251D
25.400	63.500	46.038	36.512	0.73	15100-S/15251D
25.400	71.438	42.862	36.512	0.89	26100/26282D
28.575	63.500	46.038	36.512	0.66	15112/15251D
28.575	76.200	47.625	38.100	1.13	02872/02823D
28.575	80.962	55.562	39.688	1.37	43112/43319D

Series of TDO Type double row tapered roller bearings

Popular types of TDO Type:

• A2047/A2120D
• A4059/A4138D
• 05066/05185D

Features of TDO Type double row tapered roller bearings

• High load-carrying capacityTDO Type Double row tapered roller bearings are suitable for heavy radial and axial loads. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The contact angle size, usually between 10° and 30°, is related to the calculation factor e (from the product tables): the larger the value of e, the larger the contact angle.
• Axial loads in both directionsTDO Type Double row tapered roller bearings locate the shaft in both directions with a specific axial clearance or preload.
• High stiffnessTDO Type Double row tapered roller bearings provide a stiff bearing arrangement.
• Low frictionThe flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
• Long service lifeThe crowned raceway profiles of basic design bearings and the logarithmic raceway profiles optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
• Enhanced operational reliabilityThe optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
• Consistency of roller profiles and sizesThe rollers incorporated in our TDO Type double row tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.

Application of TDO Type double row tapered roller bearings

• mining
• petroleum
• heavy machinery
• wind power
• engineering machinery
• and other industries
