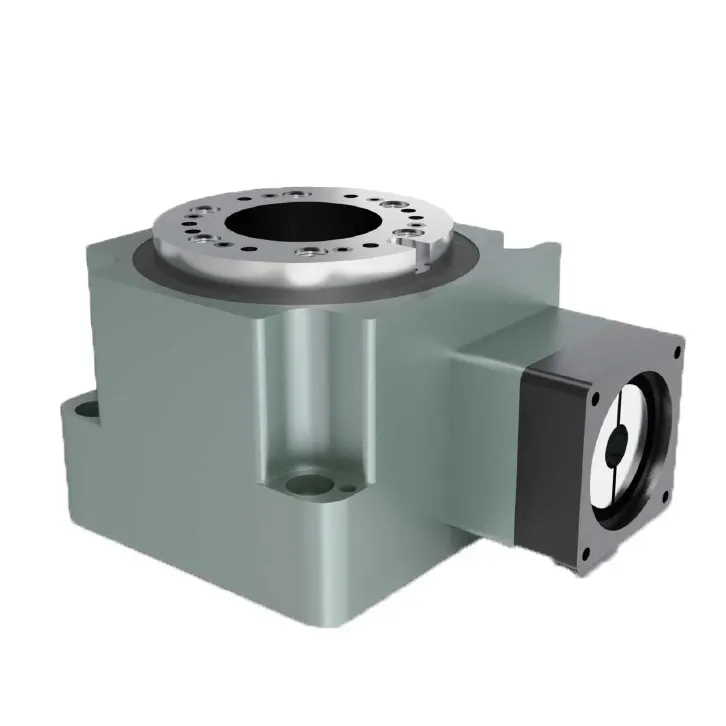

THB120 Series Harmonic Drive Heavy Duty Rotary Table

THB120 Series Harmonic Drive Heavy Duty Rotary Table

The THB120 series harmonic drive heavy duty rotary table is a cutting-edge solution designed to revolutionize your rotary applications. Engineered for precision, power, and reliability, this advanced rotary table offers superior performance and versatility.The THB120 series harmonic drive heavy duty rotary table is a game-changer in the world of rotary applications. Its robust construction, high torque capabilities, exceptional positioning accuracy, and compact design empowers you to achieve precision, power, and reliability in your operations. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and maximize the lifespan of this remarkable product. Experience the precision and power of the THB120 series and take your rotary applications to new heights of efficiency and productivity.

Key Characteristics and Benefits of THB120 Series Harmonic Drive Heavy Duty Rotary Table:

1. Robust and Durable Construction:

• The THB120 series harmonic drive heavy duty rotary table features a rugged and durable construction, ensuring long-lasting performance even in the most demanding environments.
• Built with high-quality materials and advanced engineering, it can easily handle heavy loads, providing exceptional reliability for your applications.

2. High Torque and Power Transmission:

• The THB120 series delivers high torque and power transmission capabilities with its advanced harmonic drive technology.
• It enables smooth and precise rotary motion, allowing you to handle heavy loads and perform distinct positioning tasks accurately and efficiently.
• The exceptional power transmission efficiency ensures minimal energy loss, maximizing the overall efficiency of your system.

3. Exceptional Positioning Accuracy:

• The THB120 series rotary table offers exceptional positioning accuracy, meeting the stringent demands of precision engineering.
• It minimizes backlash and provides high repeatability, ensuring precise angular positioning and reliable performance.
• Its superior accuracy empowers you to achieve the desired positioning and enhance the quality and productivity of your applications.

4. Compact and Space-Saving Design:

• Despite its heavy-duty capabilities, the THB120 series features a compact and space-saving design.
• Its streamlined form factor enables easy integration into your existing systems, optimizing workspace utilization without compromising performance.
• The compact design also enhances flexibility, allowing the rotary table to be used in various applications and installations.

THB120-30 Series Harmonic Drive Heavy Duty Rotary Table Performance Parameter:

Usage Method of THB120 Series Harmonic Drive Heavy Duty Rotary Table:

Using the THB120 series harmonic drive heavy duty rotary table is straightforward and user-friendly. Here's a step-by-step guide to get you started:

1. Mounting and Integration:

• Securely mount the rotary table to a stable surface or structure, ensuring proper alignment for precise rotary motion.
• Follow the manufacturer's instructions and guidelines to ensure correct installation and integration with your system.

2. Power and Control Connection:

• Connect the rotary table to a suitable power source, adhering to the manufacturer's specifications and electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with your existing motion control system.

3. Configuration and Programming:

• Configure the rotational parameters, such as speed, acceleration, and deceleration, based on your specific application requirements.
• Program the rotary table's motion control system to achieve the desired rotary behavior and control options.

4. Operation and Monitoring:

• Once the rotary table is mounted, powered, and properly configured, initiate rotary motion according to your programmed parameters.
• Monitor the table's performance during operation and make adjustments as needed to ensure optimal results.

THB/THD Series Applications:

THB Series Product Name Reading Map:

THD Series Product Name Reading Map:

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.
