THB60 Series Harmonic Drive Heavy Duty Rotary Table

THB60 Series Harmonic Drive Heavy Duty Rotary Table

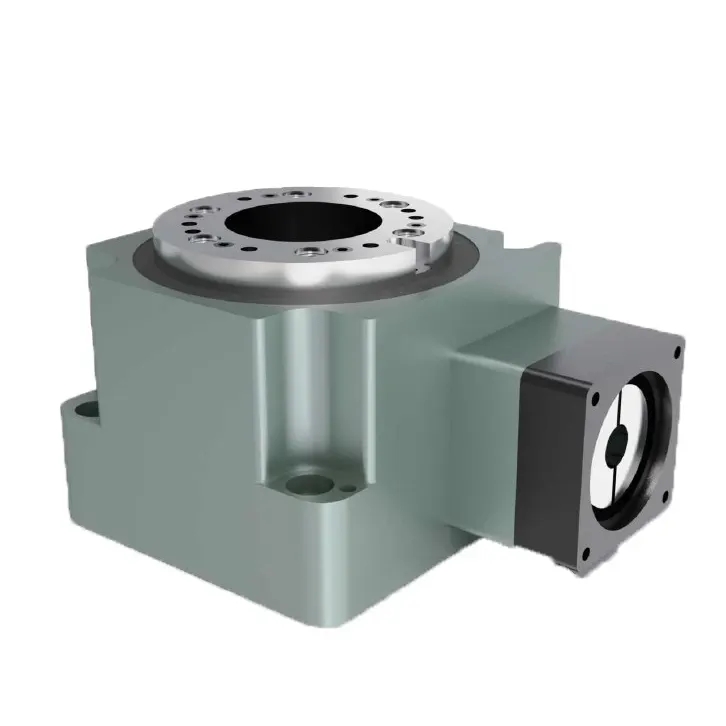

THB60 series harmonic drive heavy duty rotary table. Engineered to meet the demands of heavy-duty rotary applications, this cutting-edge rotary table offers exceptional performance, reliability, and versatility.THB60 series harmonic drive heavy duty rotary table empowers you with exceptional precision, power transmission, and positioning accuracy for your rotary applications. Its robust construction, high torque capabilities, and compact design caters to a wide range of heavy-duty industrial applications. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and maximize the lifespan of this remarkable product. Experience the power and precision of the THB60 series harmonic drive heavy duty rotary table and take your rotary applications to new heights of efficiency and accuracy.

Key Characteristics and Benefits of THB60 Series Harmonic Drive Heavy Duty Rotary Table:

High Torque and Power TransmissionThe THB60 series rotary table boasts impressive torque and power transmission capabilities, making it ideal for heavy-duty applications.

• Its advanced harmonic drive technology delivers smooth and precise rotary motion, enabling you to handle heavy loads with ease and accuracy.
• The high torque output ensures reliable performance, even in demanding industrial environments.
• The exceptional power transmission efficiency minimizes energy loss and maximizes the table's overall efficiency.

Exceptional Positioning AccuracyPrecision is paramount in rotary applications, and the THB60 series delivers exceptional positioning accuracy.

• The rotary table offers minimal backlash, ensuring precise angular positioning and eliminating unwanted motion or play.
• Its high repeatability guarantees consistent and reliable performance, meeting the stringent demands of precision engineering.
• With the THB60 Series, you can achieve the exact positioning required for your application, enhancing overall productivity and quality.

Compact and Space-Saving DesignDespite its heavy-duty capabilities, the THB60 series is compact and space-saving, making it suitable for various industrial environments.

• The streamlined form allows easy integration into existing systems, optimizing workspace utilization without compromising performance.
• Its compact size makes it versatile and adaptable to different applications, providing flexibility in design and installation.

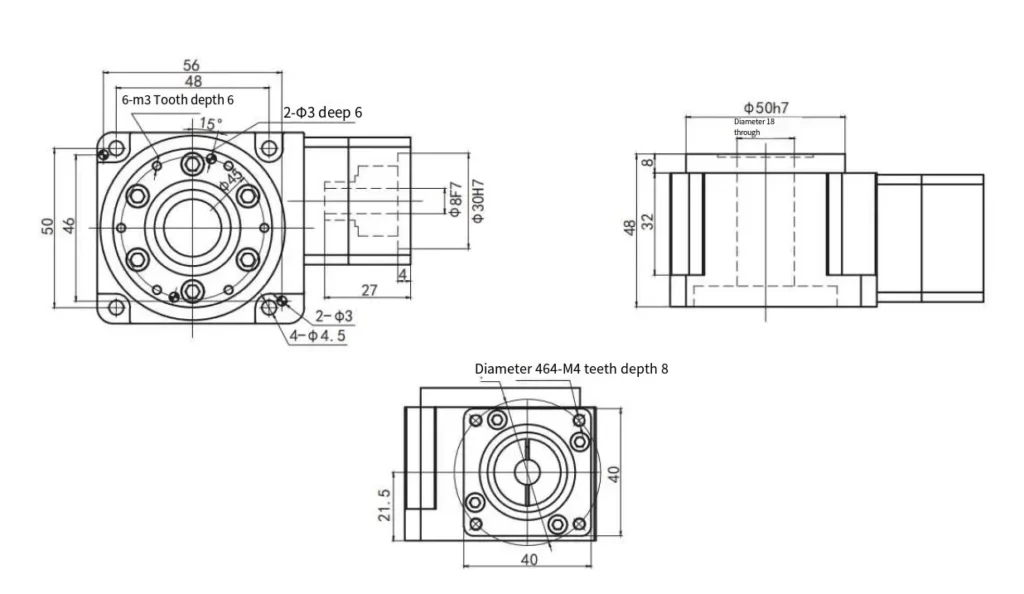

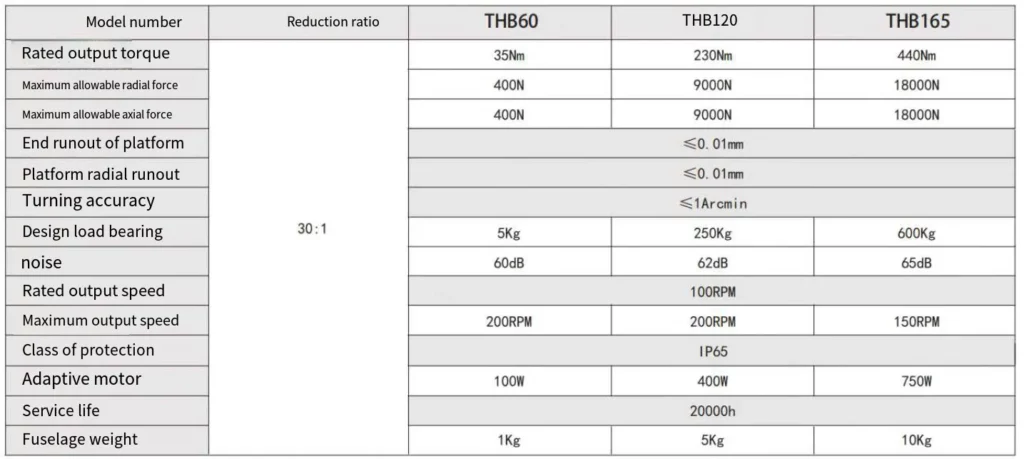

THB60-30 Series Harmonic Drive Heavy Duty Rotary Table Performance Parameter:

Usage Method of THB60 Series Harmonic Drive Heavy Duty Rotary Table:

Using the THB60 series harmonic drive heavy duty rotary table is straightforward and user-friendly. Here's a step-by-step guide to get you started:

1. Mounting and Integration

• Securely mount the rotary table to a stable surface or structure, ensuring proper alignment for precise rotary motion.
• Follow the manufacturer's instructions and guidelines to ensure correct installation and integration with your system.

2. Power and Control Connection

• Connect the rotary table to a suitable power source, adhering to the manufacturer's specifications and electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with your existing motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and deceleration, based on your specific application requirements.
• Program the rotary table's motion control system to achieve the desired rotary behavior and control options.

4. Operation and Monitoring

• Once the rotary table is mounted, powered, and properly configured, initiate rotary motion according to your programmed parameters.
• Monitor the table's performance during operation and adjust as needed to ensure optimal results.

THB/THD Series Applications:

THB Series Product Name Reading Map:

THD Series Product Name Reading Map:

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.

About Us:

Our company is a research and development, design, production, processing, sales in one of the transmission enterprises.Since its establishment, the company has introduced advanced production equipment and precision testing equipment to continuously develop, improve and perfect products. Strive to create perfect high-end transmission products and supporting solutions for customers.
