THM085 Series Precision Hollow Rotating Platform

THM085 Series Precision Hollow Rotating Platform

The THM085 series precision hollow rotating platform is a cutting-edge solution that elevates rotational motion applications to new heights. This advanced platform combines exceptional precision with efficient performance, making it an ideal choice for various industries. Whether you require accurate positioning, smooth rotation, or multi-axis motion control, the THM085 series delivers outstanding results. Let's explore this remarkable product's key characteristics, usage methods, and maintenance.The THM085 series precision hollow rotating platform sets a new standard for precision and efficiency in rotational motion applications. Its high-precision performance, open structure with a large aperture, high torque capacity, and compact design offer unparalleled industry advantages. By following the recommended usage method and maintenance practices, you can ensure optimal performance and durability of this rotating platform. Elevate your rotational motion applications to the next level with the THM085 Series Precision Hollow Rotating Platform and experience the perfect blend of precision, efficiency, and reliability.

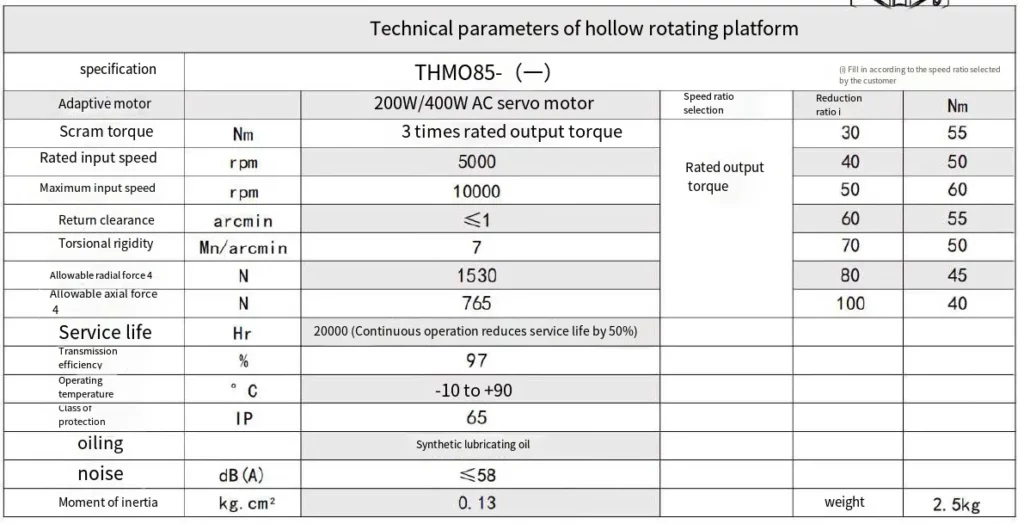

THM085 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THM085 Series Precision Hollow Rotating Platform:

1. High-Precision Performance

• The THM085 series precision hollow rotating platform offers unparalleled precision, ensuring accurate and repeatable rotational motion.
• Equipped with advanced motor control technology and high-resolution encoders, it enables precise positioning and seamless motion control.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure with a large aperture, the THM085 series allows for the passage of cables, optics, or other elements through the center.
• The large aperture provides ample space for internal routing, cable management, and integration of additional components, enhancing overall flexibility and convenience.

3. High Torque Capacity

• The THM085 series is designed to handle high torque loads, enabling it to withstand demanding applications with ease.
• Its robust construction and optimized gearing system ensure reliable performance even under heavy loads, providing exceptional torque capacity.

4. Compact and Lightweight Design

• The THM085 series boasts a compact and lightweight design, making it suitable for applications where space and weight restrictions are critical.
• Its streamlined form factor allows for easy integration into existing systems without compromising performance or requiring extensive modifications.

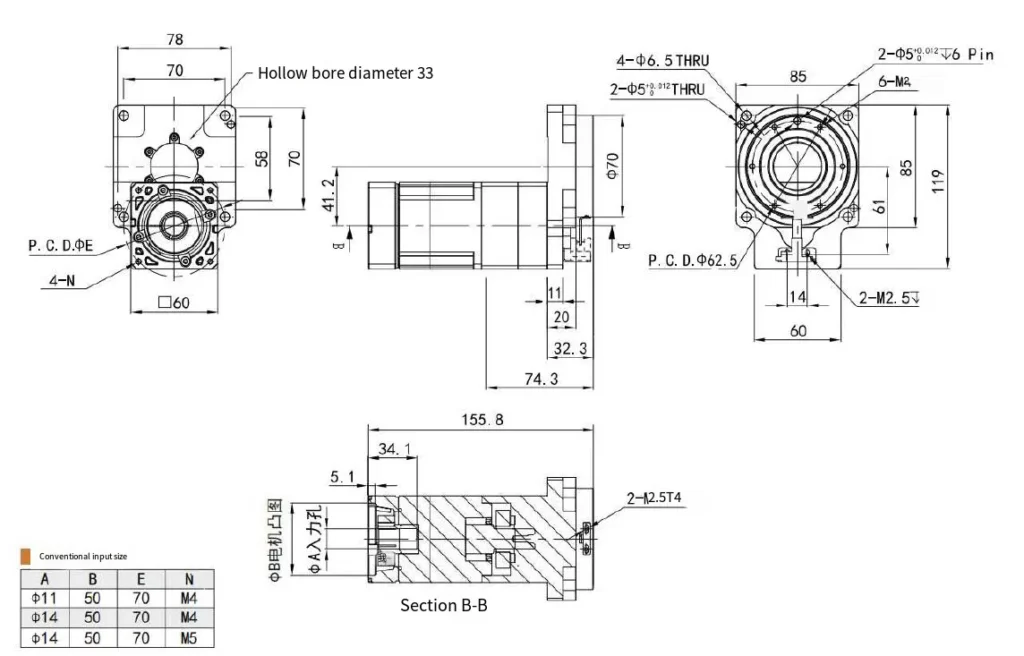

THG085-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THG085 Series Precision Hollow Rotating Platform:

Using the THM085 series precision hollow rotating platform is straightforward and user-friendly. Follow these steps to get started:

1. Mounting

• Securely mount the rotating platform to a stable surface or structure, ensuring proper alignment and stability for accurate and stable rotational motion.
• Follow the manufacturer's instructions and guidelines for mounting procedures.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, adhering to the manufacturer's instructions and local electrical codes.
• Establish the necessary control connections, either through a dedicated controller or integration with a larger motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation

• Once the platform is mounted, powered, and properly configured, initiate rotational motion according to your programmed parameters.
• Experience the precision and efficiency provided by the THM085 series precision hollow rotating platform.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.

About Us:

Our company is a research and development, design, production, processing, sales in one of the transmission enterprises.Since its establishment, the company has introduced advanced production equipment and precision testing equipment to continuously develop, improve and perfect products. Strive to create perfect high-end transmission products and supporting solutions for customers.
