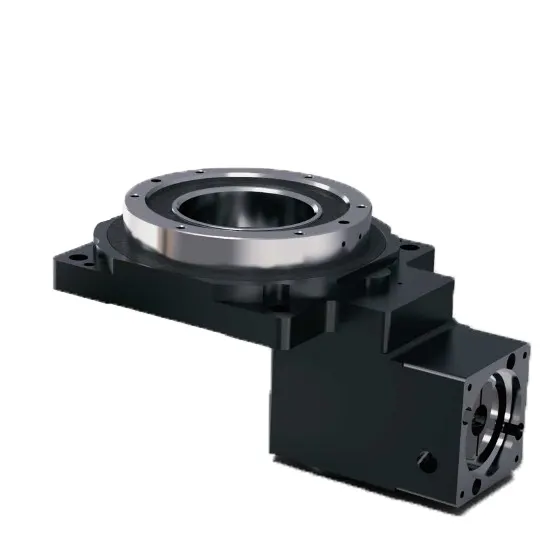

THR060 series precision hollow rotating platform, a cutting-edge solution designed to deliver exceptional precision and versatility in rotational motion applications. Engineered with meticulous attention to detail, this platform offers a range of features and benefits that elevate your rotational motion control capabilities.THM060 series precision hollow, rotating platform is a game-changer in rotational motion applications. Its unmatched precision, hollow structure with a large aperture, high load capacity, and compact design cater to various industrial needs. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and maximize the lifespan of this exceptional product. Elevate your rotational motion applications to new heights with the THM060 series precision hollow rotating platform and experience unparalleled precision, versatility, and performance.

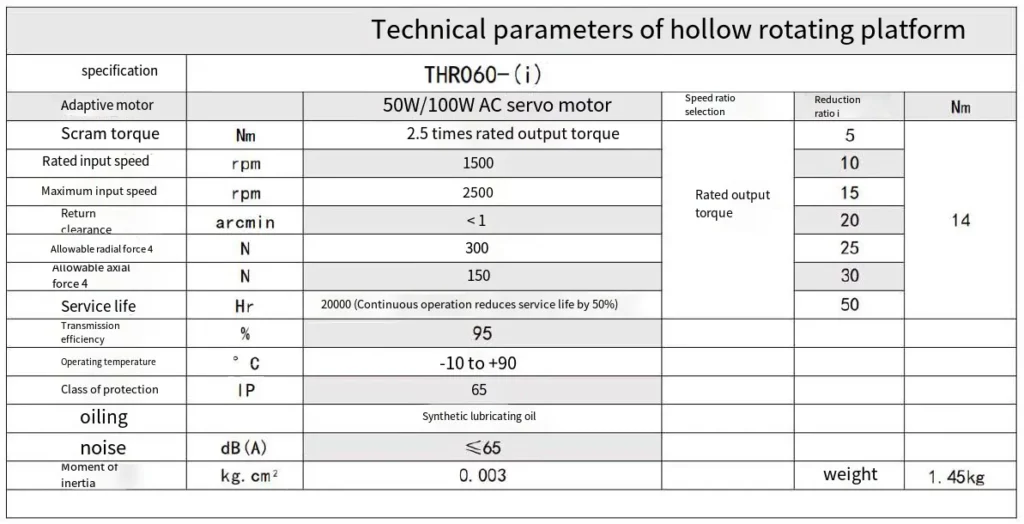

THR060 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THR060 Series Precision Hollow Rotating Platform:

1. Unparalleled Precision

• The THR060 series precision hollow rotating platform sets new standards for precision in rotational motion control.
• Equipped with advanced motor control technology and high-resolution encoders, it ensures accurate and repeatable positioning, enabling precise control over rotational movements.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure and a generous aperture, the THR060 Series offers exceptional versatility and convenience.
• The large aperture allows for the passage of cables, optics, or other elements through the center, facilitating seamless integration and enhancing the flexibility of your setup.

3. High Load Capacity

• The THR060 Series is built to handle high load capacities, making it suitable for a wide range of applications.
• Its robust construction and optimized bearing system ensure reliable performance even under heavy loads, allowing for efficient and precise operation.

4. Compact and Lightweight Design

• With its compact and lightweight design, the THR060 Series is ideal for applications where space and weight restrictions are critical.
• The streamlined form factor enables easy integration into existing systems without compromising performance or requiring extensive modifications.

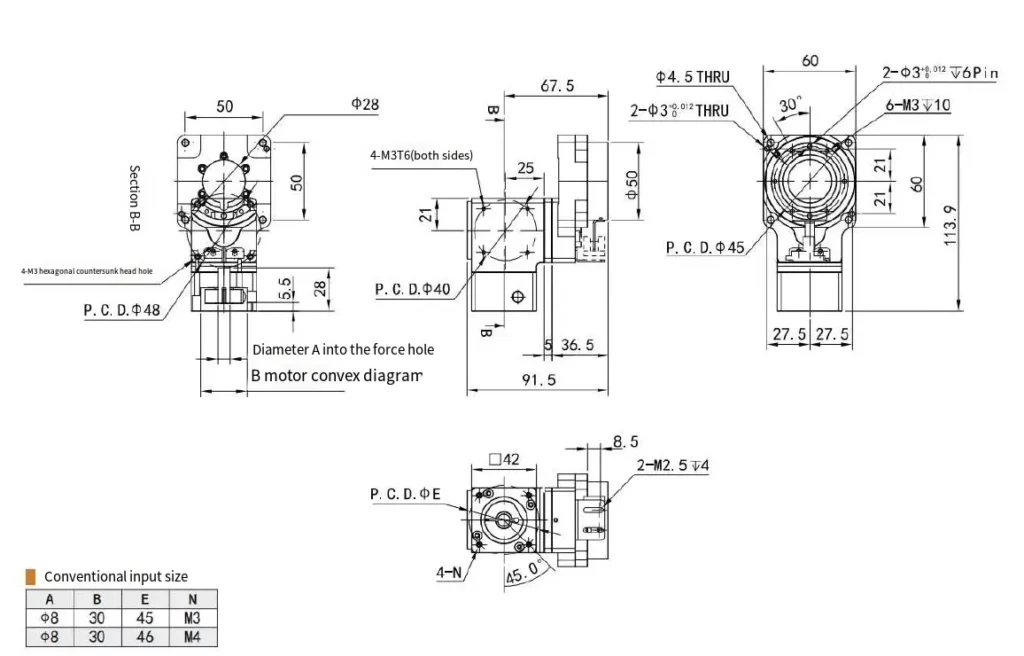

THR060-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THR060 Series Precision Hollow Rotating Platform:

Using the THR060 series precision hollow rotating platform is simple. Here's a step-by-step guide to help you get started:

1. Mounting

• Securely mount the rotating platform to a stable surface or structure, ensuring proper alignment and stability for accurate rotational motion.
• Follow the manufacturer's instructions and guidelines for mounting procedures to ensure optimal performance and safety.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, adhering to the manufacturer's specifications and electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with a larger motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation

• Once the platform is mounted, powered, and properly configured, initiate rotational motion according to your programmed parameters.
• Experience the precision and versatility provided by the THR060 Series Precision Hollow Rotating Platform.

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.
