THS200 Series Precision Hollow Rotating Platform

THS200 Series Precision Hollow Rotating Platform

THS200 series precision hollow rotating platform. Engineered to meet the demands of advanced applications, this cutting-edge platform offers exceptional performance, reliability, and flexibility. This article will explore the key characteristics, usage methods, and maintenance guidelines for the THS200 Series, empowering you to unleash its potential and achieve precise rotational motion control in your projects.THS200 series precision hollow, rotating platform empowers you with unmatched precision, versatility, and performance in rotational motion control. Its exceptional characteristics, such as unmatched precision, hollow structure with a large aperture, high load capacity, and compact design, cater to various industrial applications. By following the recommended usage methods and maintenance practices, you can ensure optimal performance and maximize the lifespan of this exceptional product. Experience the power of precise rotational motion control with the THS200 Series Precision Hollow Rotating Platform and take your projects to new heights of precision and flexibility.

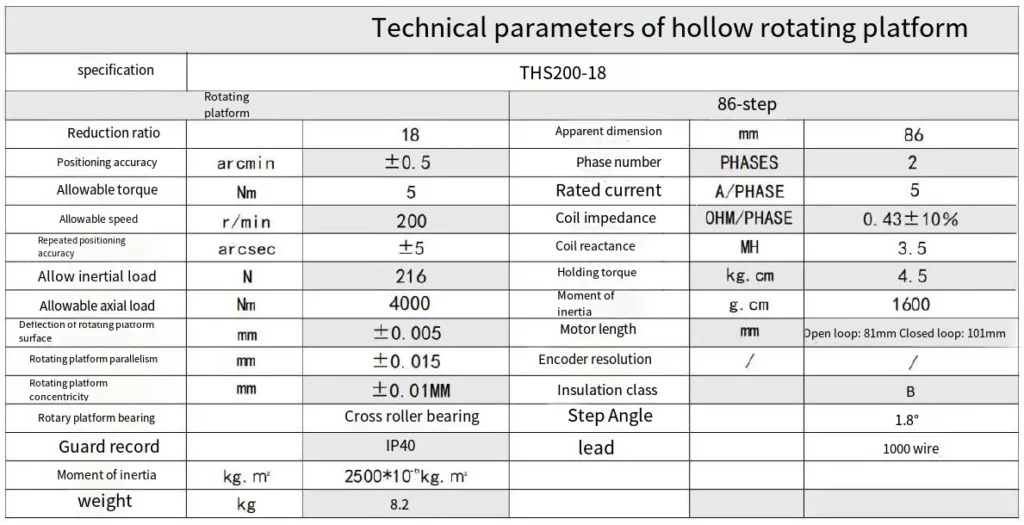

THS200 Series Precision Hollow Rotating Platform Parameter:

Key Characteristics and Benefits of THS200 Series Precision Hollow Rotating Platform:

1. Unmatched Precision and Accuracy

• The THS200 series precision hollow rotating platform sets a new standard for precision in rotational motion control.
• Advanced servo control technology and high-resolution encoders provide unparalleled accuracy and repeatability, enabling precise control over rotational movements.

2. Hollow Structure with Large Aperture

• Featuring a hollow structure and a generous aperture, the THS200 series offers exceptional versatility and convenience.
• The large aperture allows for the seamless passage of cables, optics, or other components through the center, facilitating easy integration and enhancing the flexibility of your setup.

3. High Load Capacity and Stability

• Designed to handle high load capacities, the THS200 series ensures reliable performance even under demanding conditions.
• Its robust construction and optimized bearing system provide stability, ensuring smooth and precise operation even with heavy loads.

4. Compact and Space-Saving Design

• The THS200 Series boasts a compact and space-saving design, making it ideal for applications with limited space.
• Its streamlined form allows easy integration into existing systems, saving valuable space without compromising performance.

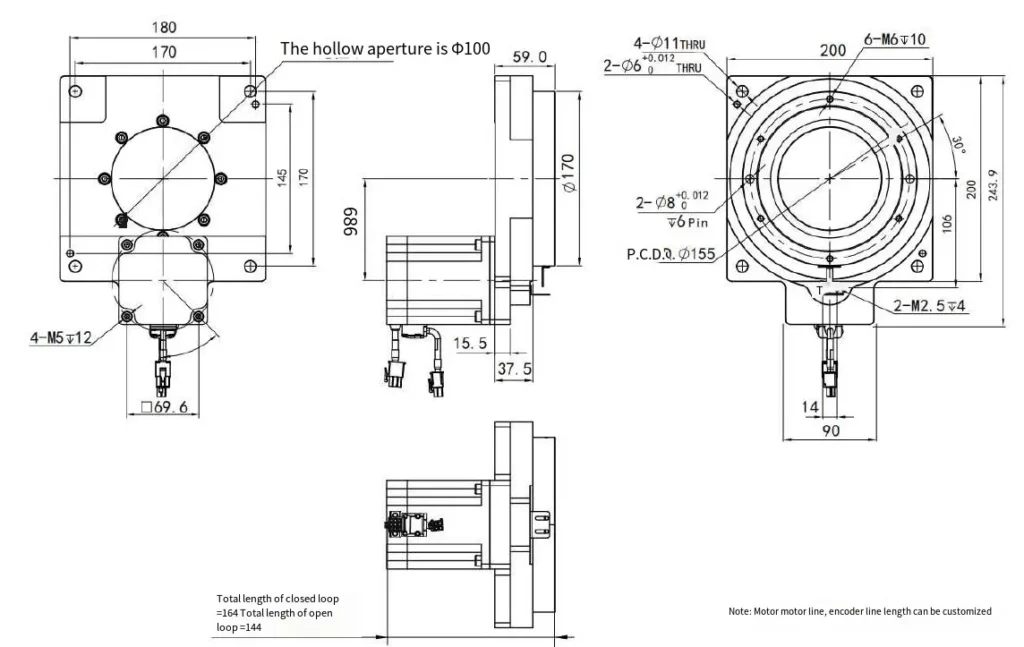

THS200-(i) Series Precision Hollow Rotating Platform Diagram:

Usage Method of THS200 Series Precision Hollow Rotating Platform:

Using the THS200 series precision hollow rotating platform is straightforward and user-friendly. Here's a step-by-step guide to help you get started:

1. Mounting and Alignment

• Securely mount the rotating platform to a stable surface or structure, ensuring proper alignment for accurate rotational motion.
• Follow the manufacturer's instructions and guidelines to ensure proper installation and alignment for optimal performance.

2. Power and Control Connection

• Connect the rotating platform to a suitable power supply, adhering to the manufacturer's specifications and electrical codes.
• Establish the necessary control connections through a dedicated controller or integration with a more extensive motion control system.

3. Configuration and Programming

• Configure the rotational parameters, such as speed, acceleration, and positioning, based on your specific application requirements.
• Program the platform's motion control system to achieve the desired rotational behavior and control options.

4. Operation and Monitoring

• Once the platform is mounted, powered, and properly configured, initiate rotational motion according to your programmed parameters.
• Monitor the platform's performance during operation and make adjustments as needed to ensure optimal results.

Model Identification Method:

Characteristics Of Hollow Rotating Platform:

Mono Product

TH series combines hollow, rotating platforms and servo motor products. The internal structure of the platform is a deceleration ratio, which can realize off-output drive.

Short Time Positioning

Inertial load positioning can be realized in a short time.

High Precision Positioning Without Backlash

No backlash helical, helical teeth, grinding machine gear, gear module to achieve high torque repeated positioning accuracy ±5arcsrc (±0.001°)* Accuracy is the value at a specific load and a specific temperature (average temperature)

Reduce Design Time And Delivery Time

Output platform A workbench or robotic arm for mounting equipment directly. Compared with belts, belt pulleys, and other mechanism parts, it can reduce the time of mechanism design, parts allocation, belt tension adjustment, and cost-saving equipment design time, which helps shorten the delivery time.

Large Diameter Hollow Output Platform Saves Wiring And Piping

The large diameter hollow hole (through) can be used in the distribution pipe around the shuttle, which can simplify the equipment design.

Internal Structure Of The Hollow Rotating Platform:

Example of Use:

Installation direction free designTH rotating platform, in addition to horizontal installation, can be installed vertically or upside down; the device design range is wide.Please note when using:The hollow rotary transmission occasionally has a small amount of oil leaking out.If the oil leakage causes pollution to the surrounding environment, please check regularly.Check to confirm or install the oil tray and other devices.

Model Identification Method:

Hollow rotating platform:The motor can refer to the example diagram to provide the relevant size.

About Us:

Our company is a research and development, design, production, processing, sales in one of the transmission enterprises.Since its establishment, the company has introduced advanced production equipment and precision testing equipment to continuously develop, improve and perfect products. Strive to create perfect high-end transmission products and supporting solutions for customers.
