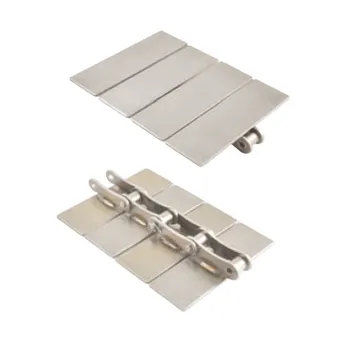

TPW Welded Plate Top Chains

TPW Welded Plate Top Chains

Plate-top chains are a hybrid of steel roller chains and plastic plates – an ingenious way of combining the advantages of both materials. Plate-top chains use specially adapted high-quality rollers for tensile force transmission. The product load is borne by plastic flights that are custom-designed for the respective application, enabling the use of the dry running characteristics of a plastic-to-plastic pairing.

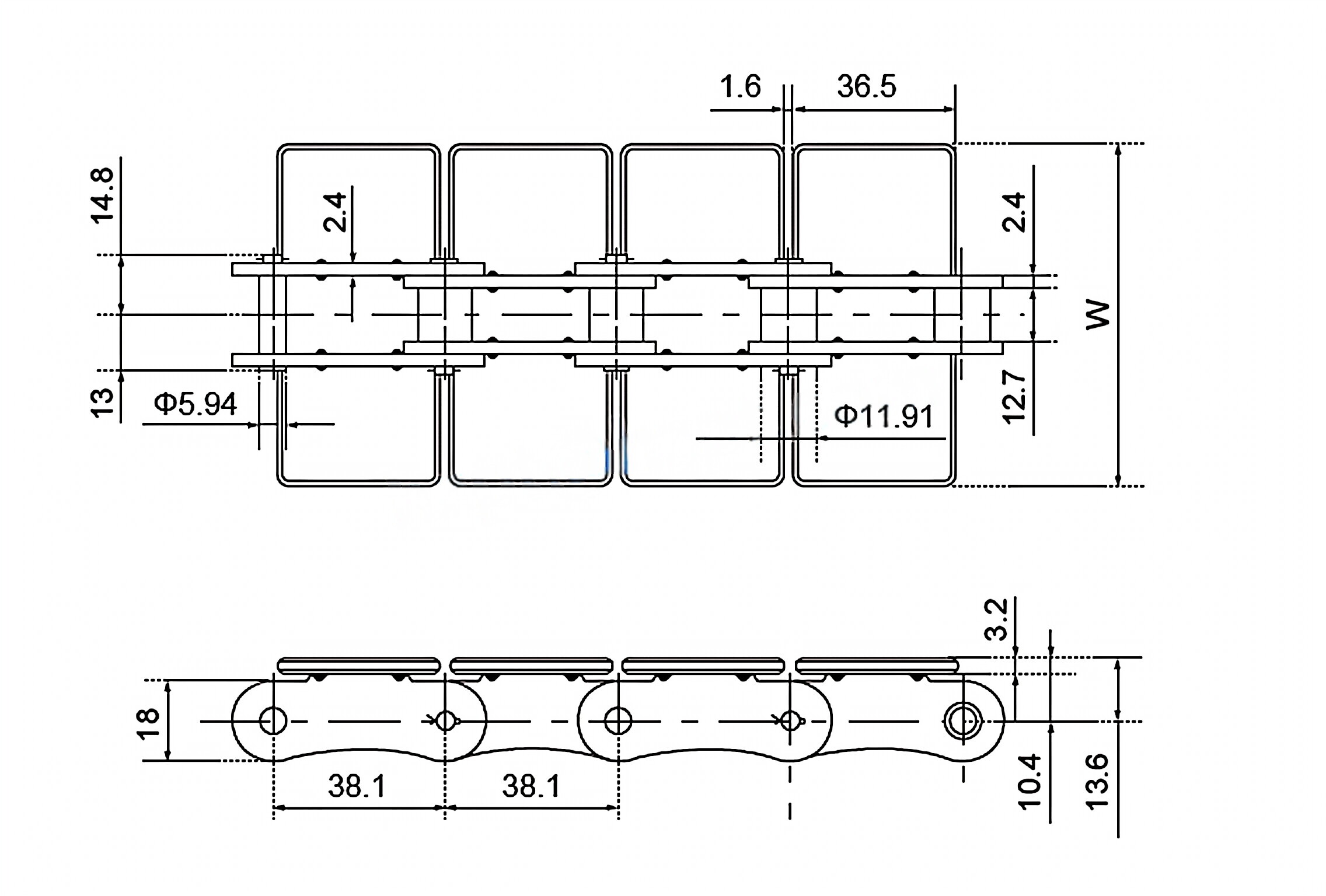

Product parameters

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
TPW - K217	55	2.17	2.7	1.82
TPW - K250	63.5	2.50	2.9	1.95
TPW - K300	76.2	3.00	3.2	2.15
TPW - K325	82.6	3.25	3.3	2.22
TPW - K375	95.3	3.75	3.6	2.42
TPW - K400	101.6	4.00	3.8	2.56
TPW - K450	114.3	4.50	4.0	2.69
TPW - K500	127	5.00	4.3	2.89
TPW - K600	152.4	6.00	5.0	3.36
TPW - K750	190.5	7.50	5.9	3.97

Features of Plate Top Chains

• High performance.?The flat and smooth surface has little friction for high-performance conveying.
• High friction.?The rubber top plates improve the surface chain to protect products from falling.
• Smooth and steady conveying.?Straight running and side flexing types to suit different representing lines.
• Easy cleaning and low maintenance.?Clean them with flow water or soak them in water for easy and fast cleaning.
• Corrosion and rust resistance.?Stainless steel and other anti-corrosive materials ensure the flat op chain's long service life.
• High load capacity.?The chain plates have a larger loading surface than balanced weave conveyor belts and other conveyor belts made of steel wires. This way, it can load more products for heavy-duty applications.
• Customization.?All the products can be customized according to your requirements and drawing.
• Wide range of applications.?It serves many conveying applications in many industries, such as beverage, food processing, and glass bottling.

Application of Plate Top Chains

Plate top chains have a wide range of applications. Details are as follows:

• Cheese production.
• Pharmaceutical packing.
• Food industry.
• Soft drinks industry.
• Beer production.
• Glass bottling filling.
• Wire industry.
