Transmission & Transfer Case Silent Chains HV3F3-8×9W SC180 CL06F2-12X11W SC1252-11X10W

Rocker Joint Type Silent Chains

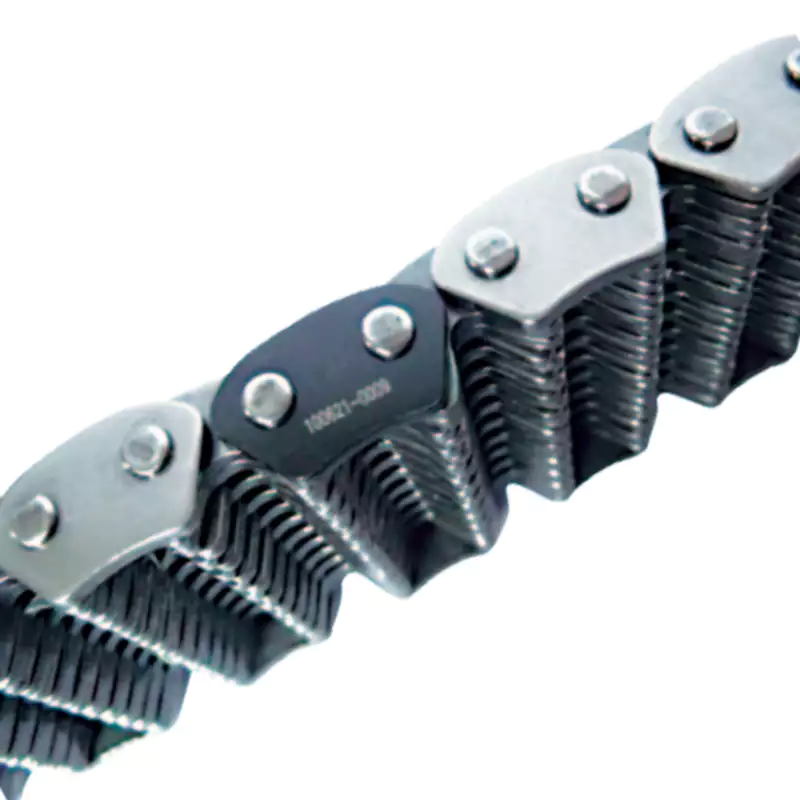

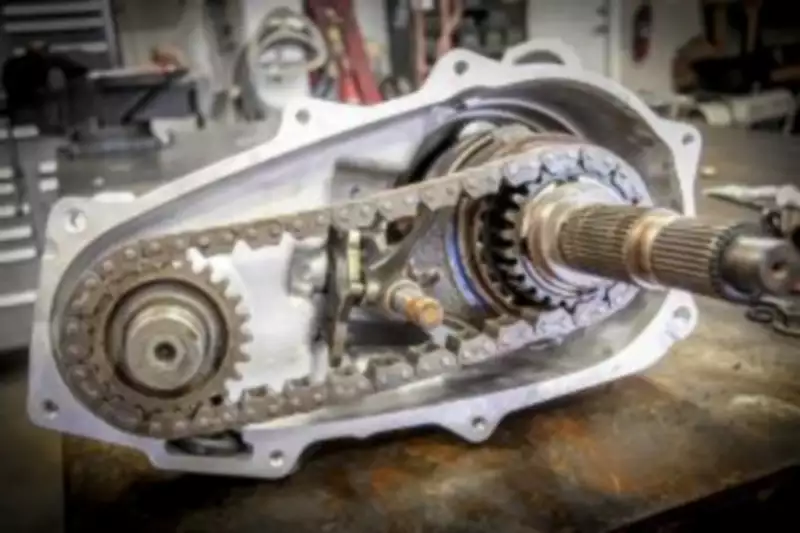

Rocker common type silent chain is mainly used for four-wheel drive transfer case and gearbox drive system, which is the core component of the drive system. The unique rocker joint pin dual-meshing design makes its structure different from the ordinary round pin type silent chain and thus reducing the polygon effect and noise effectively. This chain has superior performances such as high strength, wear resistance, torque transmission in many conditions, etc.

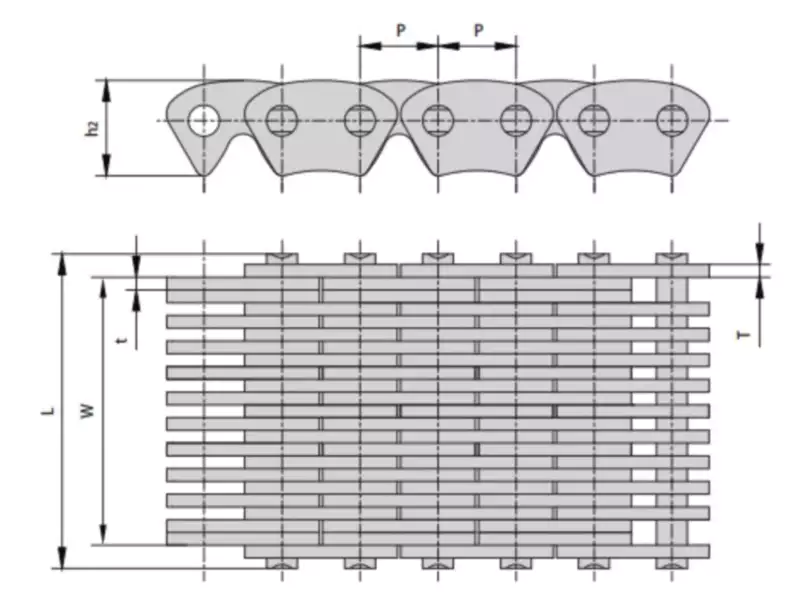

ChainNo.	Pitch	Width?betweenguides	Pinlength	Pindepth	Platethickness		Guidestype	Number?ofplate	Ultimatetensile?strength	Weightper?meter
	P	W	L max	h2max	ttmax	Tmax		n	Qmin	q
	mm	mm	mm	mm	mm	mm			kN/lbf	kg/m
HV3F3-8×9W	9.525	23.25	29.20	10.90	1.55	1.55	Outside	17（8*9）	36/8096	1.5
SC180	11.113	31.41	36.33	13.52	1.55	1,55	Outside	21（9*12）	72/16193	2.4



Round Pin Type Silent Chains

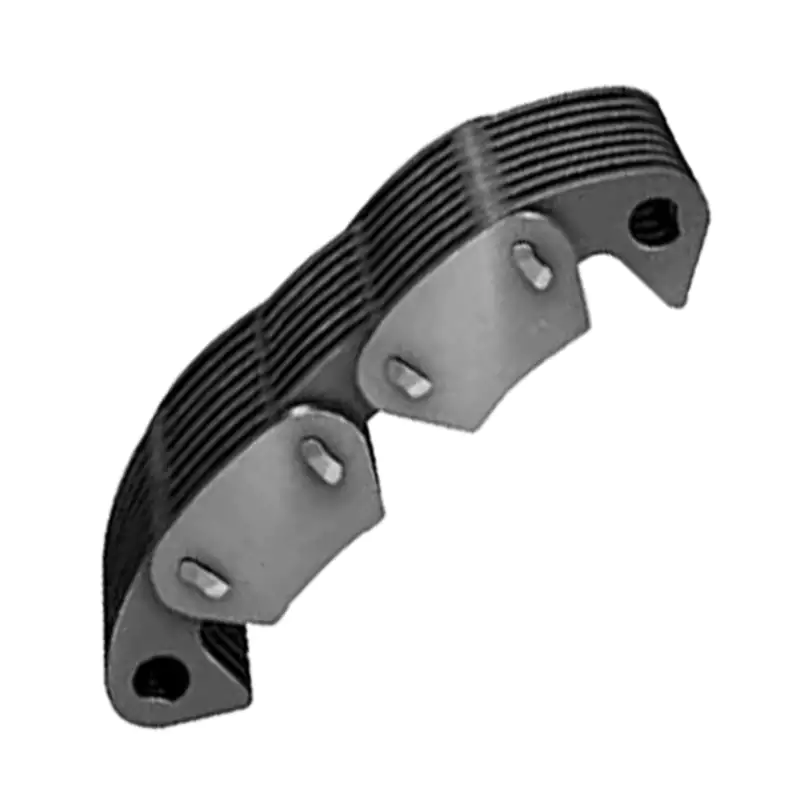

Round pin type silent chain is mainly used for transfer case and gearbox assembly drive system, which is the core component of the drive system. The chain is made from superior quality steel, and the plates are austempered, which is especially suitable for various conditions such as high strength, high wear resistance, low noise, ample torque, etc.

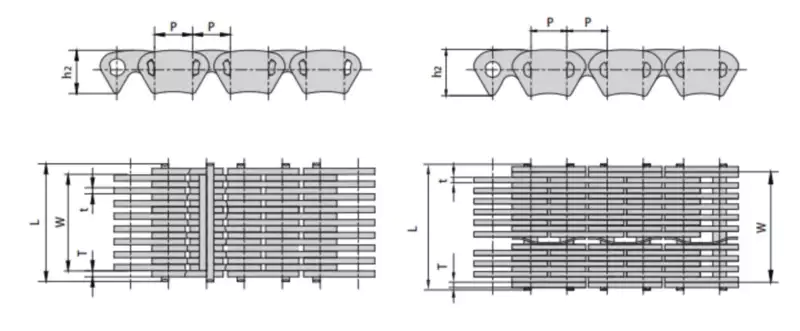

ChainNo.	Pitch	Width?betweenguides	Pinlength	Pindepth	Platethickness		Guidestype	Number?ofplate	Ultimatetensile?strength	Weightper?meter
	P	W	L max	h2max	ttmax	Tmax		n	Qmin	q
	mm	mm	mm	mm	mm	mm			kN/lbf	kg/m
CL06F2-12X11W	9.525	32.55	38.20	11.6	1.55	1.55	Outside	23(12*11)	68/15293	2.2
SC1252-11X10W	12.780	30.00	36.72	15.5	1.55	1.55	Outside	21(11*10)	80/17992	2.8

Advantages of the Silent Chain

Strength, accuracy, speed, silent operation, heat resistance, and durability are the main advantages of the silent chain.From the food to the automobile industry, a wide range of tooth chains are used in every industrial environment that needs to transfer and transport products along the production line.The structure of the silent tooth chain is characterized by double oscillating pins and a particular meshing profile between the chain and the gears, which allow highly uniform and precise sliding.Due to the geometric coupling between the chain and the gear teeth, the transmission device can ensure that the transmission does not slip and does not need chain pre-tightening. It is an ideal choice for the modern machinery industry, which needs accurate, fast, and efficient transmission.In addition, high-quality materials and production processes make the chain quiet and wear-resistant, even under the most challenging environmental conditions, such as high temperatures or corrosive chemicals.

Professional Chain Manufacturing Enterprise

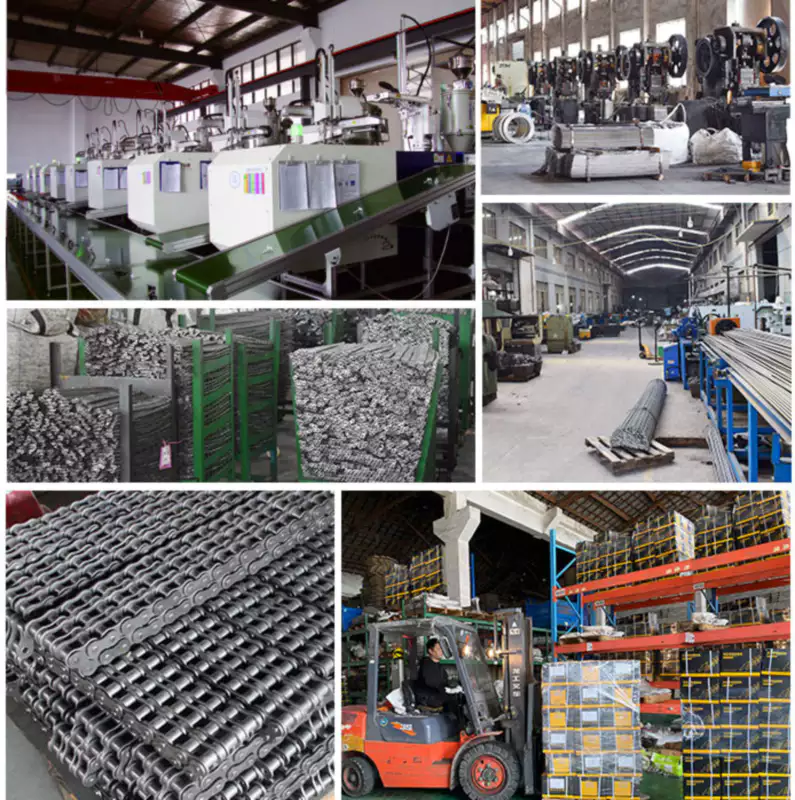

Raydafon is a professional chain manufacturing enterprise. After more than 16 years of development, it has now ranked among the top 10 in the domestic chain industry. It is one of the critical chain export bases in China. It is the director unit of the chain branch of China Machinery General Parts Association and the member unit of the national chain transmission Standardization Technical Committee.The company has two production bases with a total floor area of 35000 M 2; the total number of employees is 300, including more than 35 engineering and technical personnel, accounting for more than 10%. The annual output of the chain is more than 10000 tons, of which more than 50% of the products are exported to Europe, the United States, South America, Africa, Southeast Asia, the Middle East, and other countries and regions, and the rest are sold throughout the country.We welcome customers from home and abroad to come and negotiate business and customize other non-standard chains with pictures and samples. Raydafon? promises to stick to its reputation and serve customers as always.
