Tube End Reducer-RED Hydraulic Fittings

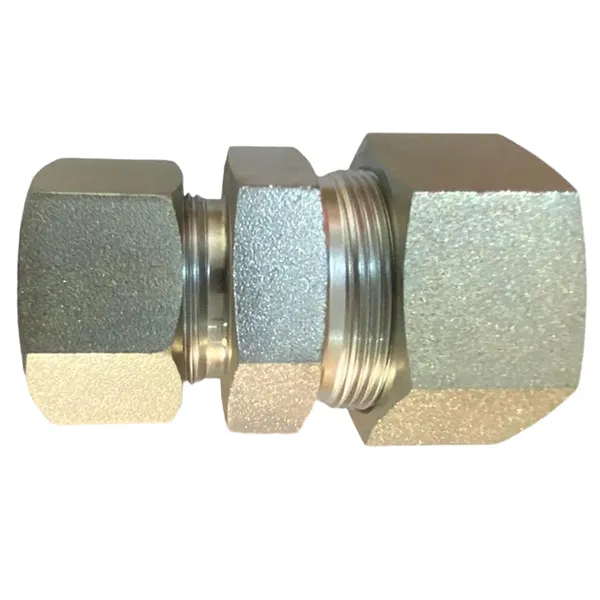

RED Hydraulic Fittings for Tube End Reducer are a type of hydraulic fitting that is used to reduce the size of a tube. They are typically used in high-pressure hydraulic systems, such as those found in construction equipment, agricultural machinery, and industrial applications.
RED Hydraulic Fittings for Tube End Reducer are made from high-quality materials and are designed to withstand the high pressures and temperatures of hydraulic systems. They are also easy to install and maintain.
Here are some of the benefits of using RED Hydraulic Fittings for Tube End Reducers:
If you are looking for a high-quality, reliable, and easy-to-use hydraulic fitting for reducing the size of a tube, then RED Hydraulic Fittings for Tube End Reducer are the perfect solution for you.

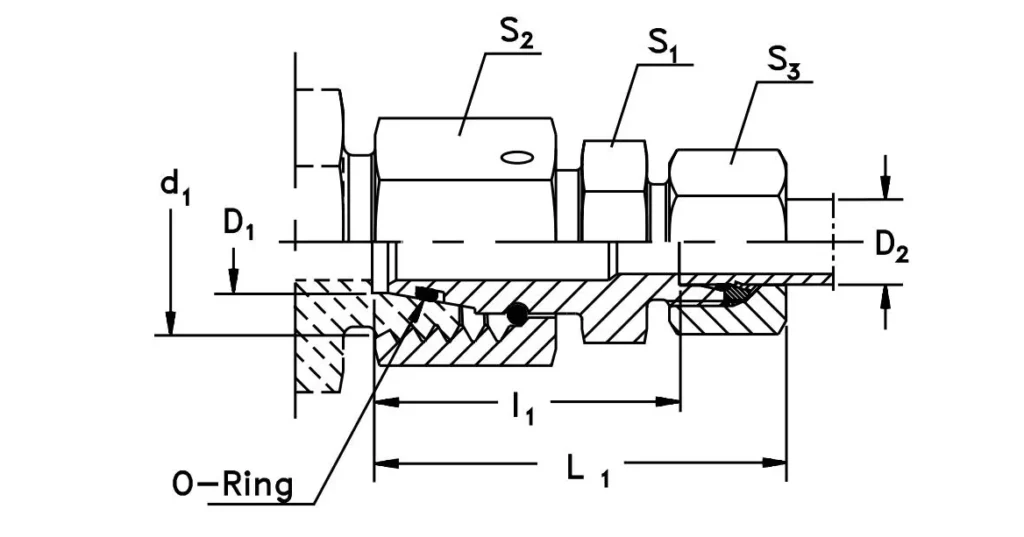

| REDPart no. | Series L Working Pressure(bar/psi) | D1 | D2 | d1 | l1 | L1 | S1 | S2 | S3 | O-ring |
| -RED06L/04LL | 3154560 | 6 | 4 | M12 x 1.5 | 24.5 | 34 | 9 | 14 | 10 | 4.5 x 1.5 |
| -RED08/06L | 8 | 6 | M14 x 1.5 | 23.5 | 38 | 12 | 17 | 14 | 6.5 x 1.5 | |
| -RED10/06L | 10 | 6 | M16 x 1.5 | 25 | 40 | 14 | 19 | 14 | 8 x 1.5 | |
| -RED10/08L | 8 | 25 | 40 | 17 | ||||||
| -RED12/06L | 3154560 | 12 | 6 | M18 x 1.5 | 25 | 40 | 17 | 22 | 14 | 10 x 1.5 |
| -RED12/08L | 8 | 25 | 40 | 17 | ||||||
| -RED12/10L | 10 | 26 | 41 | 19 | ||||||
| -RED15/06L | 3154560 | 15 | 6 | M22 x 1.5 | 28.5 | 43 | 19 | 27 | 14 | 12 x 2 |
| -RED15/08L | 8 | 28.5 | 43 | 17 | ||||||
| -RED15/10L | 10 | 29.5 | 44 | 19 | ||||||
| -RED15/12L | 12 | 29.5 | 44 | 22 | ||||||
| -RED18/06L | 3154560 | 18 | 6 | M26 x 1.5 | 28 | 43 | 24 | 32 | 14 | 15 x 2 |
| -RED18/08L | 8 | 28 | 43 | 17 | ||||||
| -RED18/10L | 10 | 29 | 44 | 19 | ||||||
| -RED18/12L | 12 | 29 | 44 | 22 | ||||||
| -RED18/15L | 15 | 30 | 45 | 27 | ||||||
| -RED22/06L | 1602320 | 22 | 6 | M30 x 2 | 32 | 47 | 27 | 36 | 14 | 20 x 2 |
| -RED22/08L | 8 | 32 | 47 | 17 | ||||||
| -RED22/10L | 10 | 33 | 48 | 19 | ||||||
| -RED22/12L | 12 | 33 | 48 | 22 | ||||||
| -RED22/15L | 15 | 34 | 49 | 27 | ||||||
| -RED22/18L | 18 | 33.5 | 50 | 32 | ||||||
| -RED28/06L | 1602320 | 28 | 6 | M36 x 2 | 34 | 49 | 32 | 41 | 14 | 26 x 2 |
| -RED28/08L | 8 | 34 | 49 | 17 | ||||||
| -RED28/10L | 10 | 35 | 50 | 19 | ||||||
| -RED28/12L | 12 | 35 | 50 | 22 | ||||||
| -RED28/15L | 15 | 36 | 51 | 27 | ||||||
| -RED28/18L | 18 | 35.5 | 52 | 32 | ||||||
| -RED28/22L | 22 | 37.5 | 54 | 36 | ||||||
| -RED35/12L | 1602320 | 35 | 12 | M45 x 2 | 38 | 53 | 41 | 50 | 22 | 32 x 2.5 |
| -RED35/15L | 15 | 39 | 54 | 27 | ||||||
| -RED35/18L | 18 | 38.5 | 55 | 32 | ||||||
| -RED35/22L | 22 | 40.5 | 57 | 36 | ||||||
| -RED35/28L | 28 | 40.5 | 57 | 41 | ||||||
| -RED42/18L | 1602320 | 42 | 18 | M52 x 2 | 42 | 58 | 50 | 60 | 32 | 38 x 2.5 |
| -RED42/22L | 22 | 44 | 60 | 36 | ||||||
| -RED42/28L | 28 | 44 | 61 | 41 | ||||||
| -RED42/35L | 35 | 43 | 65 | 50 |
| REDPart no. | Series S Working Pressure(bar/psi) | D1 | D2 | d1 | l1 | L1 | S1 | S2 | S3 | O-ring |
| -RED08/06S | 6309130 | 8 | 6 | M16 x 1.5 | 27 | 42 | 14 | 19 | 17 | 6 x 1.5 |
| -RED10/06S | 10 | 6 | M18 x 1.5 | 27.5 | 42 | 17 | 22 | 17 | 8 x 1.5 | |
| -RED10/08S | 8 | 27.5 | 42 | 19 | ||||||
| -RED12/06S | 6309130 | 12 | 6 | M20 x 1.5 | 29 | 44 | 17 | 24 | 17 | 9 x 1.5 |
| -RED12/08S | 8 | 29 | 44 | 17 | 19 | |||||
| -RED12/10S | 10 | 29.5 | 46 | 19 | 22 |
