UEP200 Pillow Block Bearings

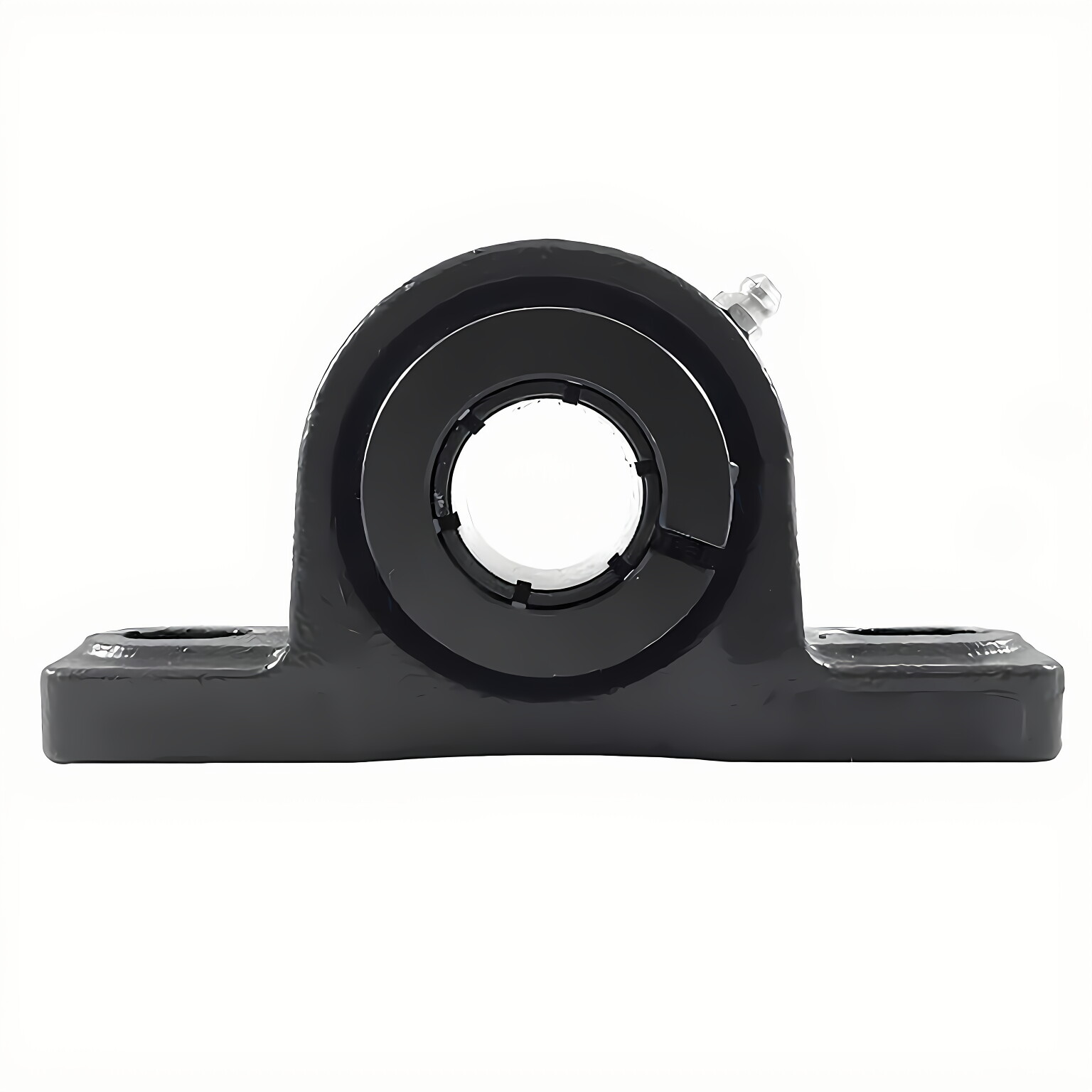

UEP200 Pillow Block BearingsUEP200 Pillow Block Bearings are plain 2-bolt bearings secured to the shaft using a Tru-Loc device. Our UEP200 bearings feature high-performance C3 precision bearings housed in high-strength cast housings; they are manufactured to industry standard dimensions and are directly interchangeable with other brands. We stock a full range of inch and metric bore UEP200 bearings and a range of bearing accessories. For more information or to get a quote on UEP200 bearings, please contact our customer support team, and we will be happy to assist you!

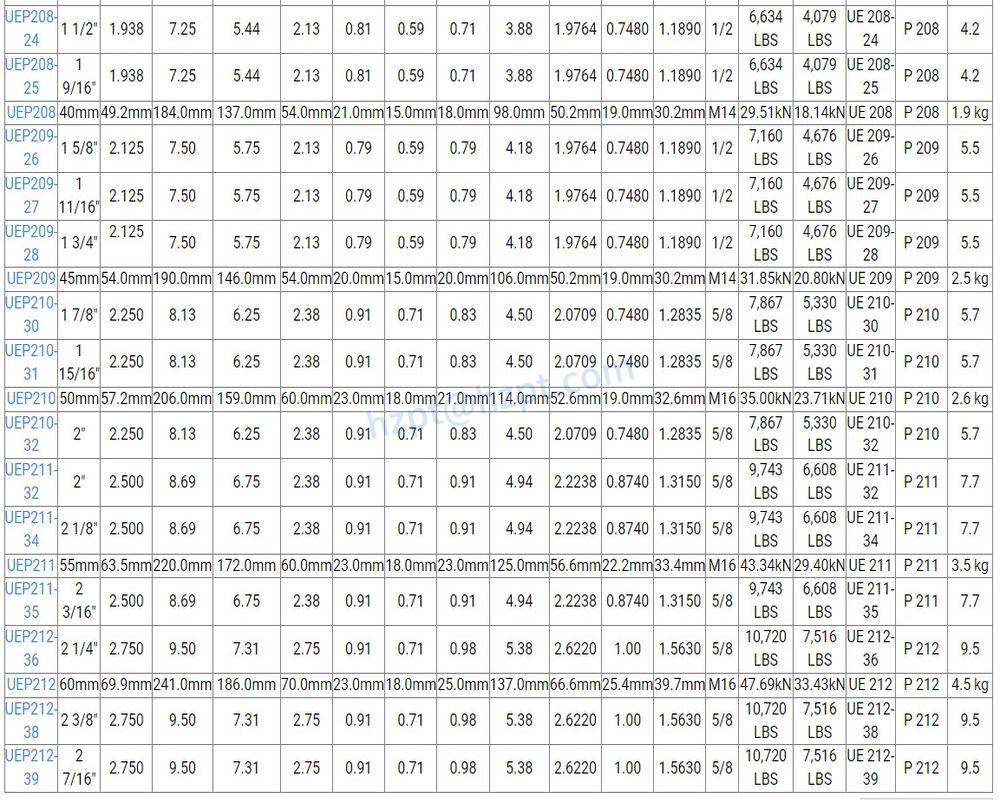

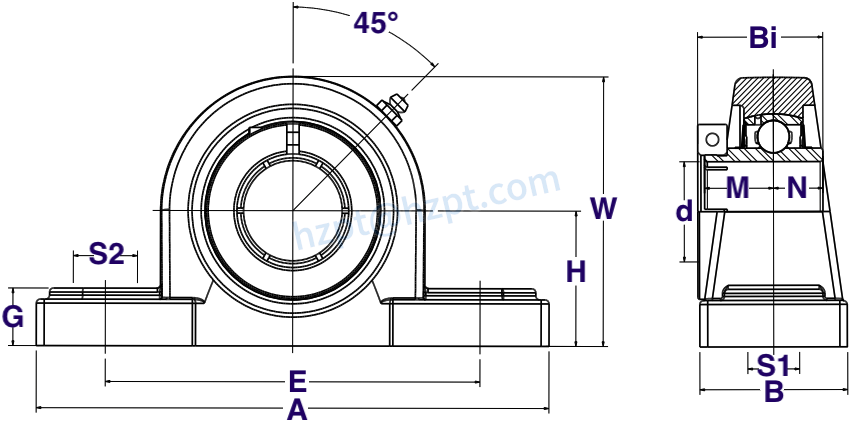

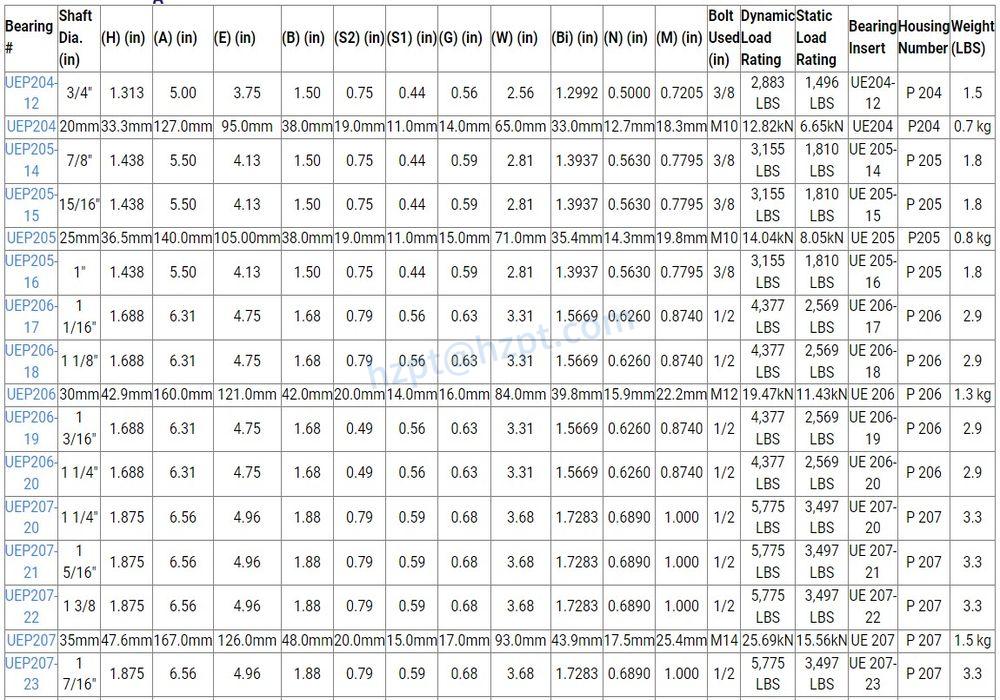

UEP200 Bearing Sizes

Product parameters

Pillow block bearing unit

Pillow block bearing unit is a bearing unit that combines a rolling bearing with a bearing housing. Most pillow block bearings are made of spherical outer diameter and are installed with pillow blocks that have spherical inner holes. They have various structural forms, good versatility, and interchangeability. At the same time, the pillow block bearing with the housing also has a certain degree of self-alignment in design, easy to install, and has a double structure sealing device, which can work in harsh environments. The bearing housing is generally formed by casting. Some unique designs are cast steel, Ductile iron, stainless steel, and plastic housing; commonly used pillow blocks are UCP200, NAP200, UEP200, UKP200, UCPX, UCP300, UCPE2, UCAK2, SALP2, UCSB2.Pillow block bearings units can be divided into three categories according to the way they fit with the shaft:

1. insert bearing with set screw
2. pillow block bearing with taper bore
3. Outer spherical ball bearing with eccentric sleeve

Applications of Pillow block bearing

UCP200 Series Pillow Block Bearing is equipped with two specifically designed set screws positioned in the ball's inner ring to lock and attach to the shaft. Common usage for UCP200 Series Pillow Block Bearing includes Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting, Consumer Goods, Conveyor, Fan Assemblies, Farm Machinery, HVAC, Feed Mill, and many other Industrial Equipment.
