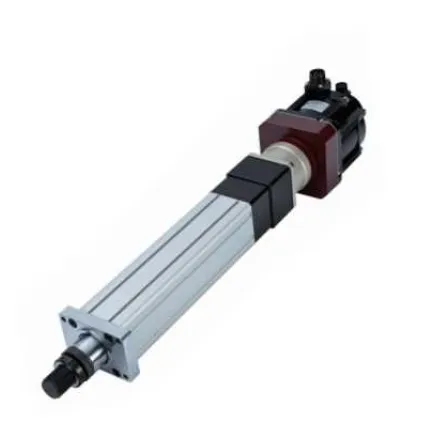

WG94 Series Electric Linear Actuator WG94 Series Electric Cylinder

WG94 Series Electric Linear Actuator WG94 Series Electric Cylinder

The WG94 series electric linear actuator is a cutting-edge solution designed to deliver exceptional precision, power, and reliability in linear motion applications. Engineered with advanced features and robust construction, this electric actuator is the ideal choice for a wide range of industrial and commercial uses. Whether you require smooth and accurate movement in manufacturing, automation, or robotics, the WG94 series sets a new standard for performance and versatility.The WG94 series electric linear actuator sets a new standard for precision, power, and reliability in linear motion applications. Its high-performance motor, precise positioning, and robust construction make it the ideal choice for various industries. By following the recommended usage method and maintenance practices, you can ensure optimal performance and longevity of this electric actuator. Experience the precision and power of the WG94 series electric linear actuator and elevate your linear motion applications to new heights.

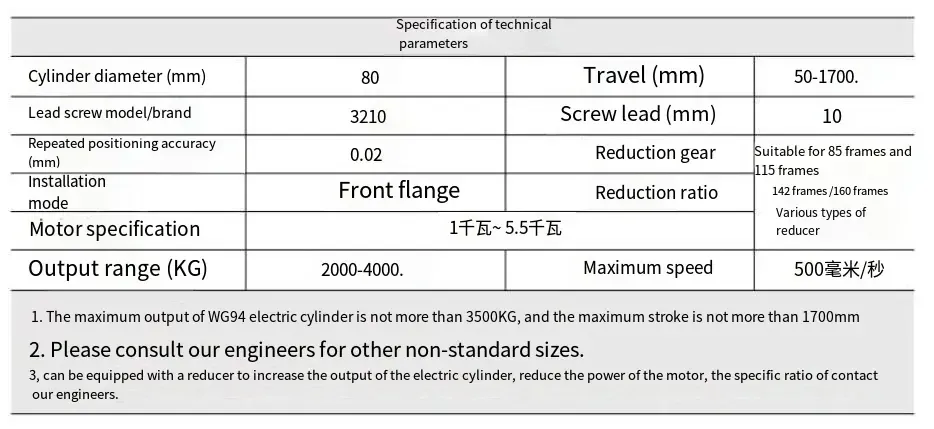

WG94 Series Electric Linear Actuator Parameter:

Key Features and Benefits of WG94 Series Electric Linear Actuator Parameter:

1. High-Performance Motor:
   • The WG94 series electric linear actuator has a high-performance motor that delivers impressive power and torque, ensuring efficient handling of demanding applications.
   • Its motor's exceptional performance guarantees reliable and precise linear motion.
2. Precision Positioning:
   • This actuator provides outstanding precision in positioning, allowing for accurate and repeatable movement.
   • With its advanced control capabilities, the WG94 Series enables seamless integration into automated systems for enhanced productivity.
3. Robust and Durable Construction:
   • The WG94 series features a robust and durable construction to withstand demanding environments and heavy-duty applications.
   • Its sturdy design ensures long-lasting performance and reliability, reducing downtime and maintenance costs.
4. Versatile Applications:
   • With its adaptability and reliable performance, the WG94 series is well-suited for various applications, including manufacturing, packaging, material handling, and more.
   • It can be easily customized to meet specific requirements, making it an ideal choice for various industries.

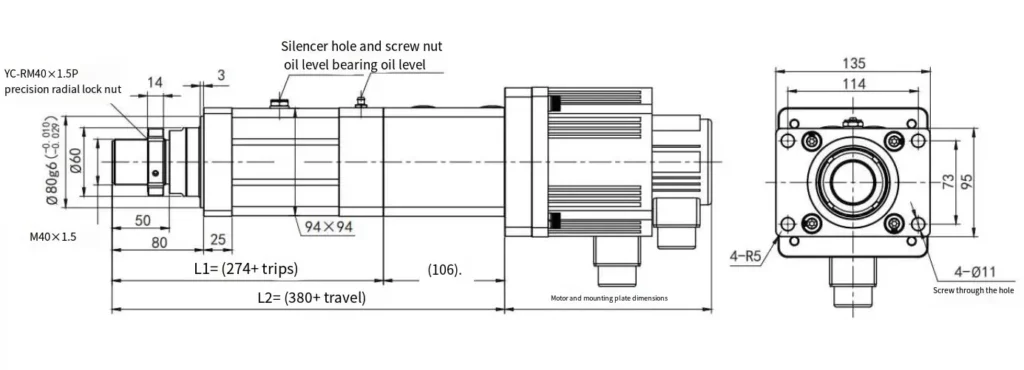

WG94 Series Electric Linear Actuator Directly Connected:

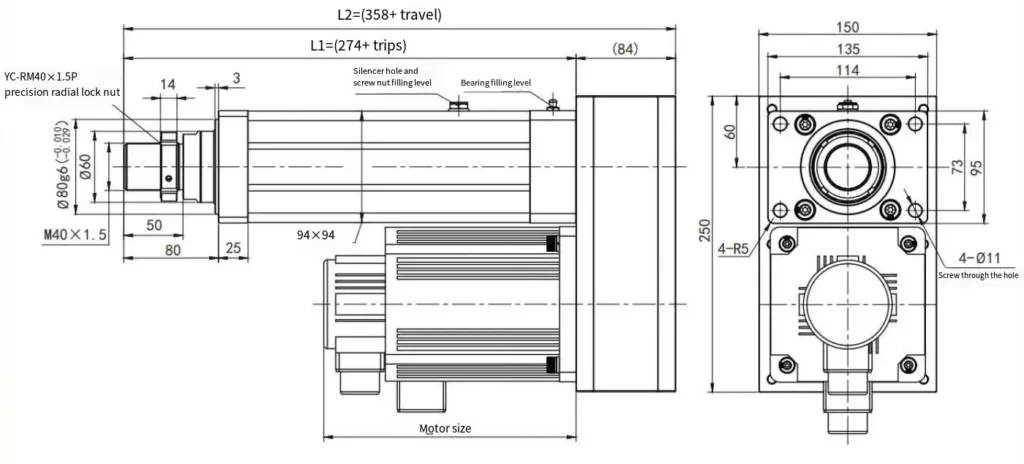

WG94 Series Electric Linear Actuator Folding:

Usage Method of WG Series Electric Linear Actuator:

Using the WG94 series electric linear actuator is simple and user-friendly. Here's a step-by-step guide to get you started:

1. Mounting:
   • Begin by securely mounting the actuator to the desired surface or structure using the provided brackets or mounting accessories.
   • Ensure proper alignment and stability for optimal performance.
2. Power Connection:
   • Connect the actuator to a suitable power supply, following the manufacturer's instructions and local electrical codes.
   • Make sure the wiring is connected correctly and secure.
3. Control Setup:
   • Choose the control method best suits your application, such as manual switches, remote control, or integration into a programmable logic controller (PLC) system.
   • Set up the control system according to the manufacturer's guidelines.
4. Operation:
   • Once the actuator is mounted and powered and the control system is set up, you can activate the actuator to initiate linear motion.
   • Enjoy the smooth and precise movement the WG94 Series Electric Linear Actuator provides.

The Principle of Electric Cylinder:

The electric cylinder converts the rotating motion of the motor into the linear motion of the push rod through the mechanical motion of the lead screw and the lead screw pair. With the closed-loop control characteristic of servo motors, the precise control of thrust, speed, and position can be realized easily. Using modern motion control technology, numerical control technology, and bus (network) technology, the program and bus (network) control are realized. Its control and ease of use will achieve precision motion control that can not be achieved by cylinder and hydraulic cylinder transmission.

Product Characteristics:

EDA series electric cylinder adopts an advanced modular design method with the following significant features:1, compact structure, small size, easy installation and use, simple maintenance, low noise, long life, multiple safety protection measures.2, accurate position control, repeated positioning accuracy up to 0.01 mm, adding external displacement sensor up to 0.005mm.3, accurate speed control, can be arbitrarily set the speed waveform to achieve high-speed, smooth, and impact-free operation, with control accuracy up to 0.05%.4, accurate thrust control, the control accuracy can reach 0.5% after increasing the external push and pull sensor.5, can use a trapezoidal screw, ball screw, or planetary roller screw transmission mode.6, can use servo motor, stepper motor, DC motor, AC motor drive mode, servo, and frequency control.

Product Advantage:

1. Self-locking performance of a joint tooth lead screw electric push rod, due to worm gear and worm structure, most of the absolute dynamic load self-locking function, increase the safety of equipment operation; Ball screw electric push rod and servo electric cylinder can not be self-locking, but can be self-locking in the motor with a brake;2. precision positioning of a servo-electric cylinder with comprehensive position accuracy up to 0.01 mm;3. Precise control 1 encoder, pressure sensor, and displacement sensor to achieve closed-loop accurate positioning;4 Drive system continuous flow motor 12/24V, single AC motor, three-phase AC motor, servo motor, no air/hydraulic source, easy to maintain,Low energy consumption;5. overload protection: a safety clutch can be equipped to prevent overload; an Overload pressure sensor can also be fitted to avoid overload;6. Simple maintenance, low noise, can work typically in high/low temperature, anti-corrosion/explosion-proof harsh environment.7. Important features of electric linear transmission equipment: self-locking performance, precision positioning, speed control, thrust control, and simple maintenance.

Electric Linear Actuator Selection Procedure:

1. Determine the Conditions of Use

• The necessary condition for calculating the type of servo electric cylinder
• Installation space limitation
• Load installation method (horizontal, vertical, tilt, etc.)
• The size, direction, and position of the load
• Motor installation method (direct installation, indirect installation)
• Installation method of electric cylinder (flange, trunnion, earring, etc.) stroke lengthOperation speed, accuracy requirement, life requirementUse the environment, application facilities

2. Load Thrust Calculation of Servo Electric Cylinder

According to the actual calculation of the load required, the thrust

3. Determine the Running Speed of the Servo Electric Cylinder

According to the actual demand speed, the lead of the electric cylinder demand is equipped with the motor, reducer, etc.

4. Calculation of Average Load

Average the load changes during operation and calculate the average load

5. Calculation of Rated Life & Life Time

According to the actual travel, speed, frequency, and other conditions of the electric cylinder, the walking distance is calculated, and the cake is converted into the lifetime

6. Determine the Accuracy Level of Servo Electric Cylinder

Selected accuracy levelDetermine servo electric cylinder control and signal feedback

7. Installation Method of Servo Electric Cylinder

Select the motor mounting method for the motor cylinderSelect the mounting mode of the servo motor cylinderSelect how the load is installed

8. Safety Design of Servo Electric Cylinder

Selected lubricant (grease, oil, extraordinary lubrication) Selected lubrication method (regular grease, forced lubrication) Selected material (aluminum alloy, stainless steel) Surface treatment (rust prevention, oxidation sandblasting, blackening) Dust treatment (dust ring, protective cover, dust cover)

9. Selection Completed

Selection Standard:

The Relation Between The Output Torque Of Motor And The Output Force Of Electric Cylinder:

Life Calculation of Electric Cylinder:

The life of the electric cylinder generally refers to the life of the lead screw used inside the electric cylinder, which can be divided into two parts, one is the fatigue life of the lead screw, which can be calculated; The other is the service life, depending on the conditions of use (such as temperature, dust, the type of lubrication used and the frequency of regular additions, etc.). Service life is often learned by experience. The following is the calculation method of fatigue life:L10: life of electric cylinder, unit: KmFm: The average load of the electric cylinder, unit: KnCa: The basic rated dynamic load of the screw nut, in Kn (can be found by screw sample)L: lead of the lead screw, unit :mm

Electric Linear Actuator Commonly Used Installation Diagram:

Load Link Mode:

Electric Linear Actuator Accessories:

List of Components:Attention:The maximum load-carrying capacity of the installed component must be the total load generated by thousands. Cylinder weight (including motor) must be taken into account.Please contact our sales engineer for details on parts adaptation.

Wg Series Product Name Reading Map:

Linear Electric Cylinder:

This series of electric cylinder integrates AC servo motor, servo driver, high-precision ball screw, modular design and other technologies, the whole electric cylinder has the characteristics of compact structure, small inertia, fast response, low noise and long life.The servo motor is directly connected with the drive screw of the electric cylinder so that the encoder of the servo motor can directly feedback the displacement of the moving piston of the electric cylinder, reduce the inertia and clearance of the intermediate link, and improve the control and control accuracy. The servo motor is connected to the electric cylinder, which is easy to install, set, and convenient to use. The main parts of the electric cylinder are made of famous foreign brand products with stable performance, low failure rate, and high reliability.

Folding Electric Cylinder:

Due to the short overall length, the folding electric cylinder suitable for the installation position is relatively small. At the same time, the synchronization belt selected in this scheme has high strength, small gaps, and long life, so the electric cylinder has high control and control accuracy. The Servo motor and electric cylinder cooperate flexibly, are easy to install, have simple settings, and are convenient.
