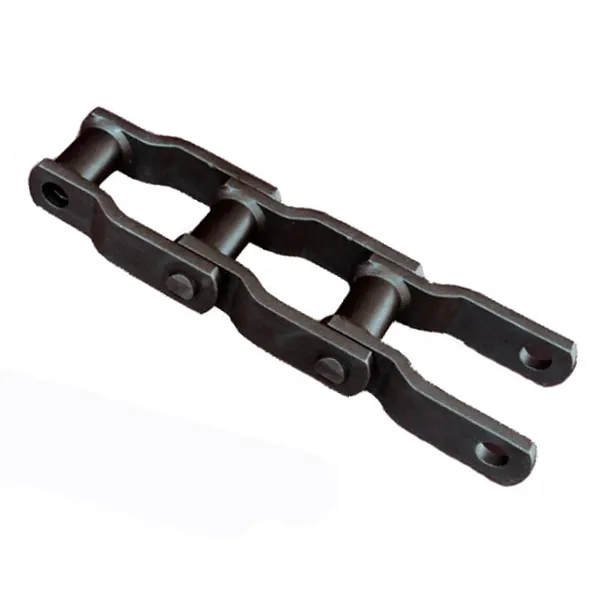

WH106 Chain WH106 Welded Steel Mill Chain

WH106 Chain WH106 Welded Steel Mill Chain

The WH106 welded steel mill chain is a type of rollerless chain that is used in a variety of applications, including heavy-duty conveyors, forestry, grain handling, pulp, paper, and sugar processing. It is a high-strength chain with an offset link design that makes it easy to lengthen, shorten, or repair. The WH106 welded steel mill chain is made from high-quality steel and is fully heat-treated, which gives it a long working life and high tensile strength.Our WH106 welded steel chain is manufactured to exceed expectations in working life, strength, and quality. The welded steel style chain is one of the most popular types of engineer class chains on the market. This is widely due to its effectively productive offset link design. With an ultra-high tensile strength of 69,000 lbs at a low per-foot weight of 7 lbs, the WH106 chain makes excellent and efficient use in whichever application it is used in. If you are looking for a high-strength, durable, and versatile chain for your application, the WH106 welded steel mill chain is a great option.

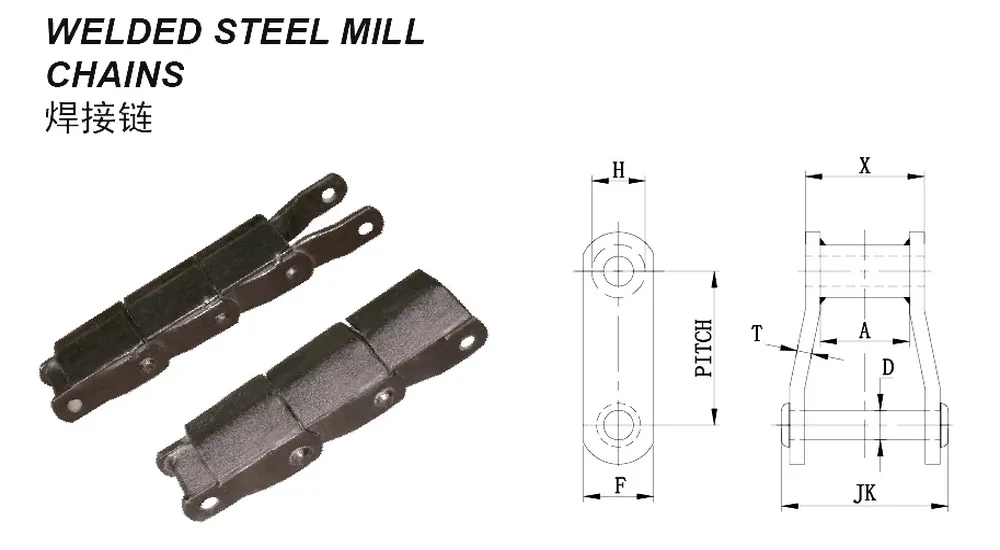

▍WH106 Welded Steel Mill Chain Dimensions:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH106 Chain	6.000	69000	7200	20	7.0	2.75	0.75	0.38	1.50	1.25	1.62

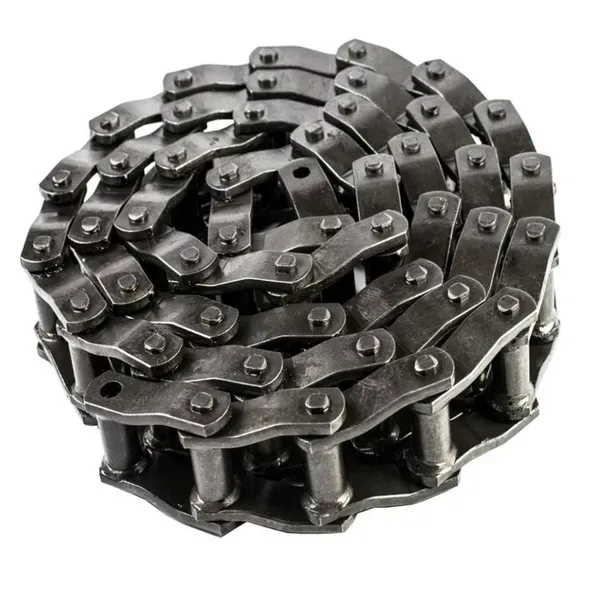

▍WH106?Welded Steel Mill Chain Construction:

The WH106 welded steel mill chain is a type of rollerless chain that is constructed with the following components:1. Link plates: The link plates are made from high-quality steel and are precision punched from cold-drawn steel. This ensures that the plates are strong and have a precise hole pitch.2. Bushings:?The bushings are made from a wear-resistant material, such as bronze or nylon, and are fully welded to the link plates. This prevents the bushings from becoming loose and rotating over time.3. Pins:?The pins are made from high-quality steel and are through-hardened. This ensures that the pins are strong and have a long working life.4. Welds:?The welds that connect the link plates, bushings, and pins are made using a high-quality welding process. This ensures that the welds are strong and durable.The WH106 welded steel mill chain is a high-quality chain that is built to last. The precision construction and high-quality materials ensure that the chain is strong, durable, and wear-resistant. This makes the WH106?chain an ideal choice for a variety of demanding applications.Here are some of the key features of the WH106 welded steel mill chain construction:

• High-quality steel components
• Precision-punched link plates
• Fully welded bushings
• Through-hardened pins
• High-quality welding process

The WH106 welded steel mill chain construction is designed to provide a long working life and high tensile strength. The WH106? chain is also easy to lengthen, shorten, or repair, which makes it a versatile and cost-effective solution for a variety of applications.

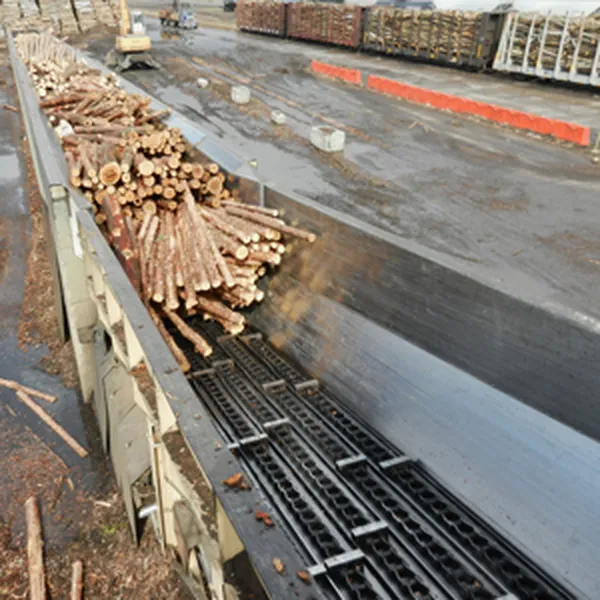

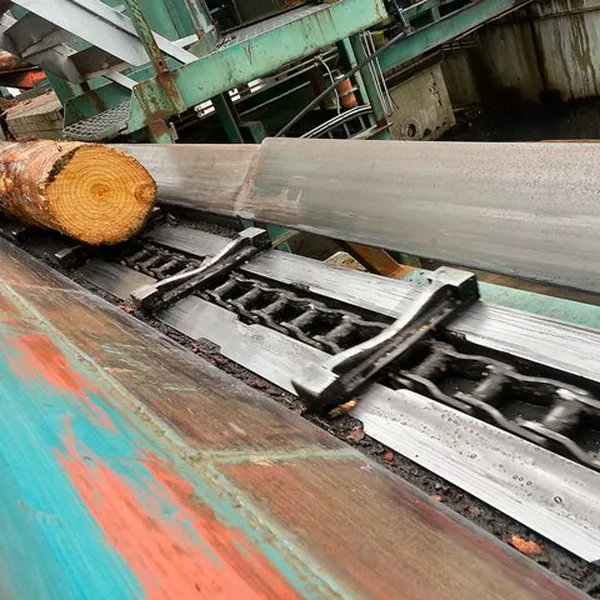

▍WH106 Welded Steel Mill Chain Applications:

The WH106 welded steel mill chain is a versatile chain that can be used in a variety of applications. Some of the most common applications for the WH106 chain include:(1) Heavy-duty conveyors: The WH106 welded steel mill chain is a popular choice for heavy-duty conveyors because it is strong and durable. The WH106 chain can handle high loads and can be used in harsh environments.(2) Forestry: The WH106 welded steel mill chain is also used in forestry applications, such as log handling and tree harvesting. The WH106 chain is strong enough to handle the weight of logs and can withstand the harsh conditions found in forests.(3) Grain handling: The WH106 welded steel mill chain is also used in grain handling applications, such as conveyors and elevators. The WH106 chain is strong enough to handle the weight of grain and can withstand the abrasive conditions found in grain handling facilities.(4) Pulp and paper: The WH106 welded steel mill chain is also used in pulp and paper applications, such as conveyors and chippers. The WH106 chain is strong enough to handle the weight of the pulp and can withstand the abrasive conditions found in pulp and paper mills.(5) Sugar processing: The WH106 welded steel mill chain is also used in sugar processing applications, such as conveyors and shredders. The WH106 chain is strong enough to handle the weight of sugar and can withstand the abrasive conditions found in sugar mills.In addition to these common applications, the WH106 welded steel mill chain can also be used in a variety of other applications, such as material handling, mining, construction, and manufacturing. The WH106 chain is a versatile and durable solution that can be used in a wide range of demanding applications.

▍WH106 Chain Sprockets for WH106 Chain

The WH106 welded steel mill chain is commonly used with sprockets that are designed to fit the chain's specific dimensions and pitch. The WH106 chain sprockets are typically made from heat-treated steel or other high-strength materials to withstand the high loads and harsh operating conditions of industrial applications.When selecting WH106 chain sprockets for use with a WH106 chain, it is important to choose sprockets that are designed to match the chain's pitch, width, and tooth profile. The sprocket teeth should also be hardened to resist wear and deformation under heavy loads.The WH106 chain and WH106 chain sprockets work together to transmit power and motion between different components in a machine or system. As the chain rotates around the sprockets, the rollers engage with the teeth to transmit torque and turn the connected machinery.Proper installation and maintenance of the WH106 chain and WH106 chain sprockets are essential for safe and reliable operation. It is important to ensure that the chain is properly tensioned and lubricated and that the sprockets are aligned and securely mounted to their shafts.Overall, the WH106 chain and WH106 chain sprockets are reliable and durable mechanical components that are widely used in heavy-duty industrial applications. By selecting the appropriate sprockets and maintaining the welded steel mill chain and sprockets properly, you can ensure the safe and efficient operation of your machinery.

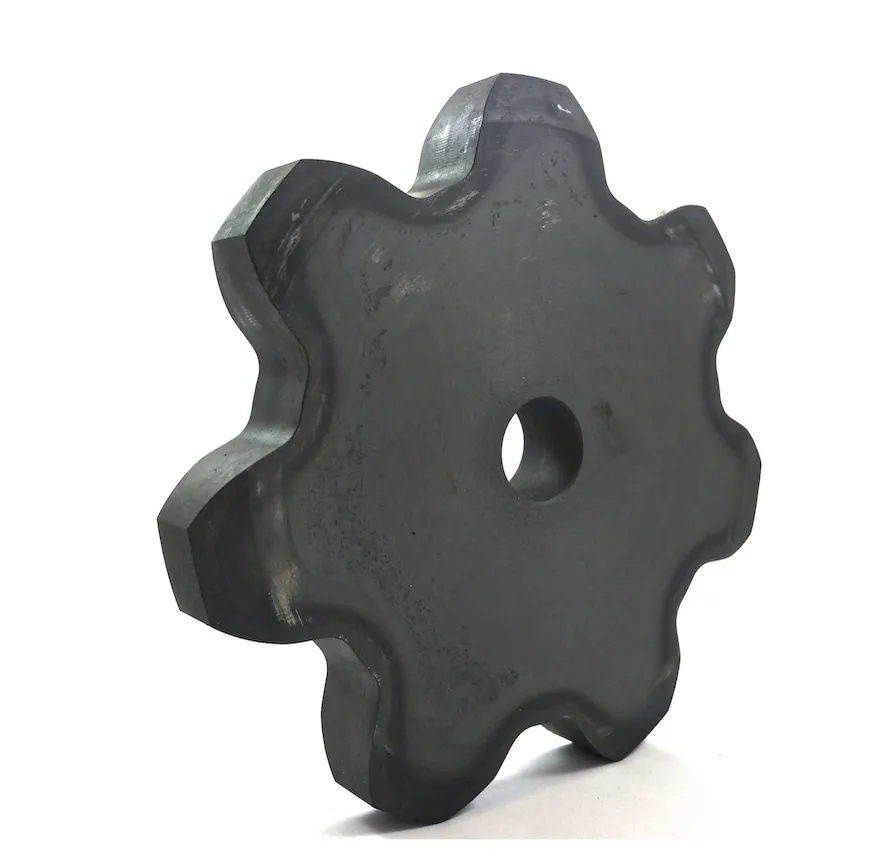

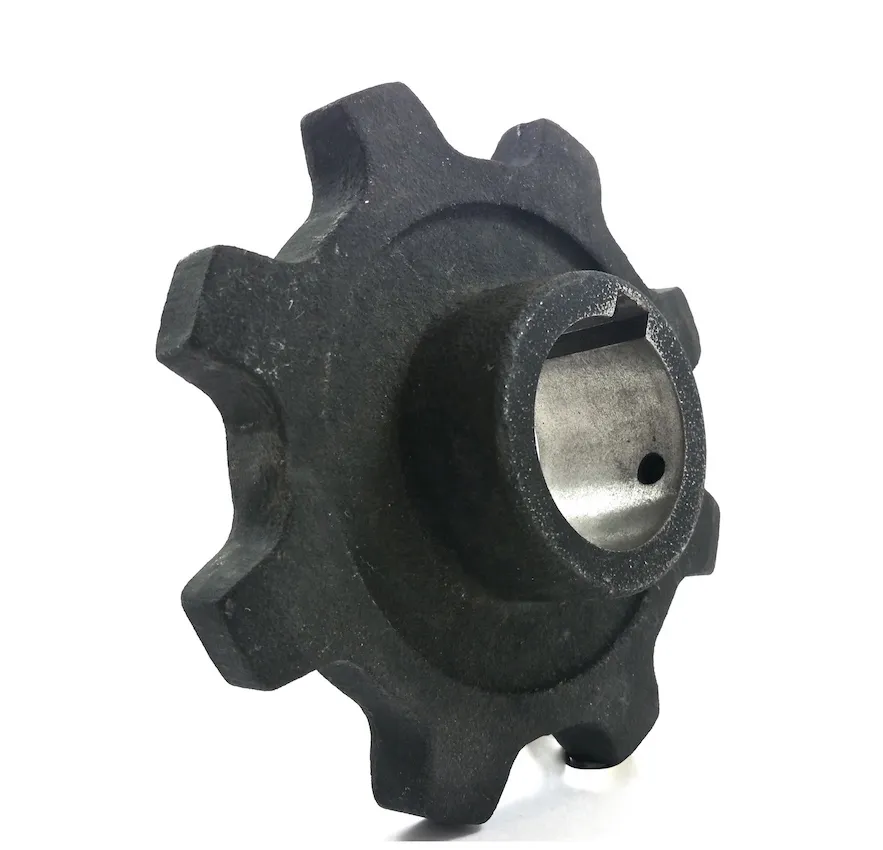

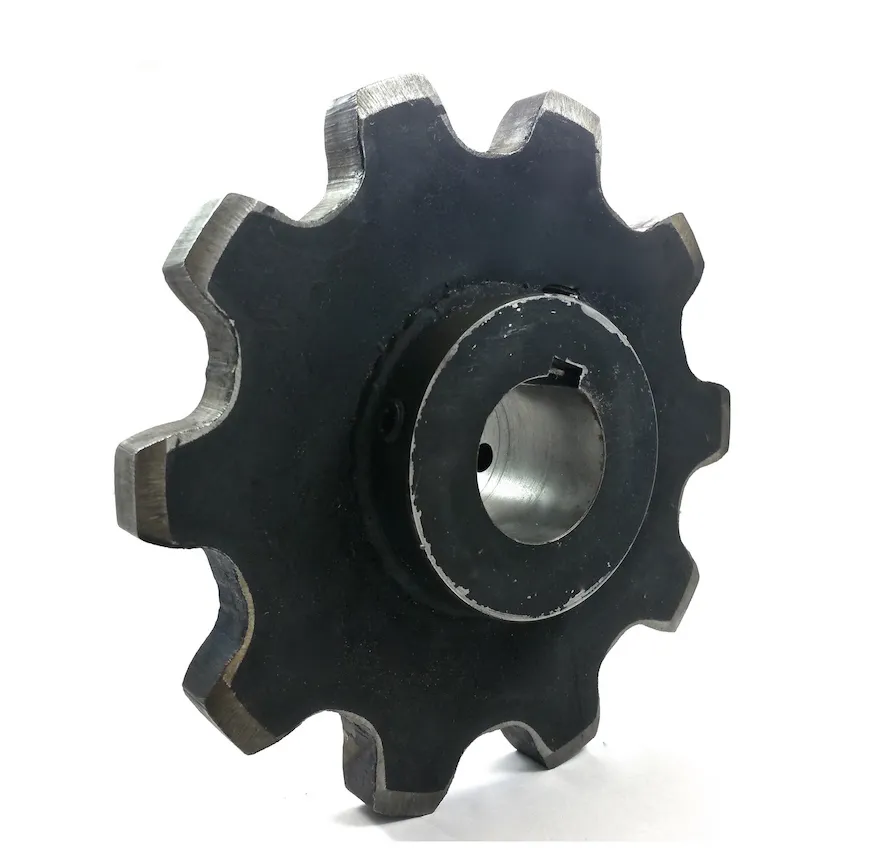

A-Plate WH106 Chain Sprockets	B-Hub WH106 Chain Sprockets	C-Hub WH106 Chain Sprockets

▍WH106 Welded Steel Mill Chain Maintenance:

The WH106 welded steel mill chain is a high-quality chain that can last for many years with proper maintenance. Here are some tips on how to maintain your WH106 chain:Inspect the chain regularly: Inspect the WH106 welded steel chain for any signs of wear or damage, such as kinks, rust, or missing links. If you see any problems, replace the chain immediately.Lubricate the chain regularly: Lubricating the WH106 welded steel chain will help to keep it running smoothly and prevent wear. Use a high-quality chain lubricant that is designed for industrial applications.Clean the chain regularly: Cleaning the WH106 welded steel chain will help to remove dirt, debris, and other contaminants that can cause wear. Use a mild detergent and water to clean the chain.Store the chain properly: When you're not using the WH106 welded steel chain, store it in a cool, dry place. This will help to prevent rust and corrosion.By following these tips, you can keep your WH106 chain running strong for many years to come.Here are some additional tips for maintaining your WH106 chain:Use the correct chain for your application: The WH106 chain is designed for heavy-duty applications. If you're using the WH106 chain for a lighter application, you may be able to get away with using a lighter WH106 chain. However, using a lighter WH106 chain than is recommended can increase the risk of wear and damage.Inspect the chain more often in harsh environments: If you're using the WH106 chain in a harsh environment, such as a dusty or dirty environment, you'll need to inspect the WH106 chain more often. This is because the WH106 chain is more likely to wear and damage in harsh environments.Replace the chain when it's worn out: Even with proper maintenance, the WH106 chain will eventually wear out. When this happens, it's important to replace the chain immediately. A worn-out chain can be a safety hazard.
