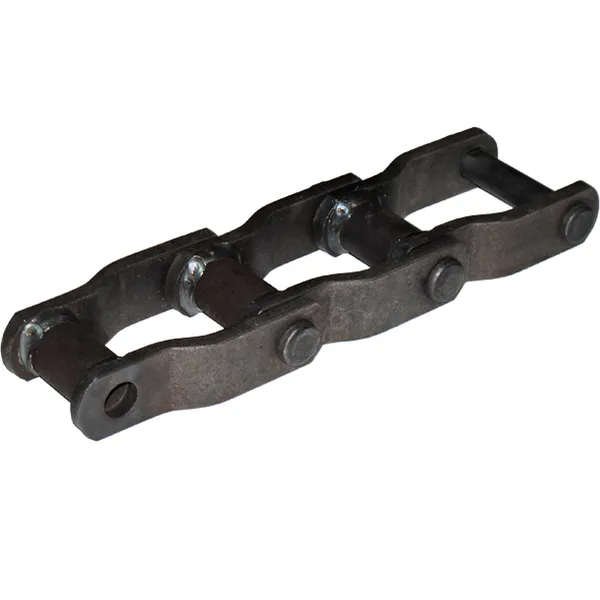

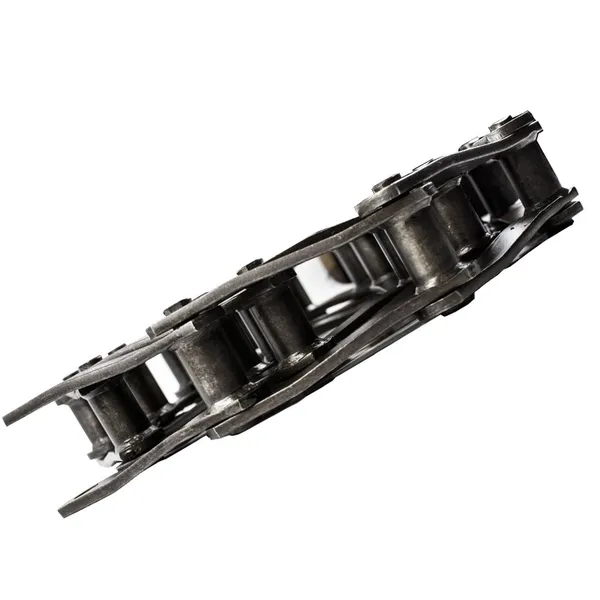

WH111 Chain WH111 Welded Steel Mill Chain

WH111 Chain WH111 Welded Steel Mill Chain

Our WH111 welded steel mill chain is manufactured to exceed expectations in working life, strength, and quality. The welded steel style chain is one of the most popular types of engineer class chains on the market. This is widely due to its effectively productive offset link design. With an ultra-high tensile strength of 91,000 lbs at a low per-foot weight of 9.5 lbs, the WH111 welded steel chain makes excellent and efficient use in whichever application it is used in. What makes our WH111 chain different is the fully heat-treated pins, barrels, side plates, and high-precision strengthened welds.We also use high-grade steel, so the core of the components has great metallurgy. Common applications for WH111 welded steel mill chains include heavy-duty conveyors, forestry, grain handling, pulp, paper, and sugar processing. This WH111 chain is supplied as 10' coils (26 link strands) and is supplied with one heat-treated connecting pin per coil. The WH111 welded steel mill chain is a versatile and durable chain that can be used in a variety of demanding applications. It is a good choice for applications where high strength and durability are required.

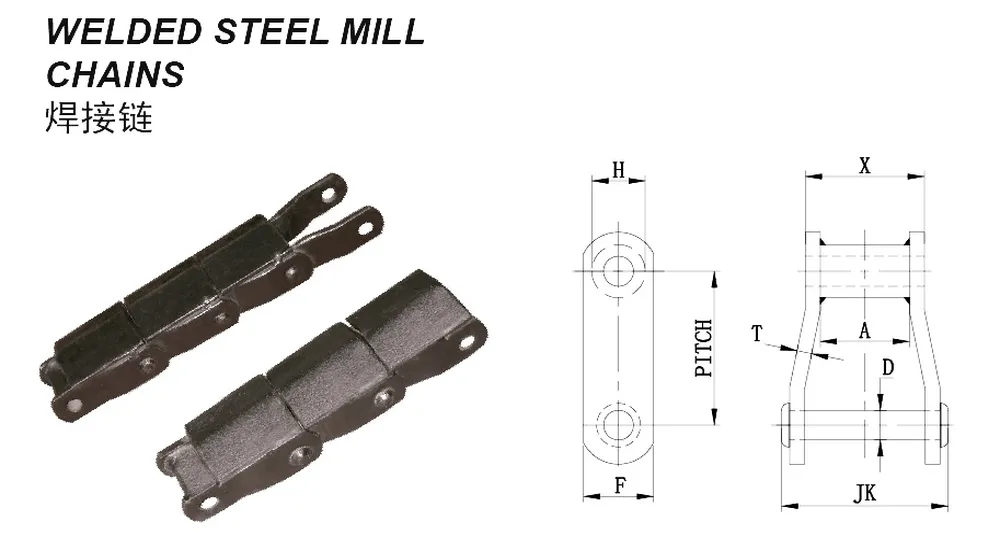

▍WH111 Welded Steel Mill Chain Specifications:

Chain No.	Pitch	Average Ultimate Strength LBS.	Rated Working Load LBS.	?Approx Link in 10 Feet	Average Weight Per Foot	X	D	T	F	H	A
WH111 Chain	4.760	91000	8850	26	9.5	3.38	0.75	0.38	1.75	1.25	2.00

▍WH111 Welded Steel Mill Chain Advantages:

The WH111 welded steel mill chain has a number of advantages, including:1. High tensile strength: The WH111 welded steel mill chain has a tensile strength of 91,000 lbs, which makes it one of the strongest chains on the market. This makes it a good choice for applications where high strength is required, such as heavy-duty conveyors and forestry equipment.2. Offset link design: The offset link design of the WH111 welded steel chain makes it more efficient and productive. The offset links allow the chain to move more smoothly over sprockets, which reduces friction and wear.3. Fully heat-treated construction:?The WH111 chain is made of high-grade steel and has a fully heat-treated construction. This gives the chain its high tensile strength and makes it more durable.4. Low per-foot weight: The WH111 welded steel mill chain has a low per-foot weight of 9.5 lbs. This makes it a lightweight chain that is easy to transport and install.5. Available in 10' coils: The WH111 welded steel chain is available in 10' coils. This makes it easy to purchase the amount of chain you need for your application.6. Long service life:?The WH111 chain is designed to last for many years. The heat-treated construction and high tensile strength make it resistant to wear and tear.7. Easy to maintain: The WH111 welded steel mill chain is easy to maintain. The links are designed to be easily removed and replaced, so you can keep your chain in good working condition.8. Cost-effective: The WH111 chain is a cost-effective option for a high-strength chain. The low per-foot weight and long service life make it a good value for your money.If you are looking for a high-strength, durable, and cost-effective chain for your application, the WH111 welded steel mill chain is a good option to consider.

▍WH111 Welded Steel Mill Chain Attachments

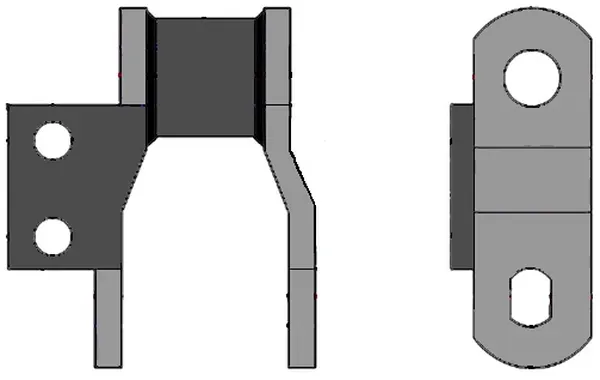

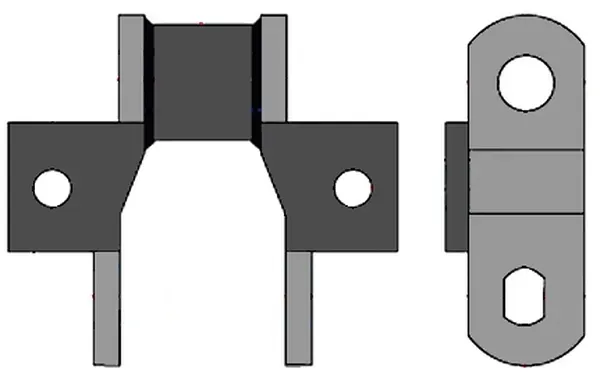

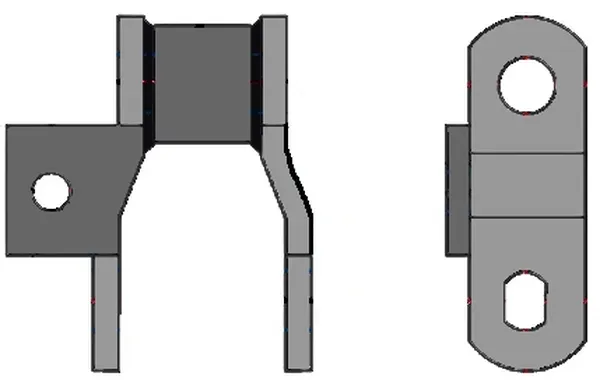

WH111 Chain A1 Attachment	WH111 Chain A2 Attachment	WH111 Chain K1 Attachment	WH111 Chain K2 Attachment

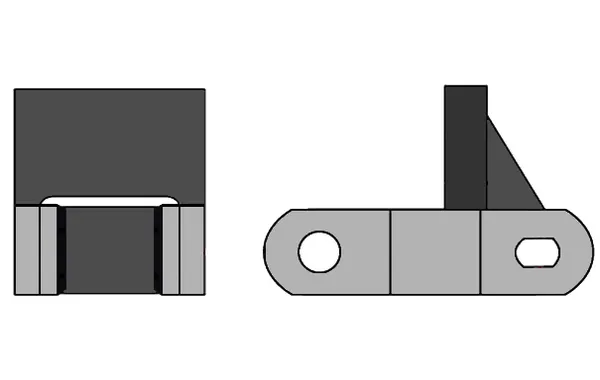

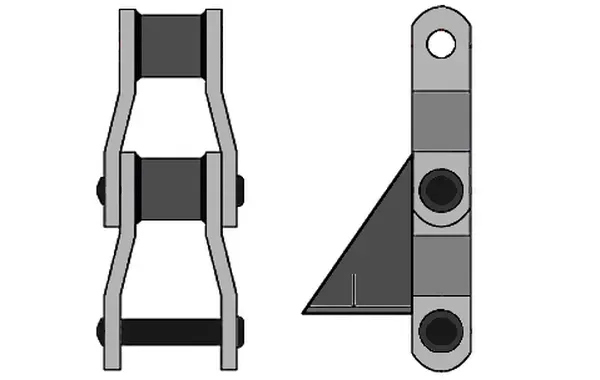

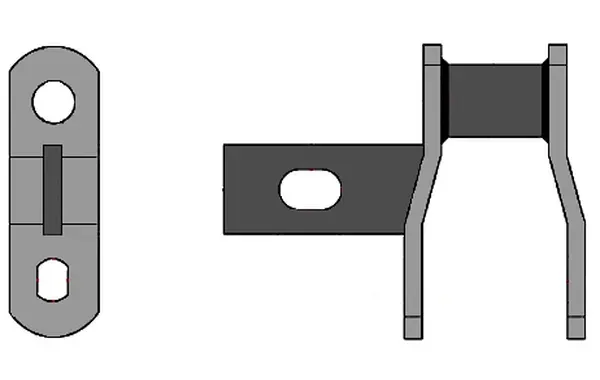

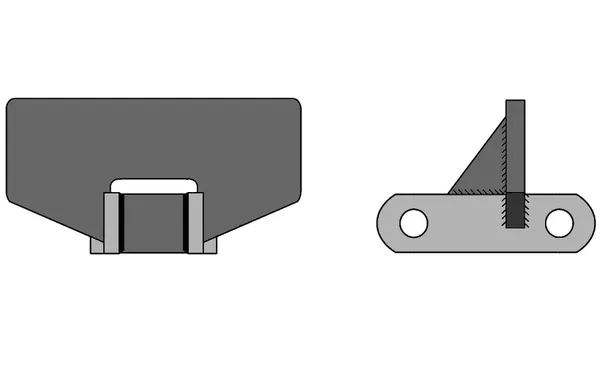

WH111 Chain A22 Attachment	WH111 Chain S1 Attachment	WH111 Chain RF12 Attachment	WH111 Chain RF2 Attachment

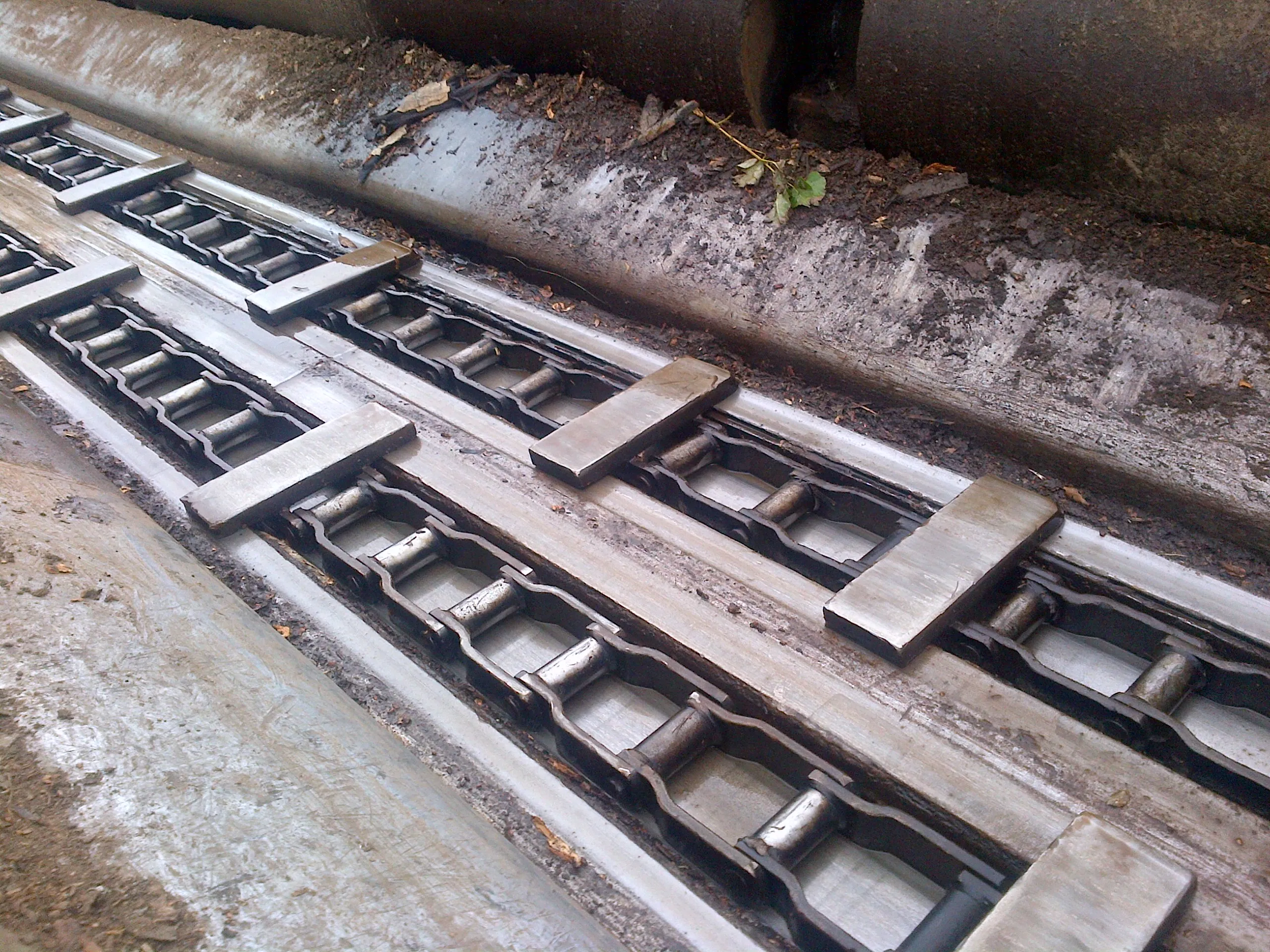

▍Applications of WH111 Welded Steel Mill Chain:

The WH111 welded steel mill chain is a versatile chain that can be used in a variety of demanding applications. Here are some of the most common applications for WH111 welded steel chains:

• Forestry: WH111 welded steel mill chain is often used in forestry applications, such as logging and sawmills. The high strength and durability of the chain make it a good choice for these applications.
• Grain handling: WH111 welded steel mill chain is also used in grain handling applications, such as grain elevators and feed mills. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.
• Pulp, paper, and sugar processing: WH111 welded steel chain is also used in pulp, paper, and sugar processing applications. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.
• Material handling: WH111 welded steel chain is also used in material handling applications, such as loading docks and warehouses. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.
• Construction: WH111 welded steel mill chain is also used in construction applications, such as excavators and bulldozers. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.
• Mining: WH111 welded steel chain is also used in mining applications, such as hoists and conveyors. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.
• Manufacturing: WH111 welded steel mill chain is also used in manufacturing applications, such as assembly lines and stamping machines. The high tensile strength of the chain makes it resistant to wear and tear, and the offset link design reduces friction and wear.

These are just a few of the many applications for WH111 welded steel chains. If you are looking for a high-strength, durable, and versatile chain for your application, the WH111 welded steel mill chain is a good option to consider.

▍WH111 Chain Sprockets for WH111 Welded Steel Mill Chain

WH111 chain sprockets and WH111 welded steel mill chains are designed to work together. The chain sprockets have a special offset design that matches the offset link design of the WH111 chain. This allows the chain to move more smoothly over the sprockets, which reduces friction and wear.WH111 chain sprockets are made of high-grade steel and have a heat-treated construction. This makes them strong and durable, and they can withstand the high loads and stresses that are common in industrial applications.WH111 welded steel mill chain is also made of high-grade steel and has a heat-treated construction. This gives the chain its high tensile strength and makes it more durable. The offset link design of the WH111 chain also helps to reduce friction and wear, which further extends the life of the chain.If you are using WH111 welded steel mill chain, it is important to use WH111 chain sprockets. This will ensure that the chain and sprockets work together smoothly and efficiently, and it will help to extend the life of both the chain and sprockets.Here are some of the benefits of using WH111 chain sprockets and WH111 welded steel mill chain together:

• Smoother operation:?The offset design of the chain sprockets and chain allows the chain to move more smoothly over the sprockets, which reduces friction and wear.
• Increased efficiency:?The smoother operation of the chain and sprockets can lead to increased efficiency in your application.
• Extended life:?The heat-treated construction of the chain and sprockets makes them strong and durable, which can help to extend their life.
• Safer operation:?The smooth operation of the chain and sprockets can help to reduce the risk of accidents, such as chain slips or sprocket breaks.

If you are looking for a high-strength, durable, and efficient chain and sprocket system for your application, WH111 chain sprockets and WH111 welded steel mill chain are a good option to consider.

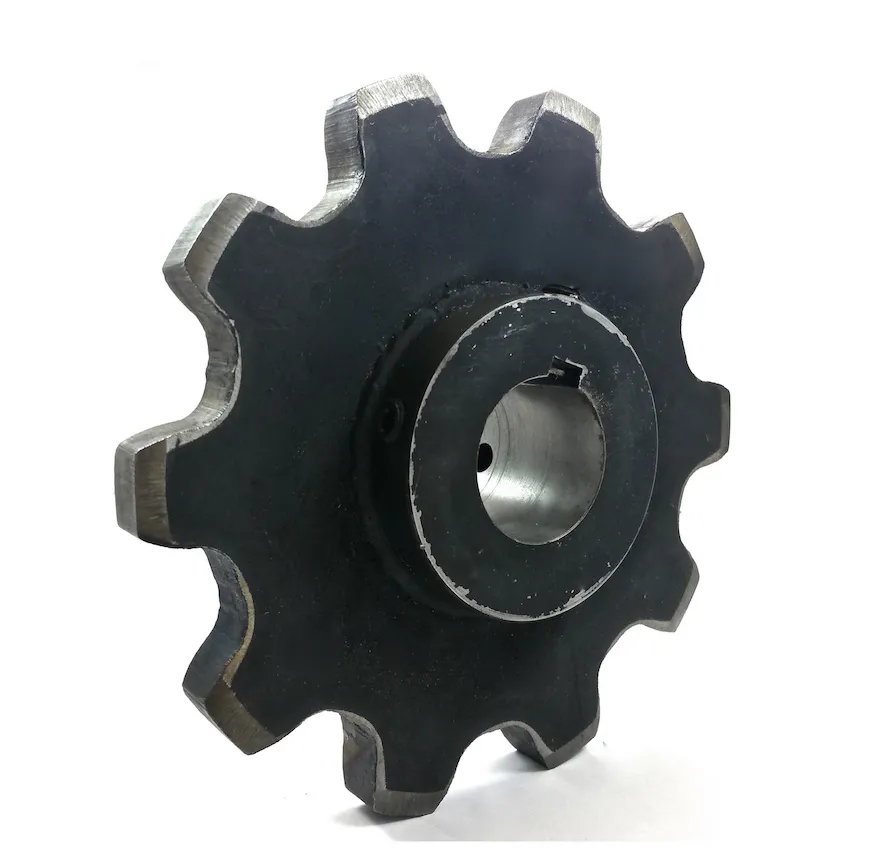

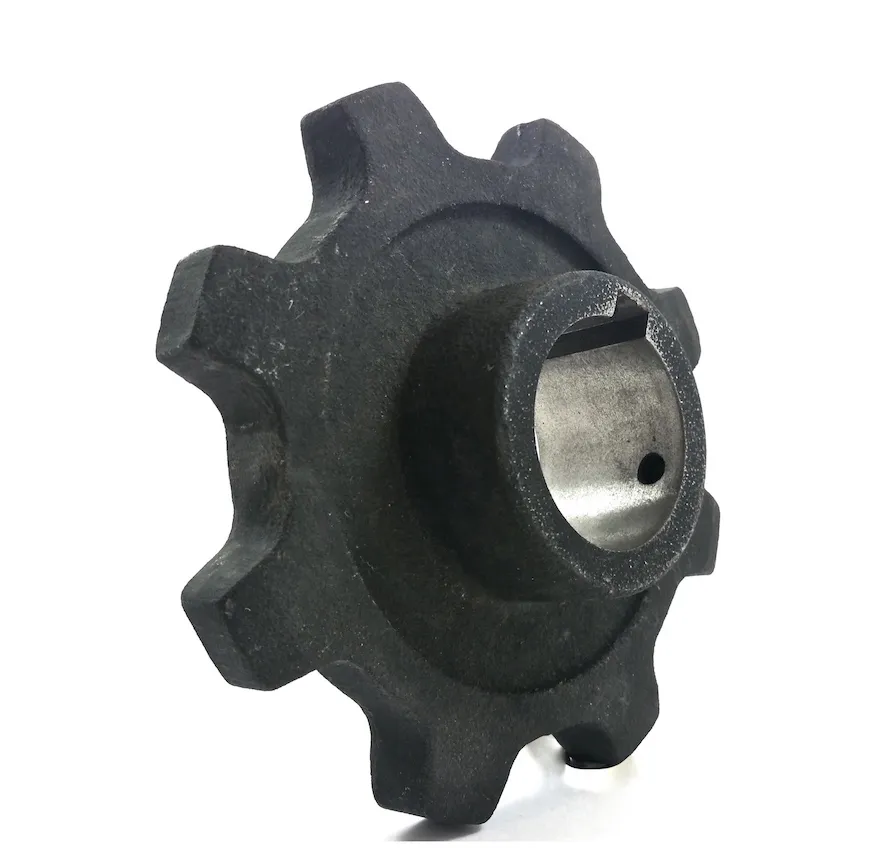

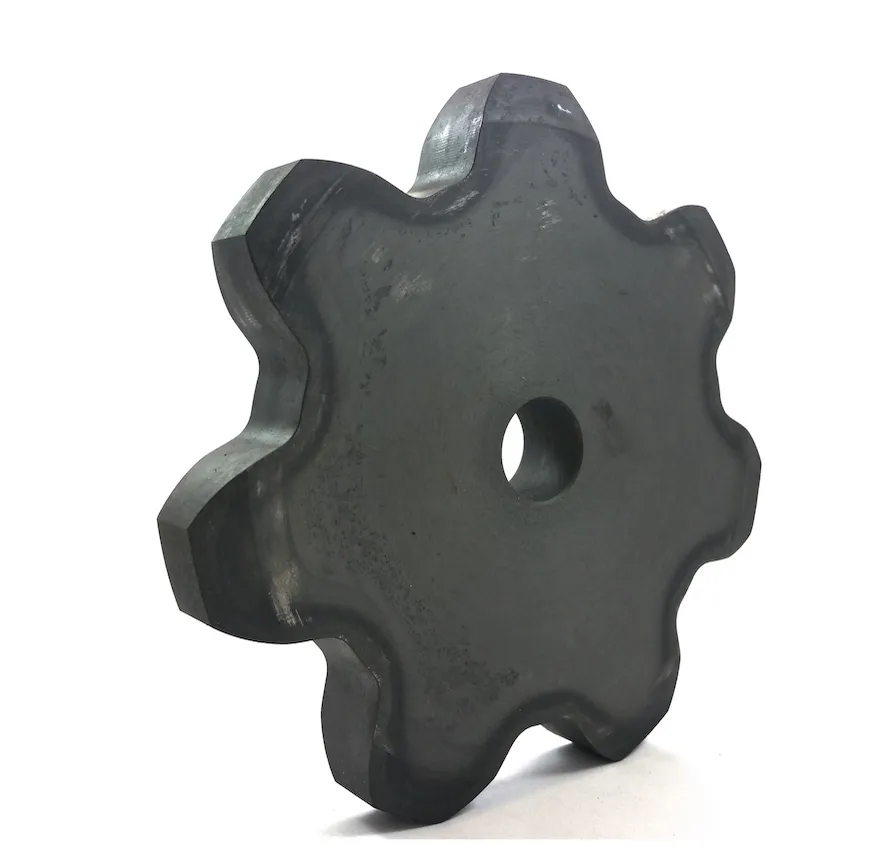

A-Plate WH111 Chain Sprockets	B-Hub WH111 Chain Sprockets	C-Hub WH111 Chain Sprockets

▍China Welded Steel Mill Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains,?palm oil chains,?sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?agricultural chains, silent chains, PIV chains,?stainless steel chains,?car parking chain, slient chain, engineering chain,?steel pintle chain,?welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
